Square D™

EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise

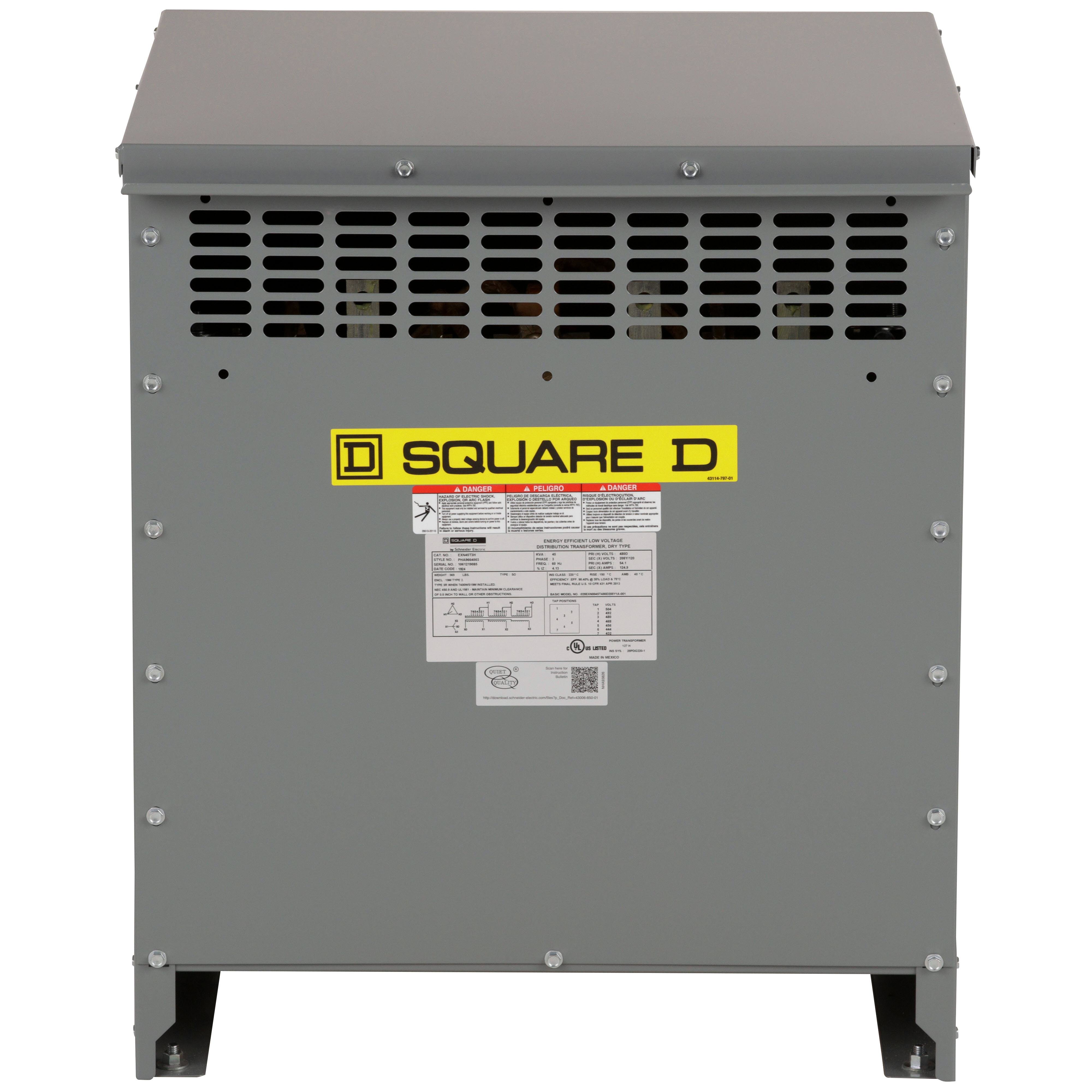

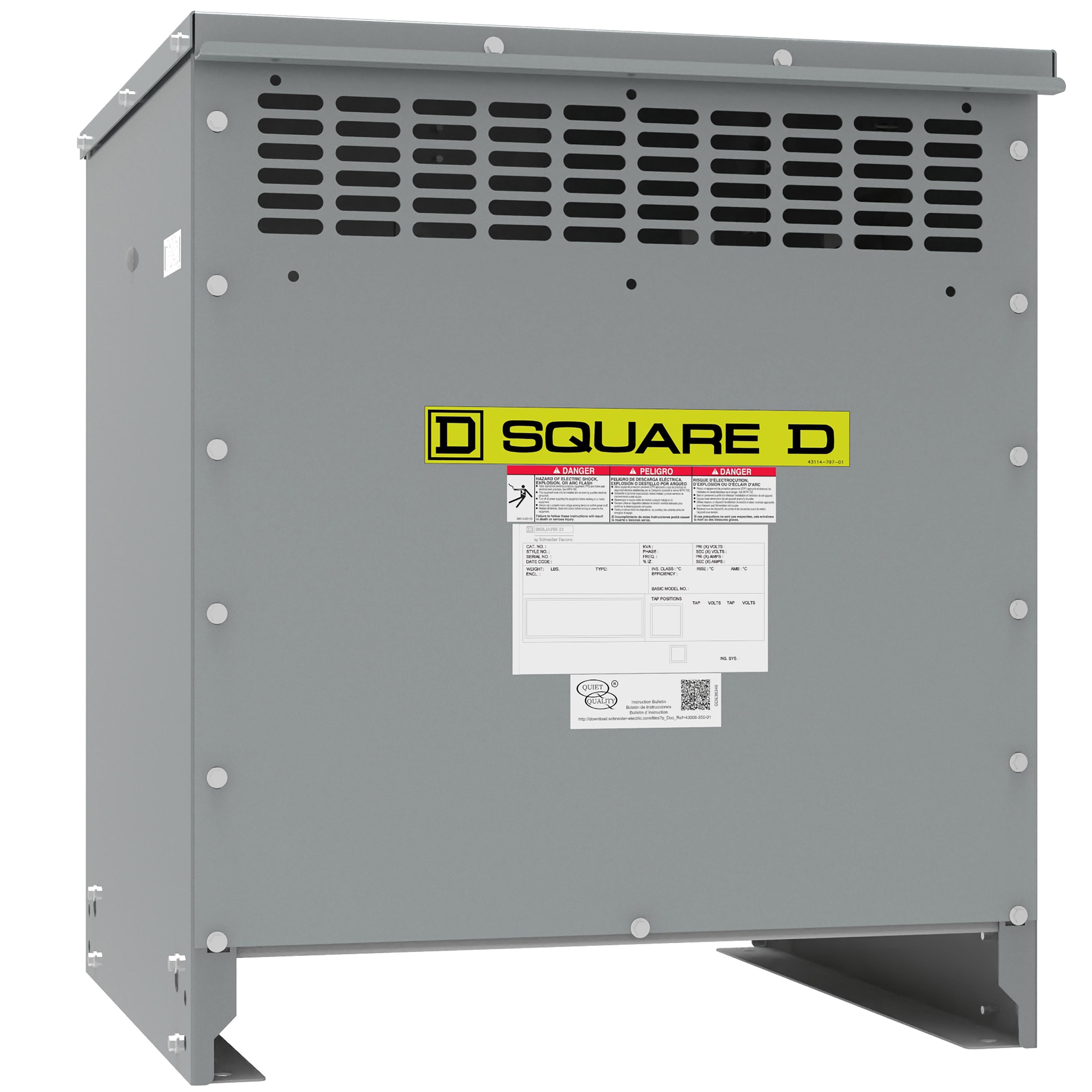

Picture of EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise Picture of EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise
Picture of EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise Picture of EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise
Picture of EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise Picture of EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise
Square D™

EXN45T3H - Transformer, dry type, DOE 2016, 45kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 19M, 150C rise

Item Code: 1056694
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EXN45T3H

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 45kVA, 480V primary (three wire), 208Y/120V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 98.40% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.

Specifications

Weight

390.17lb

Height

745mm

Width

31.7mm

Length

30.71mm

Depth

659mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/exn45t3h/exn45t3h.spin

AD All Features

Space-saving design

AD Alternative Part Number

14670484

AD Application

For low voltage electrical distribution applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD Gtin

00785901272588

AD IDEA Index ID

14670484

AD Invoice Description

TRANSFORMER 480 DELTA VAC 208Y/120 VAC

AD Item Features 01

Space-saving design

AD Item Features 02

Terminals sized to handle Square D equipment

AD Item Features 03

Bending radius for side and bottom access

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

30.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

390.1700

AD Package Weight UOM

LB

AD Package Width

31.7000

AD Package Width UOM

IN

AD Part Number Keywords

EXN45T3H ; 14670484 ; 785901272588 ; 78590127258 ; 00785901272588

Brand

Square D

Category

THREE PHASE GENERAL PURPOSE DRY TYPE TRANSFORMERS 600V OR LESS

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

659 mm L x 648 mm W x 35.31 in H

Spec 10 Attribute

Primary Voltage

Spec 10 Attribute Value

480 Delta V AC

Spec 11 Attribute

Secondary Voltage

Spec 11 Attribute Value

208Y/120 V AC

Spec 12 Attribute

Series

Spec 12 Attribute Value

XFMR

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

150

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type 4 Dry Energy Efficient Low Voltage

Spec 2 Attribute

Efficiency

Spec 2 Attribute Value

DOE 2016 98.53%

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Maximum Amperage Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

2.5

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Ceiling/Floor

Spec 7 Attribute

Number of Taps

Spec 7 Attribute Value

4-Feb

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

kVA

Spec 9 Attribute Value

45
