Square D

EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC

Category Multiple Meter Banks, Centers & Packs

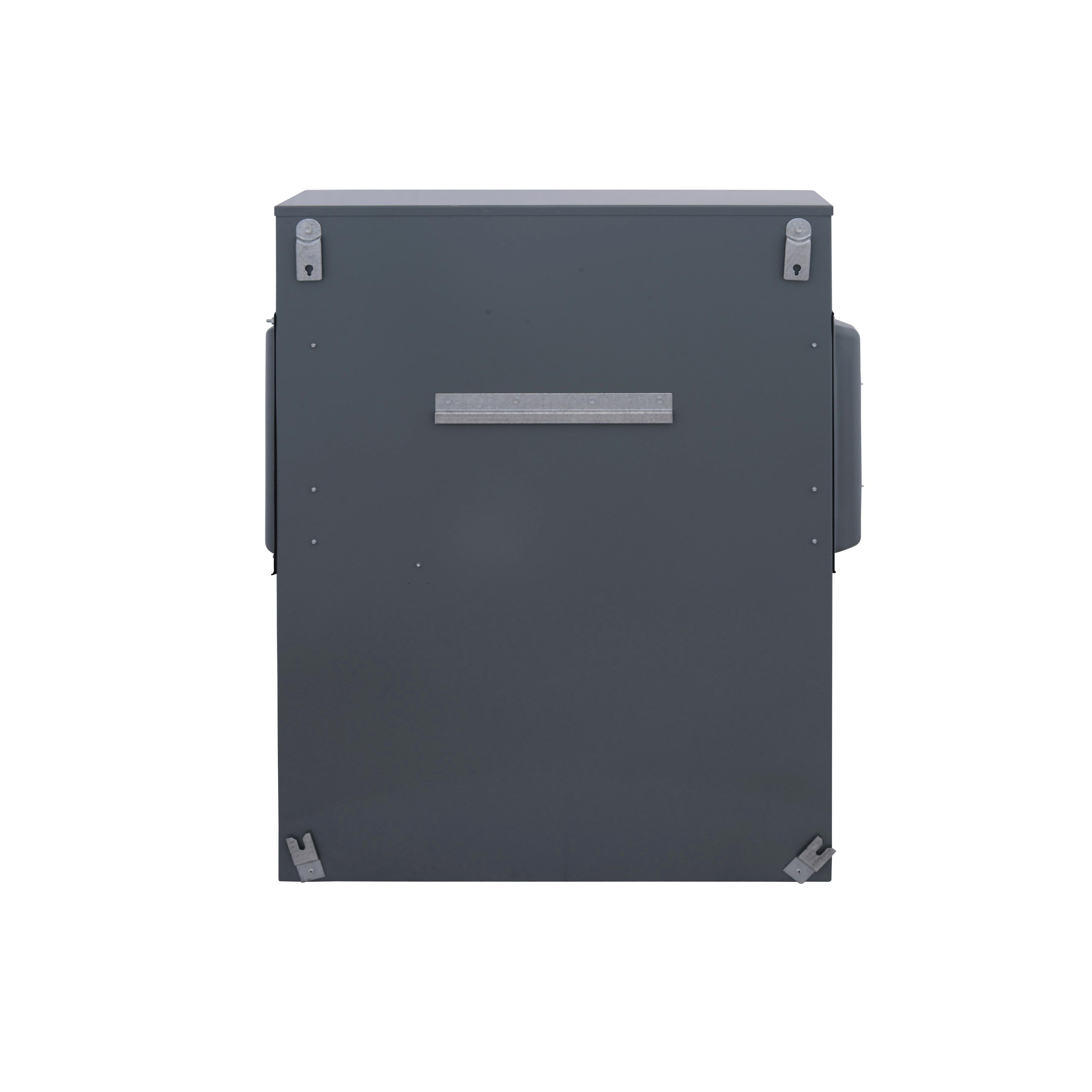

Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC

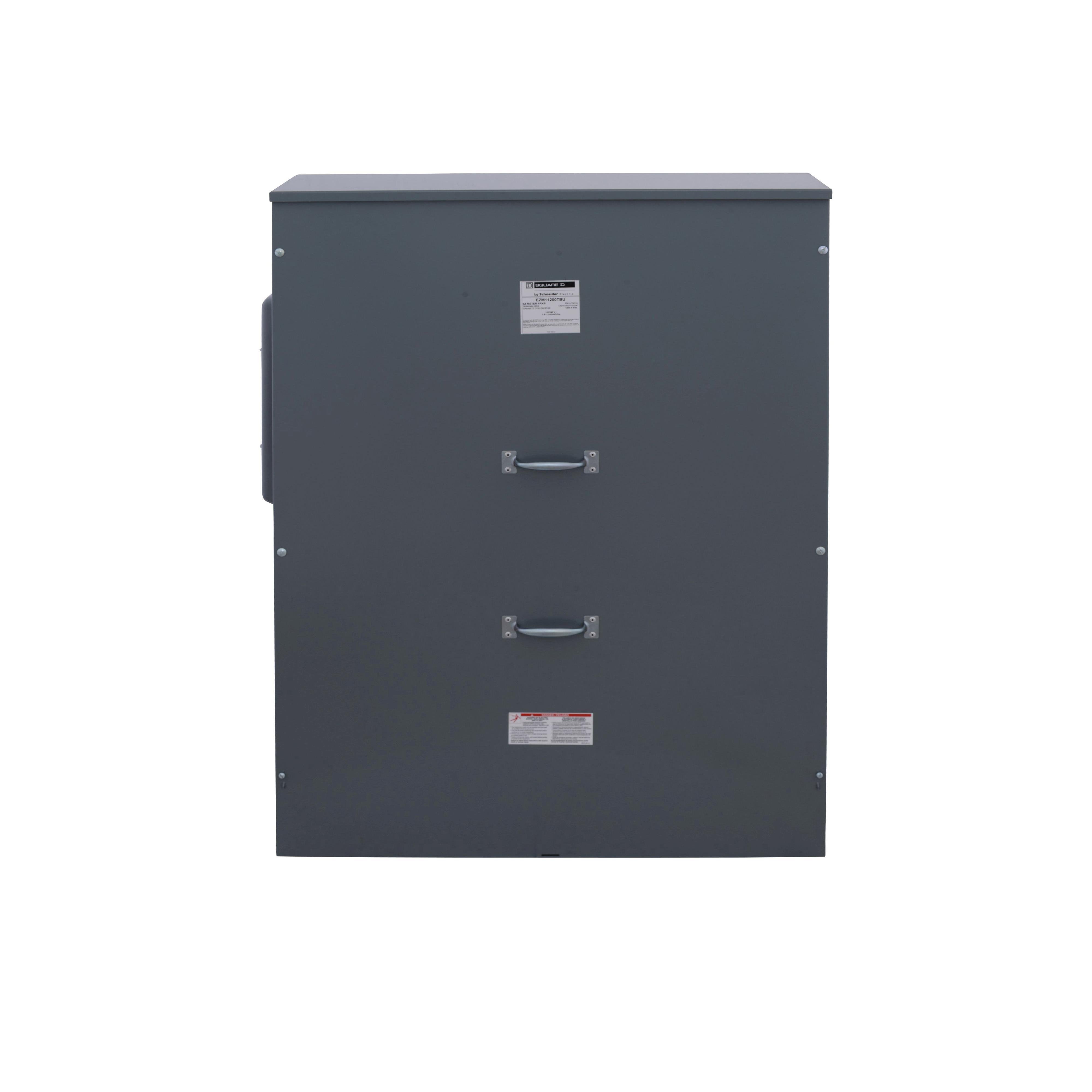

Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC

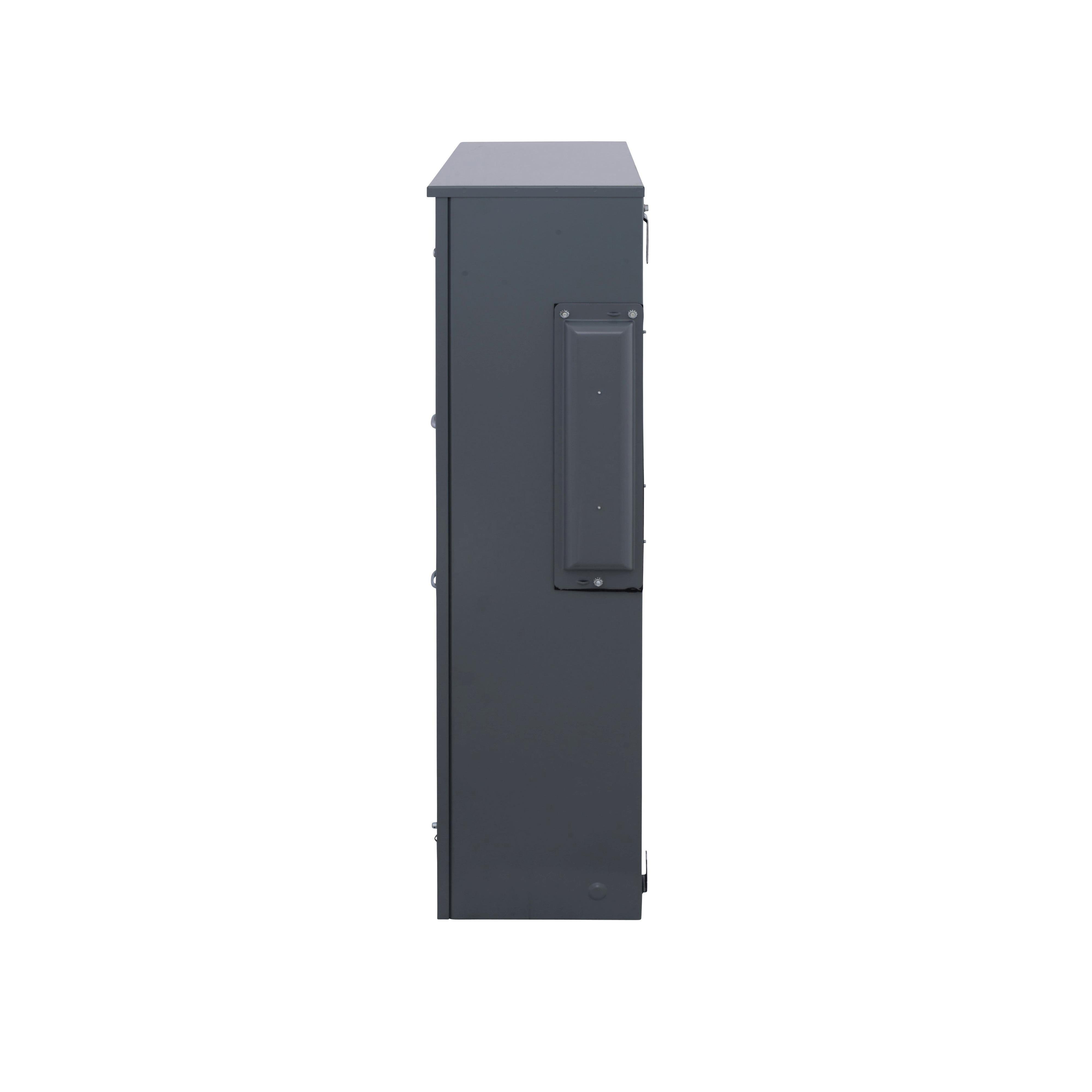

Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC
Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC Picture of EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC
Square D

EZM11200TBU - Main lugs unit, EZ Meter-Pak, 1200A, 120/240VAC, 1ph/3W, 1200A bus, UG, Type 3R, EUSERC

Item Code: 633409
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM11200TBU

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.

Specifications

Weight

87.81

Width

32.84

Length

11

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BOX TERM MAIN 120/240VAC 1200A 1PH UGND

AD Item Features 01

Main circuit breaker, fusible switch, or lug terminal boxes available

AD Item Features 02

Meter-Pak units from 225A to 2000A

AD Item Features 03

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 04

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 05

External mounting channels allow immediate installation

AD Item Features 06

Compact footprint for installation flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

11.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

87.8100

AD Package Weight UOM

LB

AD Package Width

32.8400

AD Package Width UOM

IN

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

1200

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

33.16 in W x 11.12 in D x 44.71 in H

Spec 3 Attribute

Feed Type

Spec 3 Attribute Value

Underground

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Surface

Spec 5 Attribute

Operating Temperature

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

1

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Lug

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

(1) Cable #6 AWG to 300 kcmil Ground
