Square D

EZM115225 - Branch unit, EZ Meter-Pak, 225A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar

Category Miscellaneous

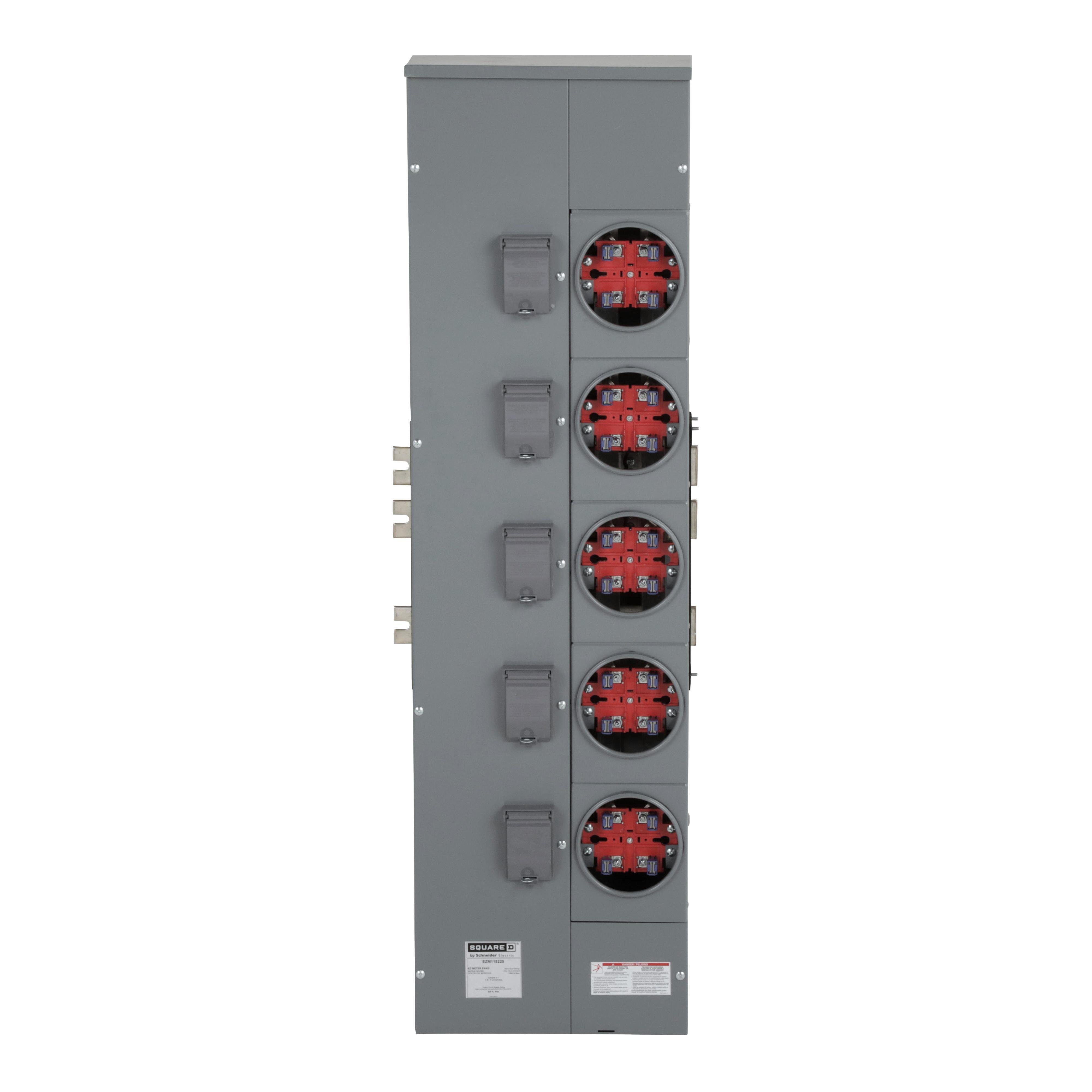

Picture of EZM115225 - Branch unit, EZ Meter-Pak, 225A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar Picture of EZM115225 - Branch unit, EZ Meter-Pak, 225A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar
Picture of EZM115225 - Branch unit, EZ Meter-Pak, 225A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar Picture of EZM115225 - Branch unit, EZ Meter-Pak, 225A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar
Square D

EZM115225 - Branch unit, EZ Meter-Pak, 225A, 5 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 1200A Al/Cu busbar

Item Code: 579687
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM115225

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 225A. It has 5 four jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

82.83

Width

19.81

Length

61.42

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EZM115225/EZM115225.spin

AD Alternative Part Number

8127914

AD Application

For used as service equipment and use on the line side of service equipment

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901299974

AD Gtin

00785901299974

AD IDEA Index ID

8127914

AD Invoice Description

UNIT BR CTR MTR 120/240VAC 225A 1 4 RING

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

NEMA Type 3R for outdoor and indoor installation

AD Keywords

Meter-Pak EZM115225 EZM 5-Position Meter Center Branch Unit, 120/240 V AC, 225 A, 1 Phase , NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZM115225 ; EZM115225 ; 785901299974 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

61.4200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

82.8300

AD Package Weight UOM

LB

AD Package Width

19.8100

AD Package Width UOM

IN

AD Part Number Keywords

EZM115225 ; 8127914 ; 785901299974 ; 78590129997 ; 00785901299974 ; 0785901299974

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

61 in H x 17.38 in W x 8.09 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

4

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Series

Spec 8 Attribute Value

EZM

Spec 9 Attribute

Type

Spec 9 Attribute Value

5-Position
