Square D

EZM116125 - Branch unit, EZ Meter-Pak, 125A, 6 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar

Category Miscellaneous

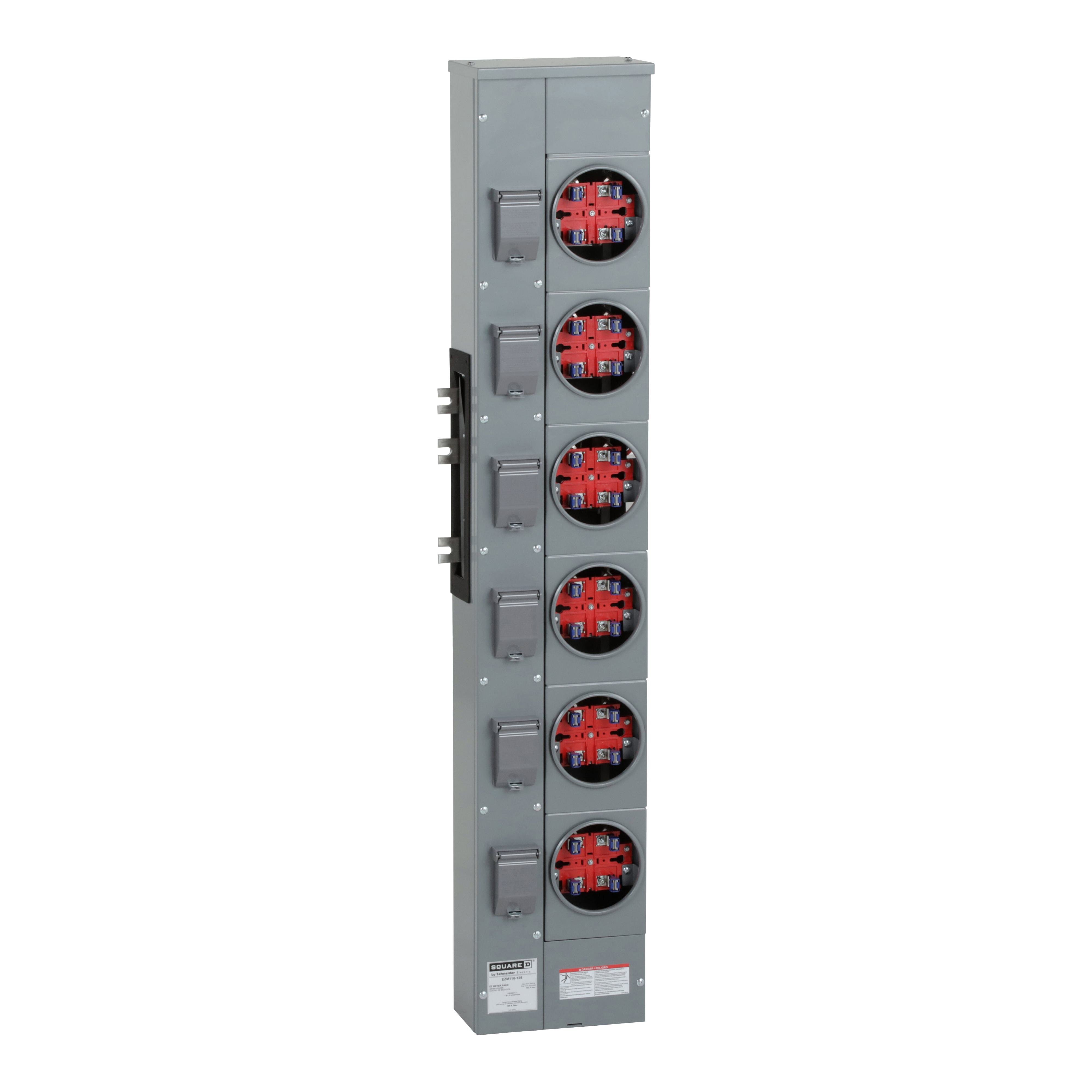

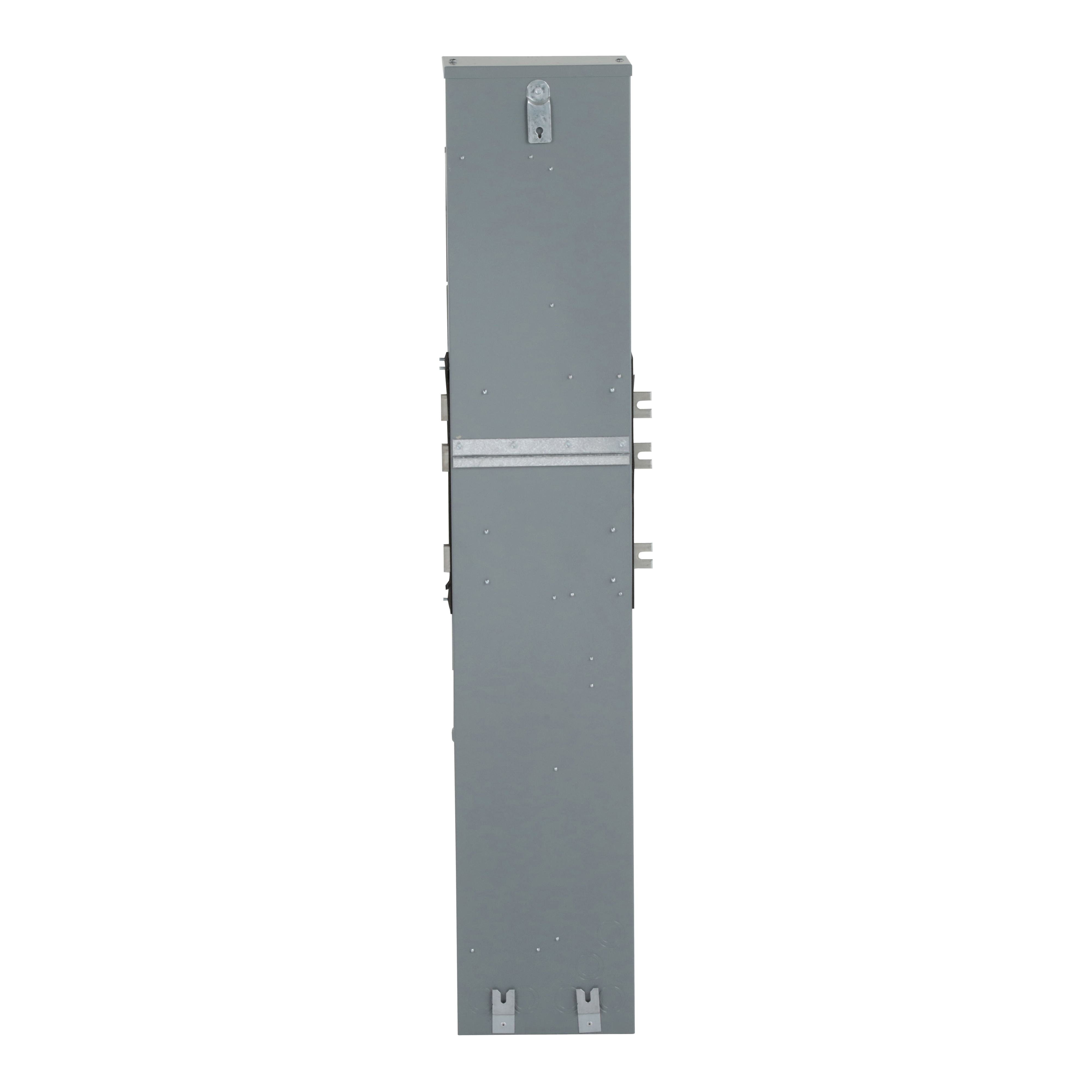

Picture of EZM116125 - Branch unit, EZ Meter-Pak, 125A, 6 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar Picture of EZM116125 - Branch unit, EZ Meter-Pak, 125A, 6 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar
Picture of EZM116125 - Branch unit, EZ Meter-Pak, 125A, 6 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar Picture of EZM116125 - Branch unit, EZ Meter-Pak, 125A, 6 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar
Square D

EZM116125 - Branch unit, EZ Meter-Pak, 125A, 6 x 4 jaw sockets, 120/240VAC, no bypass, ringed, 800A Al busbar

Item Code: 32744
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM116125

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 125A. It has 6 four jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

82.43

Width

14.55

Length

66.38

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EZM116125/EZM116125.spin

AD Alternative Part Number

8131056

AD Application

For used as service equipment and use on the line side of service equipment

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901308935

AD Gtin

00785901308935

AD IDEA Index ID

8131056

AD Invoice Description

UNIT BR CTR MTR 120/240VAC 125A 1 4 RING

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

NEMA Type 3R for outdoor and indoor installation

AD Keywords

Meter-Pak EZM116125 6-Position Meter Center Branch Unit, 120/240 V AC, 125 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZM116125 ; EZM116125 ; 785901308935 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

66.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

82.4300

AD Package Weight UOM

LB

AD Package Width

14.5500

AD Package Width UOM

IN

AD Part Number Keywords

EZM116125 ; 8131056 ; 785901308935 ; 78590130893 ; 00785901308935 ; 0785901308935

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120/240

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

66.12 in H x 12.25 in W x 7.09 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

4

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Series

Spec 8 Attribute Value

EZM

Spec 9 Attribute

Type

Spec 9 Attribute Value

6-Position
