Square D

EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R

Category Miscellaneous

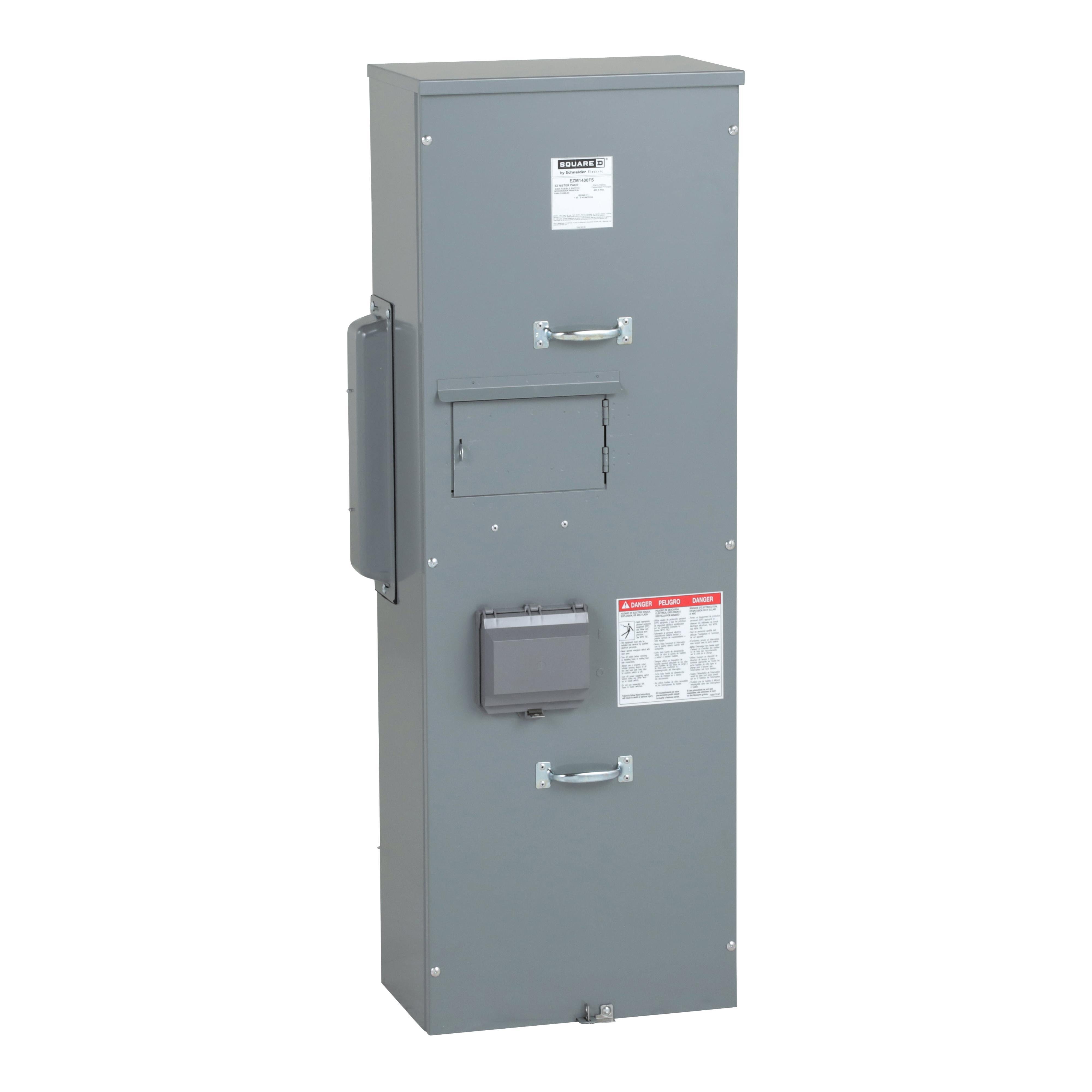

Picture of EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R Picture of EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R

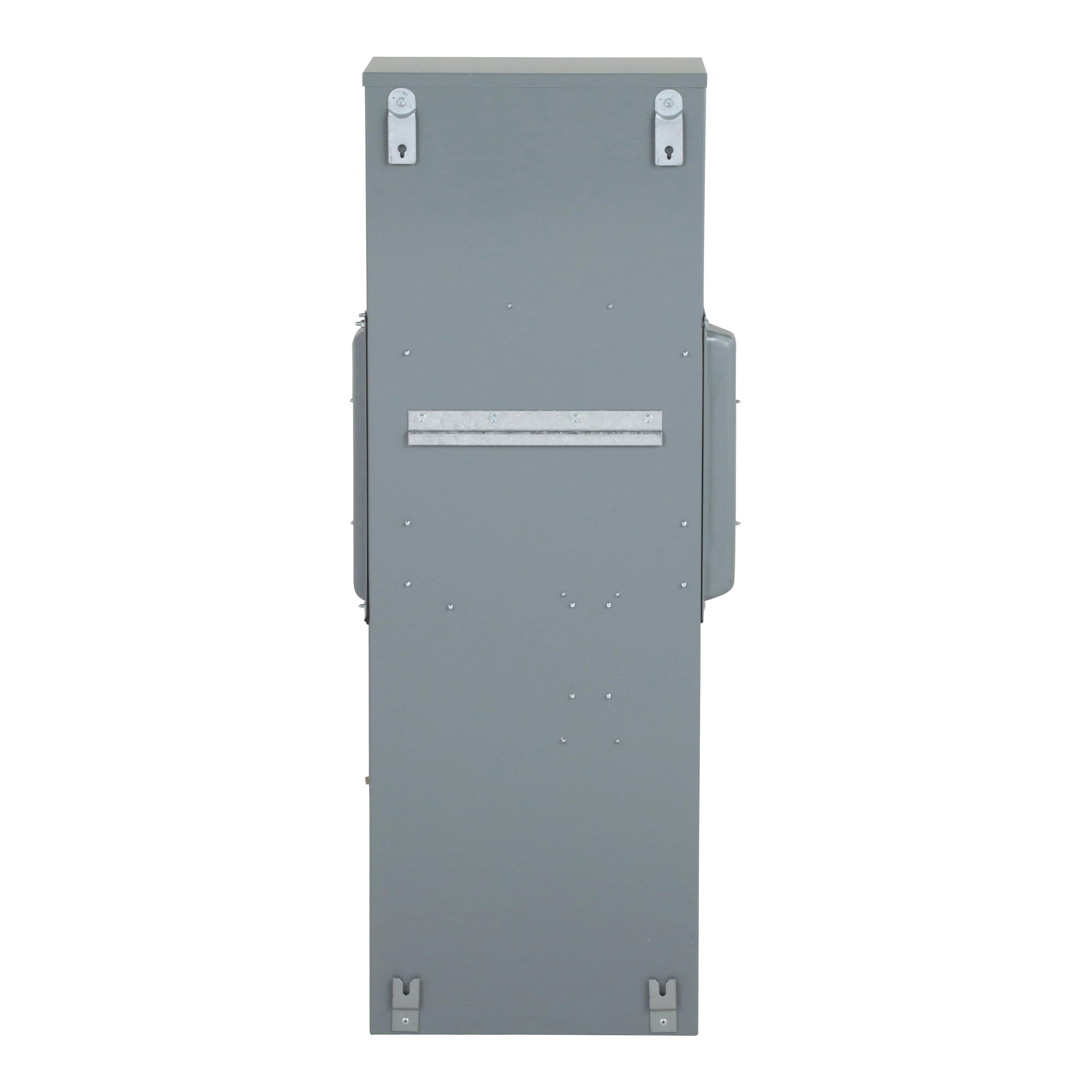

Picture of EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R Picture of EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R

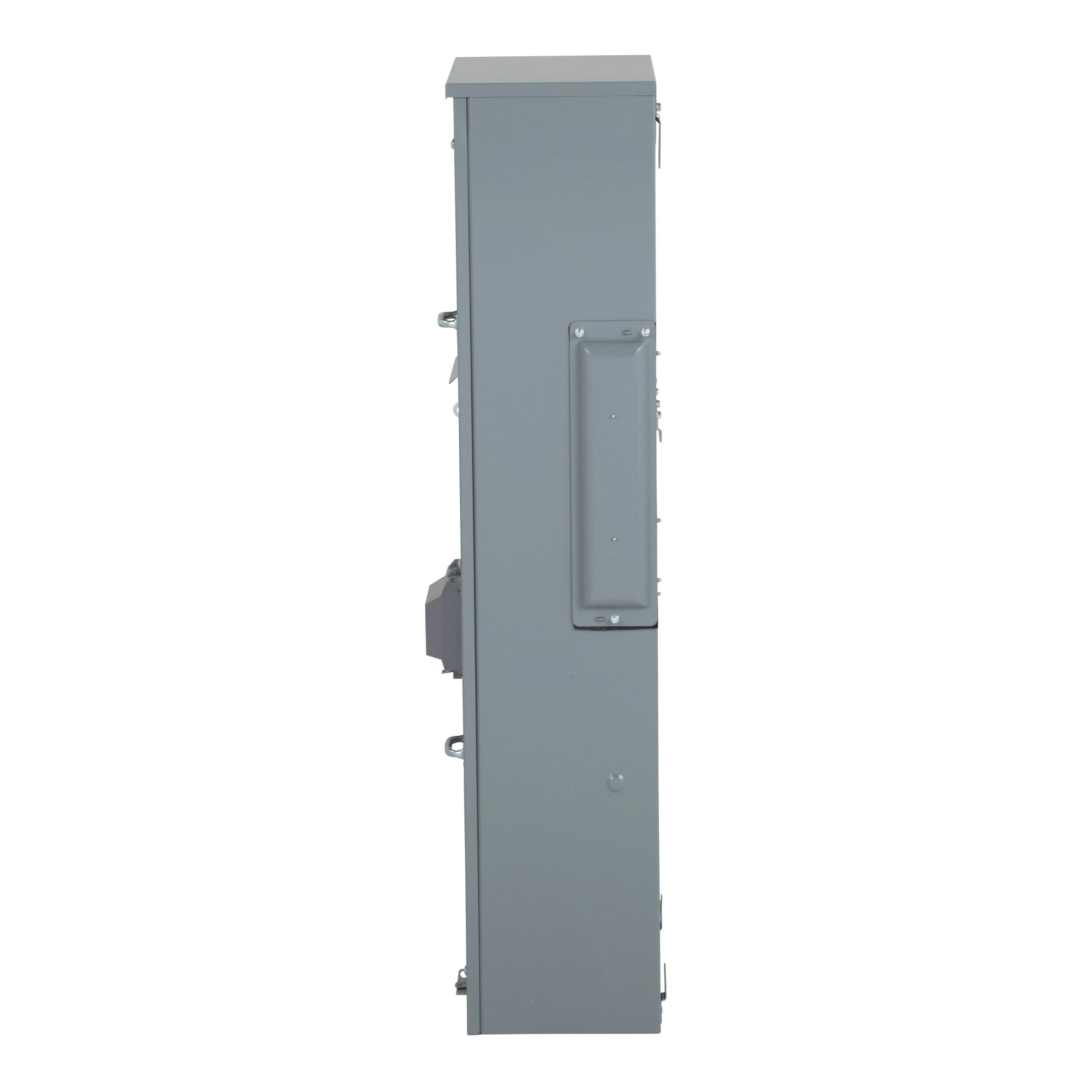

Picture of EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R Picture of EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R
Square D

EZM1400FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 400A, 120/240VAC, 1ph/3W, 400A bus, OH/UG, Type 3R

Item Code: 45684
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM1400FS

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main fusible switch provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from OH or UG feeds. The unit is rated for 400A with the busbar rated for 400A. With a 300V Class T fuse, the short circuit current rating is 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

100.79

Width

22.78

Length

54.48

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EZM1400FS/EZM1400FS.spin

AD Alternative Part Number

8129866

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901304777

AD Gtin

00785901304777

AD IDEA Index ID

8129866

AD Includes

2-Pole 400 A Main Switch and Closing Plate

AD Invoice Description

SWITCH FSBL MAIN 120/240VAC 400A 1 L/LUG

AD Item Features 01

Meter-Pak units from 225A to 2000A

AD Item Features 02

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 03

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 04

External mounting channels allow immediate installation

AD Item Features 05

Compact footprint for installation flexibility

AD Keywords

EZ Meter-Pak EZM1400FS Main Fusible Switch, 120/240 V AC, 400 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZM1400FS ; EZM1400FS ; 785901304777 ; Meter Mains

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

54.4800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

100.7900

AD Package Weight UOM

LB

AD Package Width

22.7800

AD Package Width UOM

IN

AD Part Number Keywords

EZM1400FS ; 8129866 ; 785901304777 ; 78590130477 ; 00785901304777 ; 0785901304777

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

18.66 in W x 11.5 in D x 53.97 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

1

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Line/Lug

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

(1) 6 AWG to 300 kcmil Ground, (1) 1 AWG to 600 kcmil Line, (1) 1 AWG to 600 kcmil Neutral
