Square D

EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R

Category Main Circuit Breaker Modules

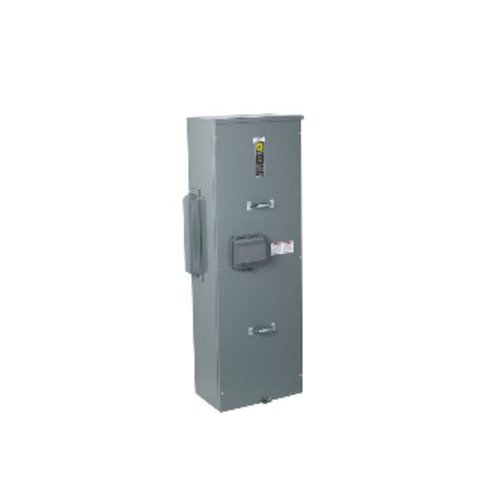

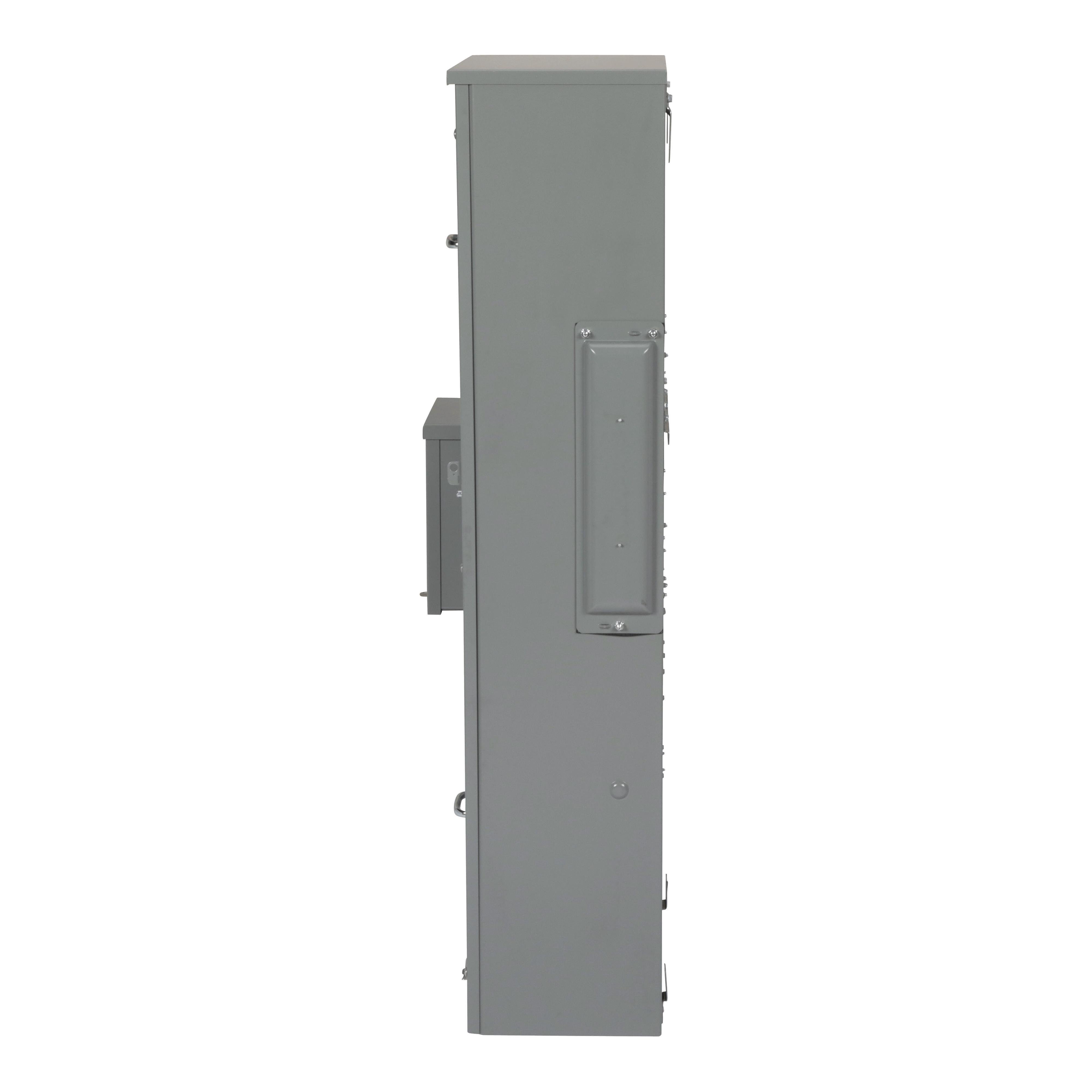

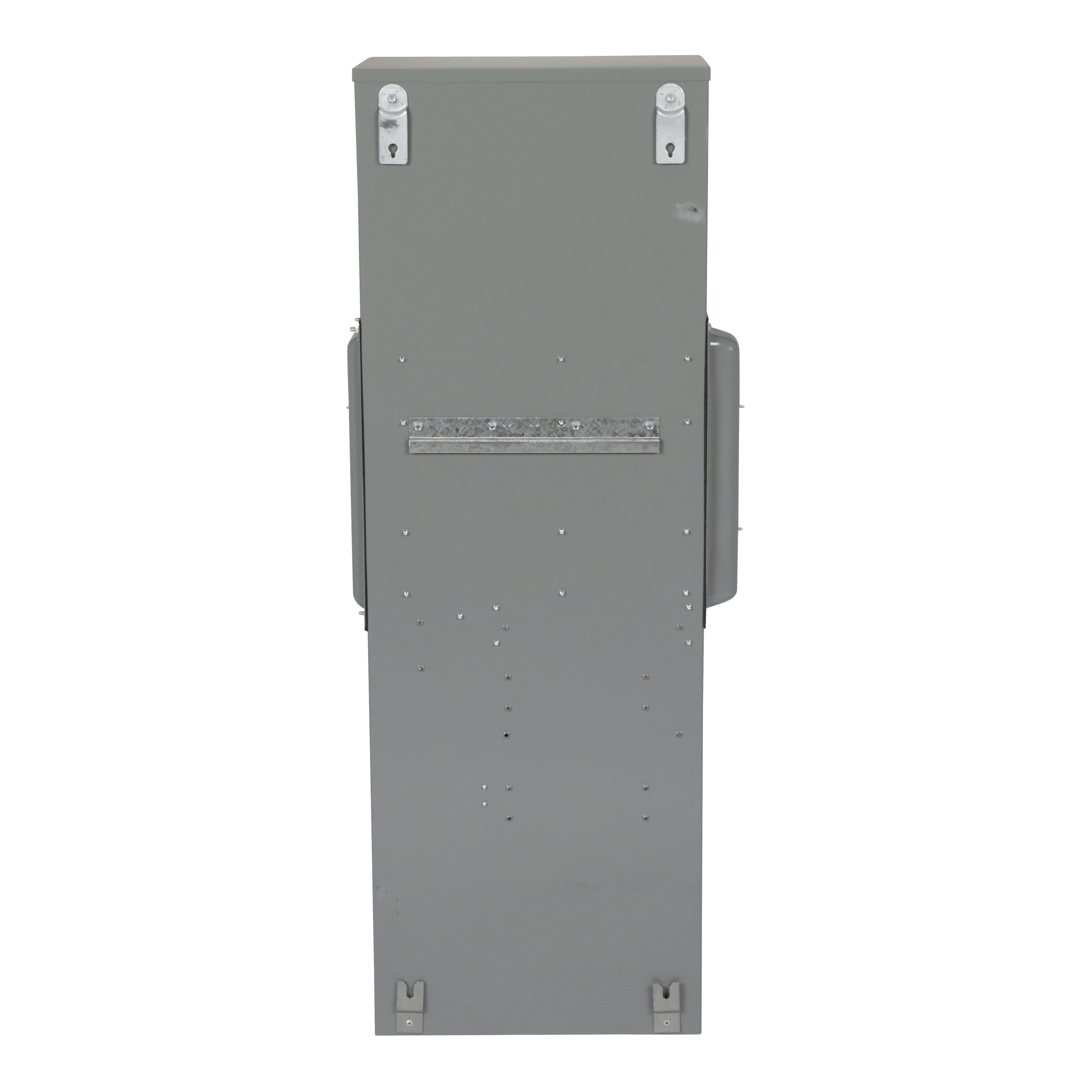

Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R
Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R
Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R
Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R Picture of EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R
Square D

EZM1600CB - Main circuit breaker unit, EZ Meter-Pak, 600A, 120/240VAC, 1ph/3W, 600A bus, 65kA, OH/UG, Type 3R

Item Code: 45712
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM1600CB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from OH or UG feeds. The unit is rated for 600A with the busbar rated for 600A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

110.77lb

Height

14.2mm

Width

22.58mm

Length

54.09mm

Depth

11.5mm

AD Application

Service Entrance Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

UNIT MAIN CTR MTR 120/240VAC 600A

AD Item Features 01

Main circuit breaker, fusible switch, or lug terminal boxes available

AD Item Features 02

Meter-Pak units from 225A to 2000A

AD Item Features 03

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 04

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 05

External mounting channels allow immediate installation

AD Item Features 06

Compact footprint for installation flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height

14.2000

AD Package Height UOM

IN

AD Package Length

54.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

17677.3000

AD Package Volume UOM

cu-in

AD Package Weight

110.7700

AD Package Weight UOM

LB

AD Package Width

22.5800

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

53.97 in H x 18.66 in W x 11.5 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Number Of Poles

Spec 4 Attribute Value

1

Spec 5 Attribute

PHASE

Spec 5 Attribute Value

1

Spec 6 Attribute

Series

Spec 6 Attribute Value

EZM

Spec 7 Attribute

Type

Spec 7 Attribute Value

Circuit Breaker

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240
