Square D

EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC

Category Miscellaneous

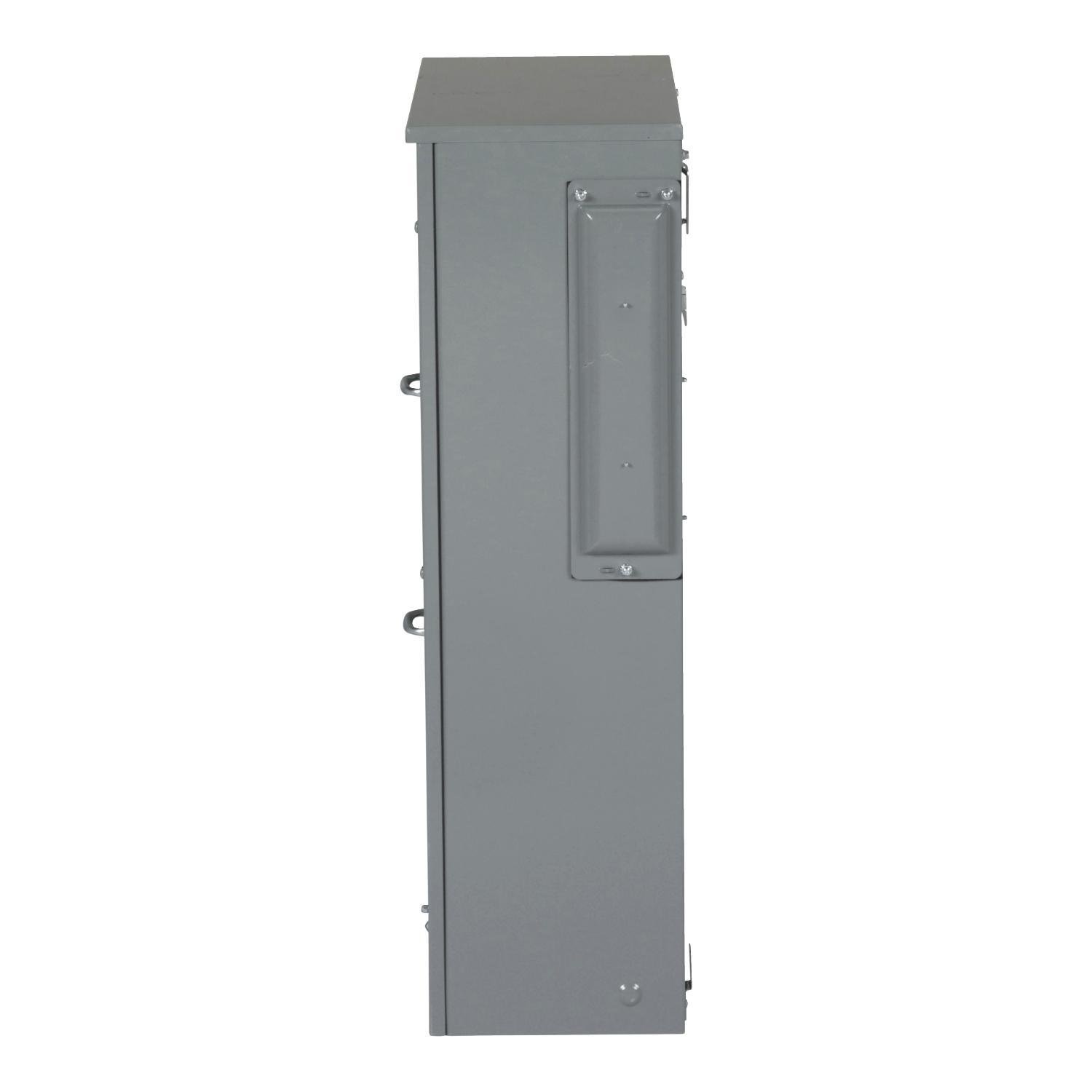

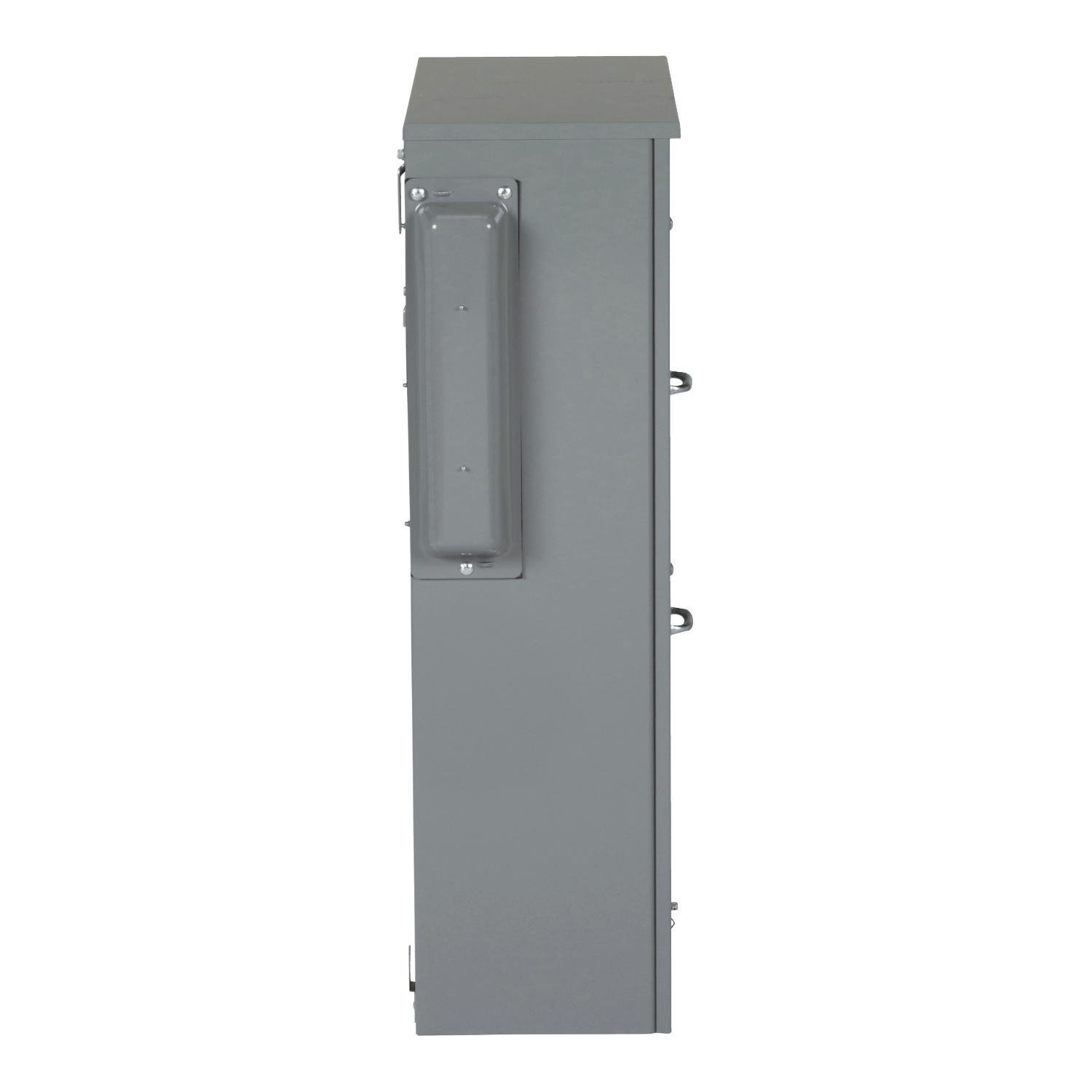

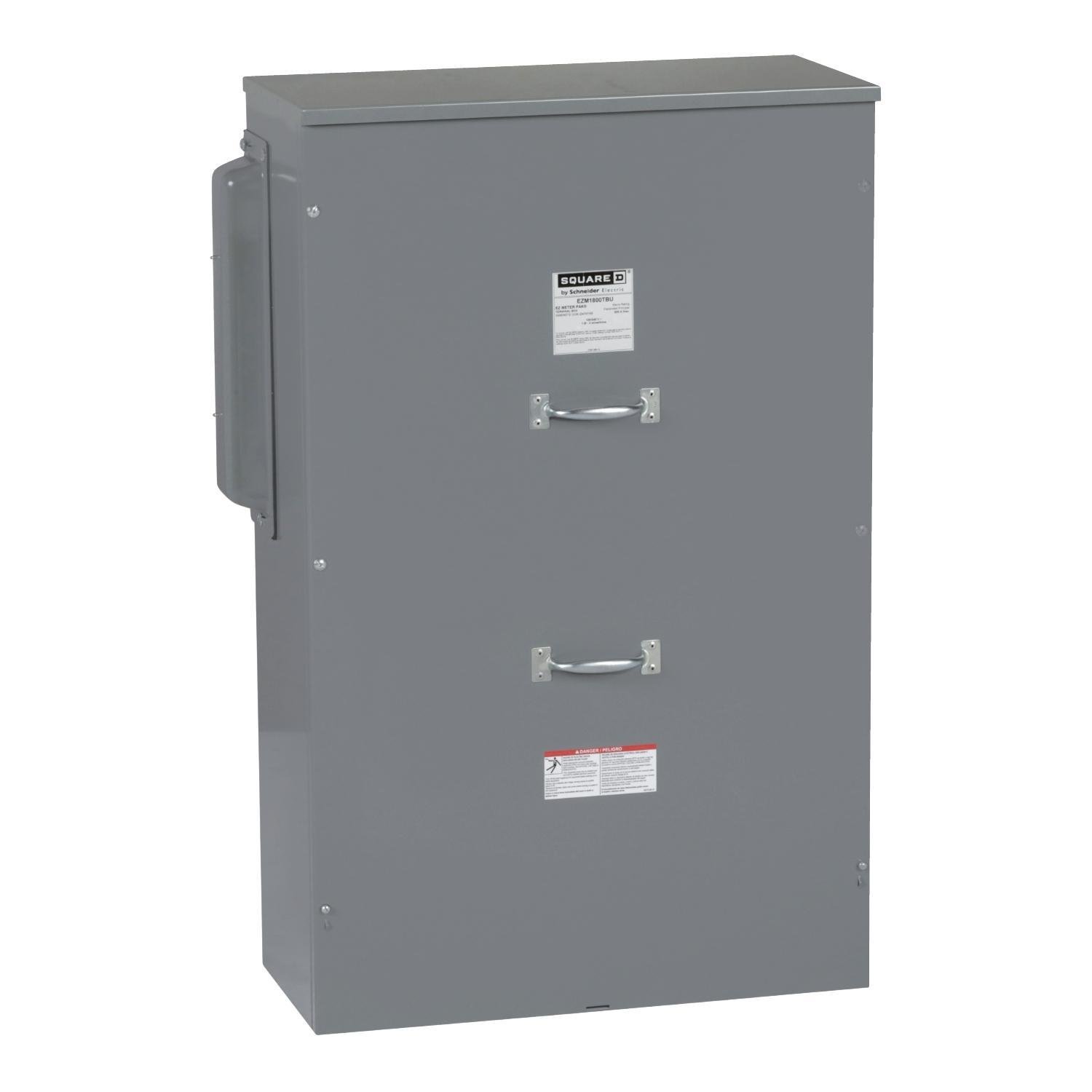

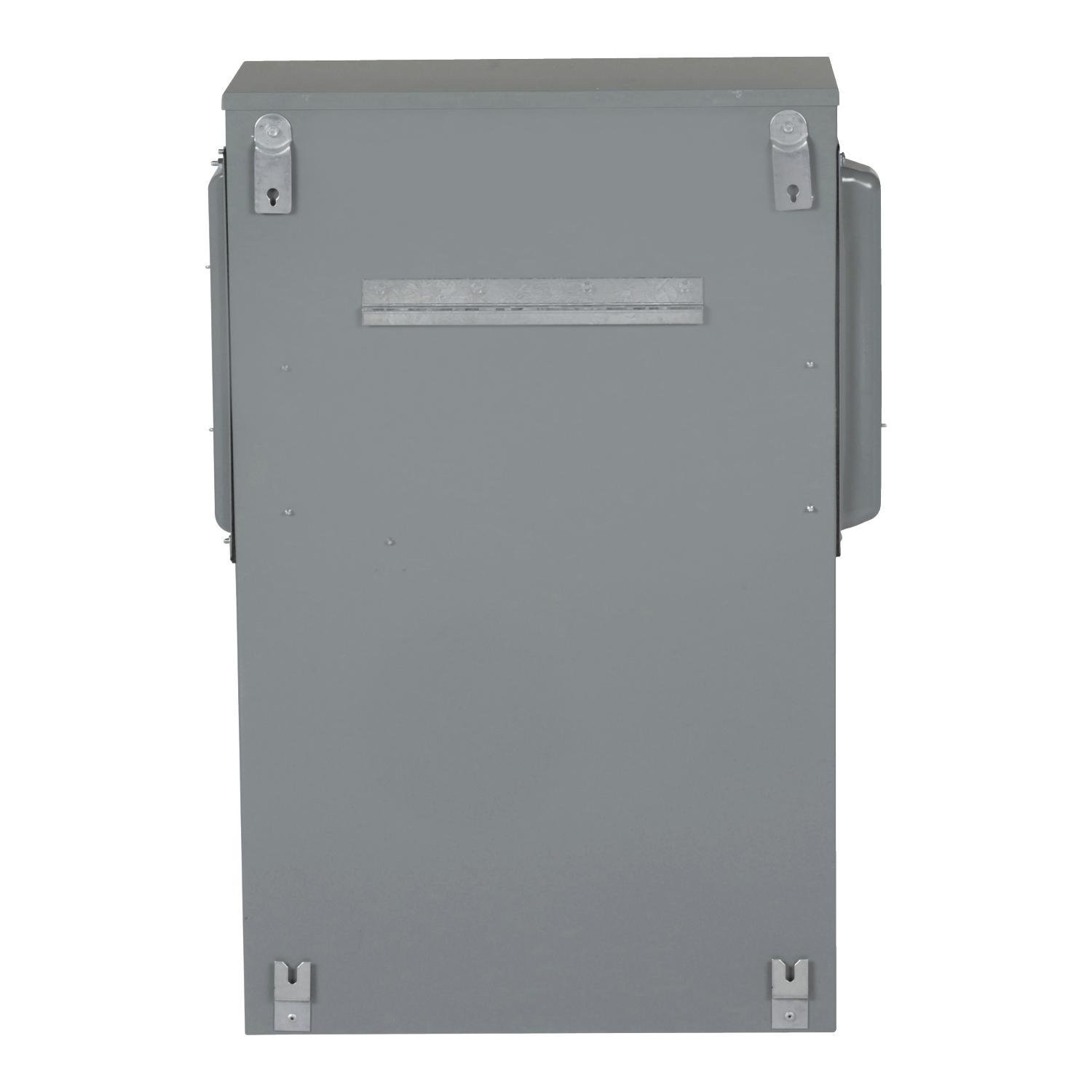

Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC
Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC
Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC
Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC
Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC Picture of EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC
Square D

EZM1800TBU - Main lugs unit, EZ Meter-Pak, 800A, 120/240VAC, 1ph/3W, 800A bus, UG, Type 3R, EUSERC

Item Code: 589129
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM1800TBU

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 1 phase in, 1 phase out for a 3 wire configuration. It accepts 120/240VAC incoming service from UG feeds. The unit is rated for 800A with the busbar rated for 800A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.

Specifications

Weight

84.82

Width

30.03

Length

46.06

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EZM1800TBU/EZM1800TBU.spin

AD Alternative Part Number

8110391

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901262404

AD Gtin

00785901262404

AD IDEA Index ID

8110391

AD Invoice Description

BOX TERM MAIN 120/240VAC 800A 1 NEMA 3R

AD Item Features 01

Main circuit breaker, fusible switch, or lug terminal boxes available

AD Item Features 02

Meter-Pak units from 225A to 2000A

AD Item Features 03

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 04

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 05

External mounting channels allow immediate installation

AD Item Features 06

Compact footprint for installation flexibility

AD Keywords

EZ Meter-Pak EZM1800TBU Main Terminal Box, 120/240 V AC, 800 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZM1800TBU ; EZM1800TBU ; 785901262404 ; Meter Mains

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

46.0600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

84.8200

AD Package Weight UOM

LB

AD Package Width

30.0300

AD Package Width UOM

IN

AD Part Number Keywords

EZM1800TBU ; 8110391 ; 785901262404 ; 78590126240 ; 00785901262404 ; 0785901262404

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

800

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

39.96 in H x 25.16 in W x 11.68 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Underground

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

1

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Lug

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120/240

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

6 AWG to 300 kcmil
