Square D™

EZM31200FSB - Main fusible (Class T) switch unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, UG, Type 3R

Category Miscellaneous

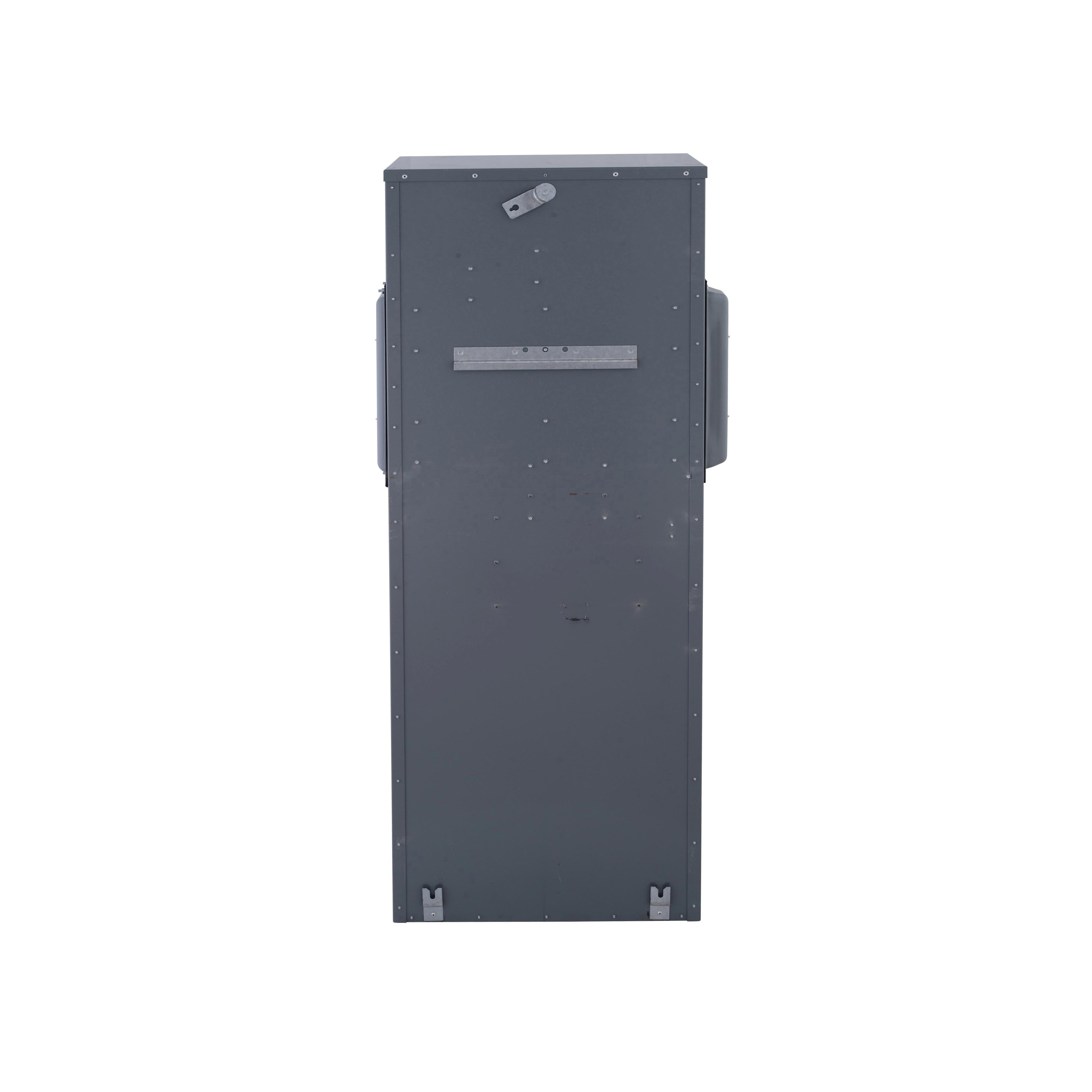

Picture of EZM31200FSB - Main fusible (Class T) switch unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, UG, Type 3R Picture of EZM31200FSB - Main fusible (Class T) switch unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, UG, Type 3R
Picture of EZM31200FSB - Main fusible (Class T) switch unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, UG, Type 3R Picture of EZM31200FSB - Main fusible (Class T) switch unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, UG, Type 3R
Square D™

EZM31200FSB - Main fusible (Class T) switch unit, EZ Meter-Pak, 1200A, 240VAC max, 3ph/4W, 1200A bus, UG, Type 3R

Item Code: 1012534
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM31200FSB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main fusible switch provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from UG feeds. The unit is rated for 1200A with the busbar rated for 1200A. With a 300V Class T fuse, the short circuit current rating is 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

354.25

Width

34.36

Length

72.7

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EZM31200FSB/EZM31200FSB.spin

AD Alternative Part Number

11198350

AD Application

For service equipment and indoor applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901865780

AD Gtin

00785901865780

AD IDEA Index ID

11198350

AD Includes

Fusible Switch, Closing Plate

AD Invoice Description

CENTER MTR SW FSBL MAIN 208Y/120VAC

AD Item Features 01

Meter-Pak units from 225A to 2000A

AD Item Features 02

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 03

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 04

External mounting channels allow immediate installation

AD Item Features 05

Compact footprint for installation flexibility

AD Keywords

EZ Meter-Pak EZM31200FSB 3-Pole Main Fusible Switch Meter Center, 208Y/120 V AC, 1200 A, 3 Phase, 4 Wires, NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZM31200FSB ; EZM31200FSB ; 785901865780 ; Main Fusible Switch Modules

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

72.7000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

354.2500

AD Package Weight UOM

LB

AD Package Width

34.3600

AD Package Width UOM

IN

AD Part Number Keywords

EZM31200FSB ; 11198350 ; 785901865780 ; 78590186578 ; 00785901865780 ; 0785901865780

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

1200

Spec 10 Attribute

Series

Spec 10 Attribute Value

EZM

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-pole

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

208Y/120

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 300 kcmil, 3/0 AWG to 500 kcmil

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

65.3 in H x 23.69 in W x 13.69 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Underground

Spec 6 Attribute

Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number Of Wires

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
