Square D

EZM3400CB - Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R

Category Main Circuit Breaker Modules

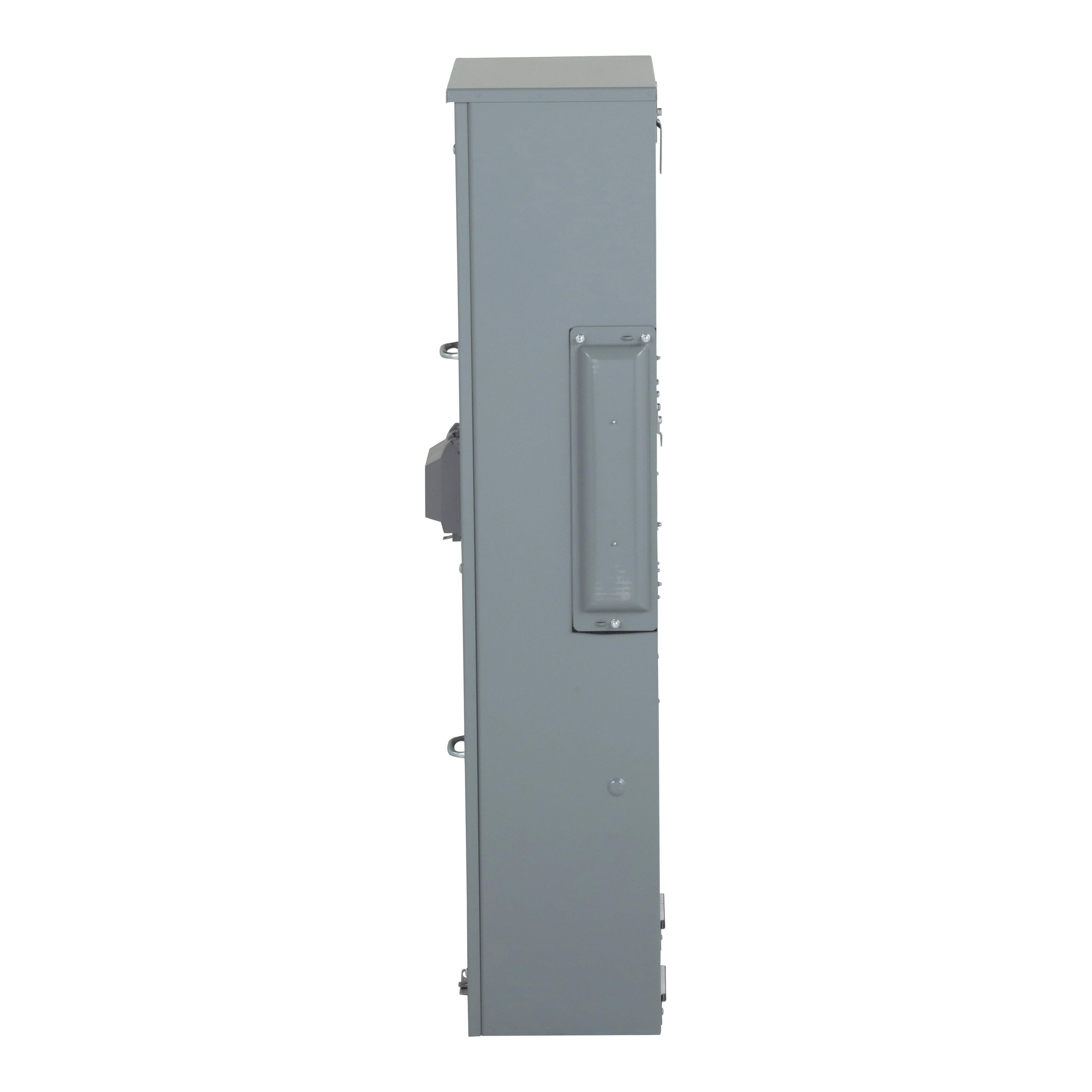

Picture of EZM3400CB - Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R Picture of EZM3400CB - Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R
Picture of EZM3400CB - Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R Picture of EZM3400CB - Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R
Square D

EZM3400CB - Main circuit breaker unit, EZ Meter-Pak, 400A, 240VAC max, 3ph/4W, 400A bus, 65kA, OH/UG, Type 3R

Item Code: 32752
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM3400CB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 400A with the busbar rated for 400A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

97.79lb

Height

53.97mm

Width

22.58mm

Length

54.09mm

Depth

11.5mm

AD Application

Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Includes

Circuit Breaker and Closing Plate

AD Invoice Description

CENTER MTR BRKR CKT MAIN 400A 3 65KA

AD Item Features 01

Meter-Pak units from 225A to 2000A

AD Item Features 02

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 03

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 04

External mounting channels allow immediate installation

AD Item Features 05

Compact footprint for installation flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

54.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

97.7900

AD Package Weight UOM

LB

AD Package Width

22.5800

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

Type

Spec 10 Attribute Value

4-Wire Overhead/Underground Surface Mount

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120 to 208Y/240 to 120 Delta

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

18.66 in W x 11.5 in D x 53.97 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

65

Spec 6 Attribute

Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Series

Spec 9 Attribute Value

EZM
