Square D

EZM3600FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 600A bus, OH/UG, Type 3R

Category Miscellaneous

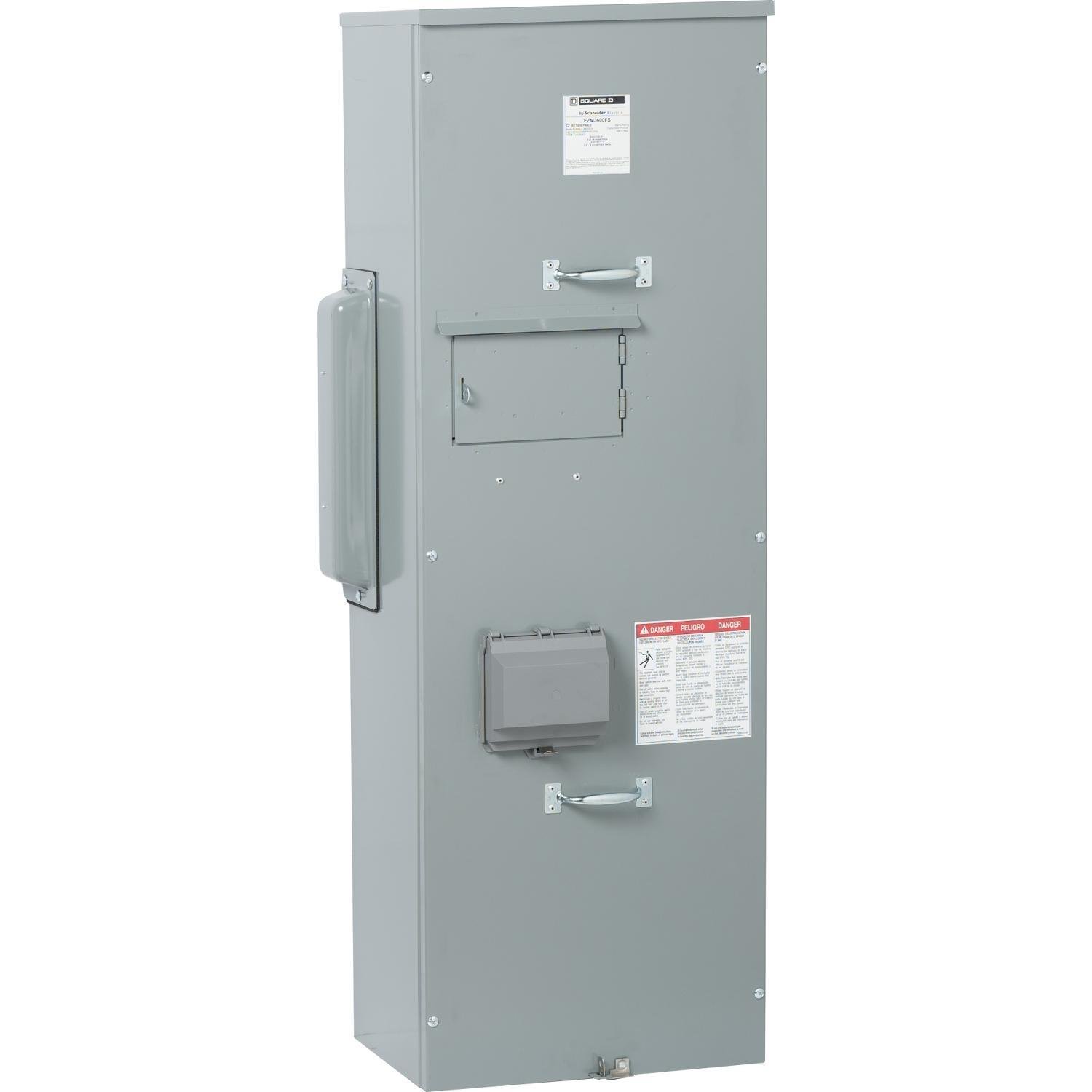

Picture of EZM3600FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 600A bus, OH/UG, Type 3R
Square D

EZM3600FS - Main fusible (Class T) switch unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 600A bus, OH/UG, Type 3R

Item Code: 32755
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM3600FS

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main fusible switch provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 600A with the busbar rated for 600A. With a 300V Class T fuse, the short circuit current rating is 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

131.72

Height

14.3

Width

22.58

Length

53.98

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Gtin

00785901305149

AD Includes

3 Pole 600 A 100 kA Interrupt Rating Main Switch and Closing Plate

AD Invoice Description

SWITCH FSBL MAIN 600A 3PH NEMA 3R LUG

AD Item Features 01

Meter-Pak units from 225A to 2000A

AD Item Features 02

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 03

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 04

External mounting channels allow immediate installation

AD Item Features 05

Compact footprint for installation flexibility

AD Keywords

EZ Meter-Pak EZM3600FS Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 600 A, 3 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZM3600FS ; 785901305149 ; Meter Mains

AD Manufacturer (Description)

Schneider Electric

AD Package Height

14.3000

AD Package Height UOM

IN

AD Package Length

53.9800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

17769.2000

AD Package Volume UOM

cu-in

AD Package Weight

131.7200

AD Package Weight UOM

LB

AD Package Width

22.5800

AD Package Width UOM

IN

AD Part Number Keywords

EZM3600FS ; 785901305149 ; 78590130514 ; 00785901305149

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

18.66 in W x 11.5 in D x 53.97 in H

Spec 3 Attribute

Feed Type

Spec 3 Attribute Value

Overhead/Underground

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Surface

Spec 5 Attribute

Operating Temperature

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Lug

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

208Y/120 240/120 Delta

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

(1) Cable #6 AWG to 300 kcmil Ground/(3) Cables #3/0 AWG to 500 kcmil Line/(4) Cables #3/0 AWG to 500 kcmil Neutral
