Square D

EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R

Category Main Circuit Breaker Modules

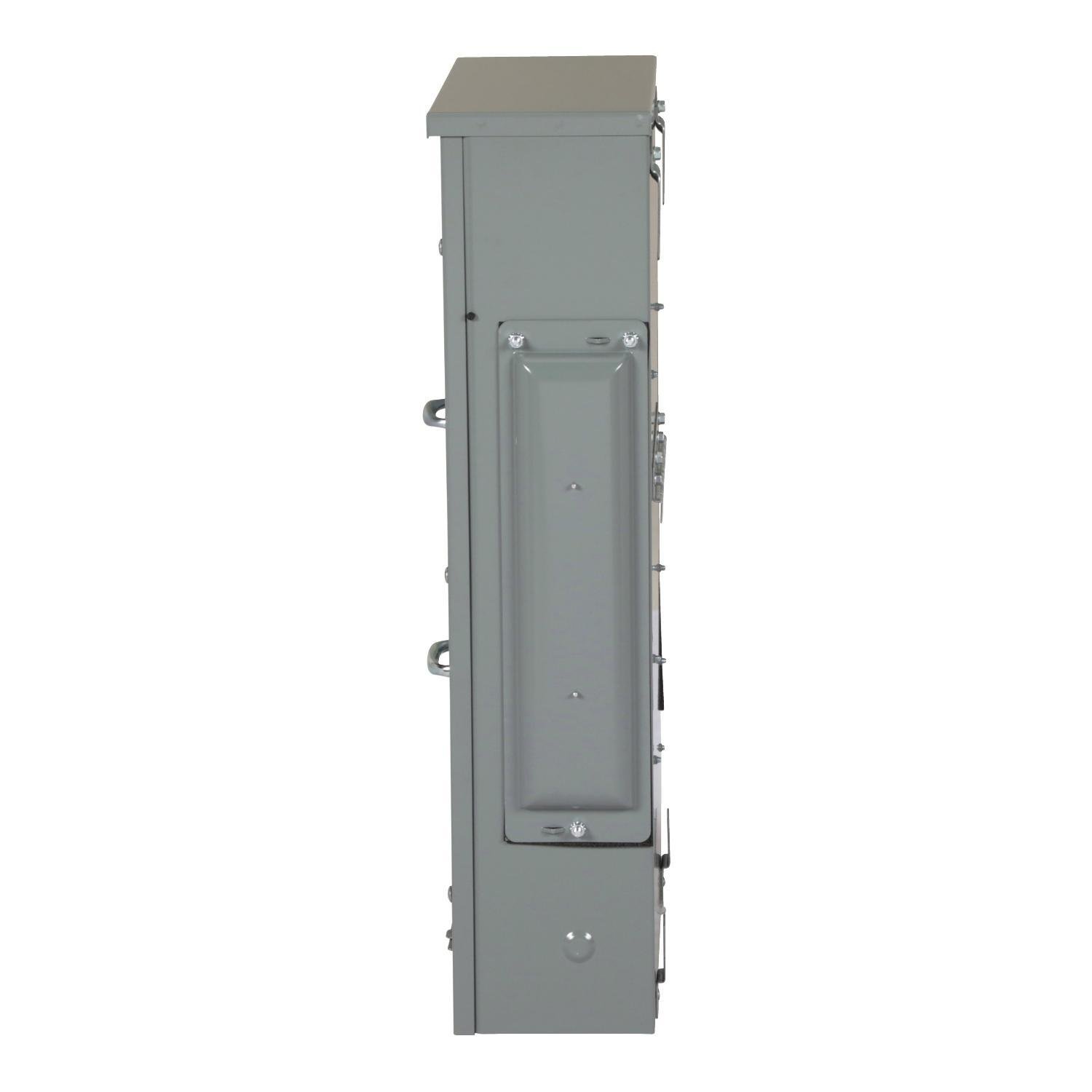

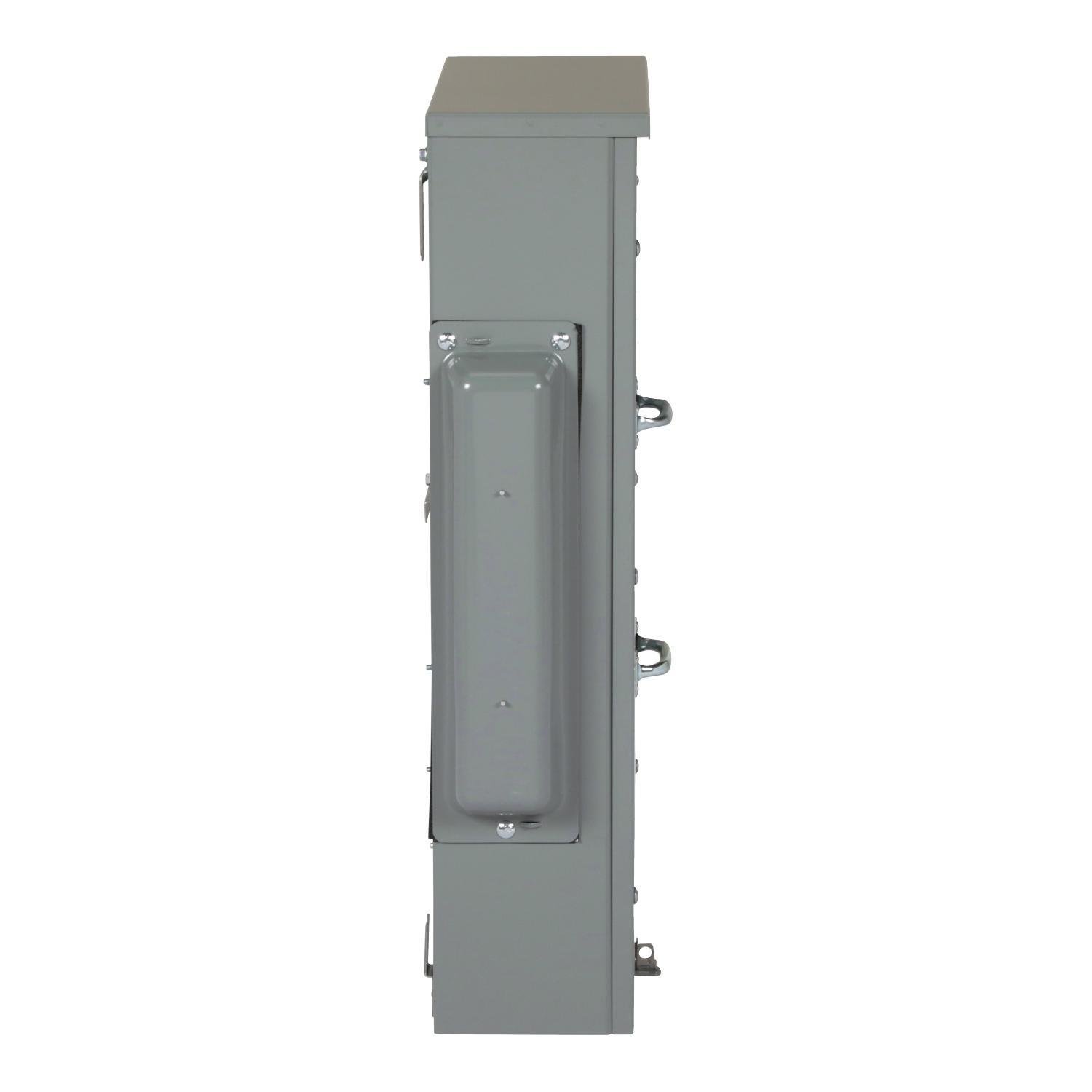

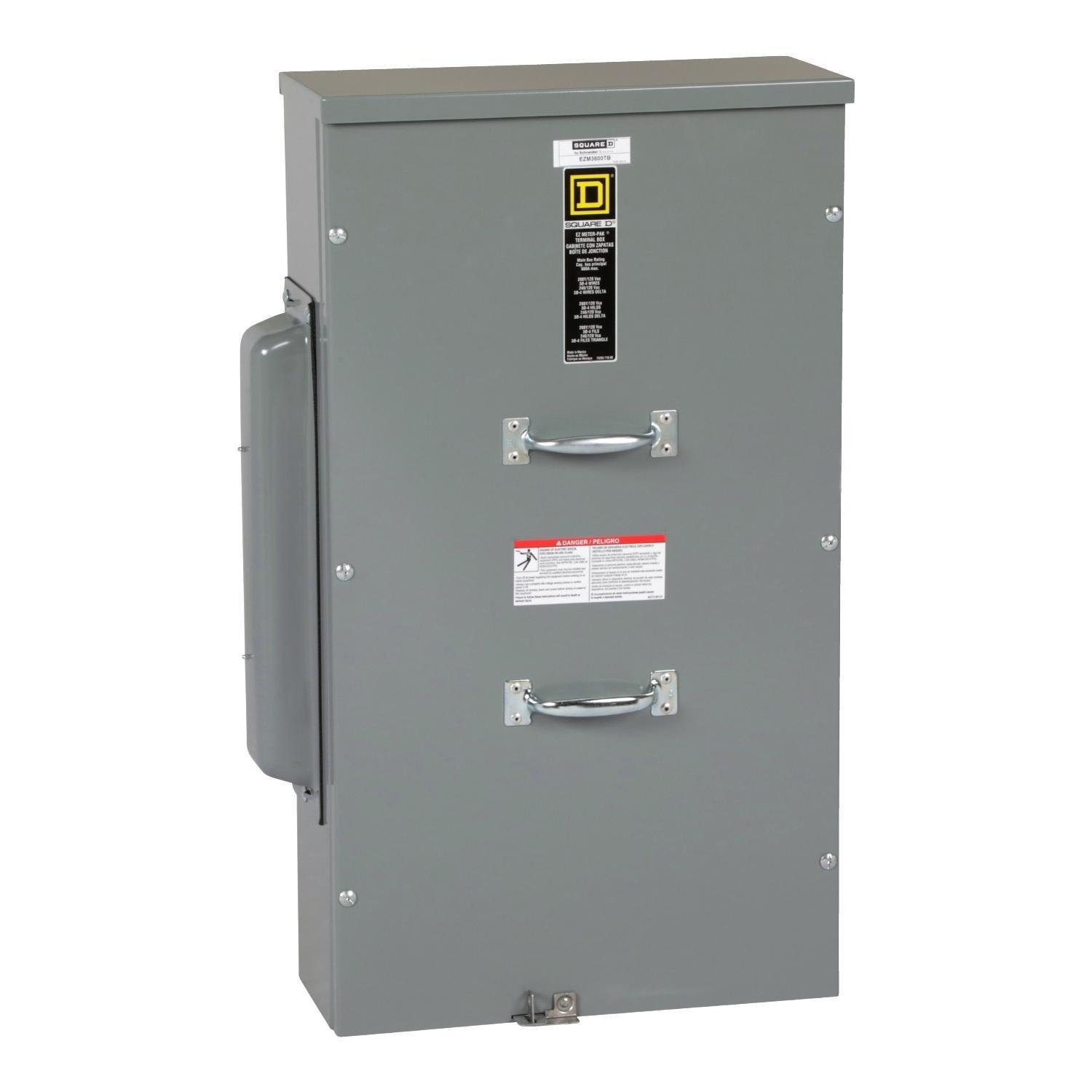

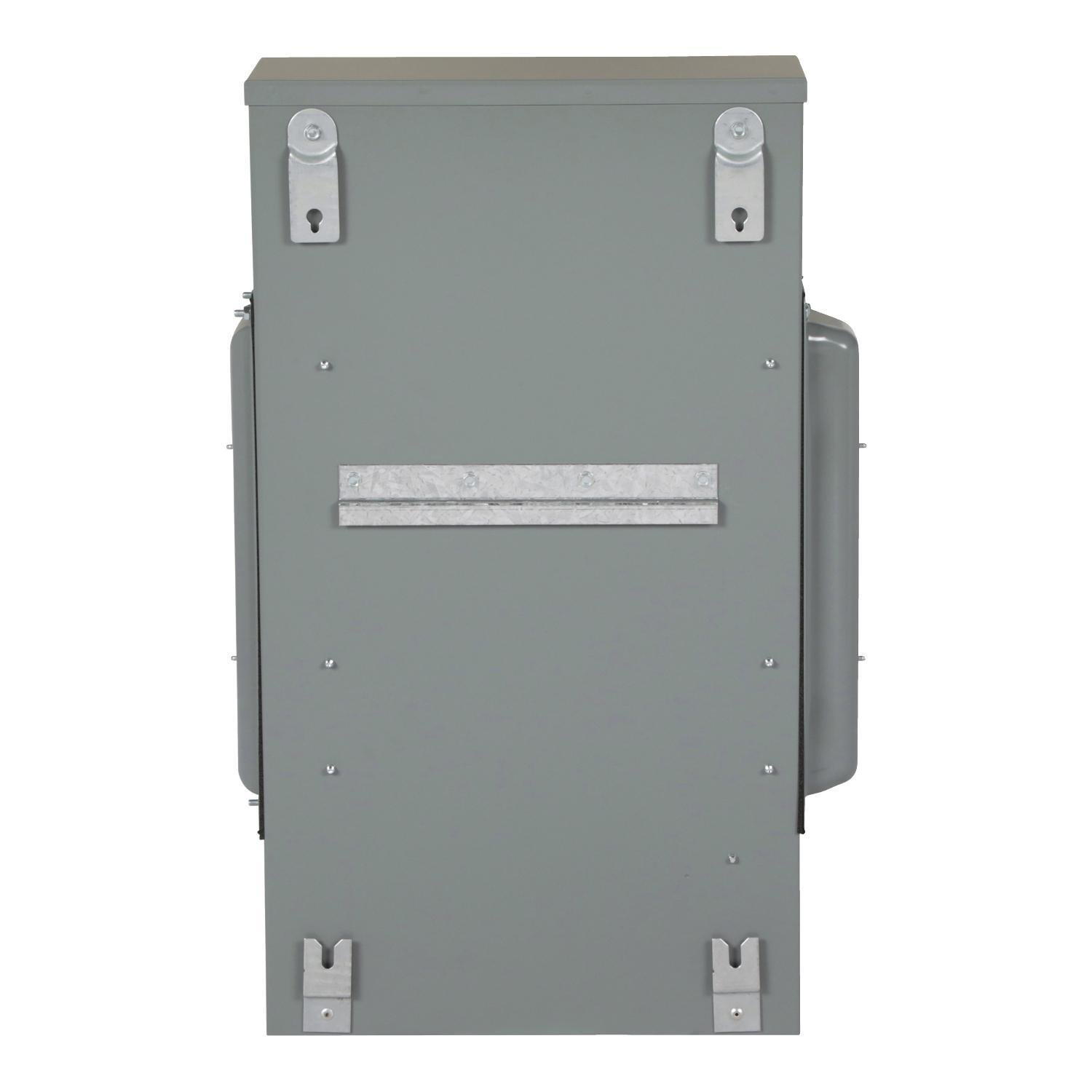

Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Square D

EZM3600TB - Main lugs unit, EZ Meter-Pak, 600A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R

Item Code: 325291
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM3600TB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 600A with the busbar rated for 800A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

47.27lb

Height

30.46mm

Width

20.9mm

Length

31.1mm

Depth

7.09mm

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BOX TERM MAIN 600A 3 NEMA 3R OVHD/UGND

AD Item Features 01

Main circuit breaker, fusible switch, or lug terminal boxes available

AD Item Features 02

Meter-Pak units from 225A to 2000A

AD Item Features 03

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 04

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 05

External mounting channels allow immediate installation

AD Item Features 06

Compact footprint for installation flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

31.1000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

47.2700

AD Package Weight UOM

LB

AD Package Width

20.9000

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

17.15 in W x 7.09 in D x 30.46 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Line/Lug

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

208Y to 120/240 to 120 Delta

Spec 9 Attribute

Wire Size

Spec 9 Attribute Value

(1) 6 AWG to 300 kcmil Ground, (2) 1/0 AWG to 750 kcmil Line, (2) 1/0 AWG to 750 kcmil Neutral
