Square D

EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC

Category Main Circuit Breaker Modules

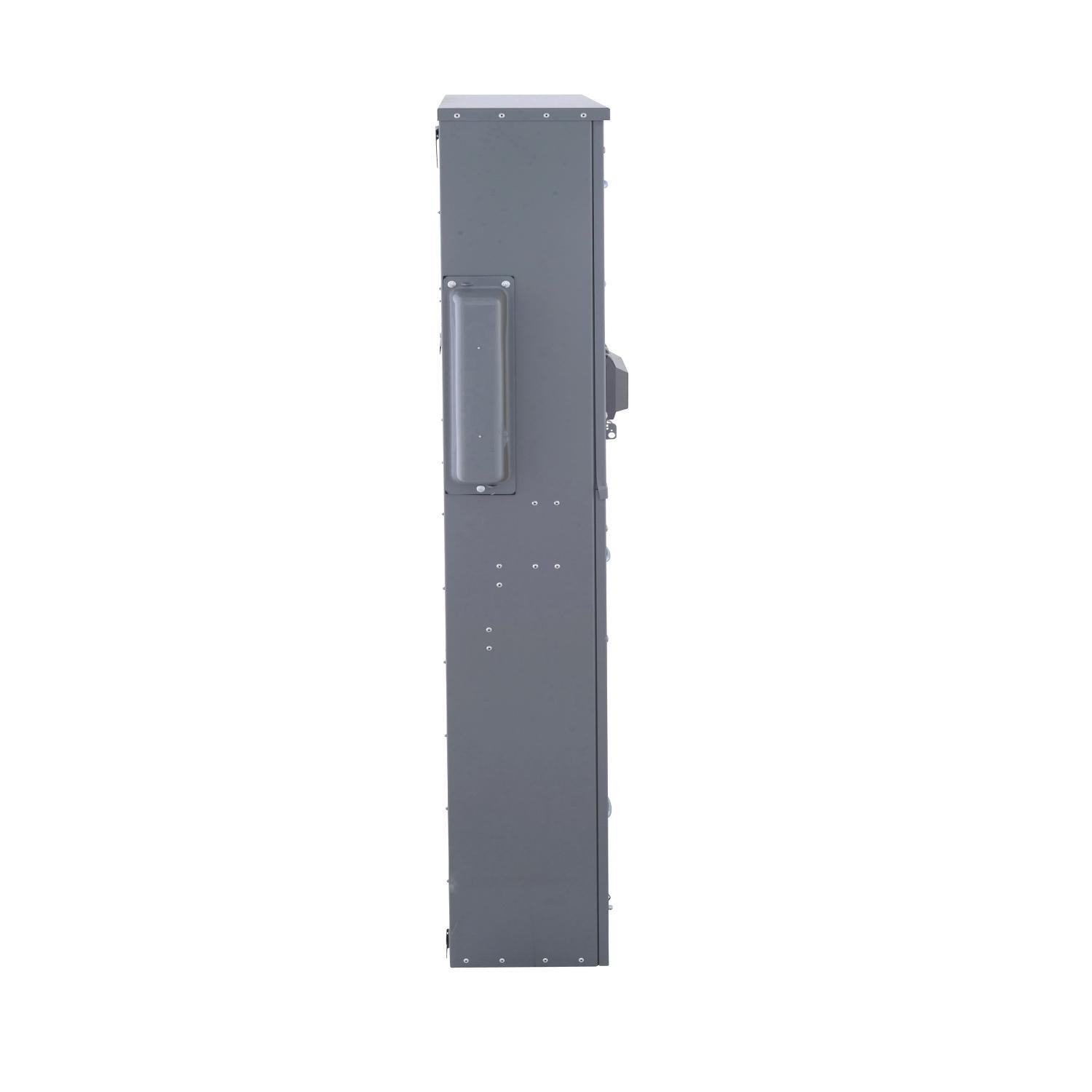

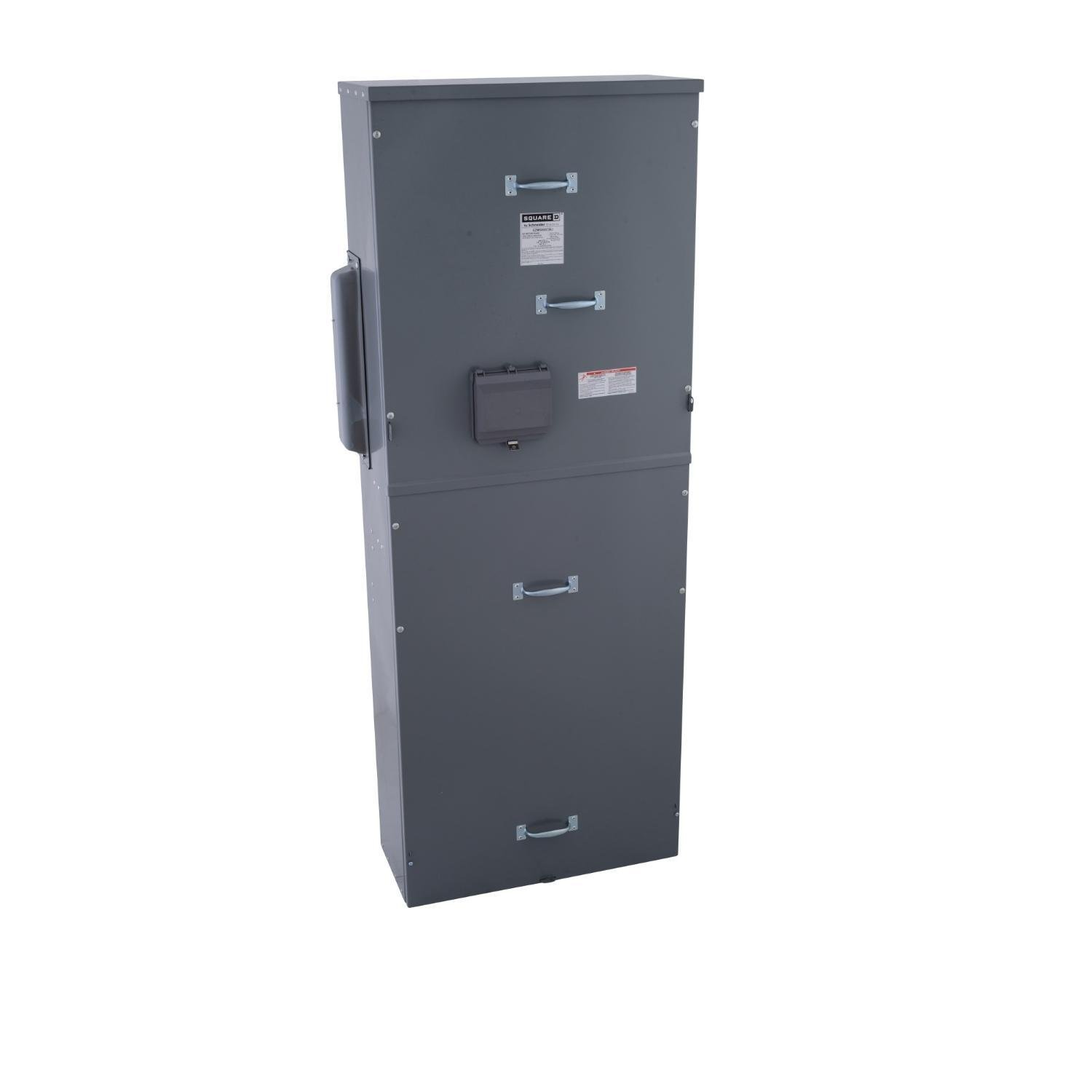

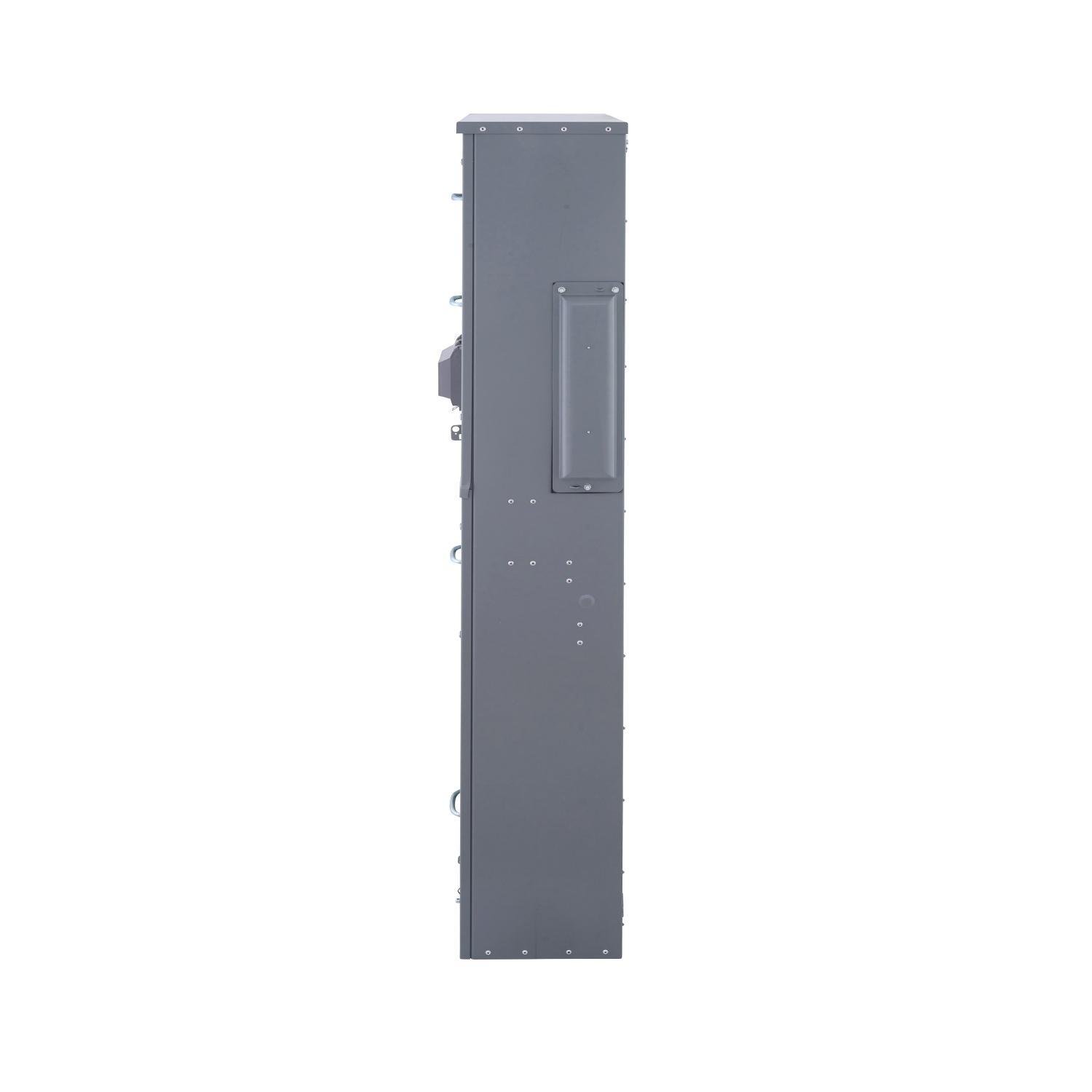

Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC
Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC
Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC
Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC
Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC Picture of EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC
Square D

EZM3800CBU - Main circuit breaker unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, 65kA, UG, Type 3R, EUSERC

Item Code: 634290
Category Main Circuit Breaker Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM3800CBU

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main circuit breaker provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from UG feeds. The unit is rated for 800A with the busbar rated for 800A. It has a short circuit current rating of 65kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL and EUSERC standards.

Specifications

Weight

300.37

Height

20.5

Width

32.68

Length

71.33

AD Application

Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Circuit Breaker, Closing Plate

AD Invoice Description

CENTER MTR BRKR CKT MAIN 208Y/120VAC

AD Item Features 01

Meter-Pak units from 225A to 2000A

AD Item Features 02

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 03

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 04

External mounting channels allow immediate installation

AD Item Features 05

Compact footprint for installation flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height

20.5000

AD Package Height UOM

IN

AD Package Length

71.3300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

48708.0000

AD Package Volume UOM

cu-in

AD Package Weight

300.3700

AD Package Weight UOM

LB

AD Package Width

32.6800

AD Package Width UOM

IN

Brand

Square D

Category

MAIN CIRCUIT BREAKER MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

800

Spec 10 Attribute

Type

Spec 10 Attribute Value

4-Wire Underground

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

208Y/120

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

69.03 in H x 20.46 in W x 11.5 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

65

Spec 6 Attribute

Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

3

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Series

Spec 9 Attribute Value

EZM
