Square D

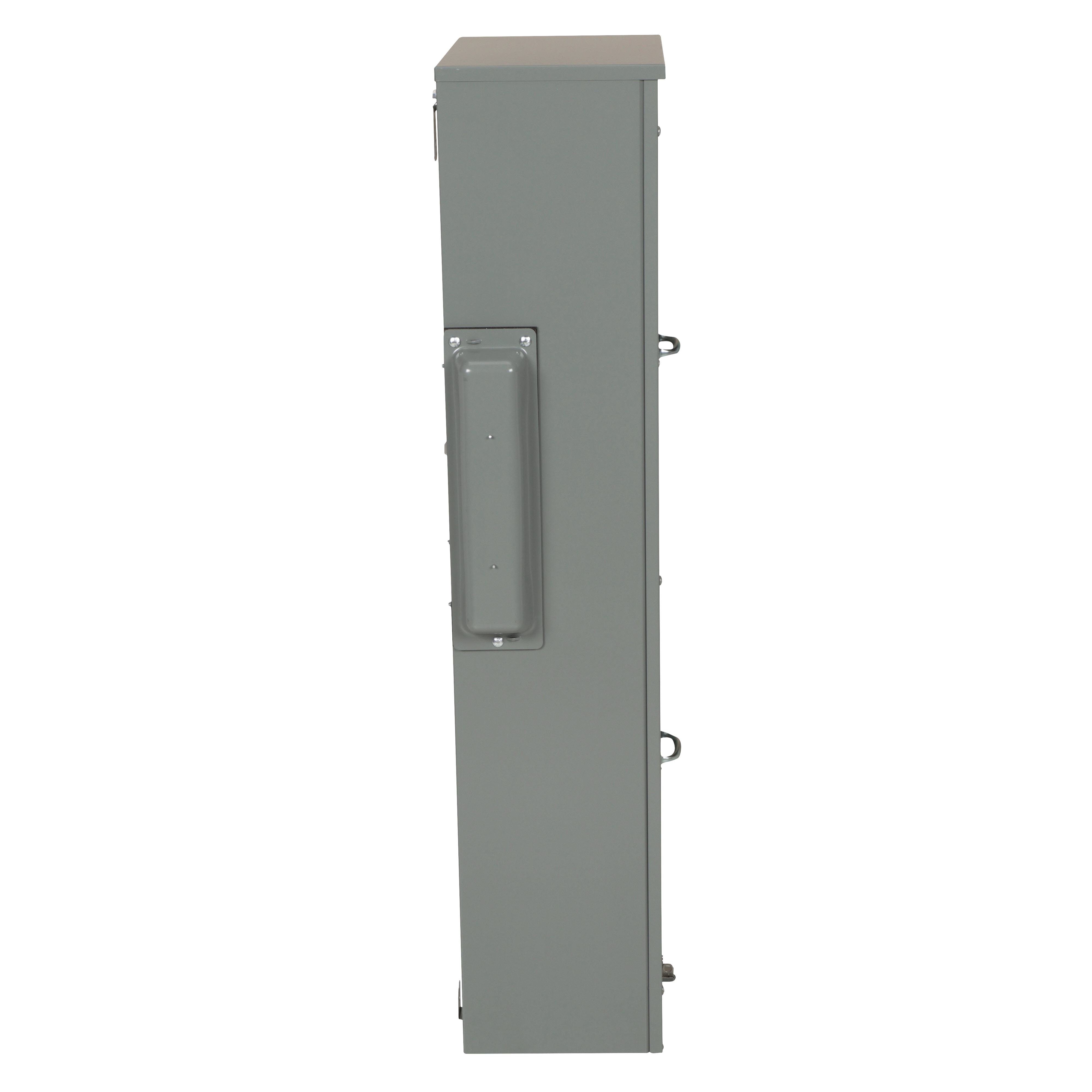

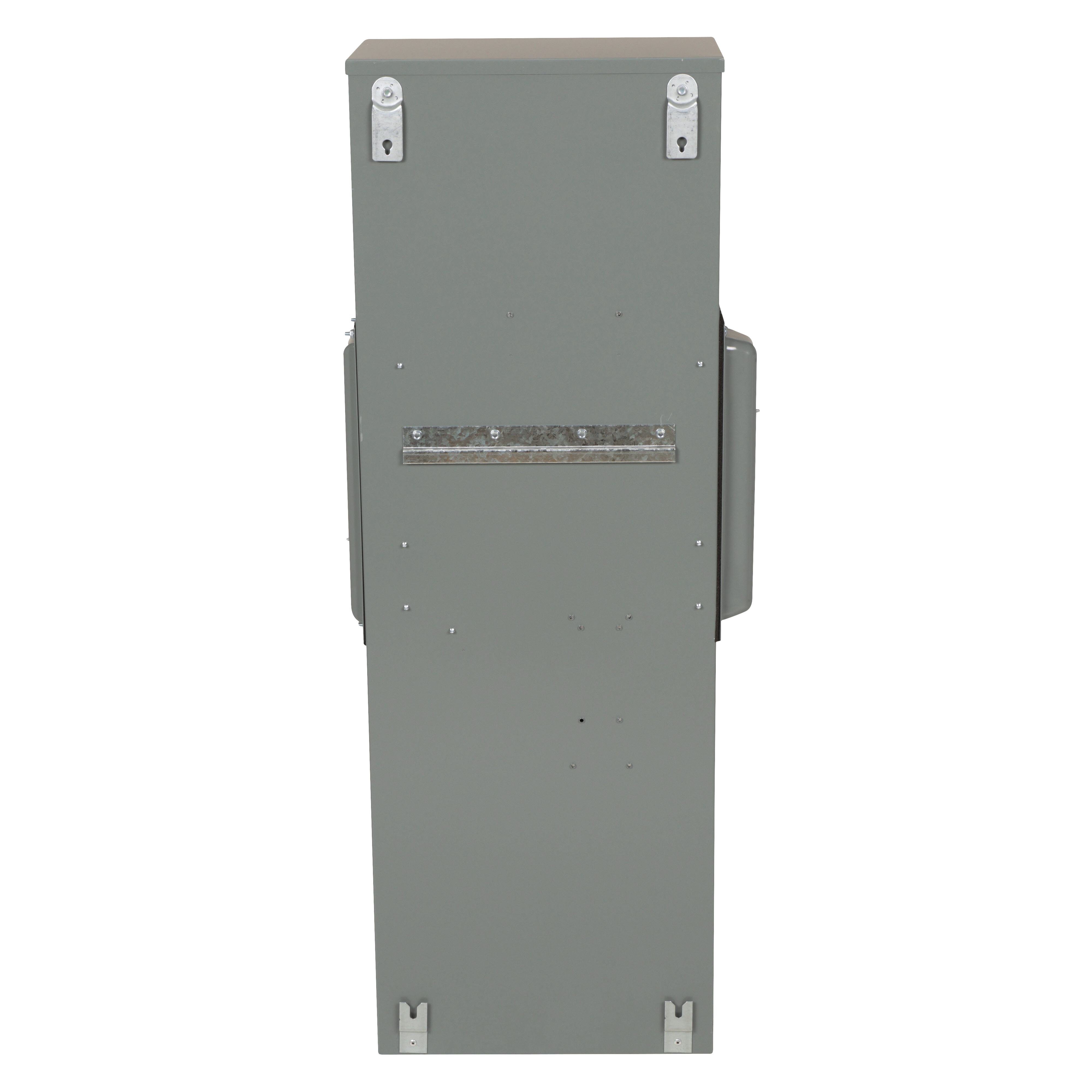

EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R

Category Meter Socket & Metering Accessories
Picture of EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Picture of EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Picture of EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R Picture of EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R
Square D

EZM3800TB - Main lugs unit, EZ Meter-Pak, 800A, 240VAC max, 3ph/4W, 800A bus, OH/UG, Type 3R

Item Code: 18032
Category Meter Socket & Metering Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM3800TB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes. The compact footprint makes them easier to handle and install.  Visi-Tite nuts eliminate the need for time-consuming torque readings when connecting devices.  External mounting channels permit immediate installation with no disassembly or adjustment required. EZM main devices are suitable for use as service equipment with required grounding and bonding. This main terminal box provides 3 phases in, 3 phases out for a 4 wire configuration. It accepts 208Y/120VAC and 240/120VAC delta incoming service from OH or UG feeds. The unit is rated for 800A with the busbar rated for 800A. Depending on the upstream protection and tenant circuit breaker, the unit can have a short circuit current up to 100kA. The enclosure is painted steel Type 3R. This EZ Meter-Pak meter center complies with UL standards.

Specifications

Weight

86.82lb

Height

53.97mm

Width

22.58mm

Length

54.37mm

Depth

11.5mm

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BOX TERM LUG MAIN 4-W 800A 3 NEMA 3R

AD Item Features 01

Main circuit breaker, fusible switch, or lug terminal boxes available

AD Item Features 02

Meter-Pak units from 225A to 2000A

AD Item Features 03

Visi-Tite nuts eliminate special tools and torque readings

AD Item Features 04

Rotating mounting brackets pivot for drilling holes without moving the device

AD Item Features 05

External mounting channels allow immediate installation

AD Item Features 06

Compact footprint for installation flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

54.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

86.8200

AD Package Weight UOM

LB

AD Package Width

22.5800

AD Package Width UOM

IN

Brand

Square D

Category

METER SOCKET & METERING ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

800

Spec 10 Attribute

Wire Size

Spec 10 Attribute Value

(1) 6 AWG to 300 kcmil Ground, (4) 3/0 AWG to 500 kcmil Line, (4) 3/0 AWG to 500 kcmil Neutral

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

18.66 in W x 11.5 in D x 53.97 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Line/Lug

Spec 8 Attribute

Type

Spec 8 Attribute Value

4-Wire

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

208Y to 120/240 to 120 Delta
