EZM3TRANR - Meter accessory, EZ Meter-Pak, transition section, right, 1200A bus, 3 phase

Category Miscellaneous

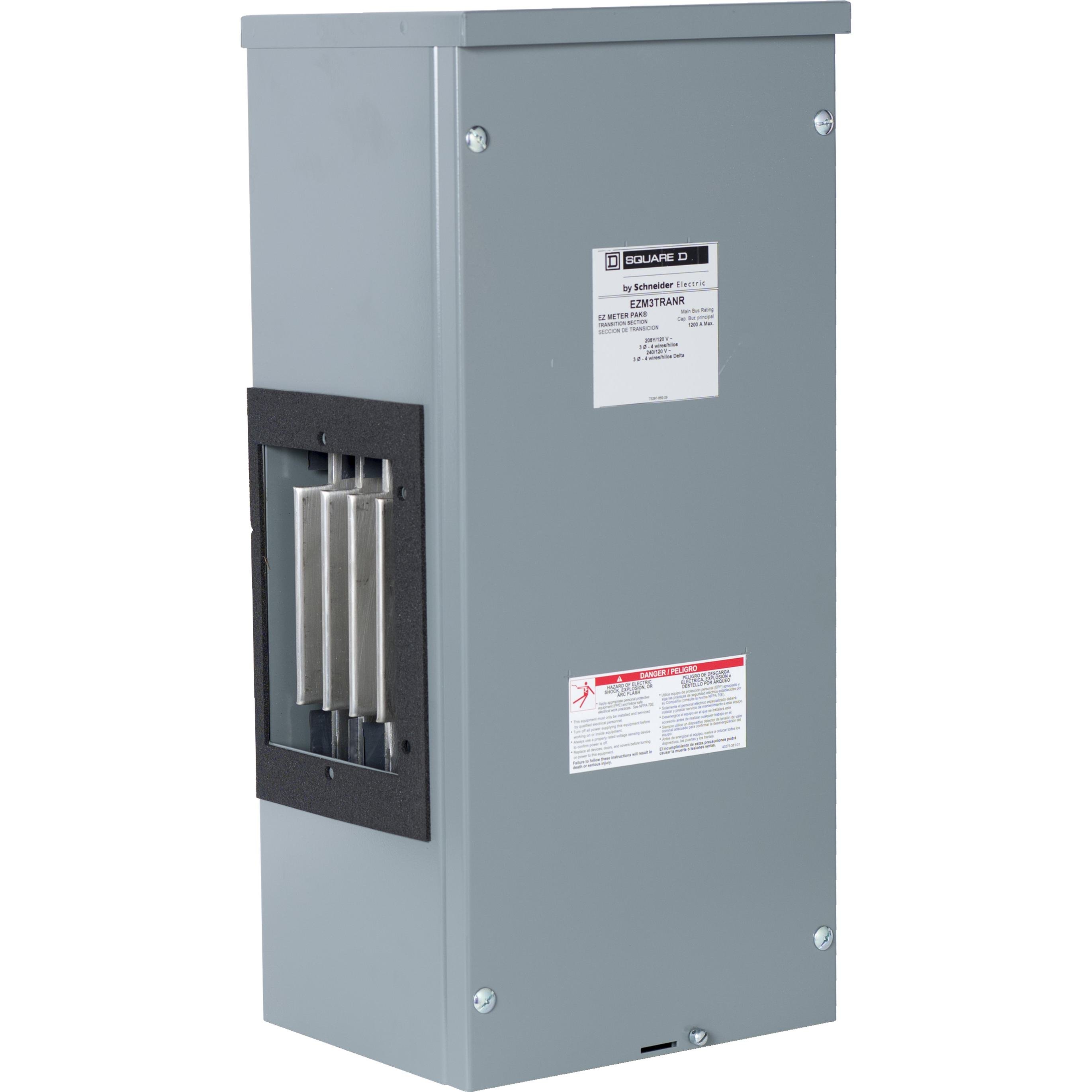

Picture of EZM3TRANR - Meter accessory, EZ Meter-Pak, transition section, right, 1200A bus, 3 phase

EZM3TRANR - Meter accessory, EZ Meter-Pak, transition section, right, 1200A bus, 3 phase

Item Code: 522399
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZM3TRANR
Call for Availability
Compare

Description

Square D EZ Meter-Pak meter centers provide reliable, versatile, and compact multi metering equipment for multi unit residential and commercial construction. The main devices are available as main circuit breakers, main fusible switches, or main lug terminal boxes, and residential and commercial branches are available in ring or ringless type. EZ Meter-Pak meter centers have accessories and spare parts for field replacements and design flexibility. This EZ Meter Pak transition section allows new sections to the right of older EZM meter centers. This transition section has a 1200A bus and is for a three phase system.

Specifications

Weight

44.41

Height

8.8

Width

20.41

Length

29.32

AD Alternative Part Number

8130168

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901305859

AD Gtin

00785901305859

AD IDEA Index ID

8130168

AD Invoice Description

SECTION TRNSN EZ MTR-PAKâ„¢ MTR CTR 1200 A

AD Item Features 01

EZ Meter-Pak for multi metering for residential and commercial construction

AD Item Features 02

Main units available as circuit breaker, fusible switch, or lug terminal boxes

AD Item Features 03

Branch units available with ringless or ring with varied bypass options

AD Item Features 04

Both main and branch supported by extensive accessories

AD Item Features 05

Replacement and extension accessories allow for system changes and design flexibility

AD Manufacturer (Description)

Schneider Electric

AD Package Height

8.8000

AD Package Height UOM

IN

AD Package Length

29.3200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5365.8900

AD Package Volume UOM

cu-in

AD Package Weight

44.4100

AD Package Weight UOM

LB

AD Package Width

20.4100

AD Package Width UOM

IN

AD Part Number Keywords

EZM3TRANR ; 8130168 ; 785901305859 ; 78590130585 ; 00785901305859 ; 0785901305859

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Gray

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

10.7 in W

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Baked Enamel Powder Coat Paint/Galvannealed

Spec 4 Attribute

Material

Spec 4 Attribute Value

Steel

Spec 5 Attribute

Specifications

Spec 5 Attribute Value

208Y/120 V AC/240/120 Delta V AC, 1200 A, 3-Phase, NEMA 3R, Surface Mount

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

EZ Meter-Pakâ„¢ Meter Center
