Square D™

EZMH315125CUX - Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, horn bypass, ringless, 1200A Cu busbar

Category Miscellaneous

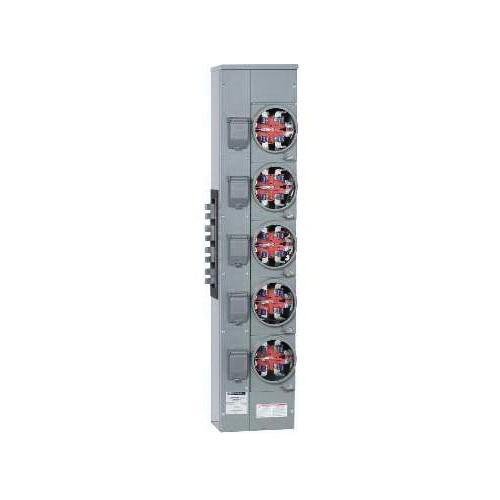

Picture of EZMH315125CUX - Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, horn bypass, ringless, 1200A Cu busbar Picture of EZMH315125CUX - Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, horn bypass, ringless, 1200A Cu busbar
Picture of EZMH315125CUX - Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, horn bypass, ringless, 1200A Cu busbar Picture of EZMH315125CUX - Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, horn bypass, ringless, 1200A Cu busbar
Square D™

EZMH315125CUX - Branch unit, EZ Meter-Pak, 125A, 5 x 5 jaw sockets, 208Y/120VAC, horn bypass, ringless, 1200A Cu busbar

Item Code: 1011515
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZMH315125CUX

Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 5 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a horn bypass. It includes a 1200 A copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

101.4

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ezmh315125cux/ezmh315125cux.spin

AD Alternative Part Number

8077968

AD Application

For used as service equipment and use on the line side of service equipment

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD EAN

0785901198185

AD Gtin

00785901198185

AD IDEA Index ID

8077968

AD Invoice Description

UNIT BR CTR MTR 208Y/120VAC 125A

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

For outdoor and indoor installation

AD Keywords

Meter-Pak EZMH315125CUX 5-Position Meter Center Branch Unit With Horn Bypass, 208Y/120 VAC, 125 A, 1/3 Phase , NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZMH315125CUX ; EZMH315125CUX ; 785901198185 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Package Weight

101.4000

AD Package Weight UOM

LB

AD Part Number Keywords

EZMH315125CUX ; 8077968 ; 785901198185 ; 78590119818 ; 00785901198185 ; 0785901198185

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

208Y/120

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

57.12 in H x 12.25 in W x 7.09 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

5

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

3-Jan

Spec 8 Attribute

Series

Spec 8 Attribute Value

EZM

Spec 9 Attribute

Type

Spec 9 Attribute Value

5-Position
