Square D

EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar

Category Multiple Meter Banks, Centers & Packs

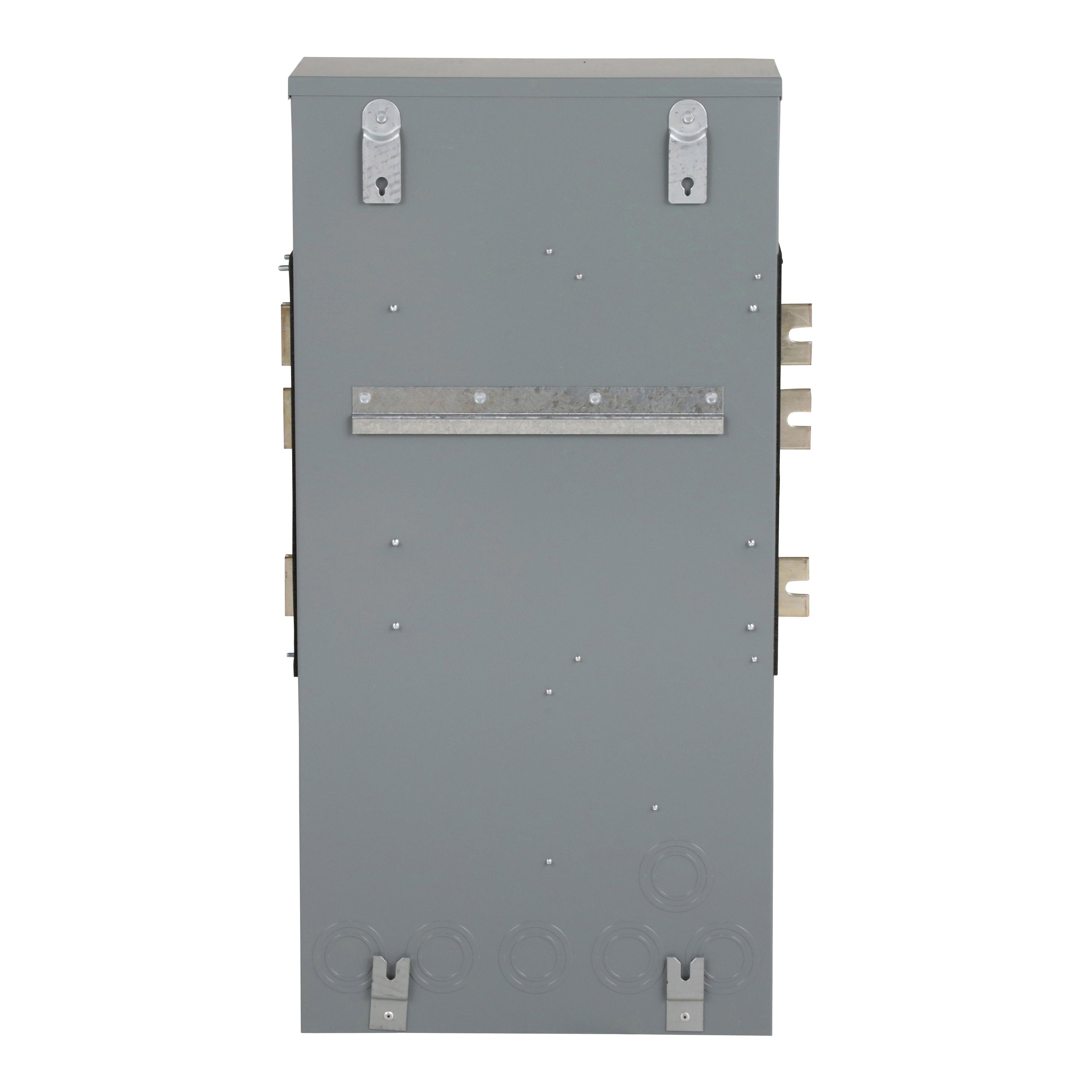

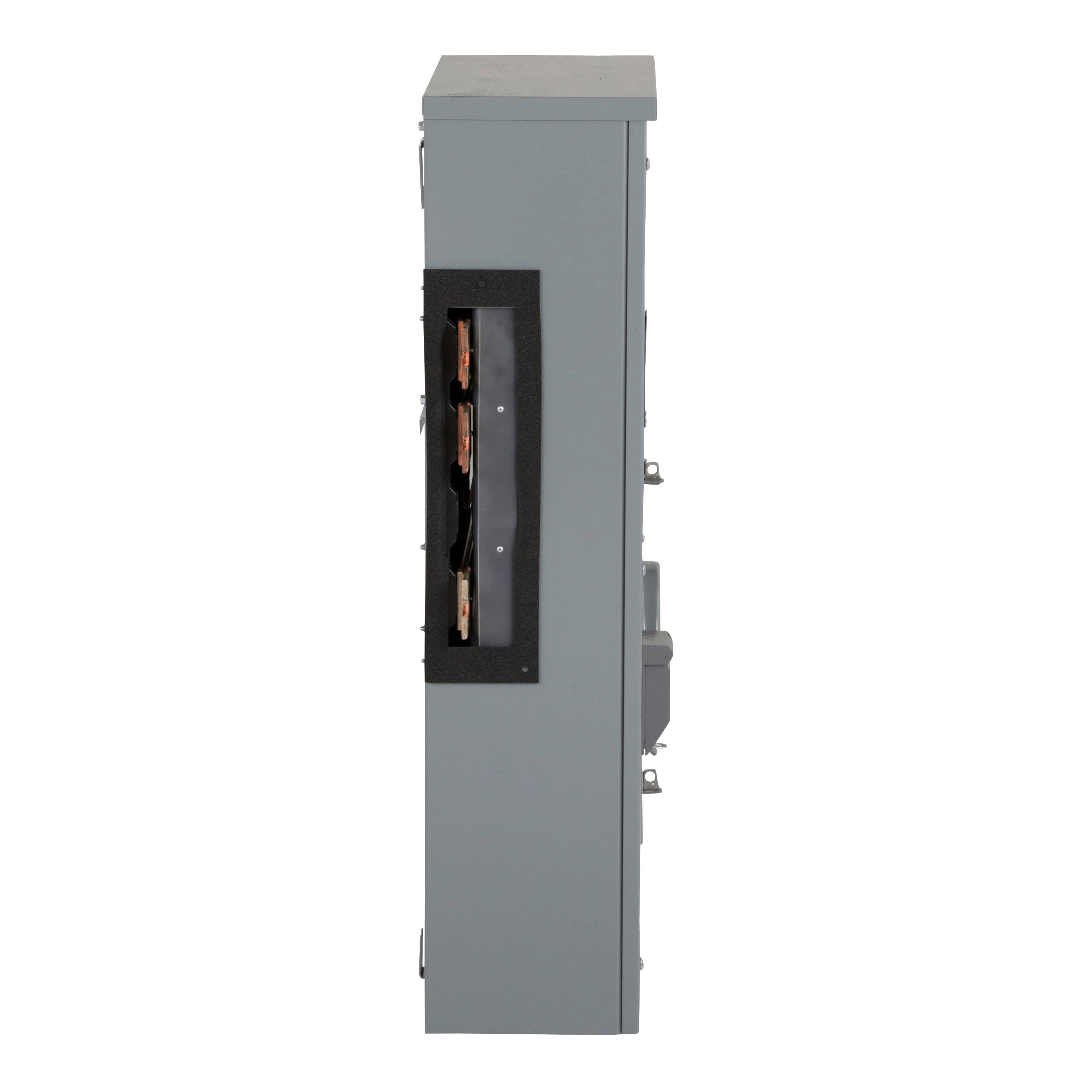

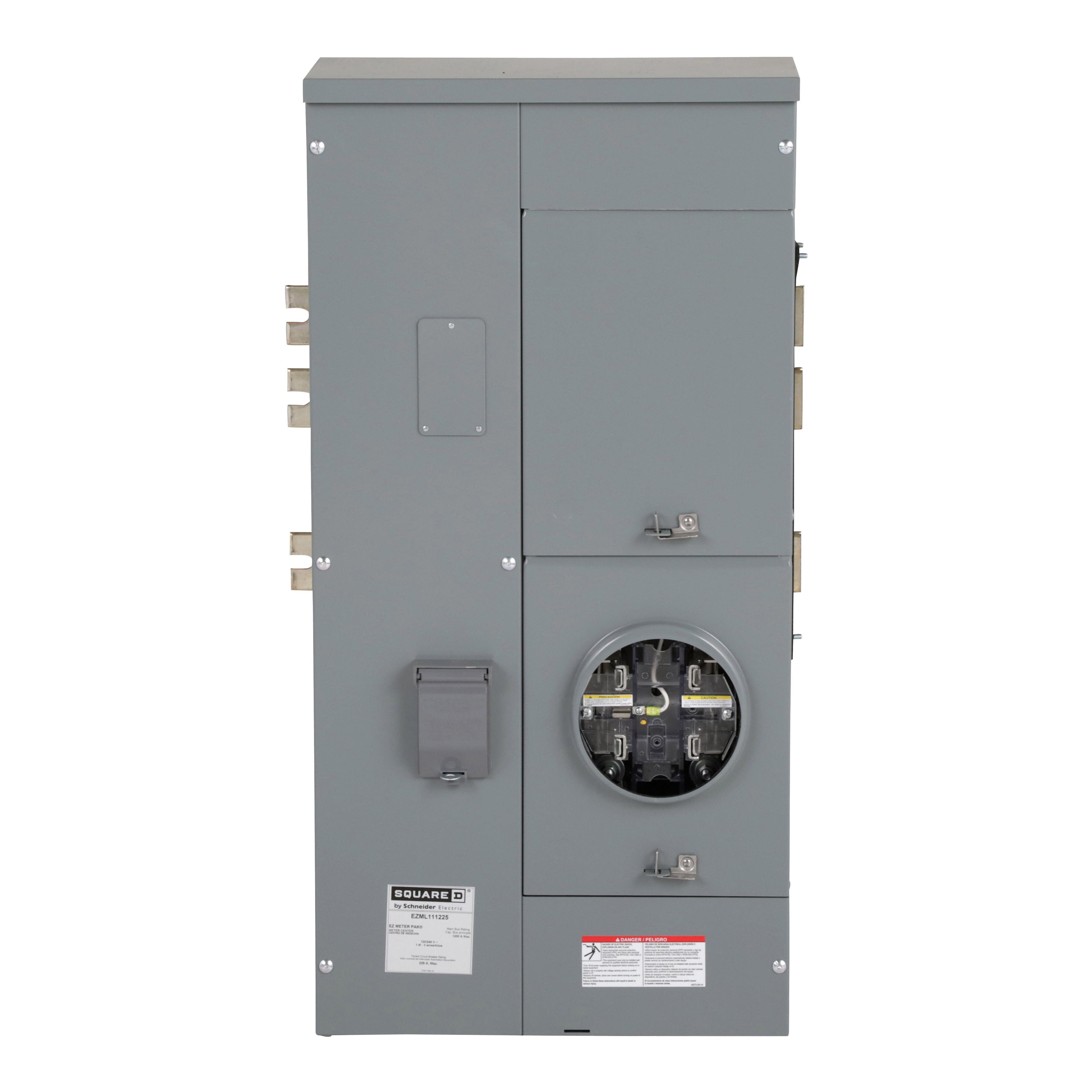

Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar
Square D

EZML111225 - Branch unit, EZ Meter-Pak, 225A, 1 x 5 jaw socket, 120/240VAC, lever bypass, ringless, 1200A Al/Cu busbar

Item Code: 32760
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZML111225

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 1 five jaw socket for use. The system voltage is 120/240 VAC and has a lever bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

103.78lb

Height

39.06mm

Width

21.61mm

Length

39.43mm

Depth

9.44mm

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

UNIT BR CTR MTR 120/240VAC 225A 1 5 LUG

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

NEMA Type 3R for outdoor and indoor installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

39.4300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

103.7800

AD Package Weight UOM

LB

AD Package Width

21.6100

AD Package Width UOM

IN

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Wire

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

8 AWG to 300 kcmil Cu/Al, 12 to 2/0 AWG Al, 14 to 2/0 AWG Cu

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

39.06 in H x 19.44 in W x 9.44 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

5

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

EZM
