Square D

EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar

Category Multiple Meter Banks, Centers & Packs

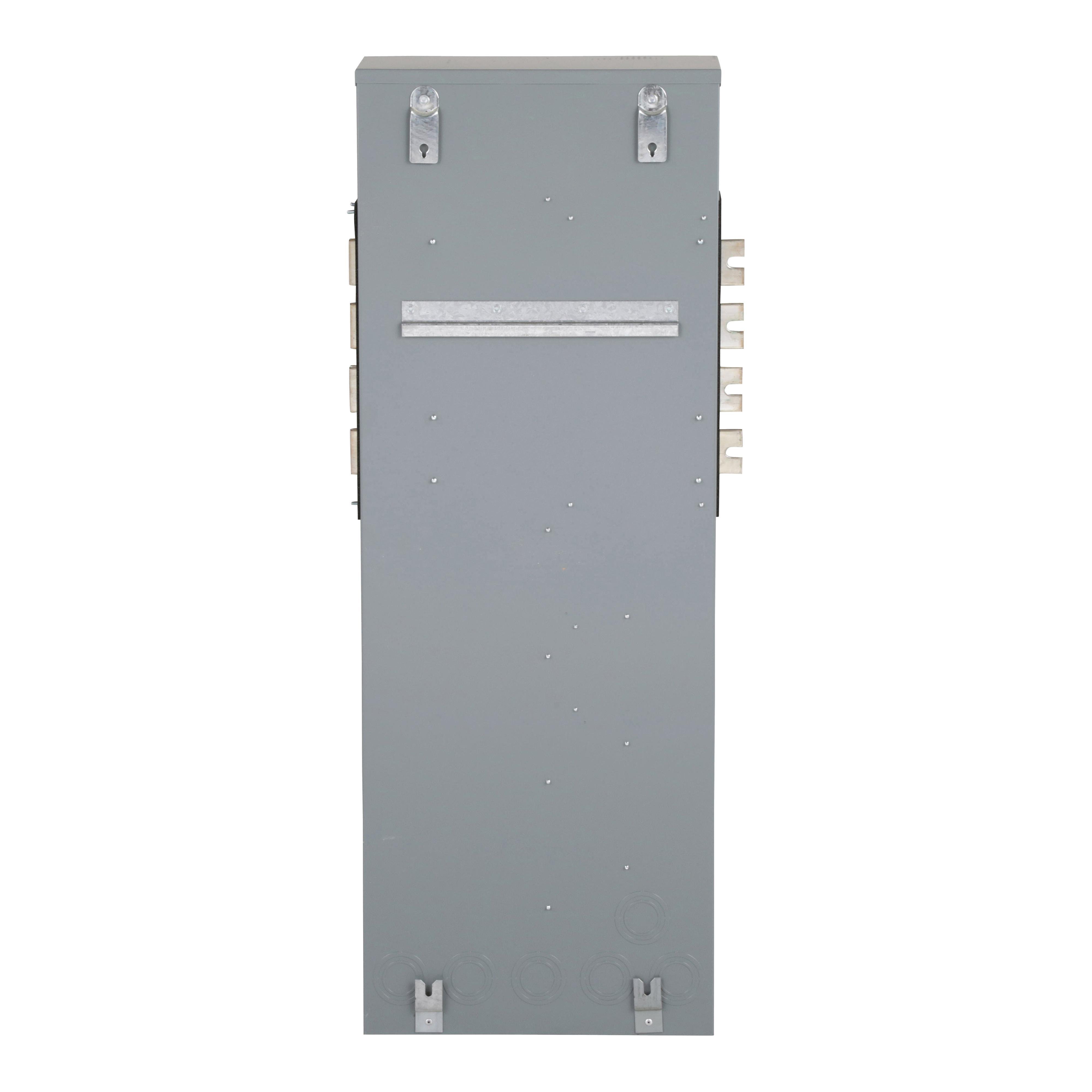

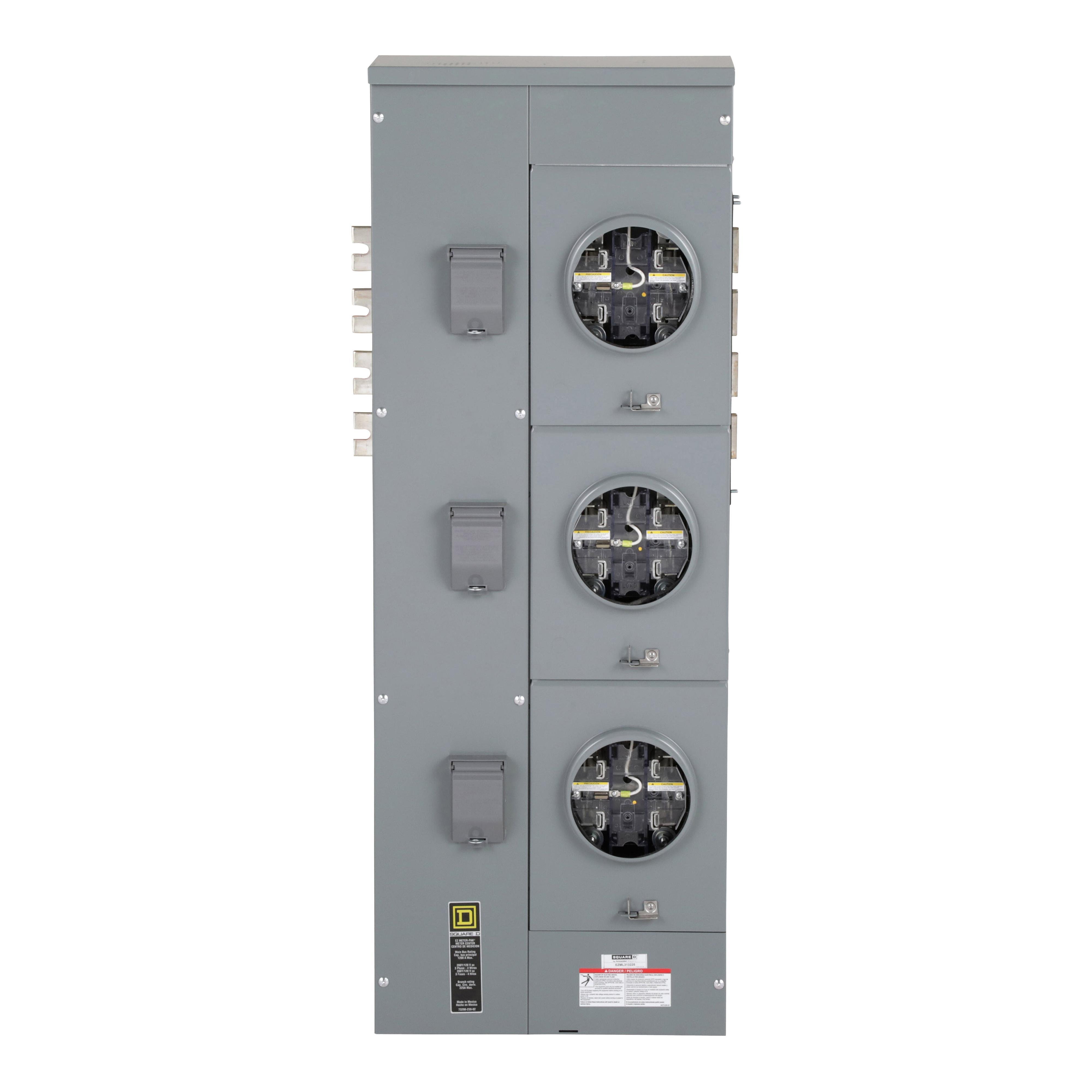

Picture of EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Square D

EZML313225 - Branch unit, EZ Meter-Pak, 225A, 3 x 5 jaw sockets, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar

Item Code: 1777069
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZML313225

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 3 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

158.67lb

Height

53.06mm

Width

21.49mm

Length

53.51mm

Depth

9.44mm

Amperage Rating

225 A

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Cover Type

Ringless

Dimensions

53.06 in H x 19.44 in W x 9.44 in D

Enclosure Type

NEMA 3R

Mounting Type

Surface

Number of Jaws

7-May

Phase

3-Jan

Series

EZM

Type

3-Position

Voltage Rating

208Y/120 V AC
