Square D

EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar

Category Multiple Meter Banks, Centers & Packs

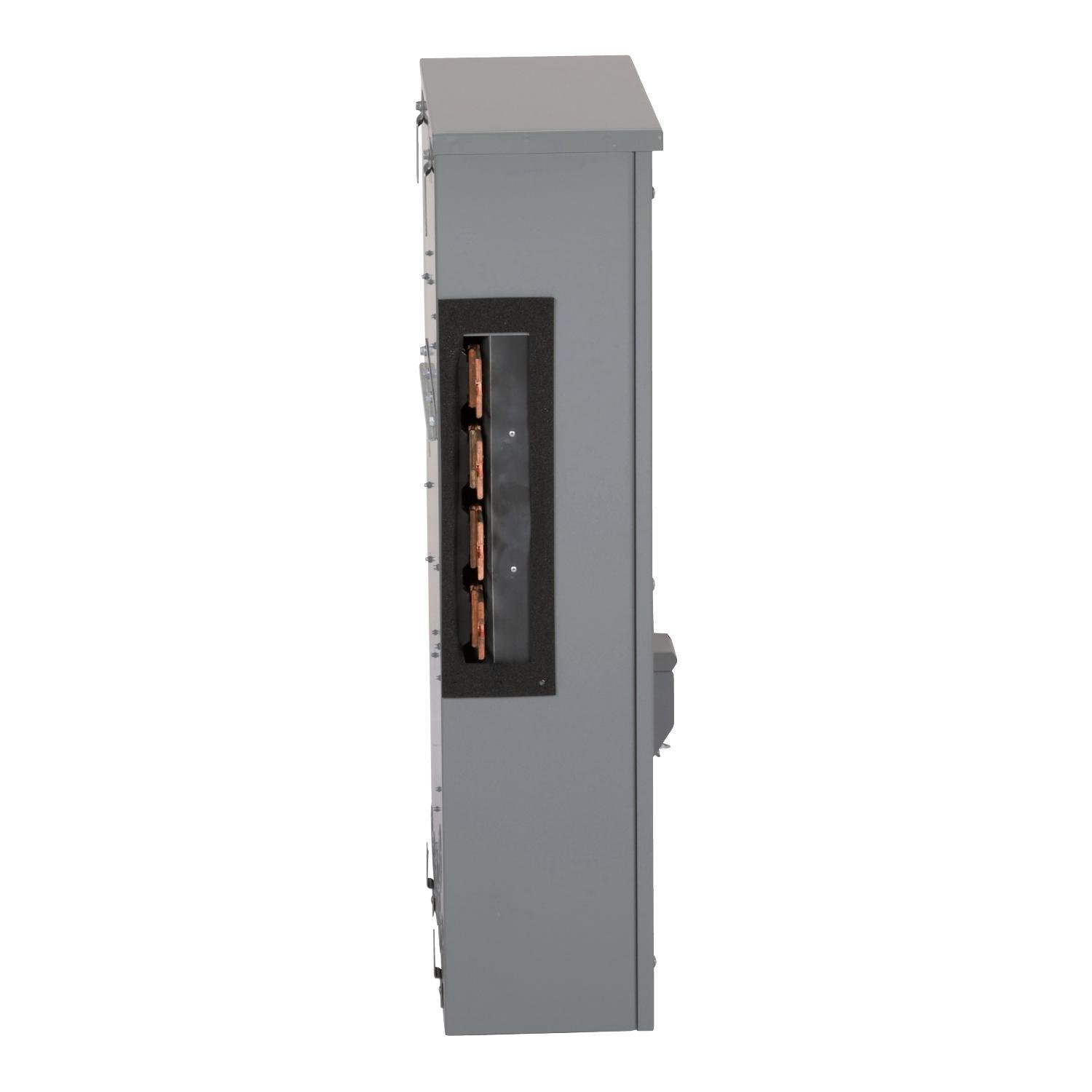

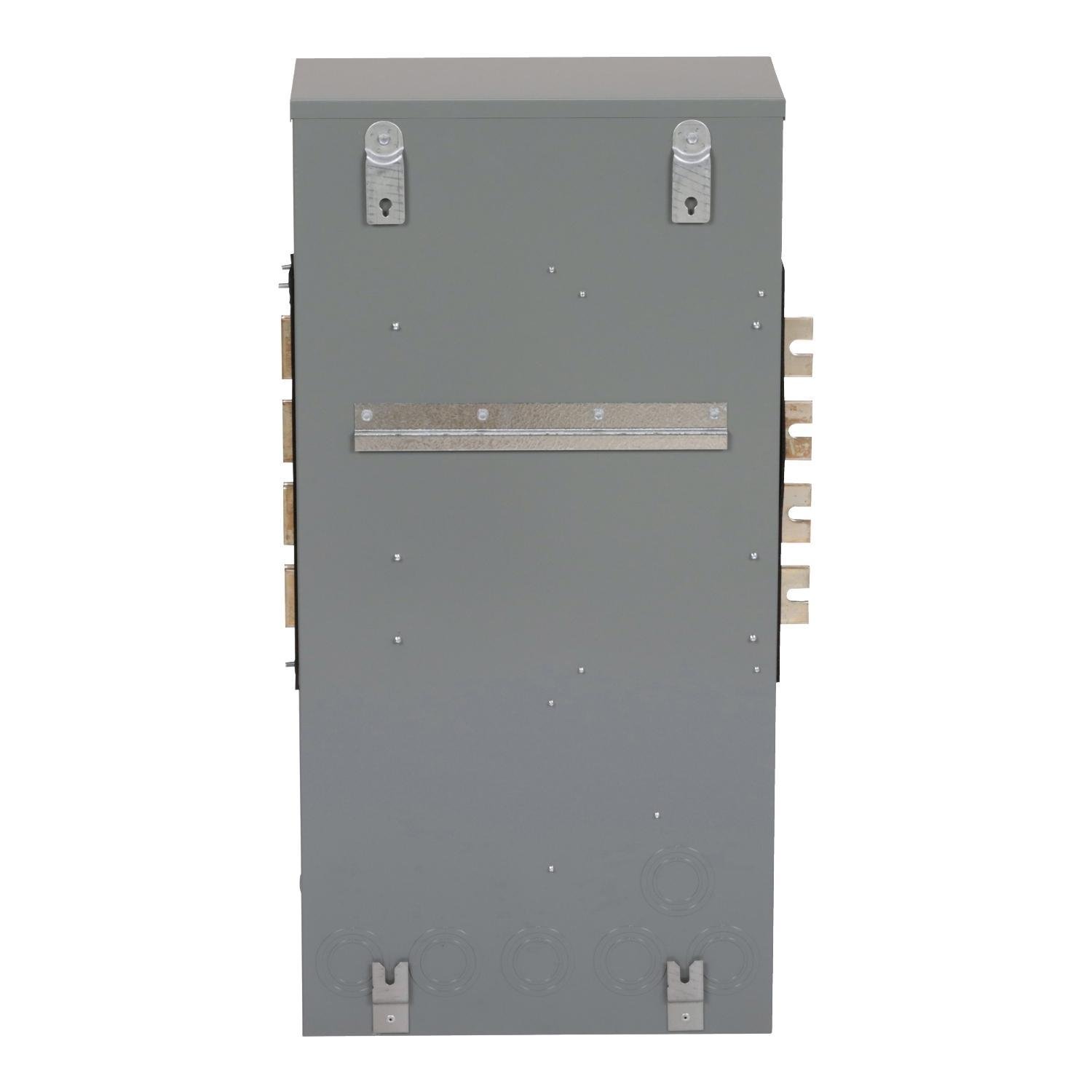

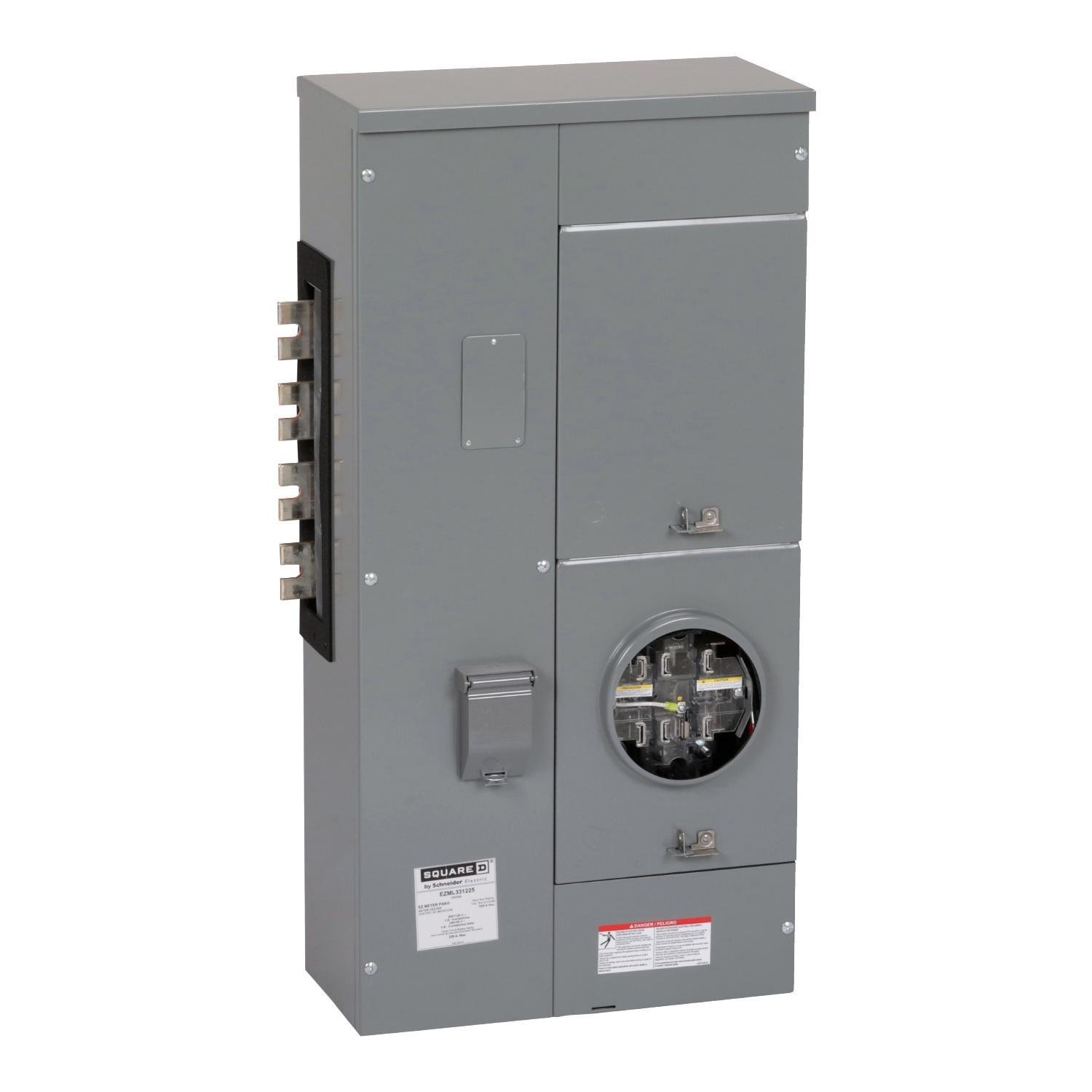

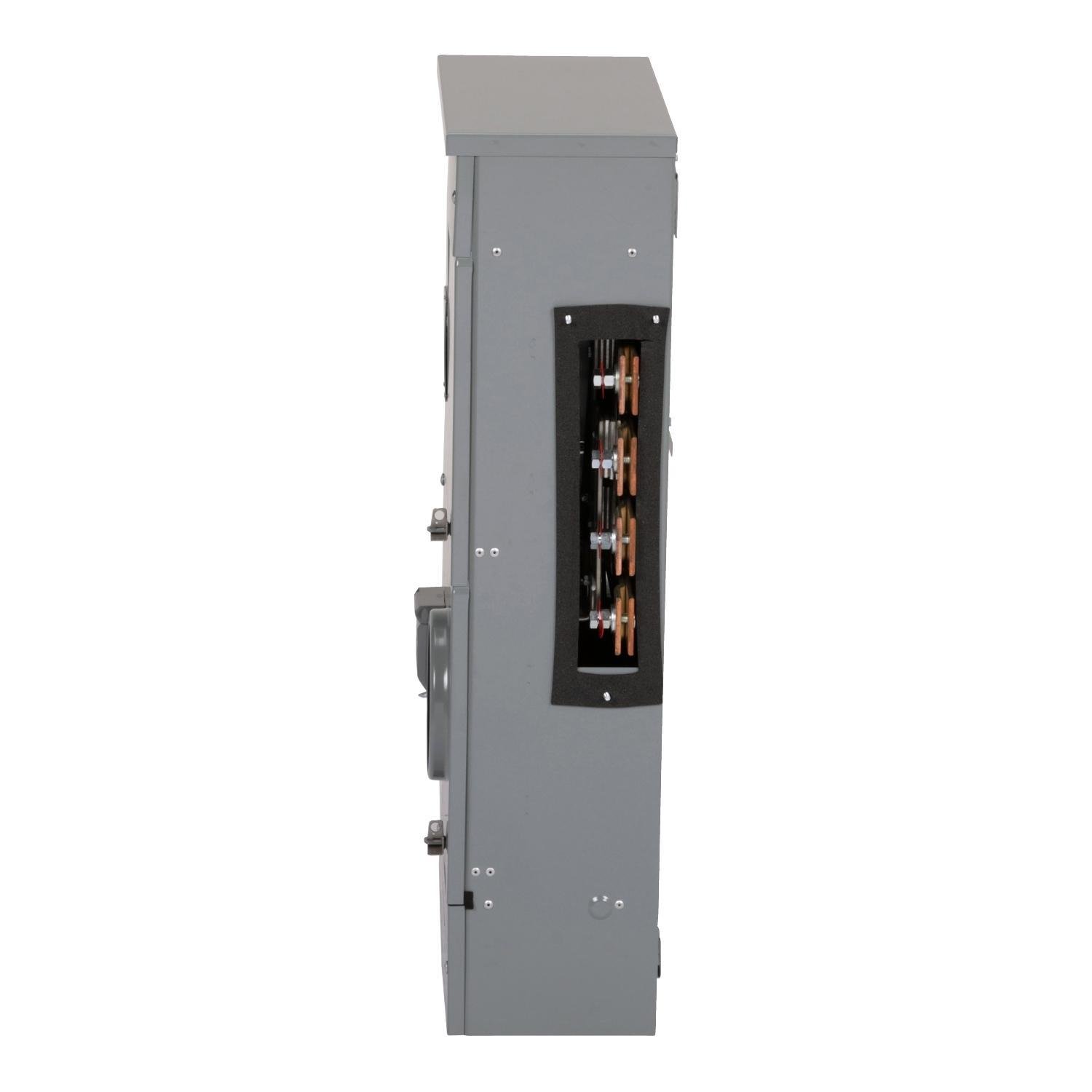

Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar Picture of EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar
Square D

EZML331225 - Branch unit, EZ Meter-Pak, 225A, 1 x 7 jaw socket, 208Y/120VAC, lever bypass, ringless, 1200A Al/Cu busbar

Item Code: 1777071
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZML331225

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 1 seven jaw socket for use. The system voltage is 208Y/120 VAC and has a lever bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

115.76lb

Height

992mm

Width

21.61mm

Length

39.43mm

Depth

240mm

AD Application

For service equipment applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

UNIT BR CTR MTR 225/1200A 3 NEMA 3R

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

For outdoor and indoor installation

AD Item Features 06

External mounting channels permits immediate installation with no disassembly or adjustment required

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

39.4300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

115.7600

AD Package Weight UOM

LB

AD Package Width

21.6100

AD Package Width UOM

IN

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225/1200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

4-Wire

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120 to 208Y/240 to 120 Delta

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 300 kcmil, 14 to 2/0 AWG, 12 to 2/0 AWG

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

19.44 in W x 9.44 in D x 39.06 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

7

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

3

Spec 9 Attribute

Series

Spec 9 Attribute Value

EZM
