Square D

EZMR114225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 120/240VAC, no bypass, ringless, 800A Al busbar

Category Multiple Meter Banks, Centers & Packs

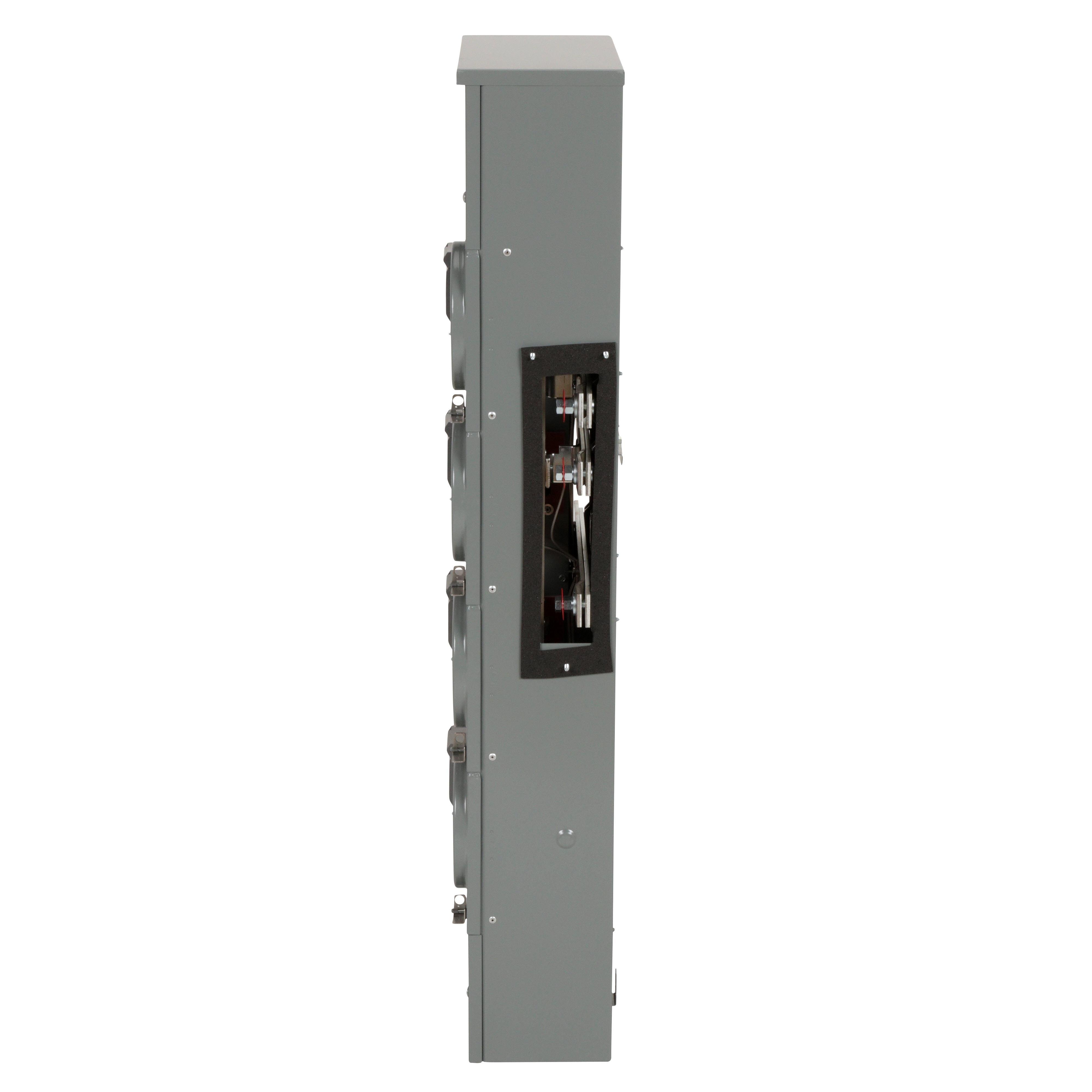

Picture of EZMR114225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 120/240VAC, no bypass, ringless, 800A Al busbar Picture of EZMR114225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 120/240VAC, no bypass, ringless, 800A Al busbar
Picture of EZMR114225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 120/240VAC, no bypass, ringless, 800A Al busbar Picture of EZMR114225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 120/240VAC, no bypass, ringless, 800A Al busbar
Square D

EZMR114225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 120/240VAC, no bypass, ringless, 800A Al busbar

Item Code: 575819
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZMR114225

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 4 five jaw sockets for use. The system voltage is 120/240 VAC and has no bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

87.81

Width

19.62

Length

52.49

AD Application

Service Entrance Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

UNIT BR CTR MTR 120/240VAC 225/800A

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

NEMA Type 3R for outdoor and indoor installation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

52.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

87.8100

AD Package Weight UOM

LB

AD Package Width

19.6200

AD Package Width UOM

IN

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225/800

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Bus Bar

Spec 11 Attribute

Type

Spec 11 Attribute Value

4-Position 3-Wire

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

17.38 in W x 8.09 in D x 52 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Surface

Spec 7 Attribute

Number of Jaws

Spec 7 Attribute Value

5

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Series

Spec 9 Attribute Value

EZM
