Square D

EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar

Category Multiple Meter Banks, Centers & Packs

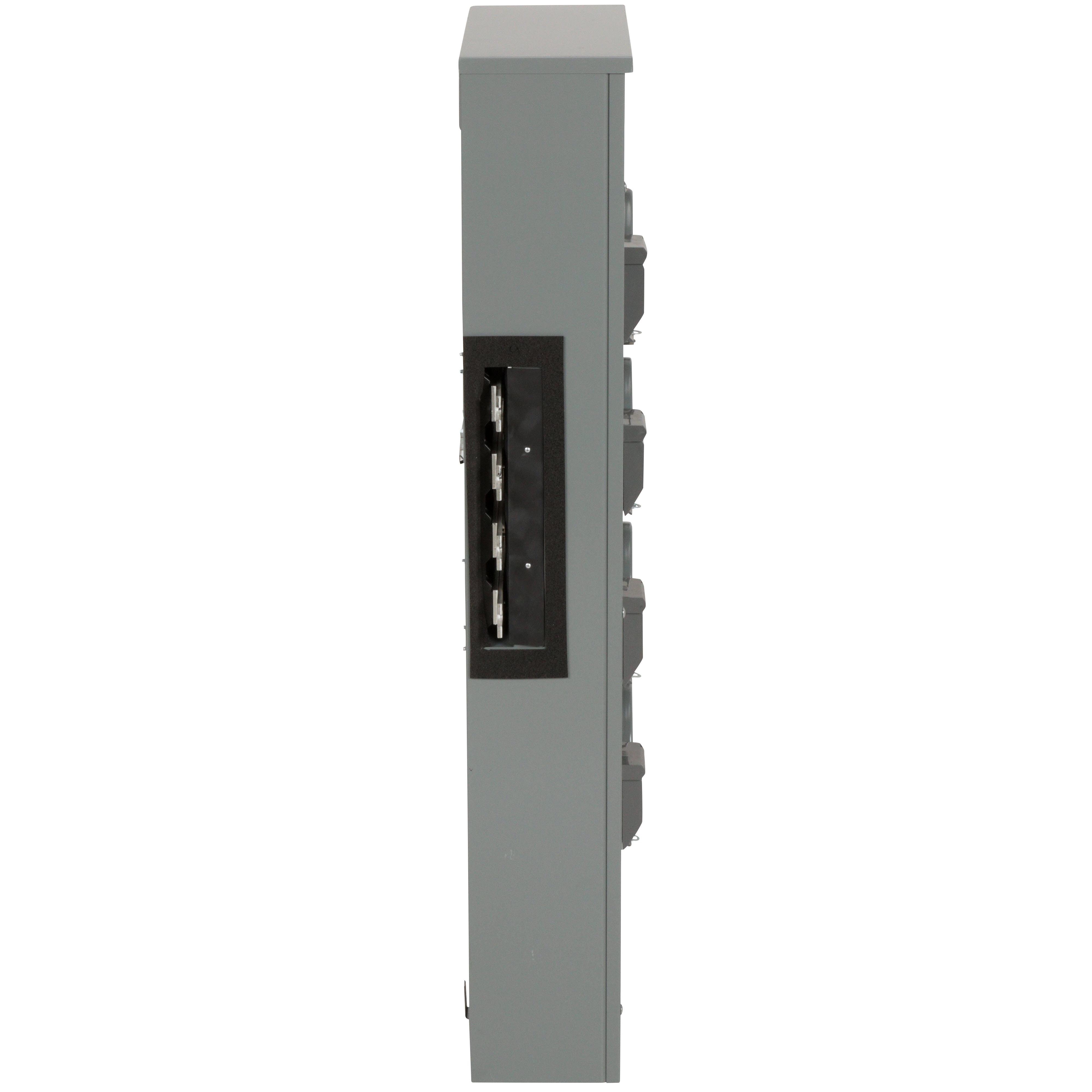

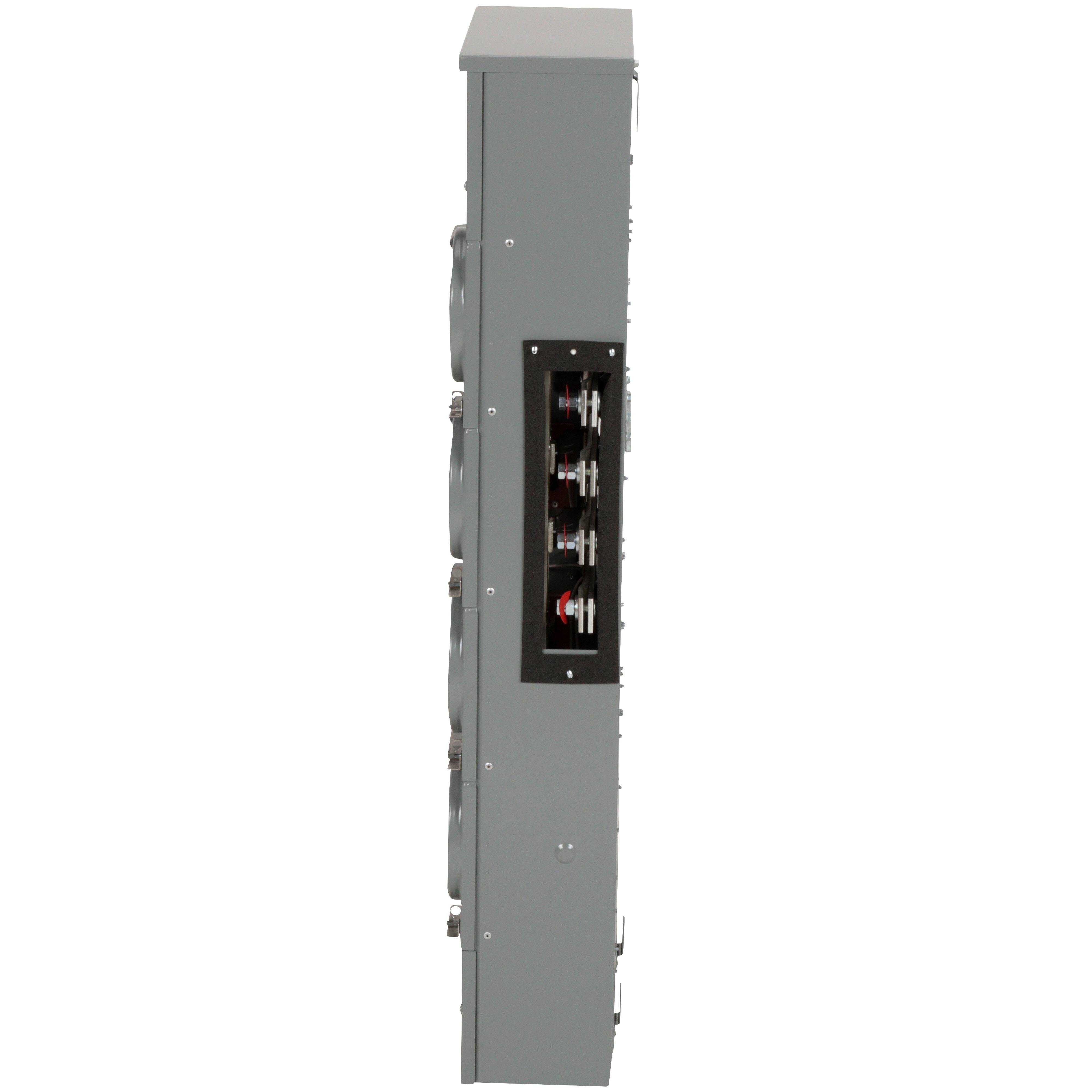

Picture of EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar Picture of EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar
Picture of EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar Picture of EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar
Picture of EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar Picture of EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar
Square D

EZMR314225 - Branch unit, EZ Meter-Pak, 225A, 4 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 800A Al busbar

Item Code: 534252
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZMR314225

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 4 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

90.81lb

Height

52mm

Width

19.5mm

Length

52.42mm

Depth

8.09mm

AD All Features

3 phase 4-wire service feed, 1 phase 3-wire load feed

AD Application

For used as service equipment and use on the line side of service equipment

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

UNIT BR CTR MTR 208Y/120VAC 225A

AD Item Features 01

3 phase 4-wire service feed, 1 phase 3-wire load feed

AD Item Features 02

Aluminum horizontal cross busbar

AD Item Features 03

Without jaw release

AD Item Features 04

Without bypass

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

52.4200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

90.8100

AD Package Weight UOM

LB

AD Package Width

19.5000

AD Package Width UOM

IN

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

208Y/120

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

52 in H x 17.38 in W x 8.09 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

4

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

3-Jan

Spec 8 Attribute

Series

Spec 8 Attribute Value

EZM

Spec 9 Attribute

Type

Spec 9 Attribute Value

4-Position
