Square D™

EZMR316225 - Branch unit, EZ Meter-Pak, 225A, 6 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar

Category Miscellaneous

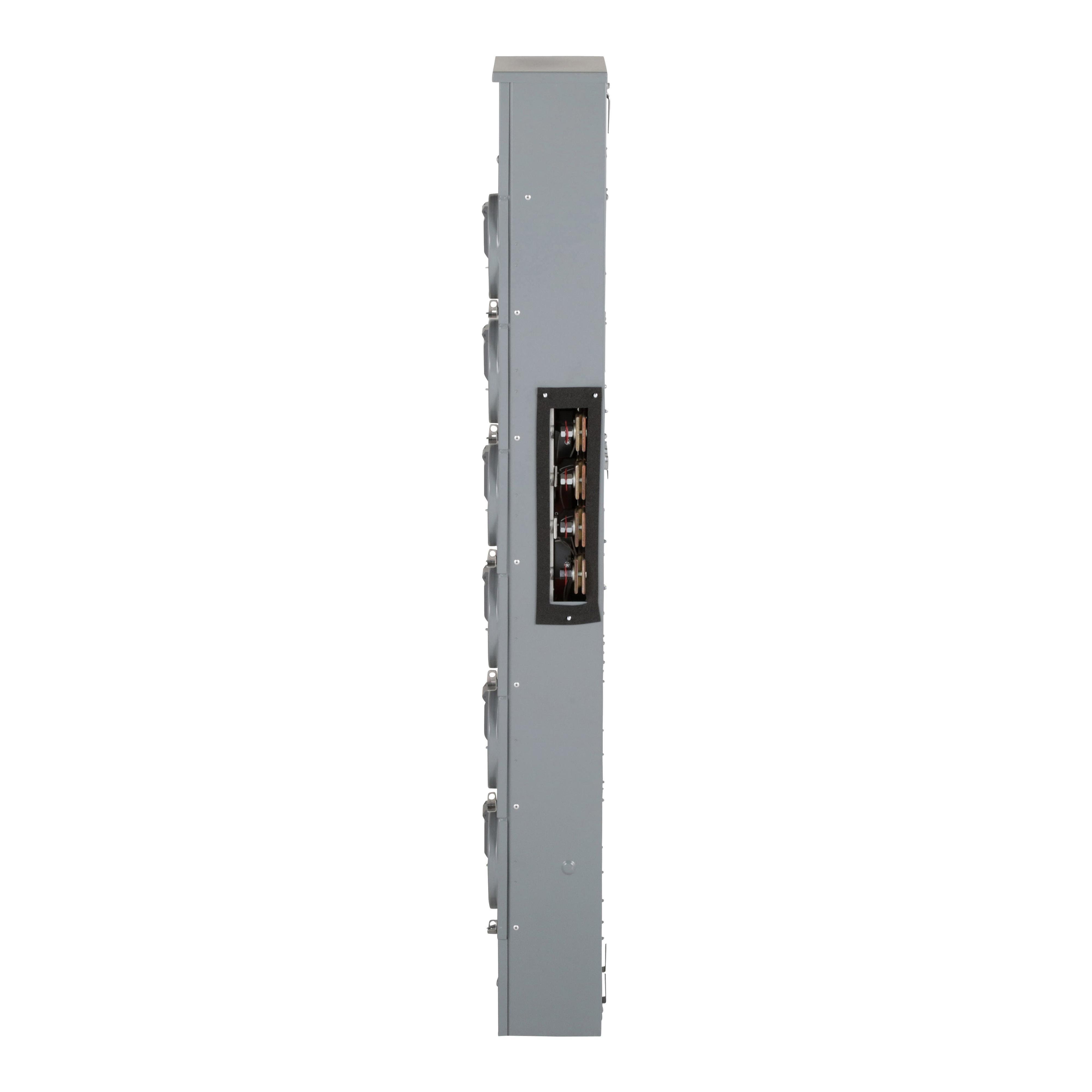

Picture of EZMR316225 - Branch unit, EZ Meter-Pak, 225A, 6 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR316225 - Branch unit, EZ Meter-Pak, 225A, 6 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Picture of EZMR316225 - Branch unit, EZ Meter-Pak, 225A, 6 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR316225 - Branch unit, EZ Meter-Pak, 225A, 6 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Square D™

EZMR316225 - Branch unit, EZ Meter-Pak, 225A, 6 x 5 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar

Item Code: 1012406
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZMR316225

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 6 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

134.72

Width

17.04

Length

7.45

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ezmr316225/ezmr316225.spin

AD Alternative Part Number

14894443

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901782391

AD Gtin

00785901782391

AD IDEA Index ID

14894443

AD Invoice Description

BRANCH UNIT CTR MTR 225A 208Y/120 VAC 6

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

NEMA Type 3R for outdoor and indoor installation

AD Keywords

EZ Meter-Pak EZMR316225 No Bypass Meter Center Branch Unit, 225 A, 208Y/120 V AC, 1200 A Bus ; Schneider Electric ; Square D ; EZMR316225 ; EZMR316225 ; 785901782391 ; Meter Packs

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.4500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

134.7200

AD Package Weight UOM

LB

AD Package Width

17.0400

AD Package Width UOM

IN

AD Part Number Keywords

EZMR316225 ; 14894443 ; 785901782391 ; 78590178239 ; 00785901782391 ; 0785901782391

Brand

Square D

Spec 1 Attribute

Bus Amps

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

1200

Spec 10 Attribute

Type

Spec 10 Attribute Value

No Bypass

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

208Y/120

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

17.36 in W x 8.07 in D x 69.92 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Surface

Spec 5 Attribute

Number of Meter Sockets

Spec 5 Attribute Value

6

Spec 6 Attribute

PHASE

Spec 6 Attribute Value

3-Jan

Spec 7 Attribute

Socket Amps

Spec 7 Attribute UOM

A

Spec 7 Attribute Value

225

Spec 8 Attribute

Socket Cover Style

Spec 8 Attribute Value

Ringless

Spec 9 Attribute

Socket Jaws

Spec 9 Attribute Value

5 Without Jaw Release
