Square D

EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar

Category Multiple Meter Banks, Centers & Packs

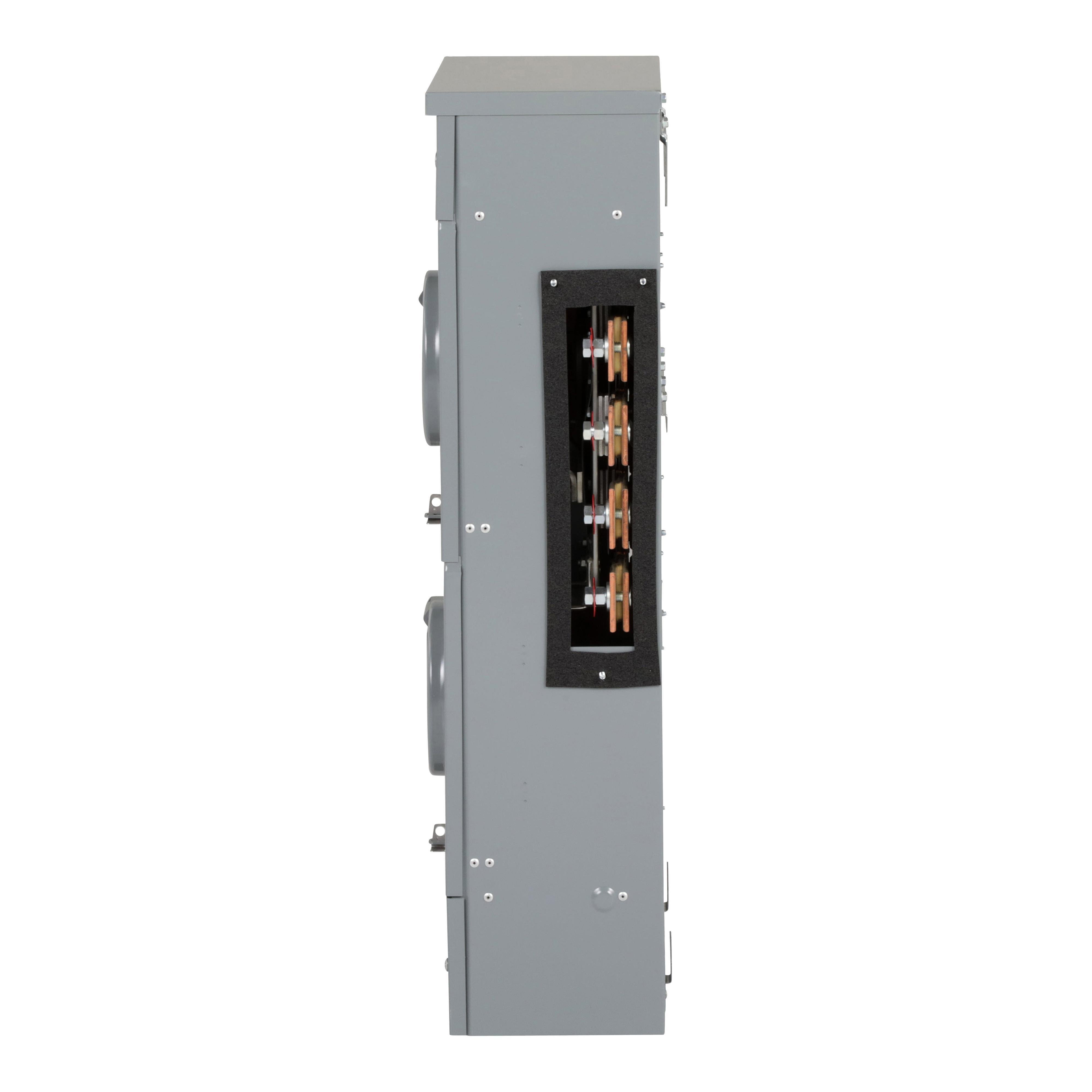

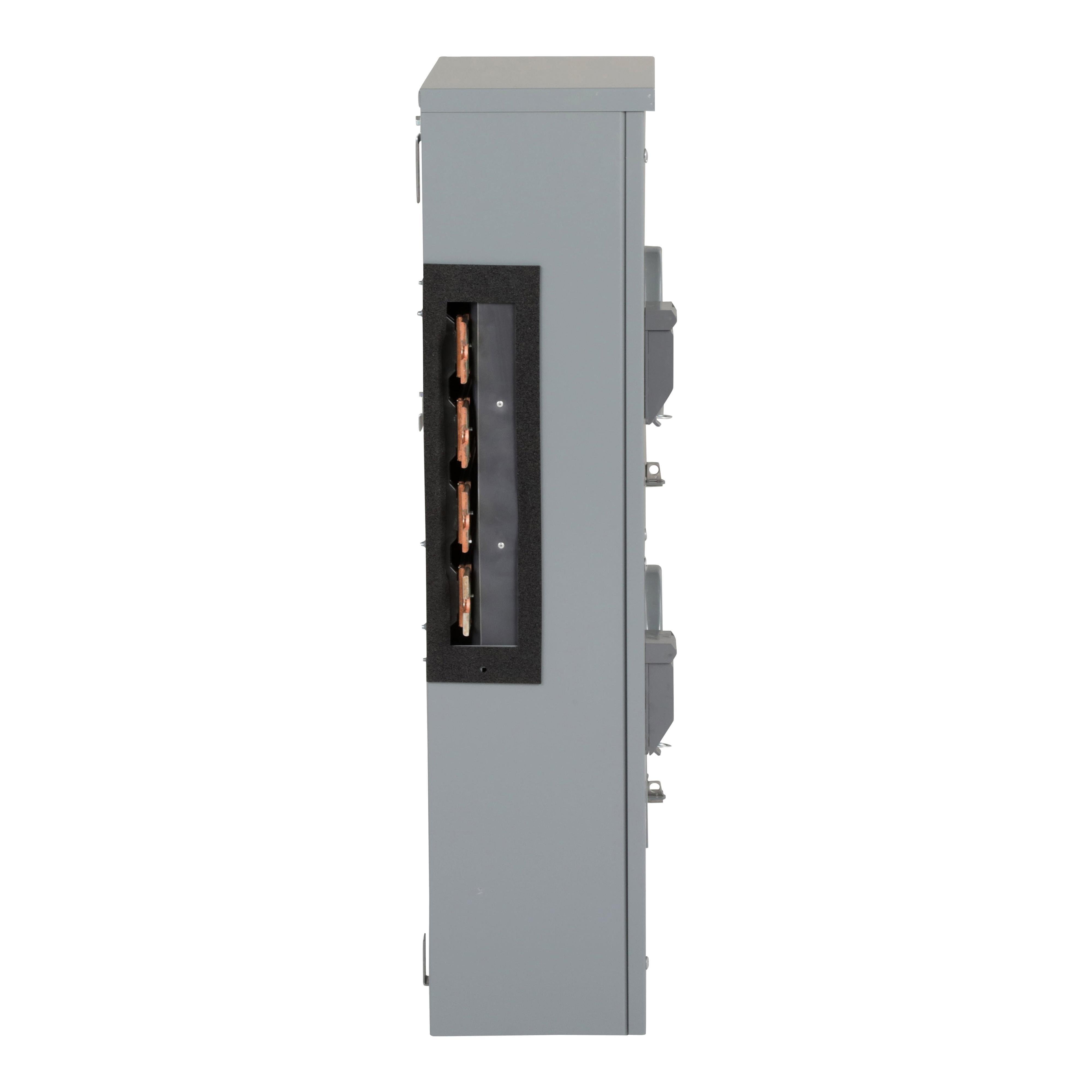

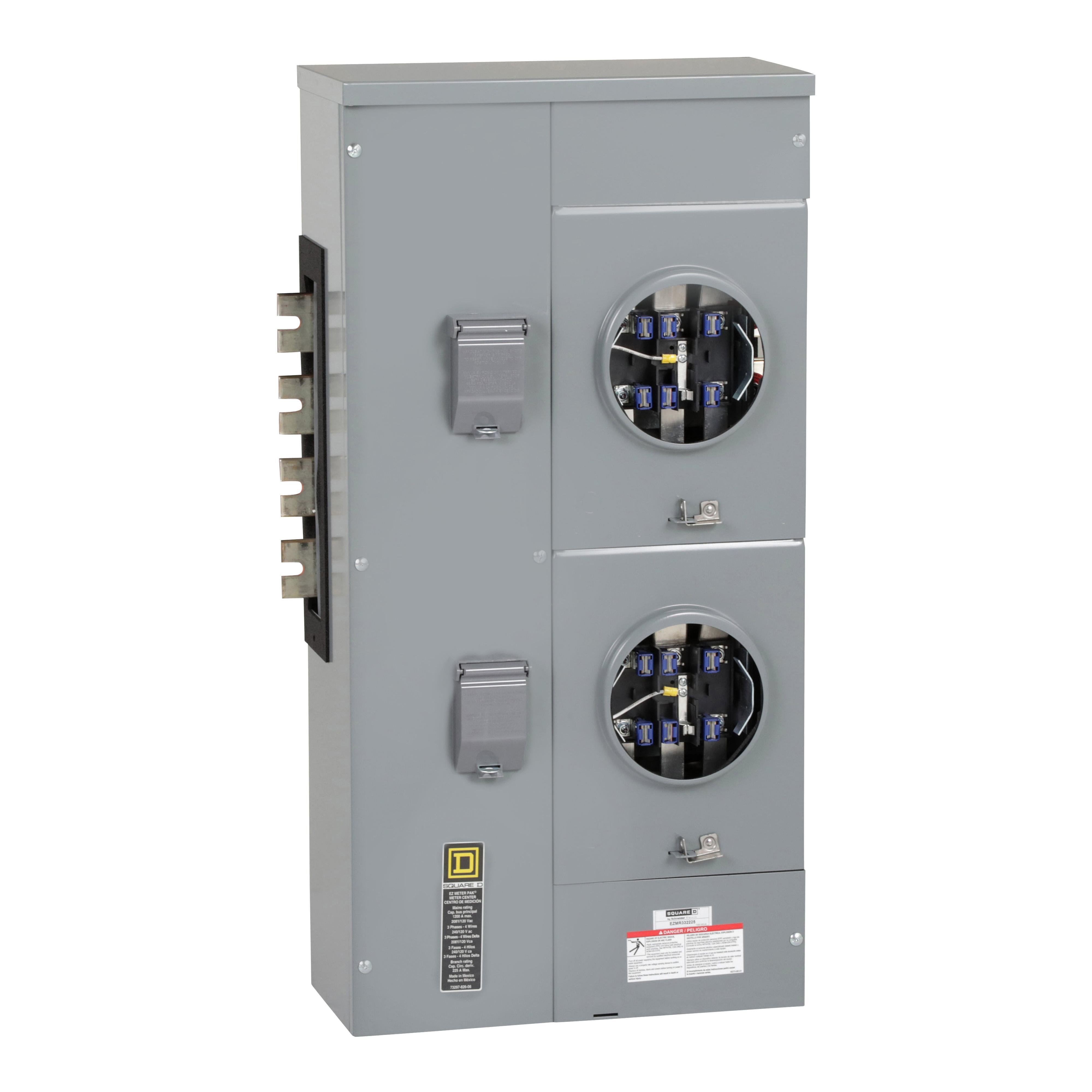

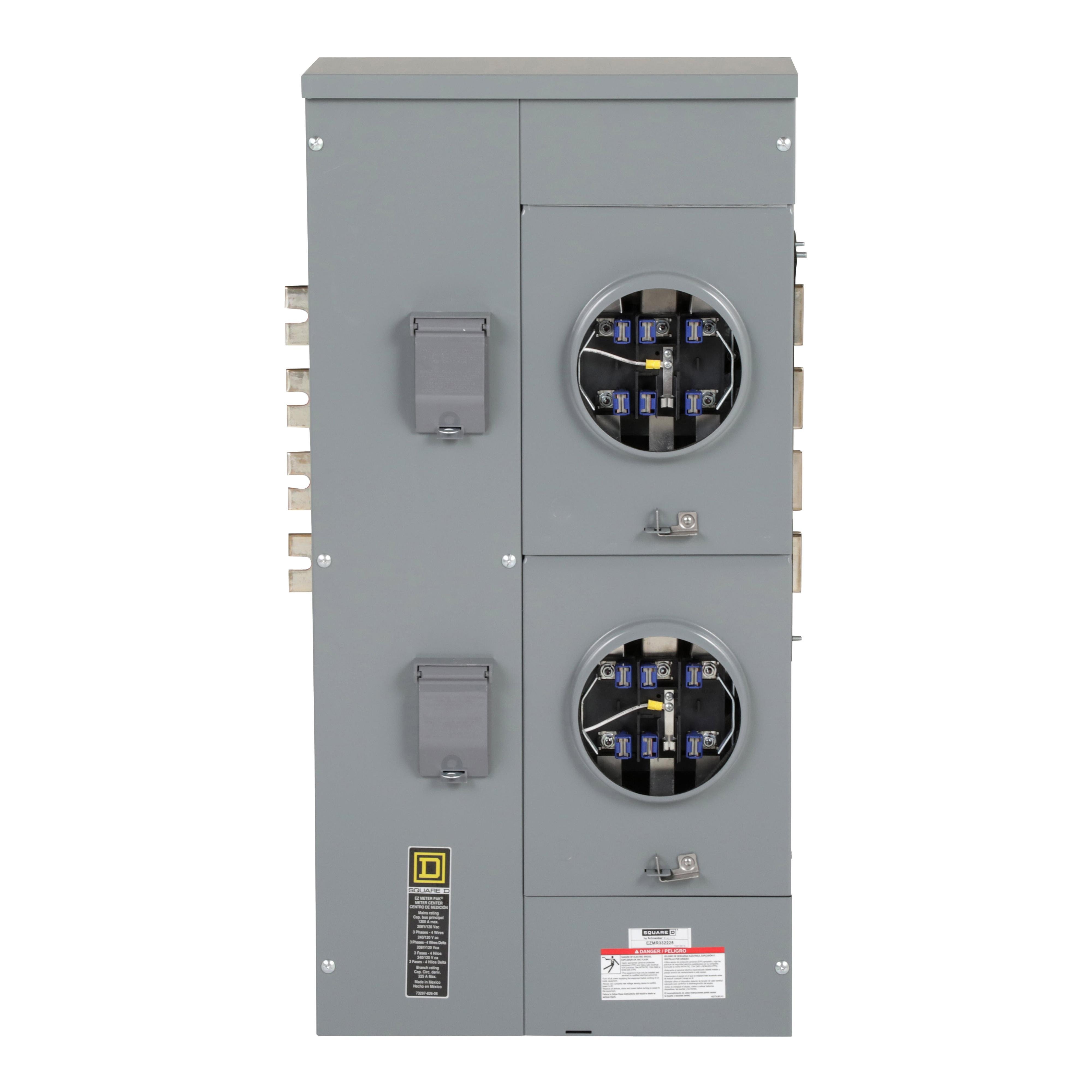

Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Square D

EZMR332225 - Branch unit, EZ Meter-Pak, 225A, 2 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar

Item Code: 523180
Category Multiple Meter Banks, Centers & Packs
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZMR332225

Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 2 seven jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

121.74

Width

21.61

Length

39.51

Amperage Rating

225 A

Brand

Square D

Category

MULTIPLE METER BANKS, CENTERS & PACKS

Cover Type

Ringless

Dimensions

39.06 in H x 19.44 in W x 9.44 in D

Enclosure Type

NEMA 3R

Mounting Type

Surface

Number of Jaws

2

Phase

3

Series

EZM

Type

2-Position

Voltage Rating

120 to 208Y/240 to 120 Delta V AC
