Square D

EZMR333225 - Branch unit, EZ Meter-Pak, 225A, 3 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar

Category Miscellaneous

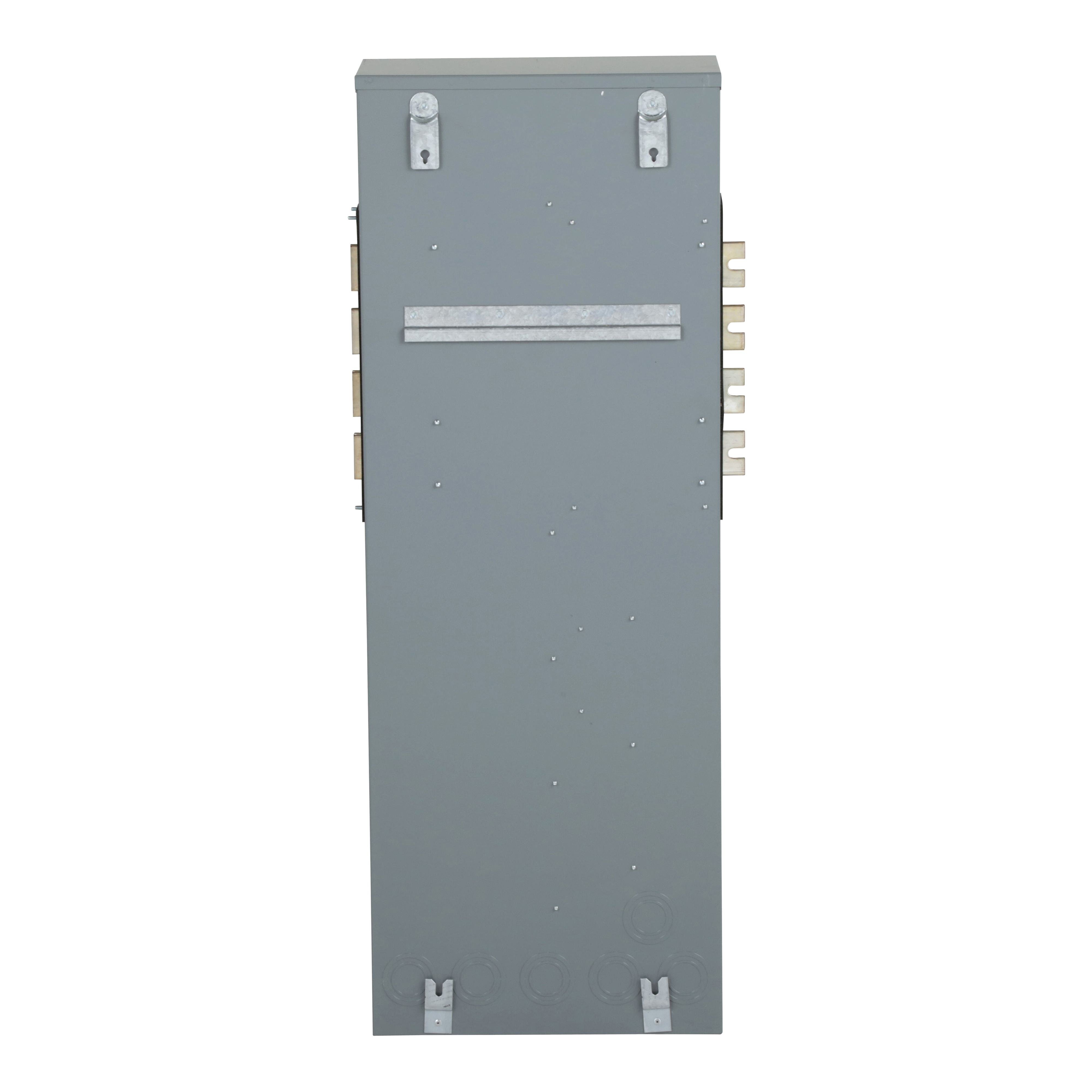

Picture of EZMR333225 - Branch unit, EZ Meter-Pak, 225A, 3 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR333225 - Branch unit, EZ Meter-Pak, 225A, 3 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Picture of EZMR333225 - Branch unit, EZ Meter-Pak, 225A, 3 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar Picture of EZMR333225 - Branch unit, EZ Meter-Pak, 225A, 3 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar
Square D

EZMR333225 - Branch unit, EZ Meter-Pak, 225A, 3 x 7 jaw sockets, 208Y/120VAC, no bypass, ringless, 1200A Al/Cu busbar

Item Code: 565823
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EZMR333225

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 3 seven jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Specifications

Weight

159.66

Width

21.29

Length

53.51

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EZMR333225/EZMR333225.spin

AD Alternative Part Number

8148531

AD Application

For used as service equipment and use on the line side of service equipment

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901337942

AD Gtin

00785901337942

AD IDEA Index ID

8148531

AD Invoice Description

UNIT BR CTR MTR 225A 3 NEMA 3R 3 SURF

AD Item Features 01

Meter sockets and tenant circuit breaker slots for downstream metering and protection

AD Item Features 02

125A, 225A, and 400A units available, ringless or ring type with varied bypass options

AD Item Features 03

800A horizontal busbar standard (1200A busbar optional)

AD Item Features 04

Corner, elbow, transition, and bus extensions create system design flexibility

AD Item Features 05

NEMA Type 3R for outdoor and indoor installation

AD Keywords

Meter-Pak EZMR333225 3-Position Meter Center Branch Unit, 120/208Y VAC, 240/120 Delta VAC, 225 A, 3 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; EZMR333225 ; EZMR333225 ; 785901337942 ; Meter Sockets - Multi Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

53.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

159.6600

AD Package Weight UOM

LB

AD Package Width

21.2900

AD Package Width UOM

IN

AD Part Number Keywords

EZMR333225 ; 8148531 ; 785901337942 ; 78590133794 ; 00785901337942 ; 0785901337942

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

225

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120 to 208Y/240 to 120 Delta

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

53.06 in H x 19.44 in W x 9.44 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

3

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

3

Spec 8 Attribute

Series

Spec 8 Attribute Value

EZM

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Position
