Square D

GS2AH120 - External rotary handle, TeSys GS, red handle, front mounting, 2 positions I-O, NEMA 3R, for GS 30A Compact UL

Category Miscellaneous

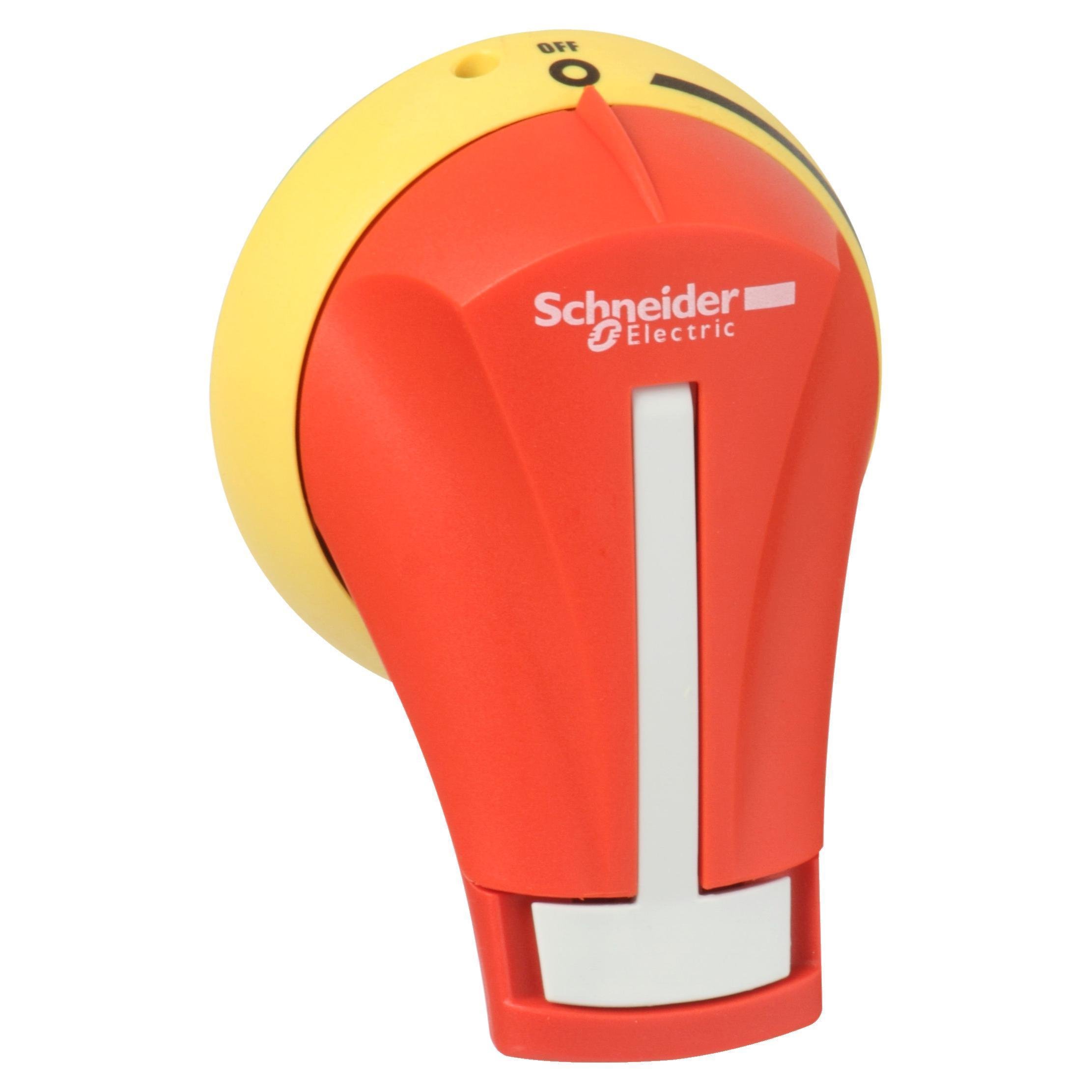

Picture of GS2AH120 - External rotary handle, TeSys GS, red handle, front mounting, 2 positions I-O, NEMA 3R, for GS 30A Compact UL
Square D

GS2AH120 - External rotary handle, TeSys GS, red handle, front mounting, 2 positions I-O, NEMA 3R, for GS 30A Compact UL

Item Code: 898546
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GS2AH120

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys GS external operating handle for 3-pole 30A UL fuse switch-disconnectors GS1DDU, GS1DU. Red handle with yellow front plate, padlockable, to be mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation. To be completed

Specifications

Weight

0.49

Width

5.46

Length

5.46

AD All Features

Mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation

AD Alternative Part Number

13599224

AD Application

For 30 A disconnect switches applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

TN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

3389119411820

AD Gtin

03389119411820

AD IDEA Index ID

13599224

AD Invoice Description

HANDLE RTRY R/YEL 2-POSN EXT FRONTAL

AD Item Features 01

Mounted on door of an enclosure with NEMA protection 1, 3R, 12, for front side operation

AD Item Features 02

High short circuit performance up to 100 KA

AD Item Features 03

Robust and compact handles

AD Item Features 04

Effective protection thanks to fuse speed fusion

AD Keywords

TeSys GS2AH120 2-Position External Frontal Rotary Handle With Rotary Handle Padlocking, Red/Yellow ; Schneider Electric ; Square D ; GS2AH120 ; 785901014348 ; Disconnect Switch Operating Handles

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

5.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4900

AD Package Weight UOM

LB

AD Package Width

5.4600

AD Package Width UOM

IN

AD Part Number Keywords

GS2AH120 ; 13599224 ; 785901014348 ; 78590101434 ; 03389119411820 ; 3389119411820

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Red/yellow

Spec 2 Attribute

Series

Spec 2 Attribute Value

GS2AH

Spec 3 Attribute

Type

Spec 3 Attribute Value

2-Position External Frontal
