Schneider Electric

GS2JU3N - Switch disconnector fuse, TeSys GS, 3P, 100A, fuse type UL, size J

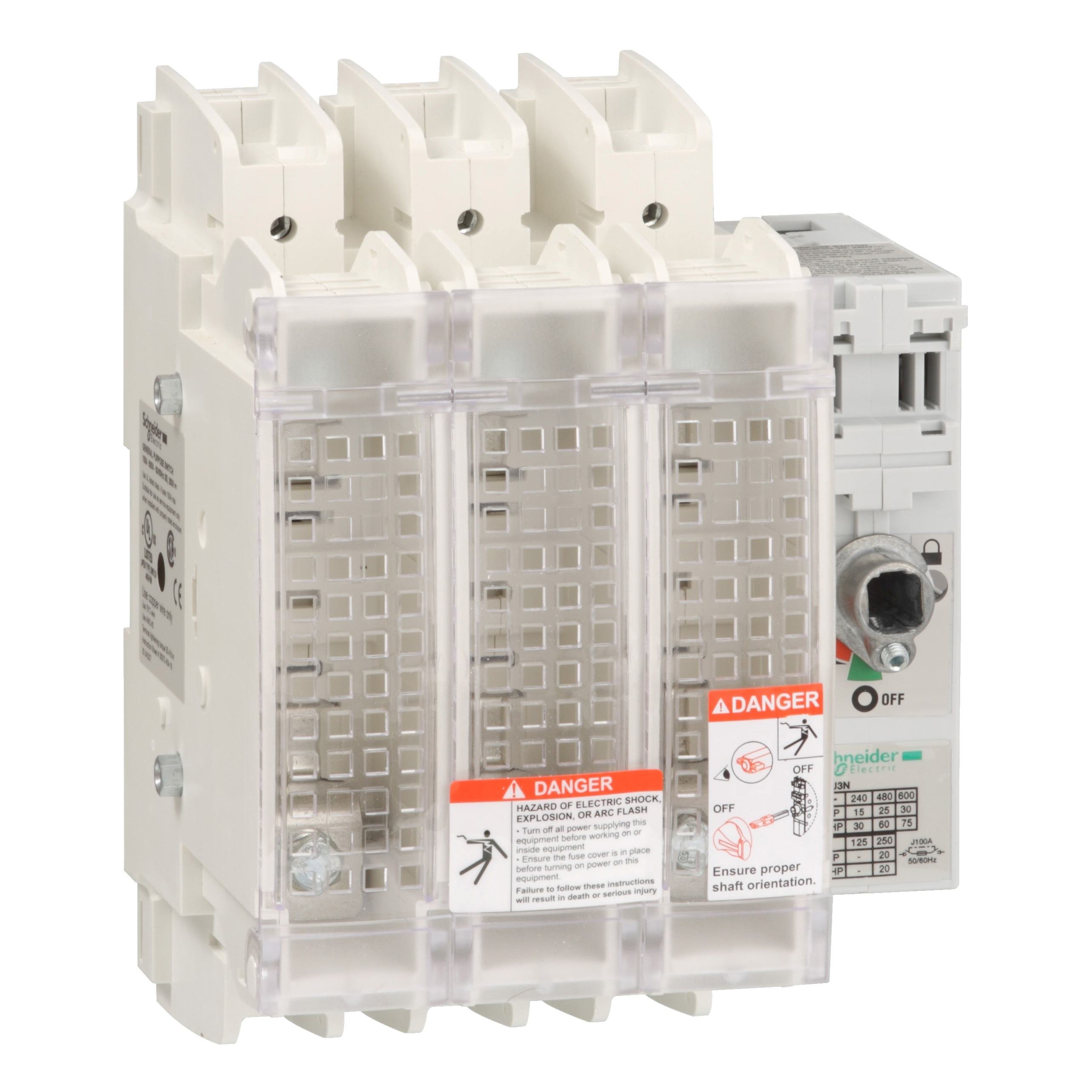

Picture of GS2JU3N - Switch disconnector fuse, TeSys GS, 3P, 100A, fuse type UL, size J
Schneider Electric

GS2JU3N - Switch disconnector fuse, TeSys GS, 3P, 100A, fuse type UL, size J

Item Code: 885786
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GS2JU3N

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.

Specifications

Weight

5.07lb

Height

186mm

Width

9.16mm

Length

9.55mm

Depth

122.2mm

AD All Features

Equipped with an external front side mounting operating handle

AD Alternative Part Number

8087041

AD Application

For protection applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CN

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

3606480512346

AD Gtin

03606480512346

AD IDEA Index ID

8087041

AD Invoice Description

SWITCH DISC 600VAC 100A 75HP 50/60HZ

AD Item Features 01

Equipped with an external front side mounting operating handle

AD Item Features 02

Lockable with door interlock

AD Item Features 03

To be used with class J fuse links

AD Item Features 04

Robust and compact handles

AD Item Features 05

Effective protection thanks to fuse speed fusion

AD Keywords

Square D TeSys GS2JU3N Fusible Disconnect Switch With Terminal Cover, 600 V AC, 100 A, 75 hp, 3NO 3 Form A Contact, 3 Poles ; Schneider Electric ; Schneider Electric ; GS2JU3N ; 785901547686 ; Open Rotary Control Disconnects

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

9.5500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.0700

AD Package Weight UOM

LB

AD Package Width

9.1600

AD Package Width UOM

IN

AD Part Number Keywords

GS2JU3N ; 8087041 ; 785901547686 ; 78590154768 ; 03606480512346 ; 3606480512346

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Short Circuit Current Rating

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

200

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-20 To 70

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Ring Lug

Spec 13 Attribute

Type

Spec 13 Attribute Value

Fusible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3NO 3 Form A

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

149.3 mm W x 122.2 mm D x 186 mm H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

IP20

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

75

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

DIN Rail/Surface

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

1
