Schneider Electric

GS2SU3 - Switch disconnector fuse, TeSys GS, 3P, 600A, fuse type UL, size J

Category Miscellaneous

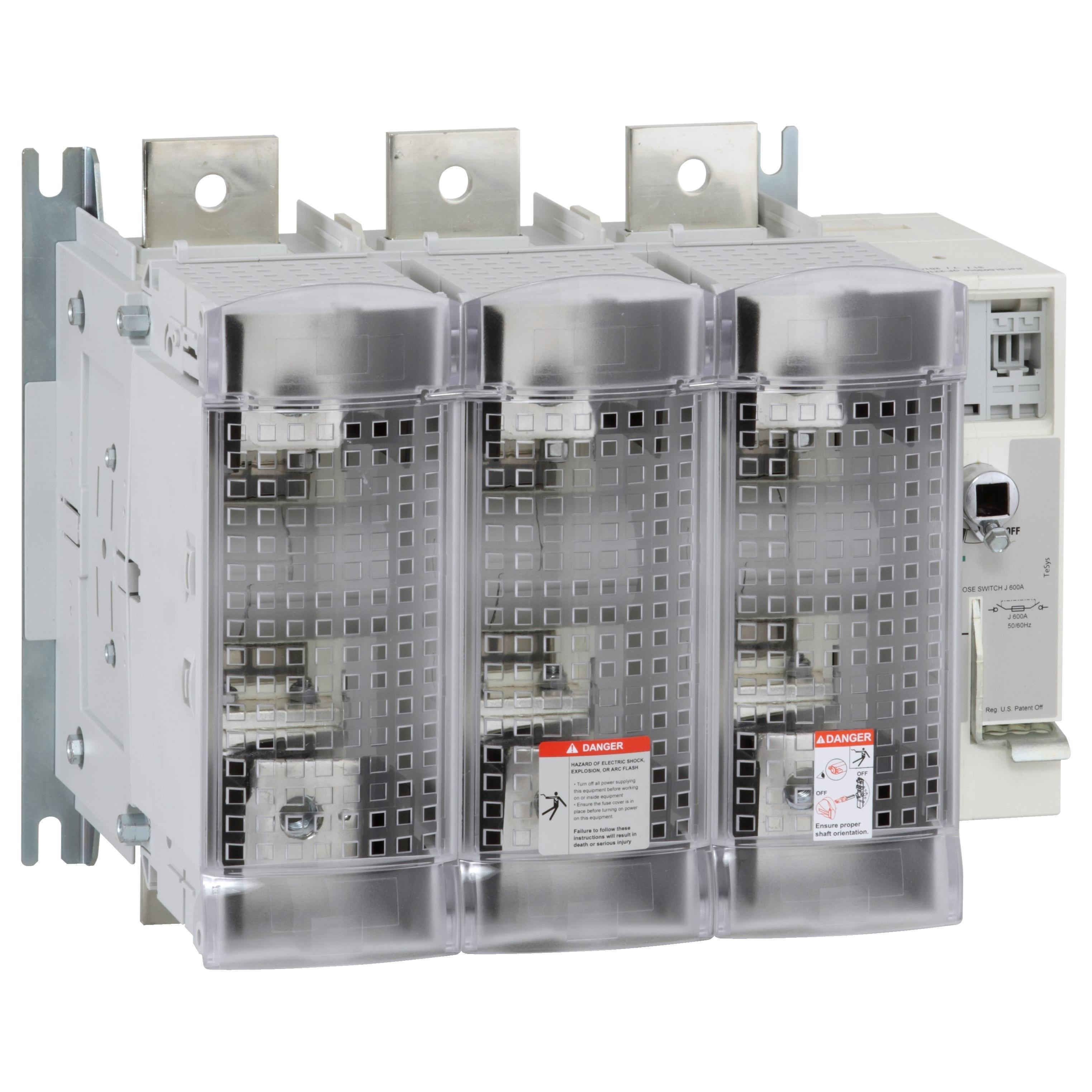

Picture of GS2SU3 - Switch disconnector fuse, TeSys GS, 3P, 600A, fuse type UL, size J
Schneider Electric

GS2SU3 - Switch disconnector fuse, TeSys GS, 3P, 600A, fuse type UL, size J

Item Code: 891683
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GS2SU3

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys GS fuse switch-disconnector, 3 poles (3P), 600A/1000V, to be used with class J fuse links up to 600A, for motor applications up to 355kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models availabl

Specifications

Weight

63.8

Width

16.26

Length

20.63

AD All Features

Equipped with an external front side mounting operating handle

AD Alternative Part Number

8087830

AD Application

Industry, Infrastructure and Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

3389119411448

AD Gtin

03389119411448

AD IDEA Index ID

8087830

AD Invoice Description

SWITCH DISC 600VAC 600A 500HP 3NO 3 77KA

AD Item Features 01

Equipped with an external front side mounting operating handle

AD Item Features 02

Lockable with door interlock

AD Item Features 03

To be used with class J fuse links

AD Item Features 04

Robust and compact handles

AD Item Features 05

Effective protection thanks to fuse speed fusion

AD Keywords

TeSys GS2SU3 Fusible Disconnect Switch With Terminal Cover, 600 V AC, 600 A, 500 hp, 3NO 3 Form A Contact, 3 Poles ; Schneider Electric ; Schneider Electric ; GS2SU3 ; 785901550495 ; Open Rotary Control Disconnects

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

20.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

63.8000

AD Package Weight UOM

LB

AD Package Width

16.2600

AD Package Width UOM

IN

AD Part Number Keywords

GS2SU3 ; 8087830 ; 785901550495 ; 78590155049 ; 03389119411448 ; 3389119411448

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

77

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-4 To 158

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Ring Lug

Spec 14 Attribute

Type

Spec 14 Attribute Value

Fusible

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

600

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3NO 3 Form A

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.33 in W x 9.84 in D x 11.81 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

500

Spec 8 Attribute

Insulation Type

Spec 8 Attribute Value

Class J

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
