Schneider Electric

GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P

Category Miscellaneous

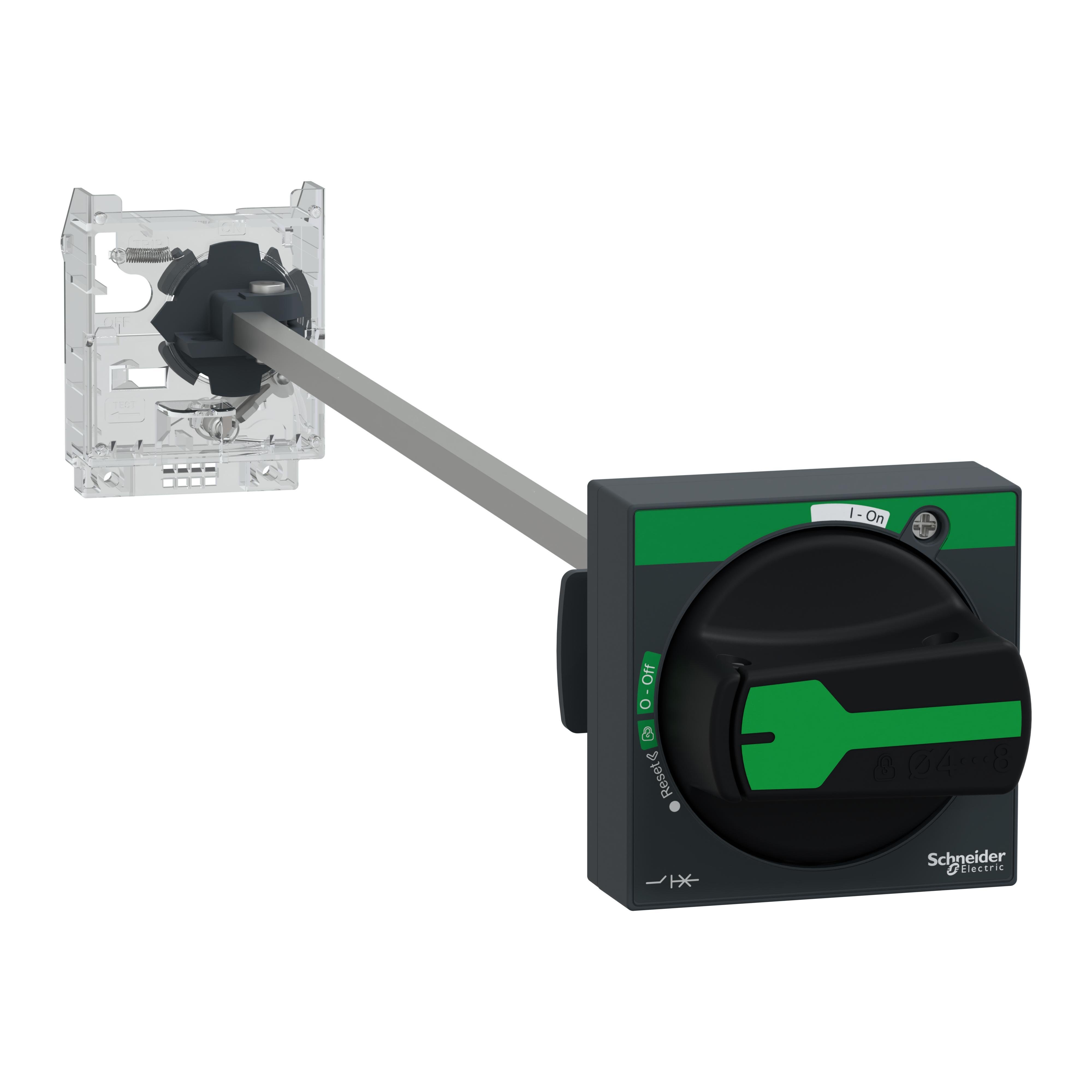

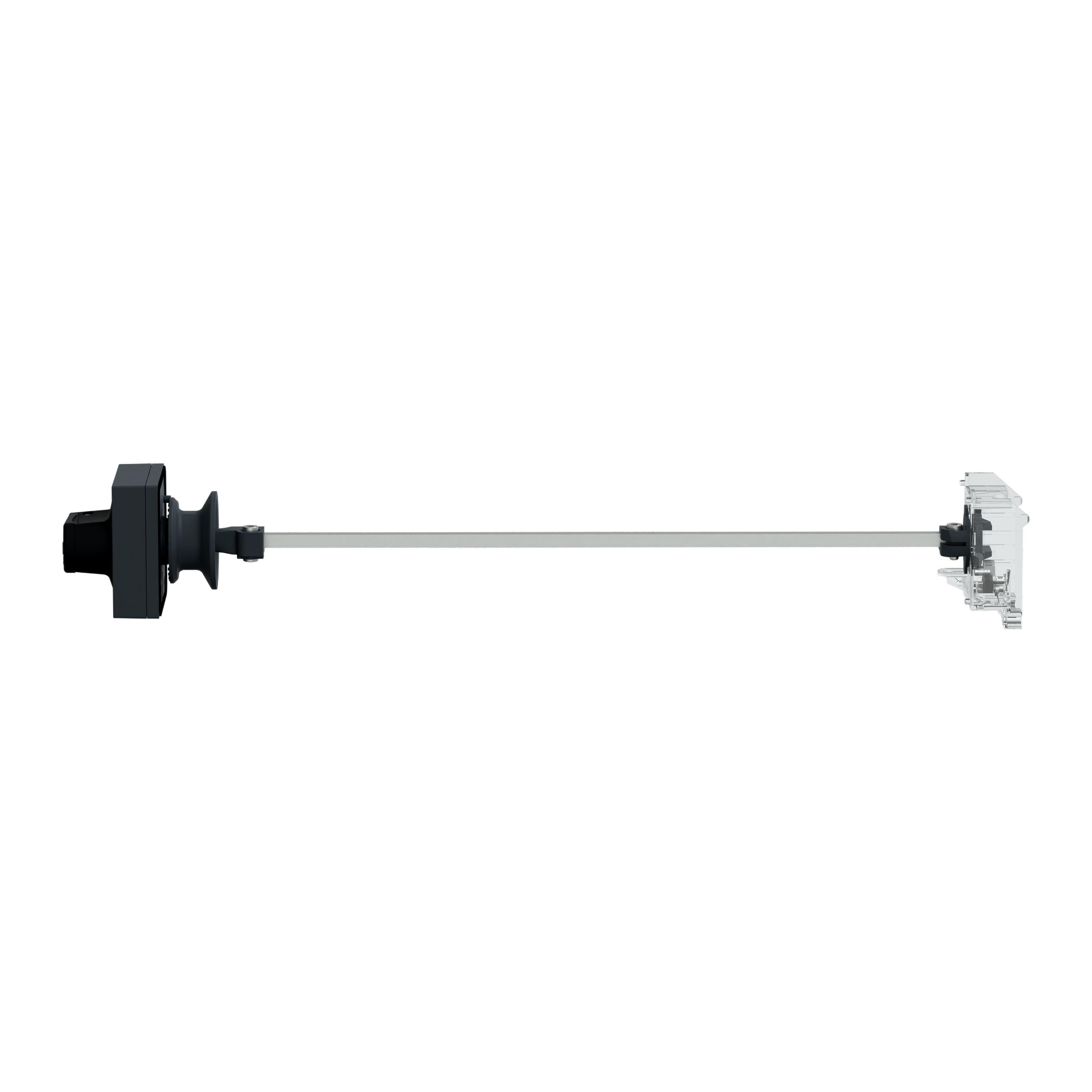

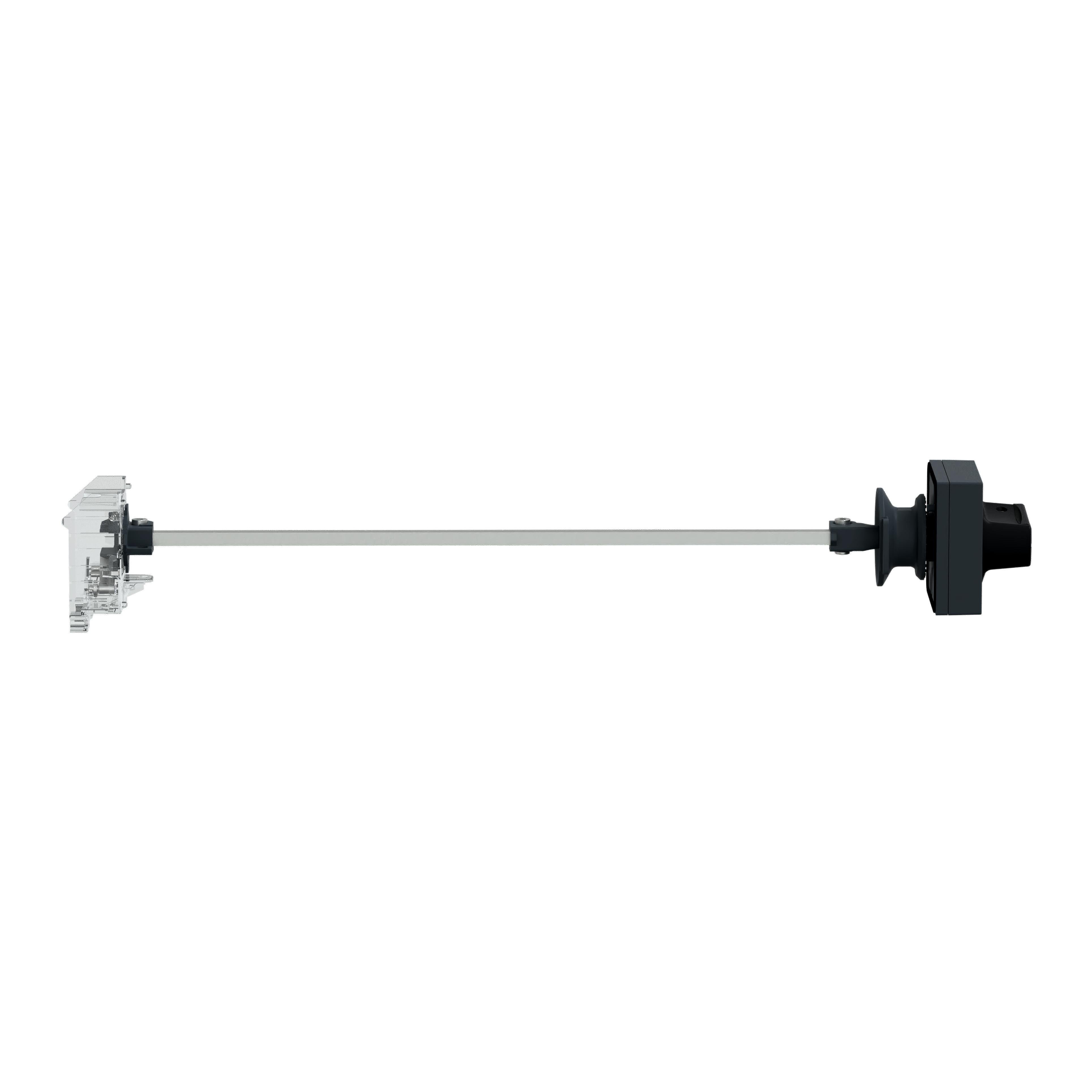

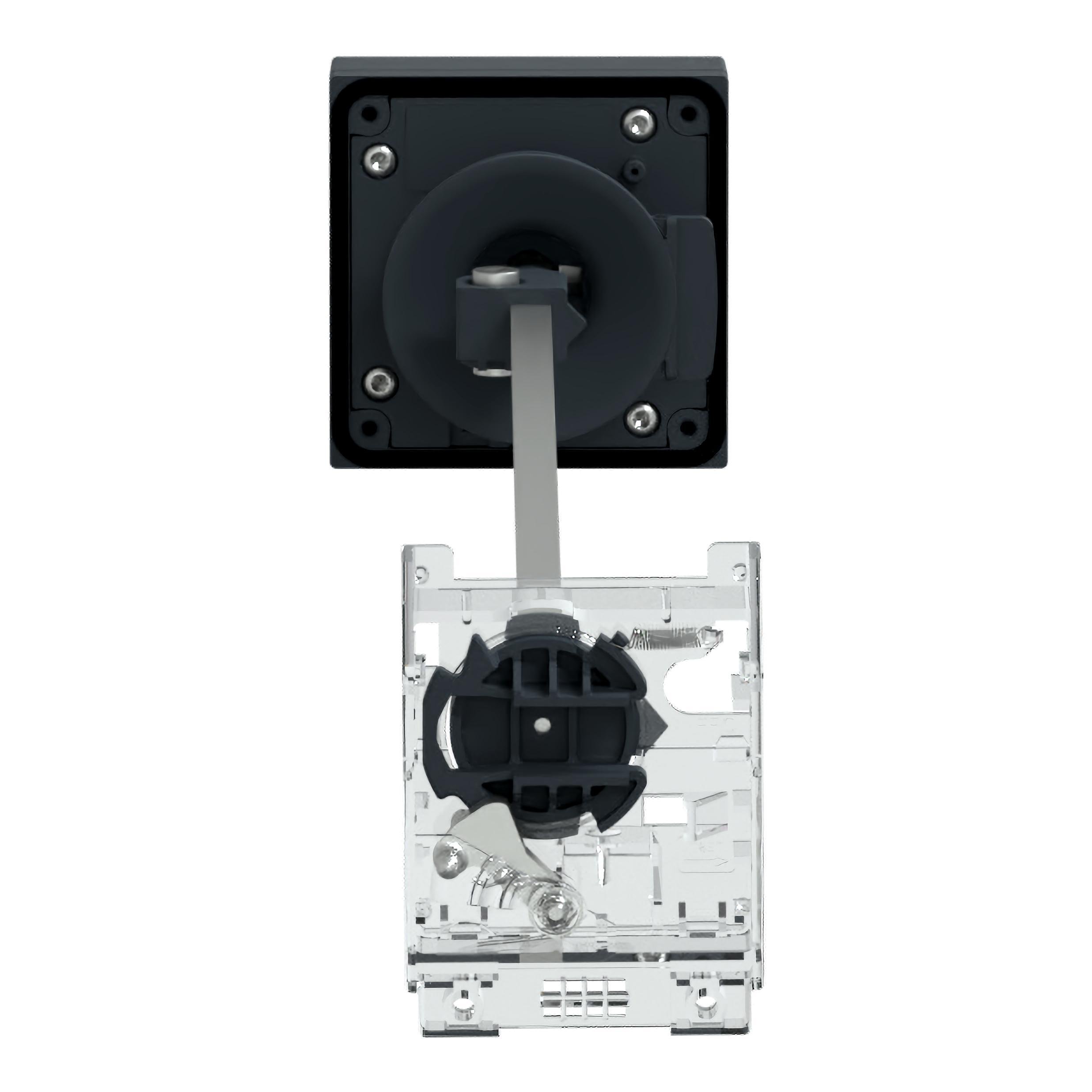

Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Schneider Electric

GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P

Item Code: 1224010
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GV2APN03

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).

Specifications

Weight

0.74

Height

2.76

Width

14.43

Length

3.51

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CZ

AD Includes

Mounting adaptor to be screwed on the face of the circuit breaker

AD Invoice Description

BRKR RP/ACCESS BLACK

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Wide range of GVs, Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Sturdy and long-lasting power connection with EverLink terminals

AD Item Features 05

Digital customer experience for technical documents

AD Item Features 06

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.7600

AD Package Height UOM

IN

AD Package Length

3.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7400

AD Package Weight UOM

LB

AD Package Width

14.4300

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black

Schneider Electric

GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P

Category Miscellaneous
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P Picture of GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P
Schneider Electric

GV2APN03 - Extended rotary handle kit, TeSys Deca, IP65, black handle, without trip indication, for GV2L-GV2P

Item Code: 1224010
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GV2APN03

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 2 positions OFF, ON. To be mounted on the door of the enclosure, the handle mechanism ensures an IP65 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset).

Specifications

Weight

0.74

Height

2.76

Width

14.43

Length

3.51

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CZ

AD Includes

Mounting adaptor to be screwed on the face of the circuit breaker

AD Invoice Description

BRKR RP/ACCESS BLACK

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Wide range of GVs, Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Sturdy and long-lasting power connection with EverLink terminals

AD Item Features 05

Digital customer experience for technical documents

AD Item Features 06

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.7600

AD Package Height UOM

IN

AD Package Length

3.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7400

AD Package Weight UOM

LB

AD Package Width

14.4300

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black
