GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated

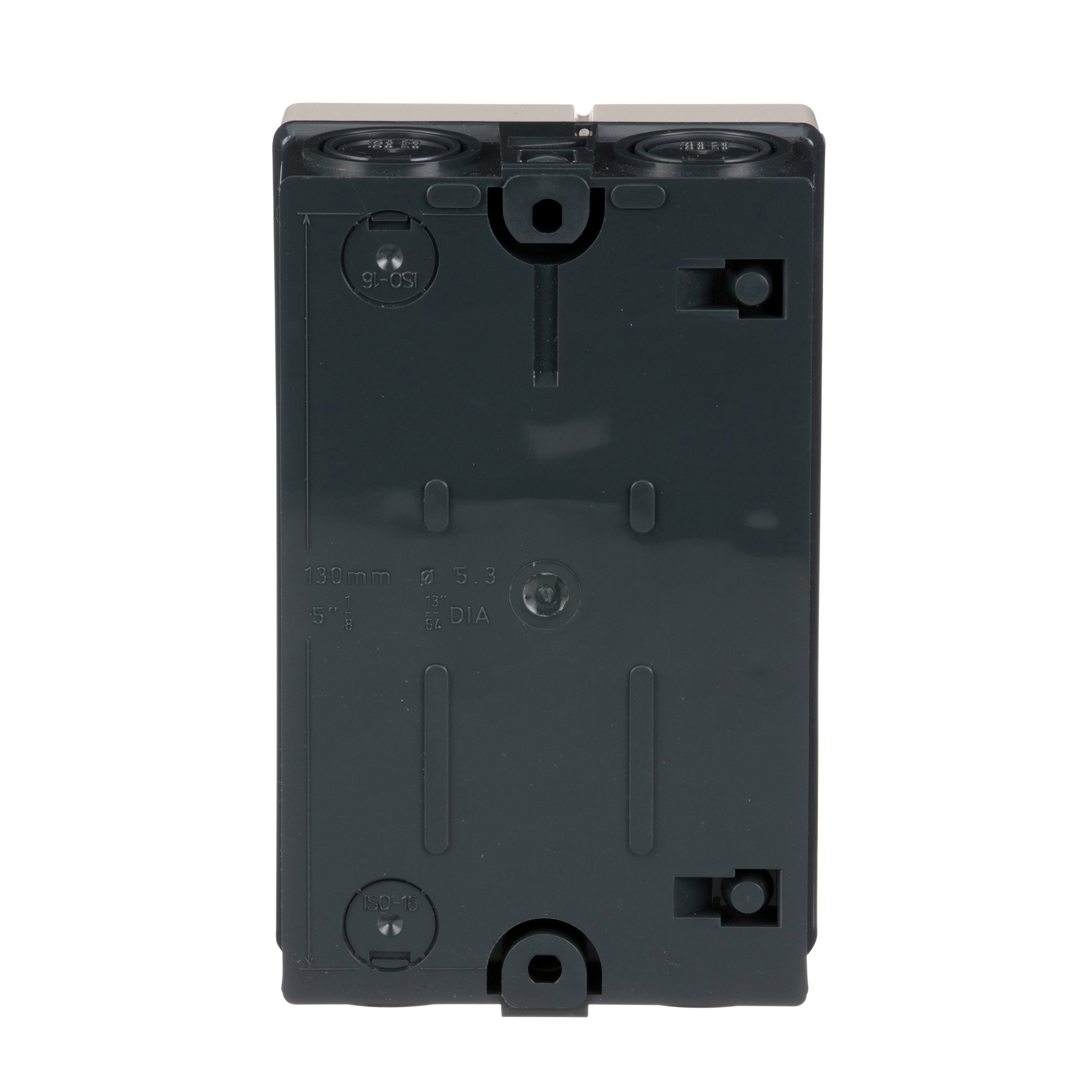

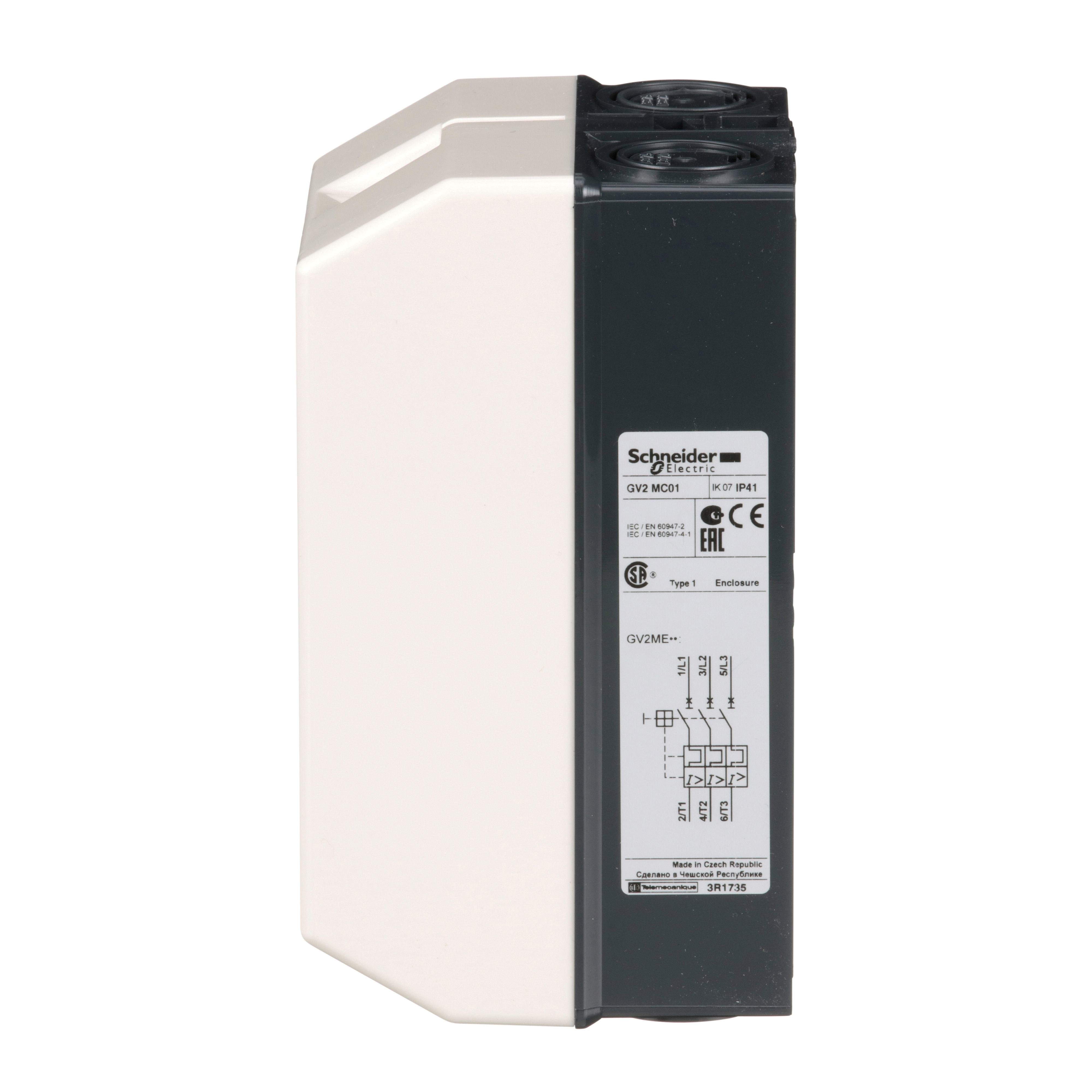

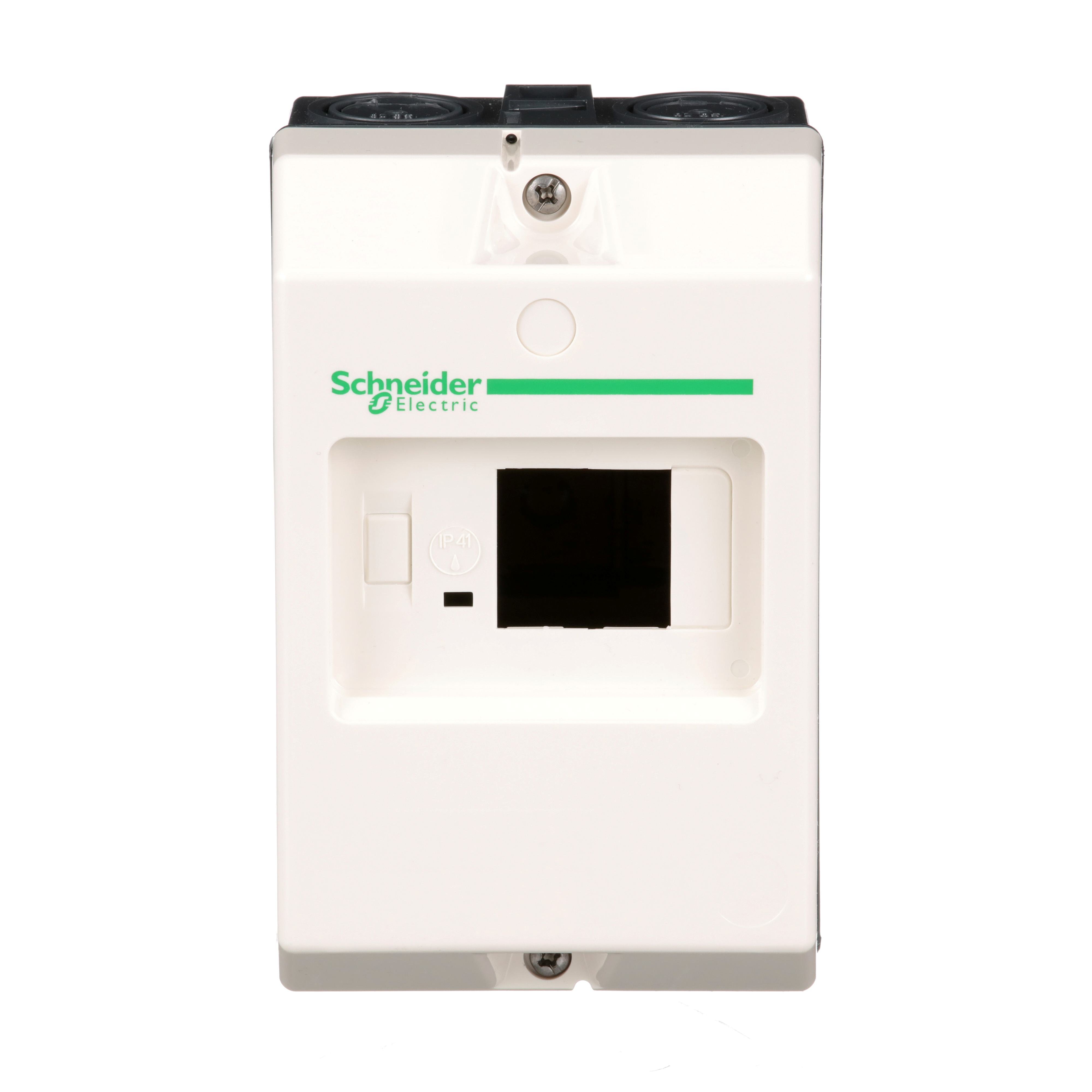

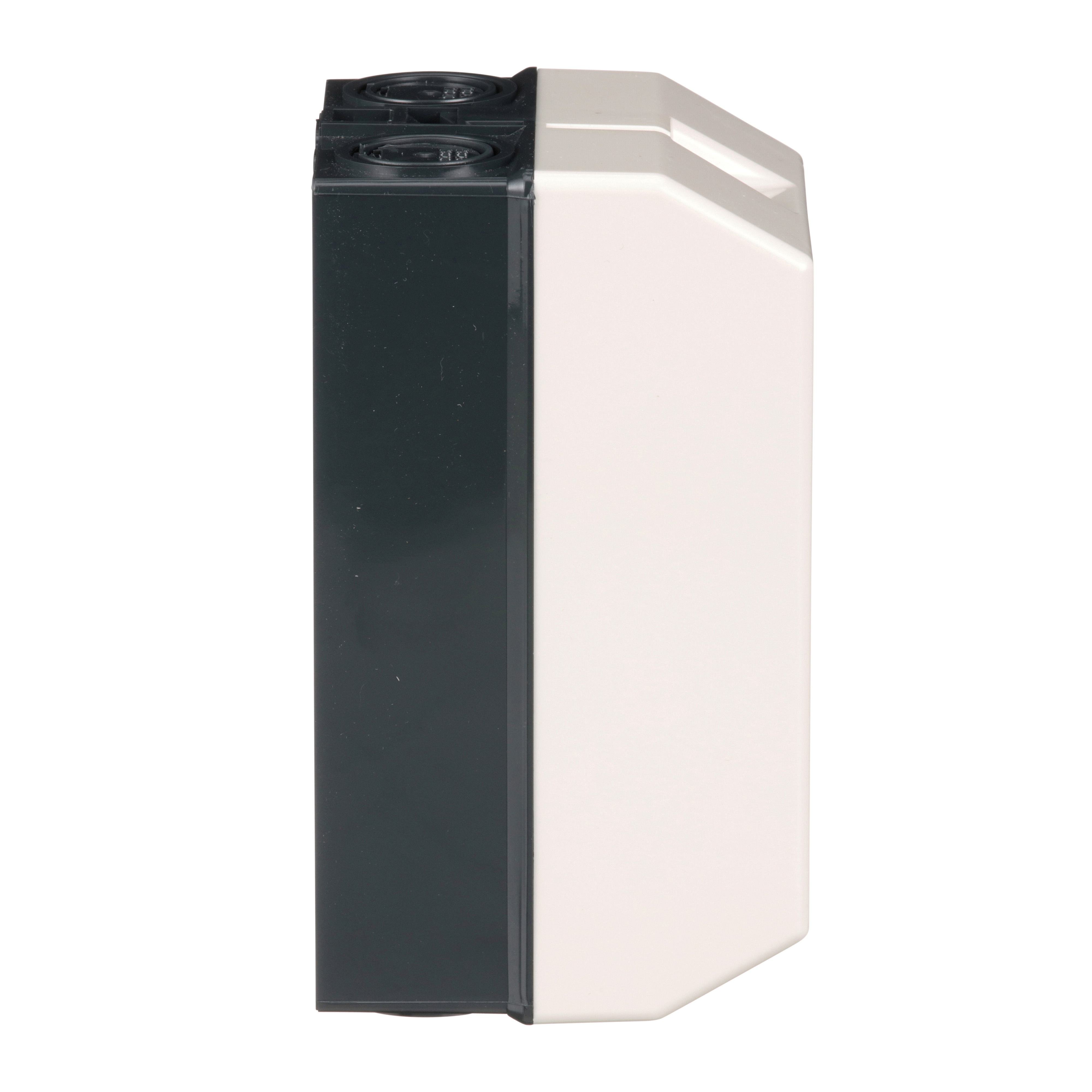

Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated
Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated
Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated
Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated
Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated Picture of GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated

GV2MC01 - TeSys GV2, surface mount enclosure, for TeSys GV2ME, IP41 rated

Item Code: 600820
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GV2MC01
Call for Availability
Compare

Description

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.

Specifications

Weight

0.58lb

Height

6.1mm

Width

3.9mm

Length

5.93mm

Depth

84mm

Brand

Square D

Category

Starter Accessories

Dimensions

3.66 in W x 3.31 in D x 5.79 in H

Material

Plastic

Series

GV2MC

Specifications

Surface Mount

Suitable For Use With

TeSys™ GV2ME Motor Circuit Breaker

Type

Compact
