Schneider Electric

GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp

Category Manual Starters

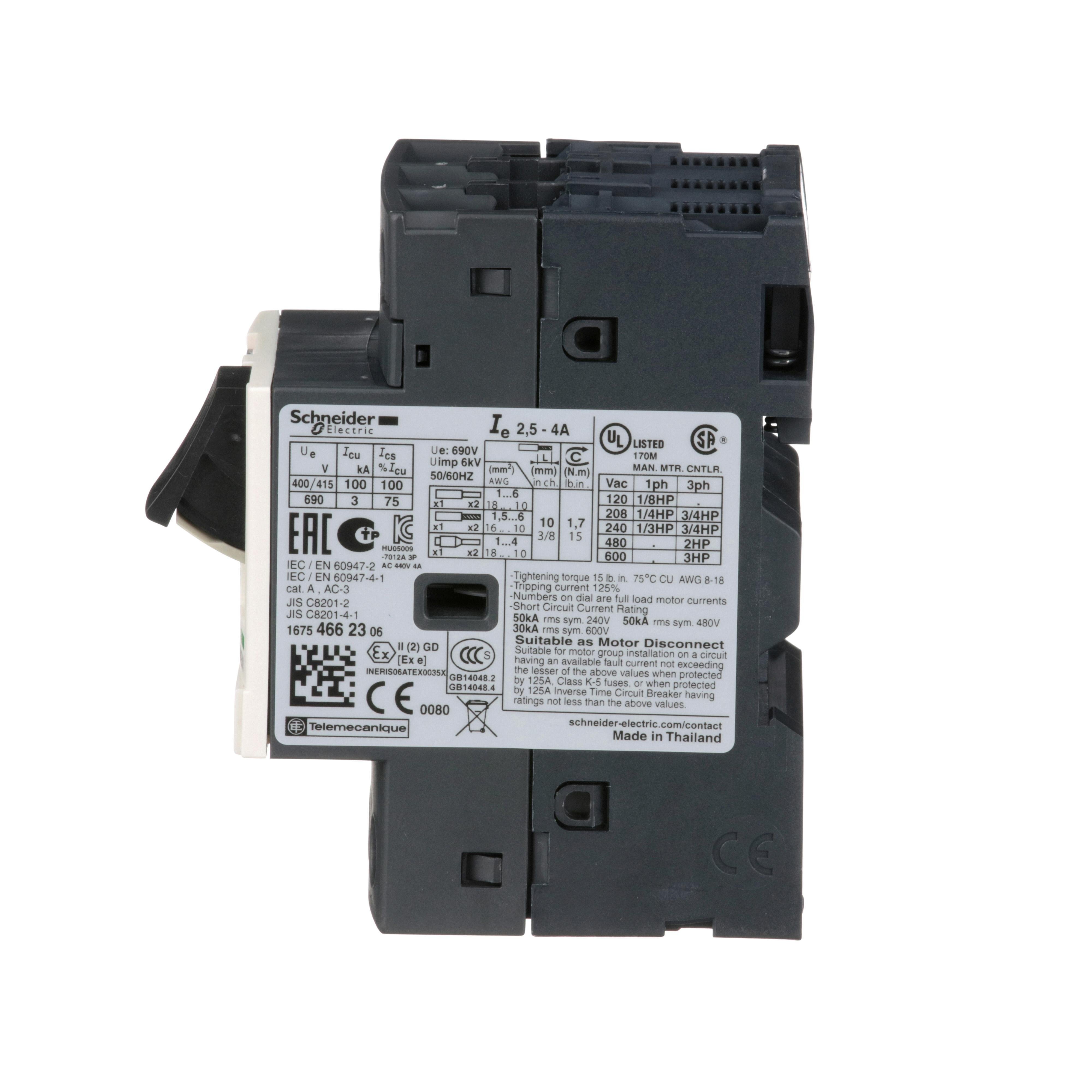

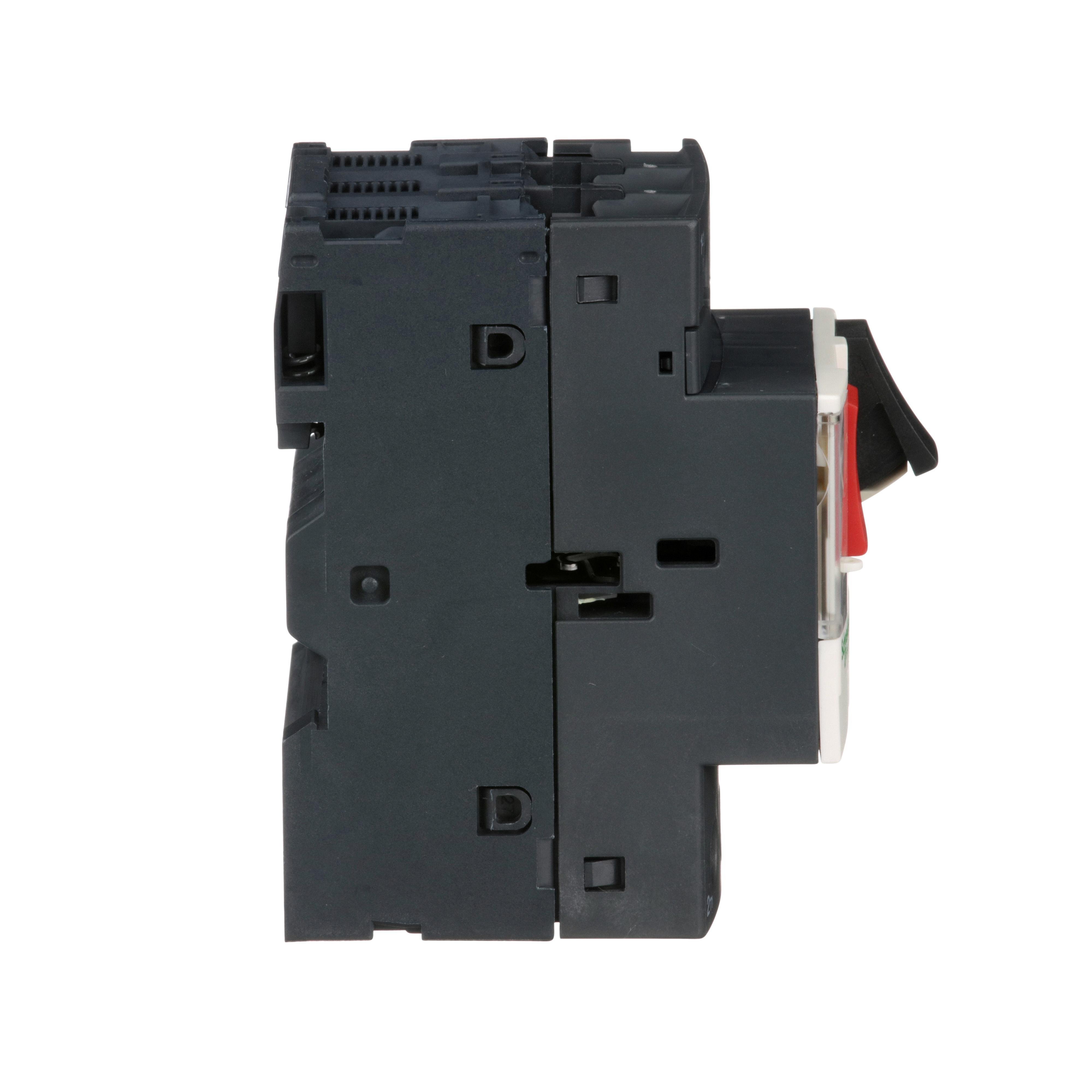

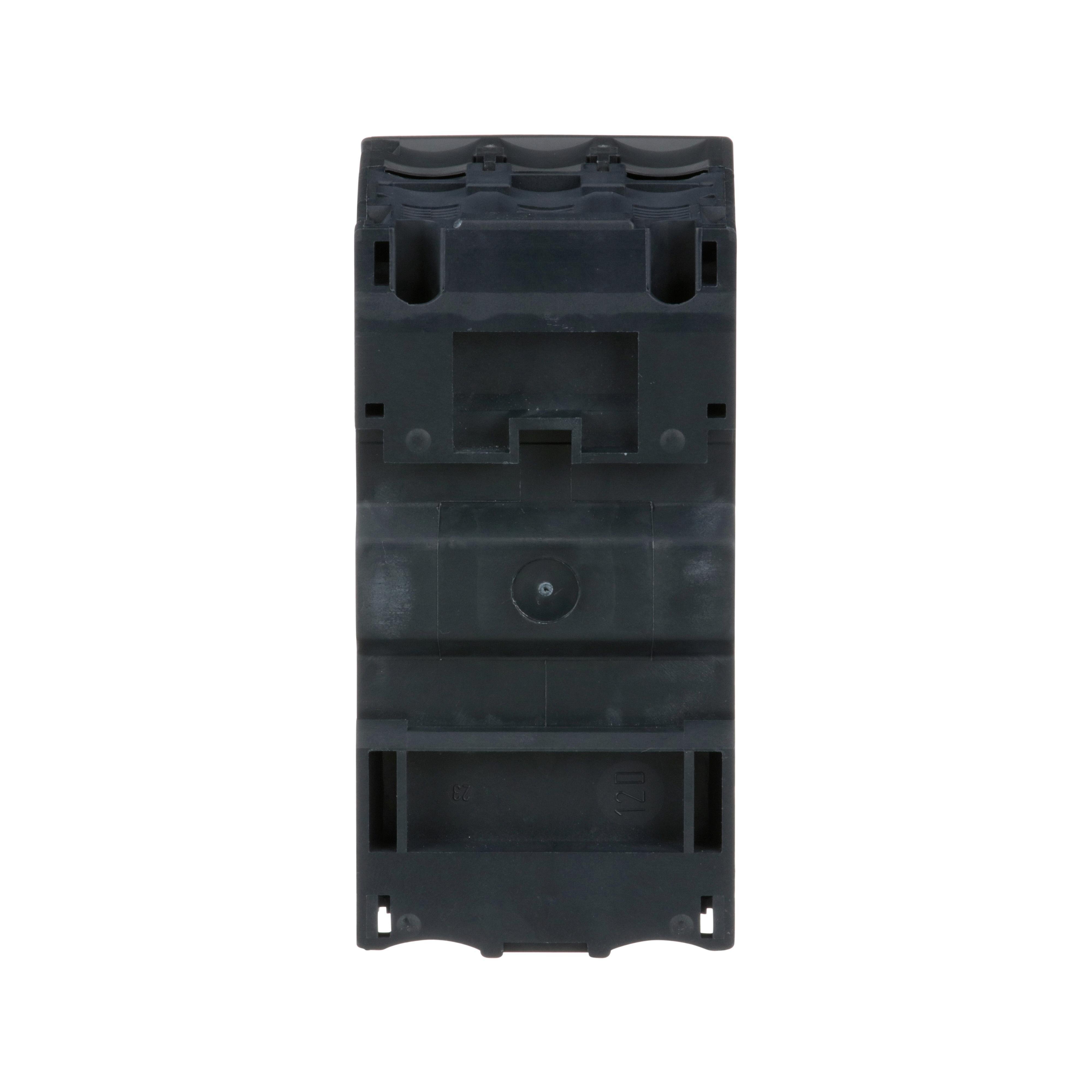

Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp
Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp
Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp
Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp Picture of GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp
Schneider Electric

GV2ME08 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp

Item Code: 18066
Category Manual Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GV2ME08

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 2.5 ampere to 4 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

Weight

0.56lb

Height

1.8mm

Width

3.31mm

Length

3.63mm

Depth

78.5mm

AD Application

Motor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT 690VAC 2.5 TO 4A 2.2KW 3KA

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Wide range of GVs, Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Sturdy and long-lasting power connection with EverLink terminals

AD Item Features 05

Digital customer experience for technical documents

AD Item Features 06

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.8000

AD Package Height UOM

IN

AD Package Length

3.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5600

AD Package Weight UOM

LB

AD Package Width

3.3100

AD Package Width UOM

IN

Brand

Square D

Category

MANUAL STARTERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Pushbutton

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Power Rating

Spec 11 Attribute UOM

KW

Spec 11 Attribute Value

3

Spec 12 Attribute

Series

Spec 12 Attribute Value

GV2

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

-4 To 140

Spec 14 Attribute

Trip Range

Spec 14 Attribute UOM

A

Spec 14 Attribute Value

170

Spec 15 Attribute

Trip Type

Spec 15 Attribute Value

Thermal Magnetic

Spec 16 Attribute

Type

Spec 16 Attribute Value

Non-Reversing Metallic

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC

Spec 17 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

4

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.77 in W x 3.08 in D x 3.5 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20/IK04

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

3

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Threaded

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
