Schneider Electric

GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals

Category Manual Starters

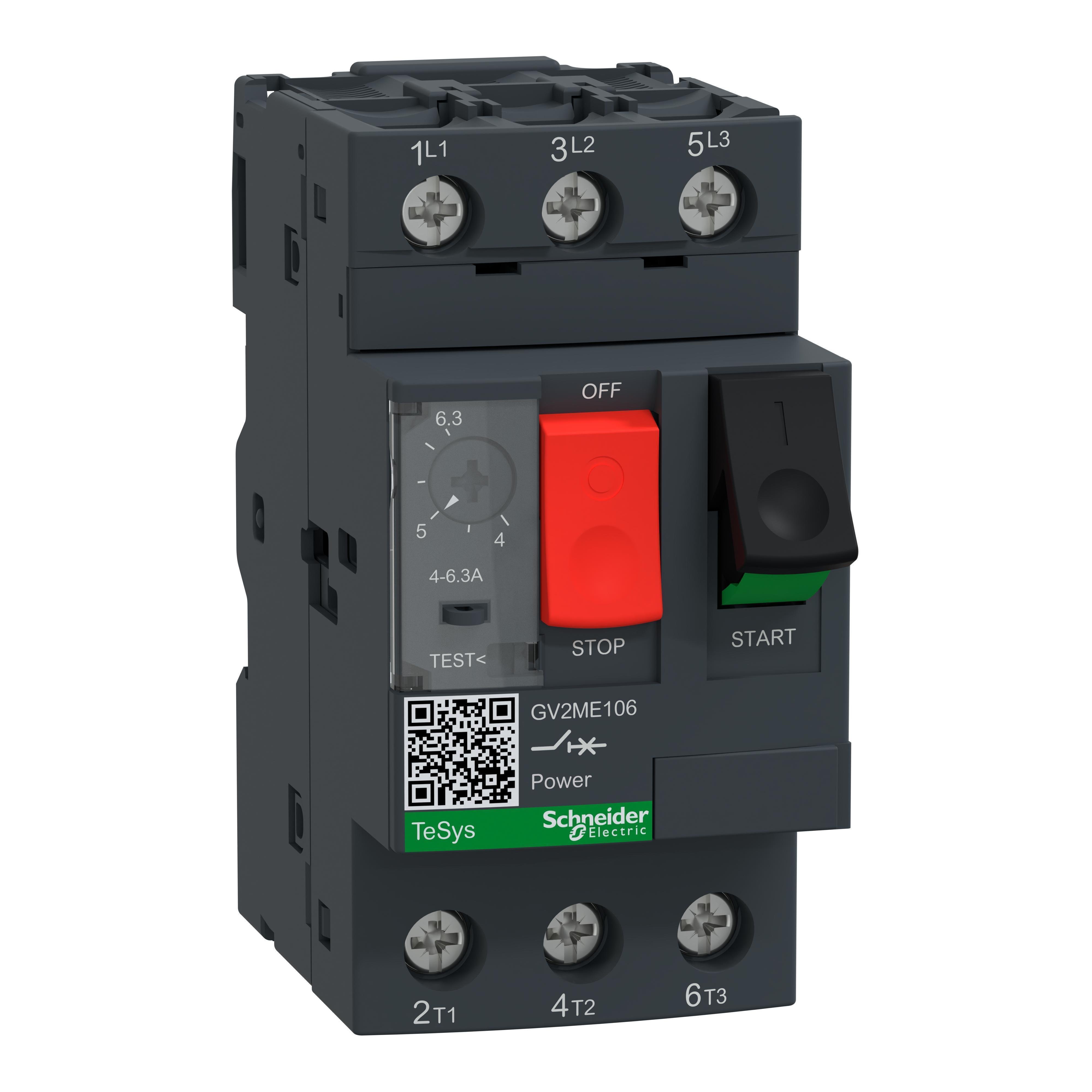

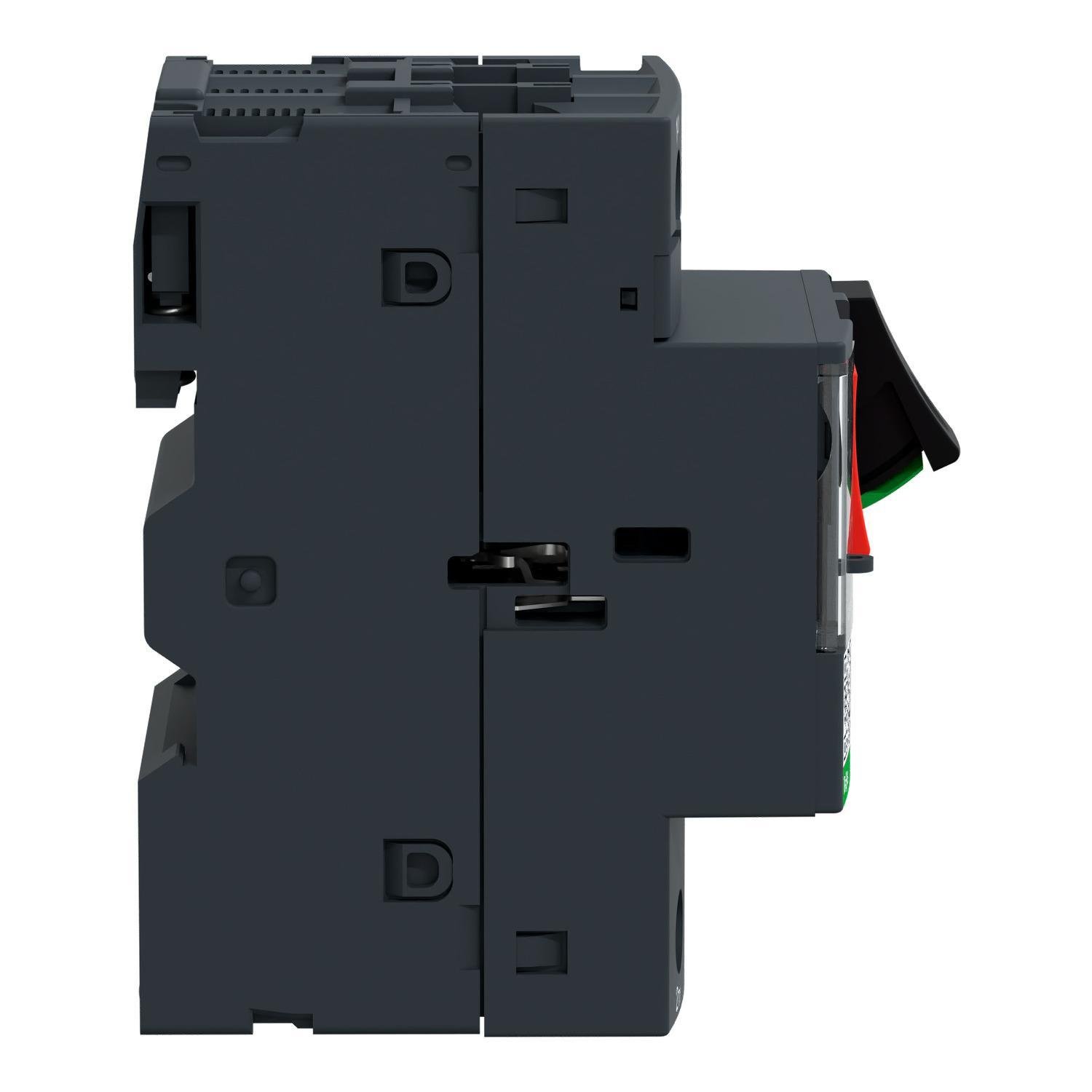

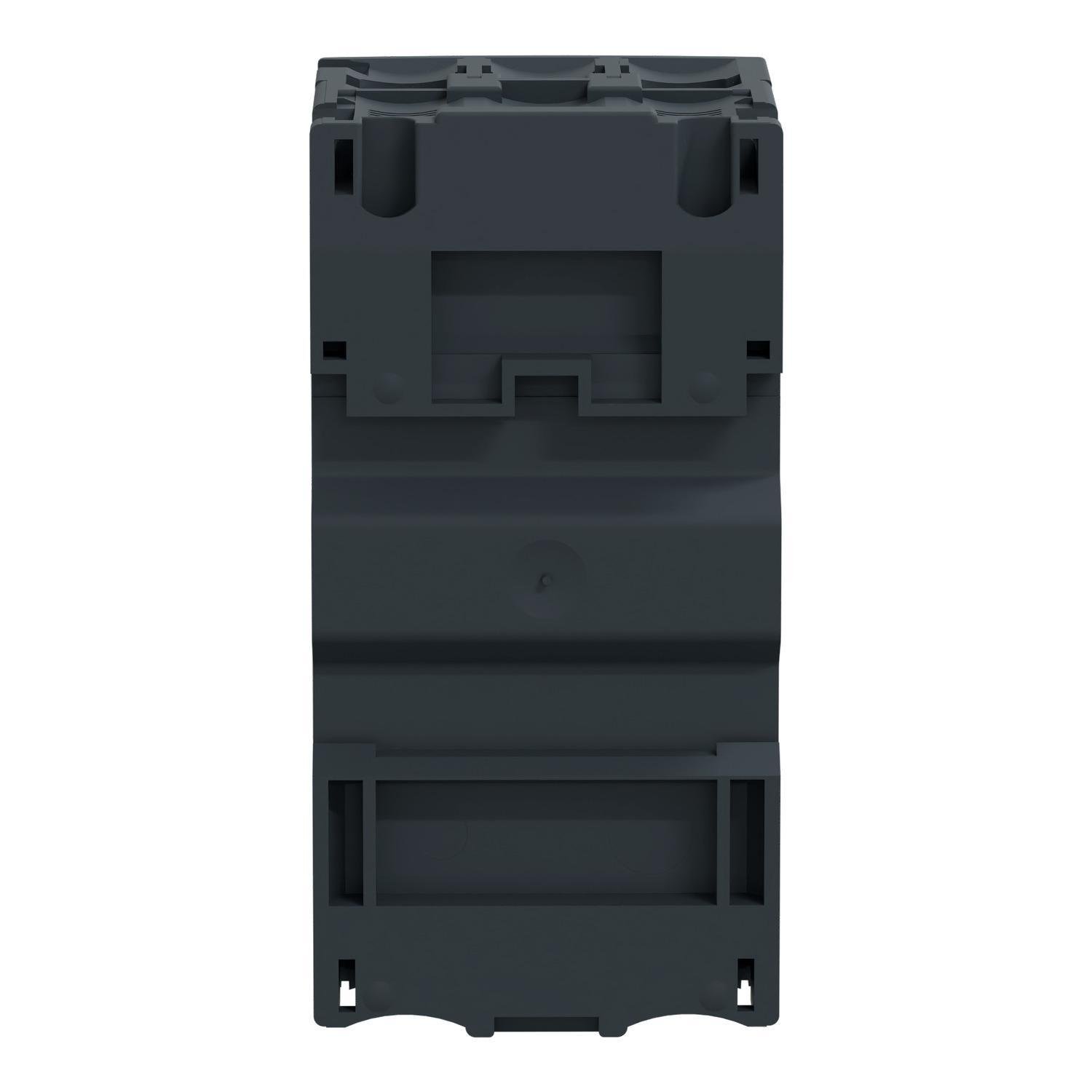

Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals
Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals
Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals
Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals Picture of GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals
Schneider Electric

GV2ME106 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 4...6.3 A, ring lug terminals

Item Code: 1174519
Category Manual Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GV2ME106

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connecti

Specifications

Weight

0.61

Height

1.85

Width

3.31

Length

3.63

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

TH

AD Invoice Description

MANUAL STARTER AND PROTECTOR 690VAC 6.3A

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Wide range of GVs, Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Sturdy and long-lasting power connection with EverLink terminals

AD Item Features 05

Digital customer experience for technical documents

AD Item Features 06

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.8500

AD Package Height UOM

IN

AD Package Length

3.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

49.0700

AD Package Volume UOM

cu-in

AD Package Weight

0.6100

AD Package Weight UOM

LB

AD Package Width

3.3100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/JTJzM9Yur5o

Brand

Square D

Category

MANUAL STARTERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Push Button

Spec 10 Attribute

Power Rating

Spec 10 Attribute Value

2.2 kW at 400/415 VAC/3 kW at 500 VAC/4 kW at 690 VAC

Spec 11 Attribute

Series

Spec 11 Attribute Value

GV2ME

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

-20 To 60

Spec 13 Attribute

Trip Range

Spec 13 Attribute UOM

A

Spec 13 Attribute Value

78

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Thermal Magnetic

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

690

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

6.3

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Lug Ring

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1.77 in W x 3.09 in D x 3.5 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

100

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

DIN Rail/Panel

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
