Schneider Electric

GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp

Category Manual Starters

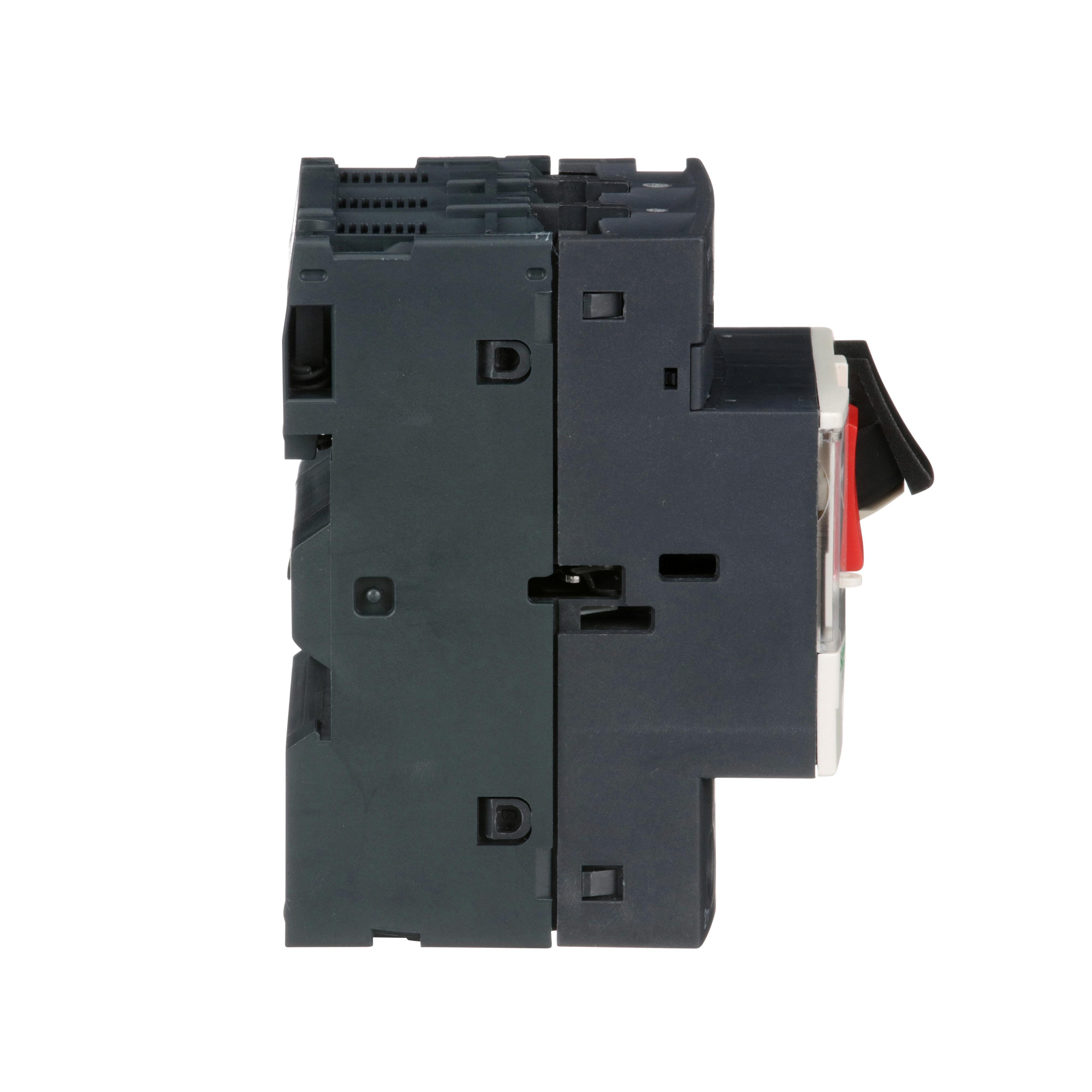

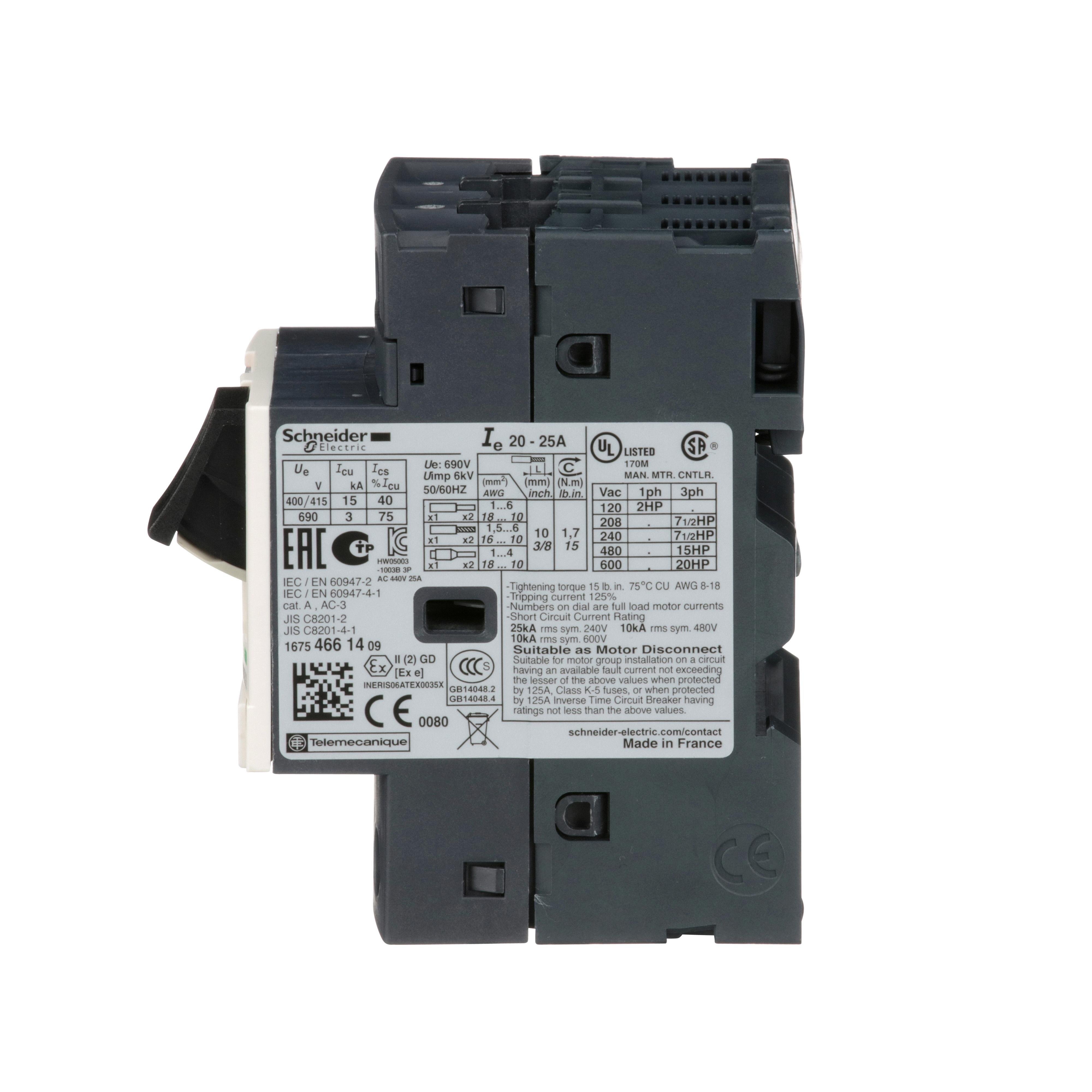

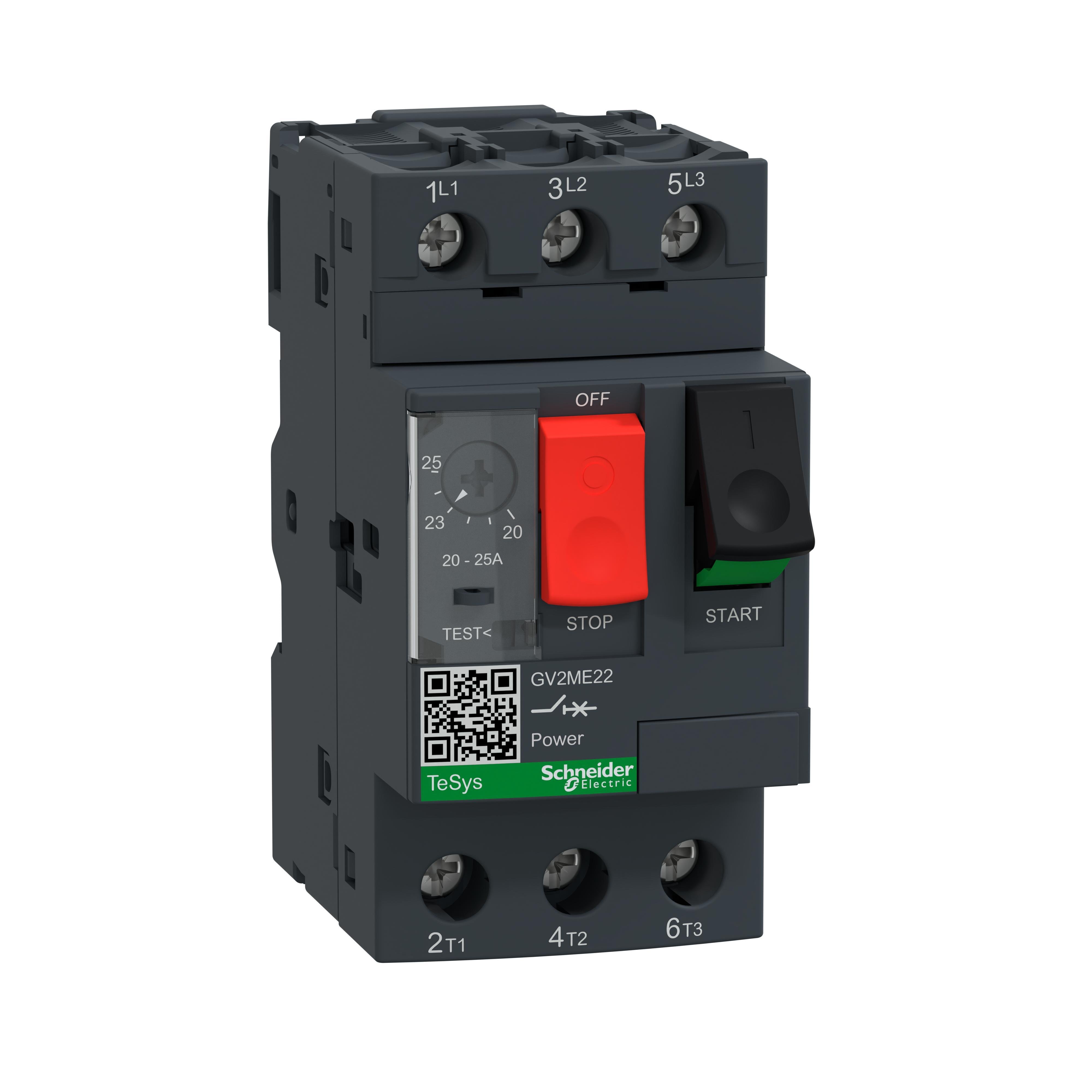

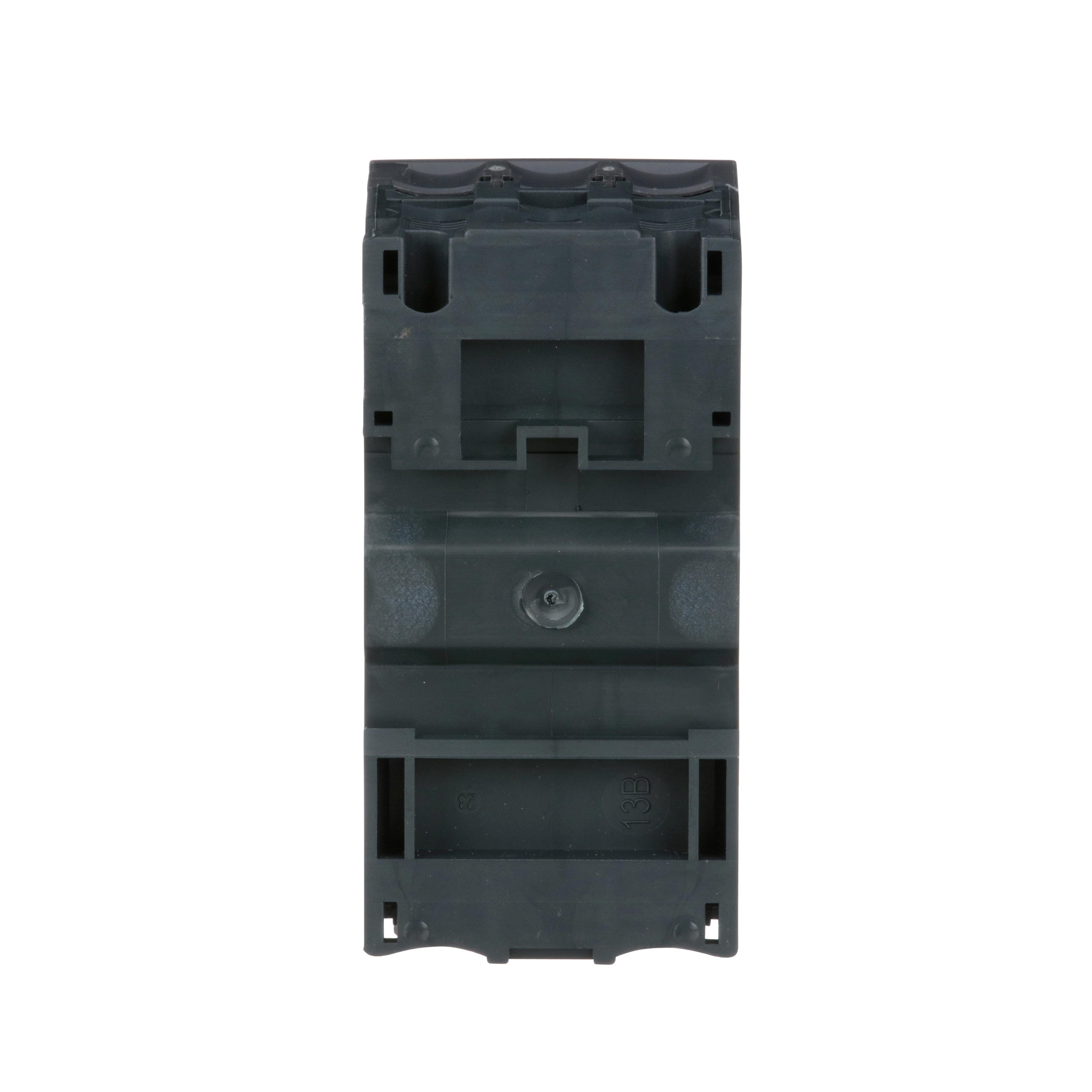

Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp
Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp
Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp
Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp
Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp Picture of GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp
Schneider Electric

GV2ME22 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp

Item Code: 18078
Category Manual Starters
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GV2ME22

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 20 ampere to 25 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

Weight

0.63lb

Height

1.9mm

Width

3.31mm

Length

3.71mm

Depth

78.5mm

AD Application

Motor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

TH

AD Invoice Description

STARTER MOT MNL 600VAC 20 TO 25A 50/60HZ

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Wide range of GVs, Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)

AD Item Features 03

Easier to install and operate with multi-standard screws

AD Item Features 04

Sturdy and long-lasting power connection with EverLink terminals

AD Item Features 05

Digital customer experience for technical documents

AD Item Features 06

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

3.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6300

AD Package Weight UOM

LB

AD Package Width

3.3100

AD Package Width UOM

IN

Brand

Schneider Electric

Category

MANUAL STARTERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

25

Spec 10 Attribute

Operating Temperature

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-20 To 60

Spec 11 Attribute

Overload Relay

Spec 11 Attribute Value

Class 10 Ambient Compensated Bimetal 20 to 25 A

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Reset Type

Spec 13 Attribute Value

Manual

Spec 14 Attribute

Series

Spec 14 Attribute Value

GV2

Spec 15 Attribute

Type

Spec 15 Attribute Value

Non-reversing

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Control Type

Spec 3 Attribute Value

Pushbutton

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

45 mm W x 78.5 mm D x 89 mm H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP66

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

motor power

Spec 7 Attribute Value

2 hp, 3 hp, 5 hp, 7-1/2 hp, 15 hp, 20 hp

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Operating Cycles

Spec 9 Attribute UOM

Cycles

Spec 9 Attribute Value

100000
