Schneider Electric

GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp

Category Starter Accessories

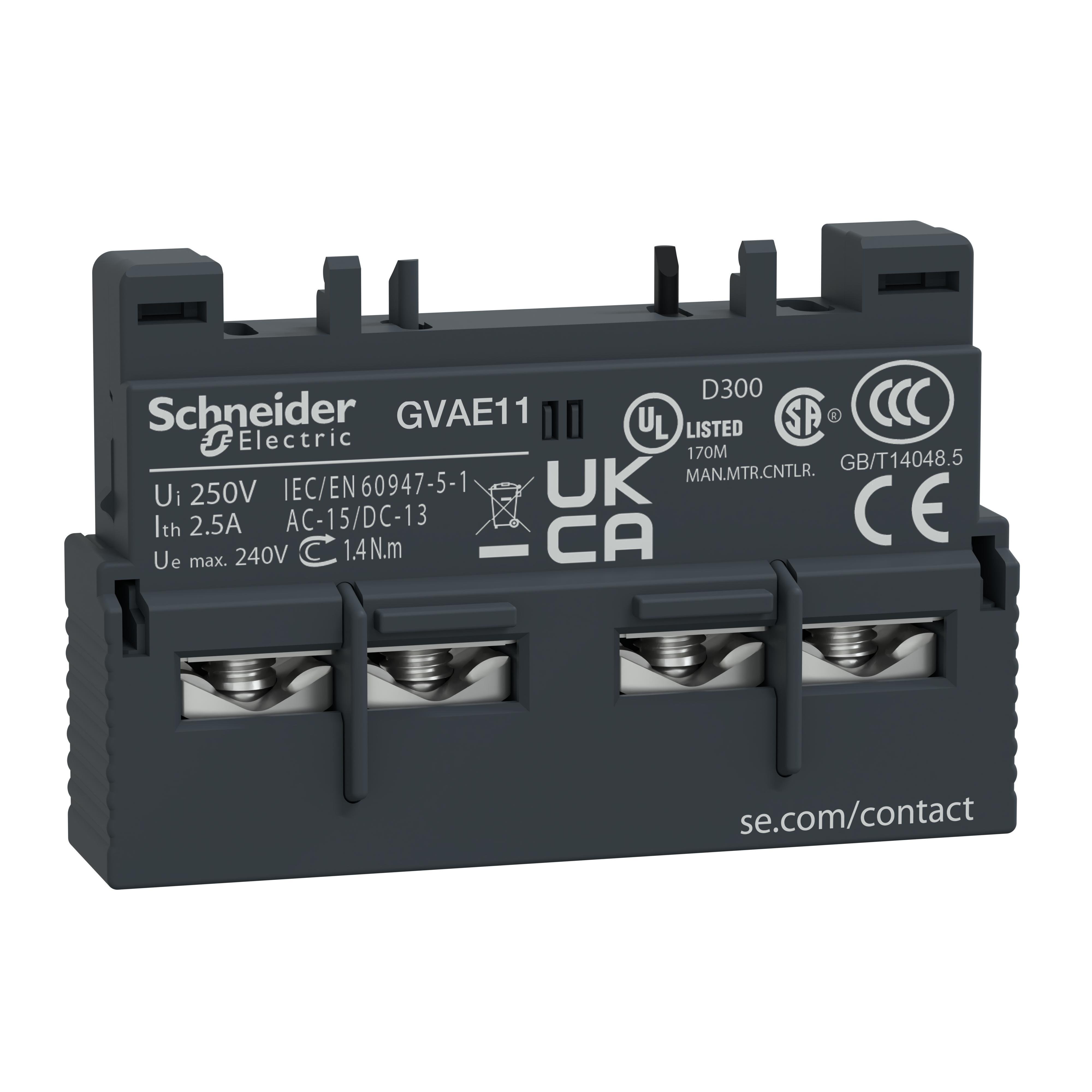

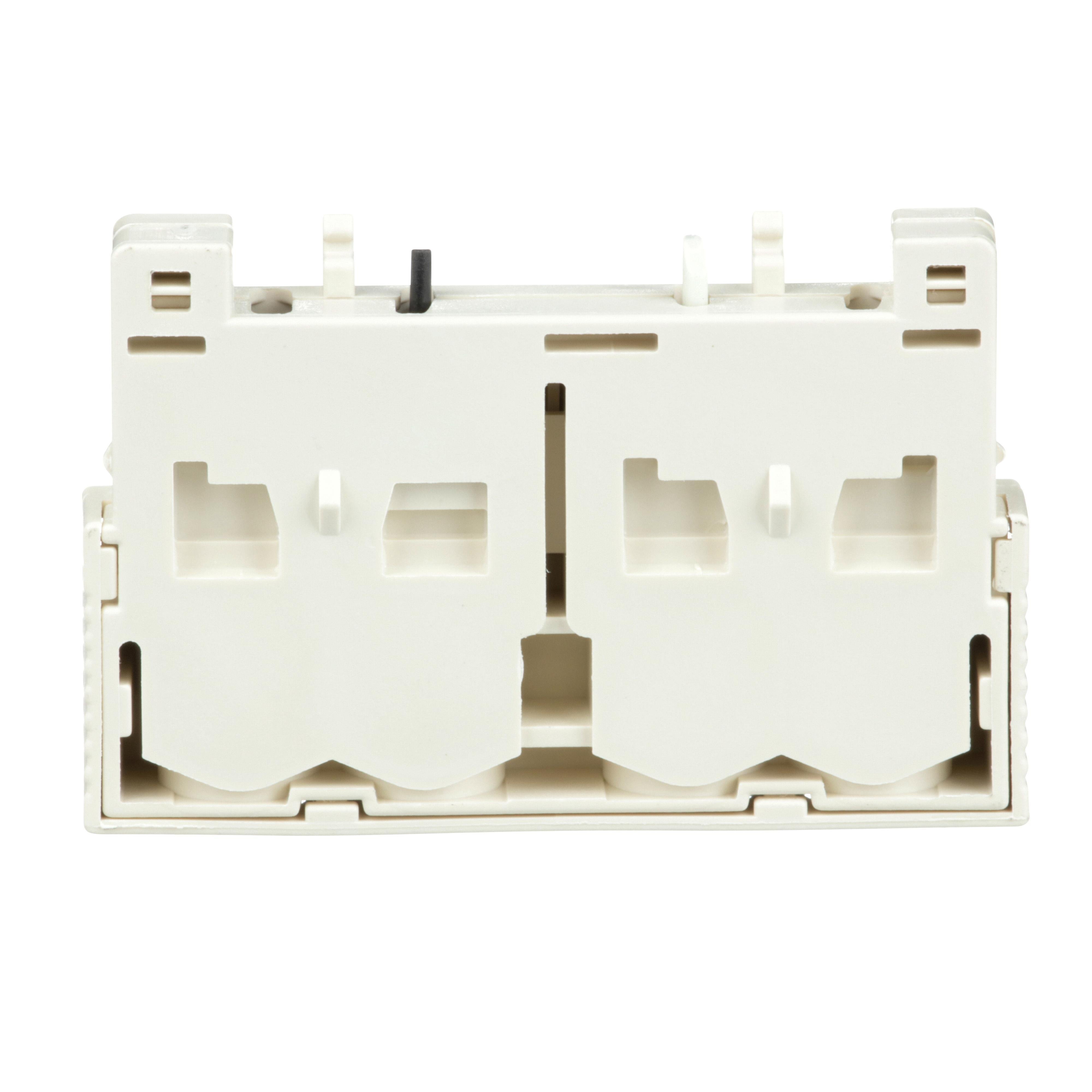

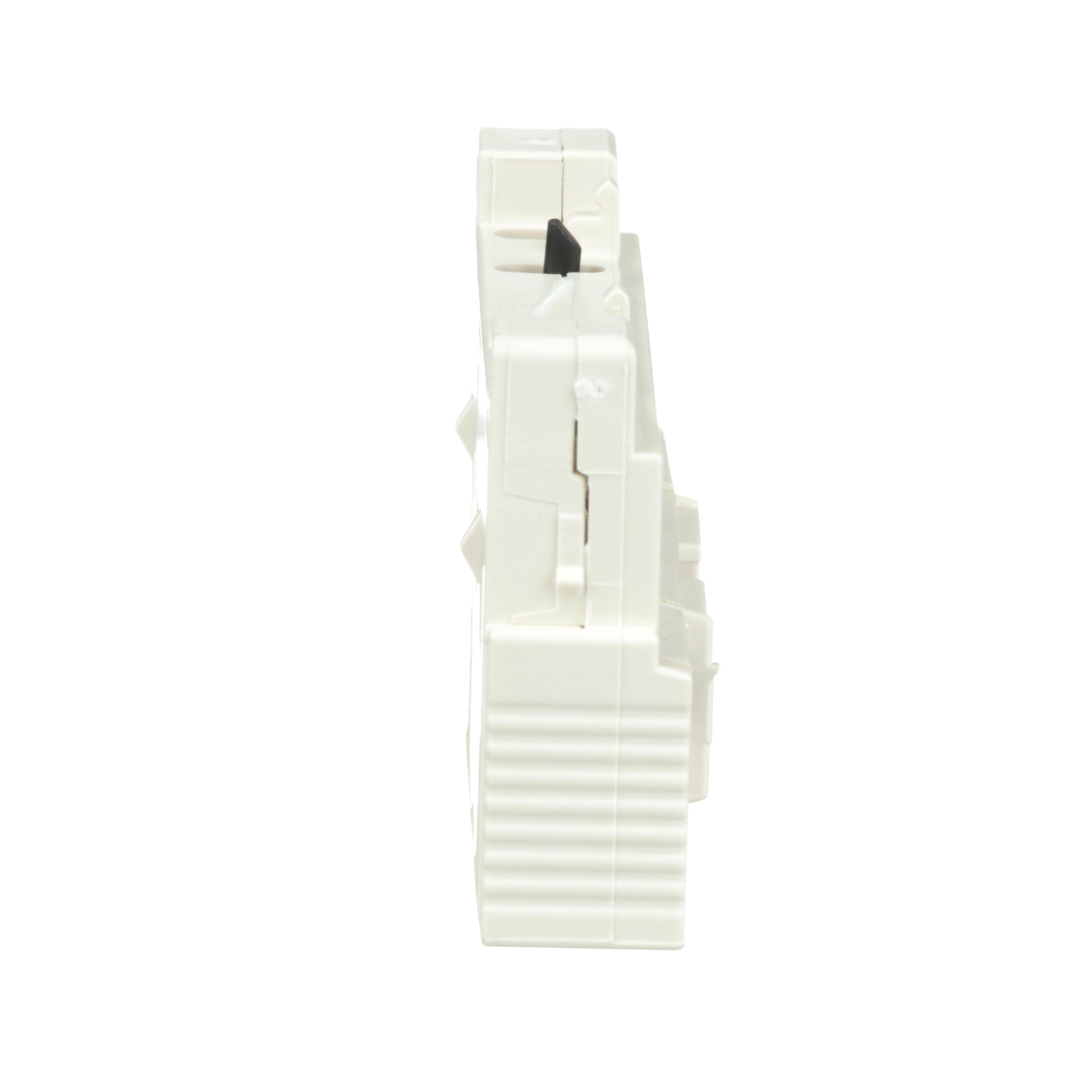

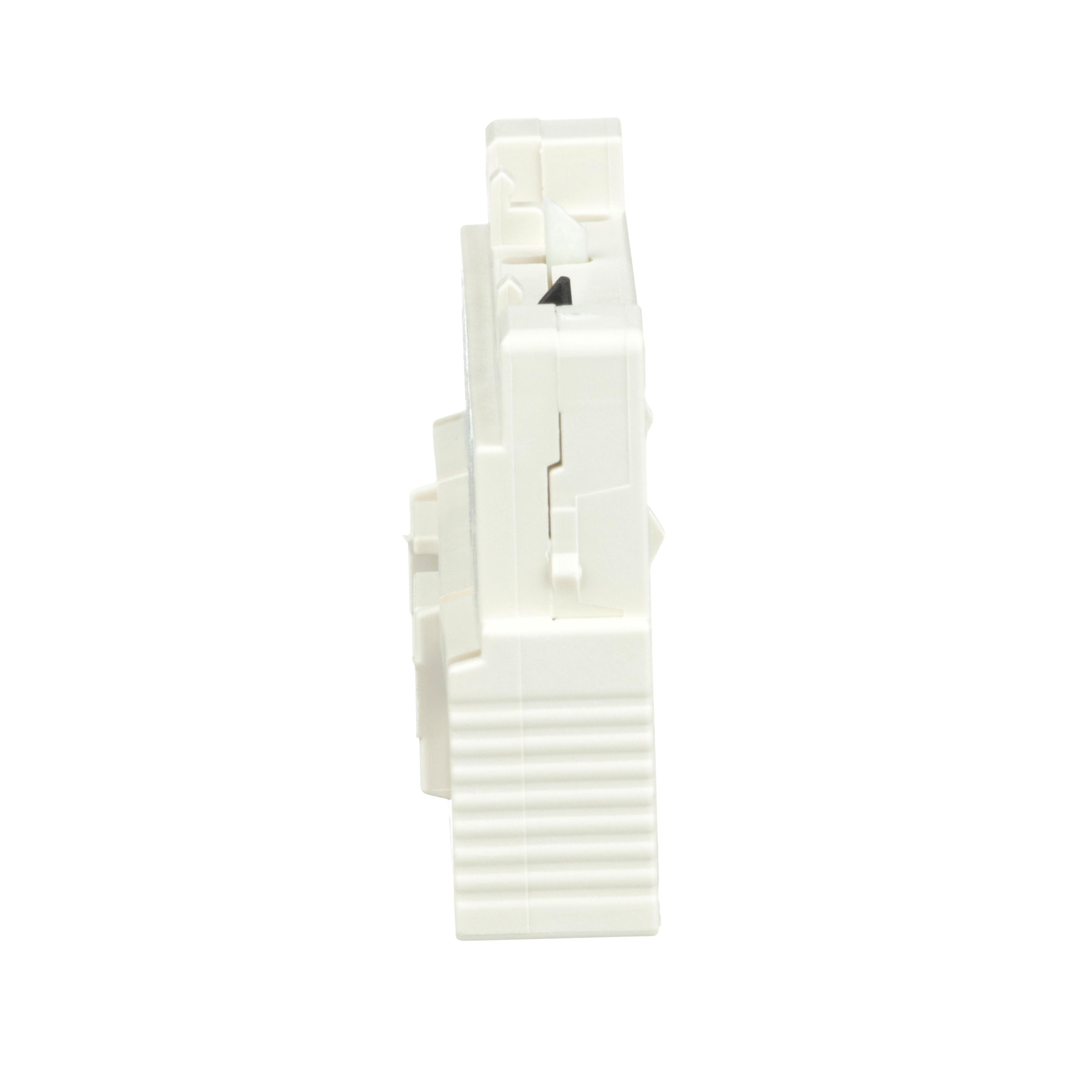

Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp Picture of GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp
Schneider Electric

GVAE11 - TeSys Deca Manual Starter and Protector, auxiliary contact block, 1 NO and 1 NC, top mount, screw clamp

Item Code: 1525838
Category Starter Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref GVAE11

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Specifications

Weight

0.04lb

Height

0.4mm

Width

2.34mm

Length

2.73mm

Depth

29mm

AD All Features

New modern look and feel of all machines

AD Application

Instantaneous Auxiliary Contacts Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CZ

AD Invoice Description

BLOCK CONT AUX 2 GV2L AND GV2LE MNL SW

AD Item Features 01

New modern look and feel of all machines

AD Item Features 02

Easier to install and operate with multi-standard screws

AD Item Features 03

Digital customer experience for technical documents

AD Item Features 04

Maintenance guide via EcoStruxureTM Facility Expect

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.4000

AD Package Height UOM

IN

AD Package Length

2.7300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

0.8200

AD Package Volume UOM

cu-in

AD Package Weight

0.0400

AD Package Weight UOM

LB

AD Package Width

2.3400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/YkQwgPFibOM

Brand

Schneider Electric

Category

Starter Accessories

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

45 mm W x 29 mm D x 11 mm H

Spec 2 Attribute

Number Of Poles

Spec 2 Attribute Value

2

Spec 3 Attribute

Series

Spec 3 Attribute Value

GVAE

Spec 4 Attribute

Specifications

Spec 4 Attribute Value

24 to 240 V AC/24 to 60 V DC, 2.5 A, 24 W, 100000 Cycles, 1NO-1NC Contact Configuration, Screw Clamp Connection, Front Side Mount, 100000 Cycles

Spec 5 Attribute

Suitable For Use With

Spec 5 Attribute Value

GV2L and GV2LE Manual Switch, GV2ME, GV2P, GV2RT, GV3L and GV3P Manual Starter
