Square D™

H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R

Category Miscellaneous

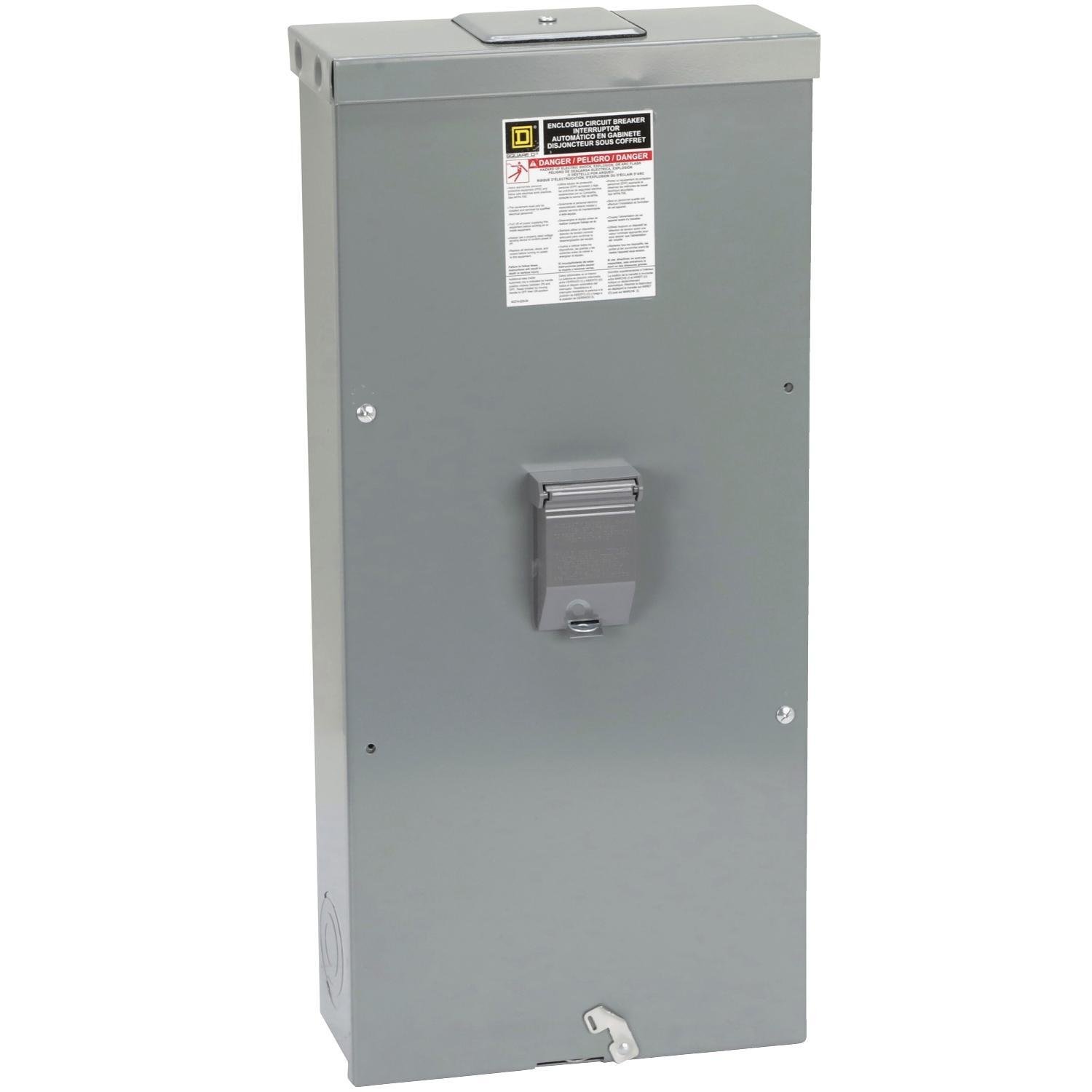

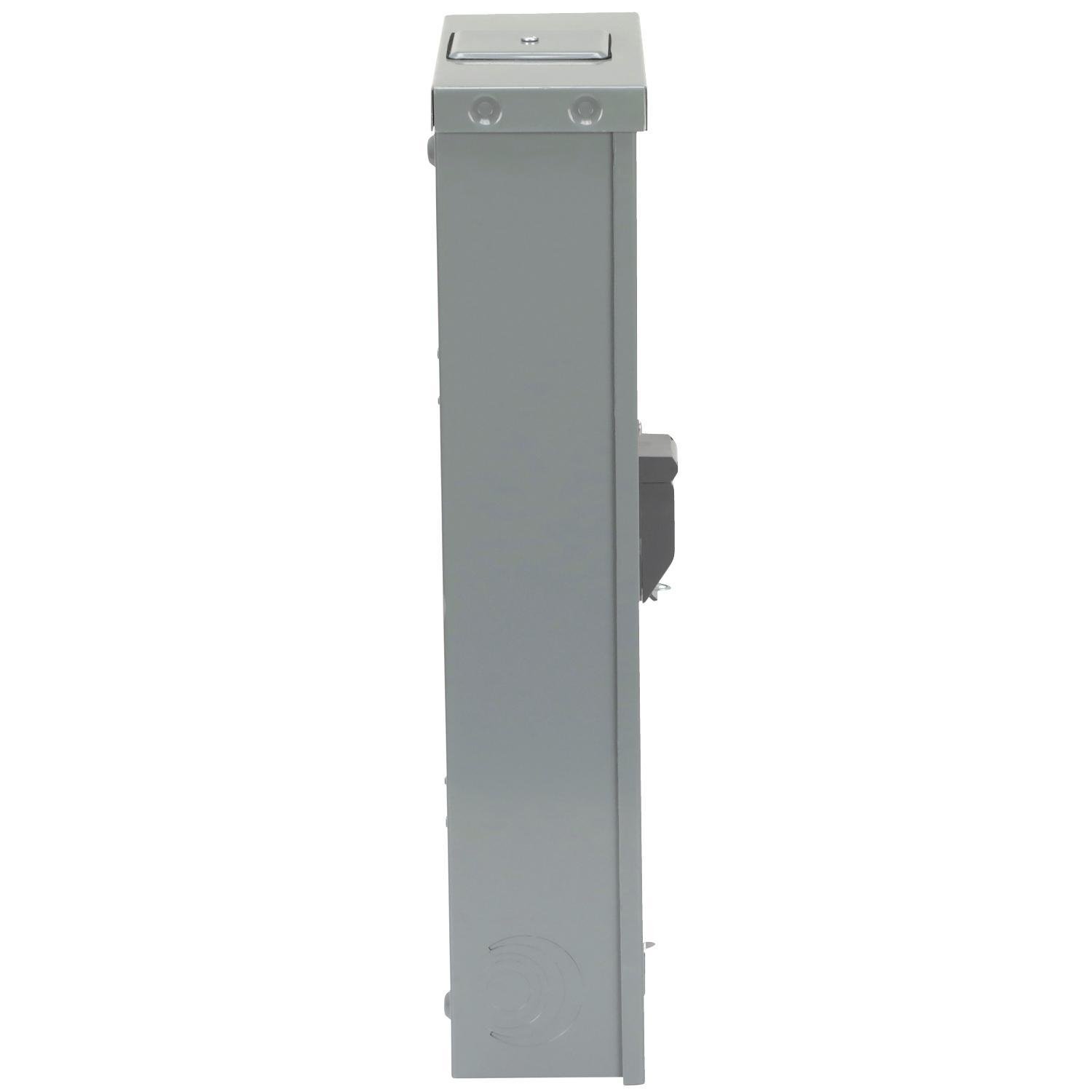

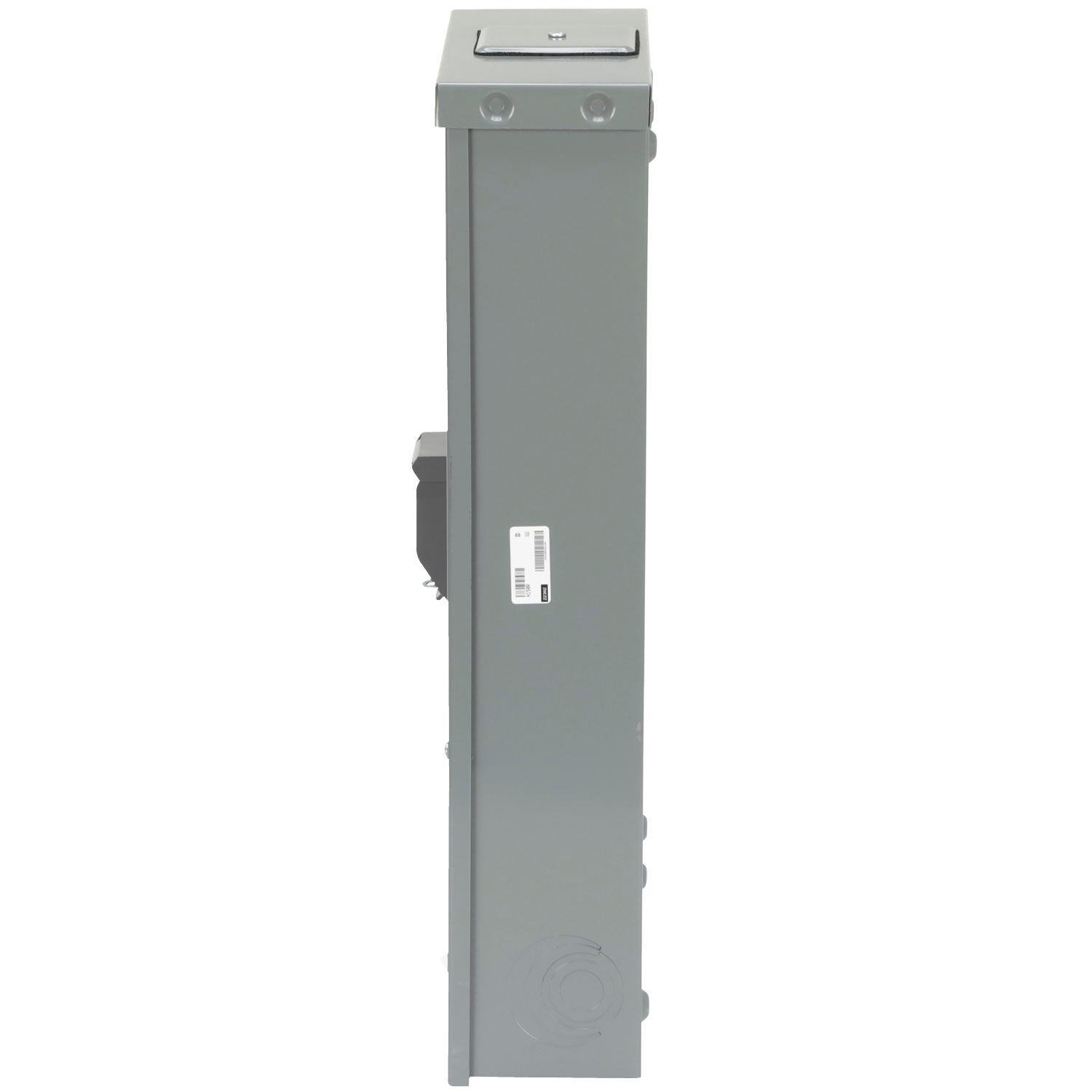

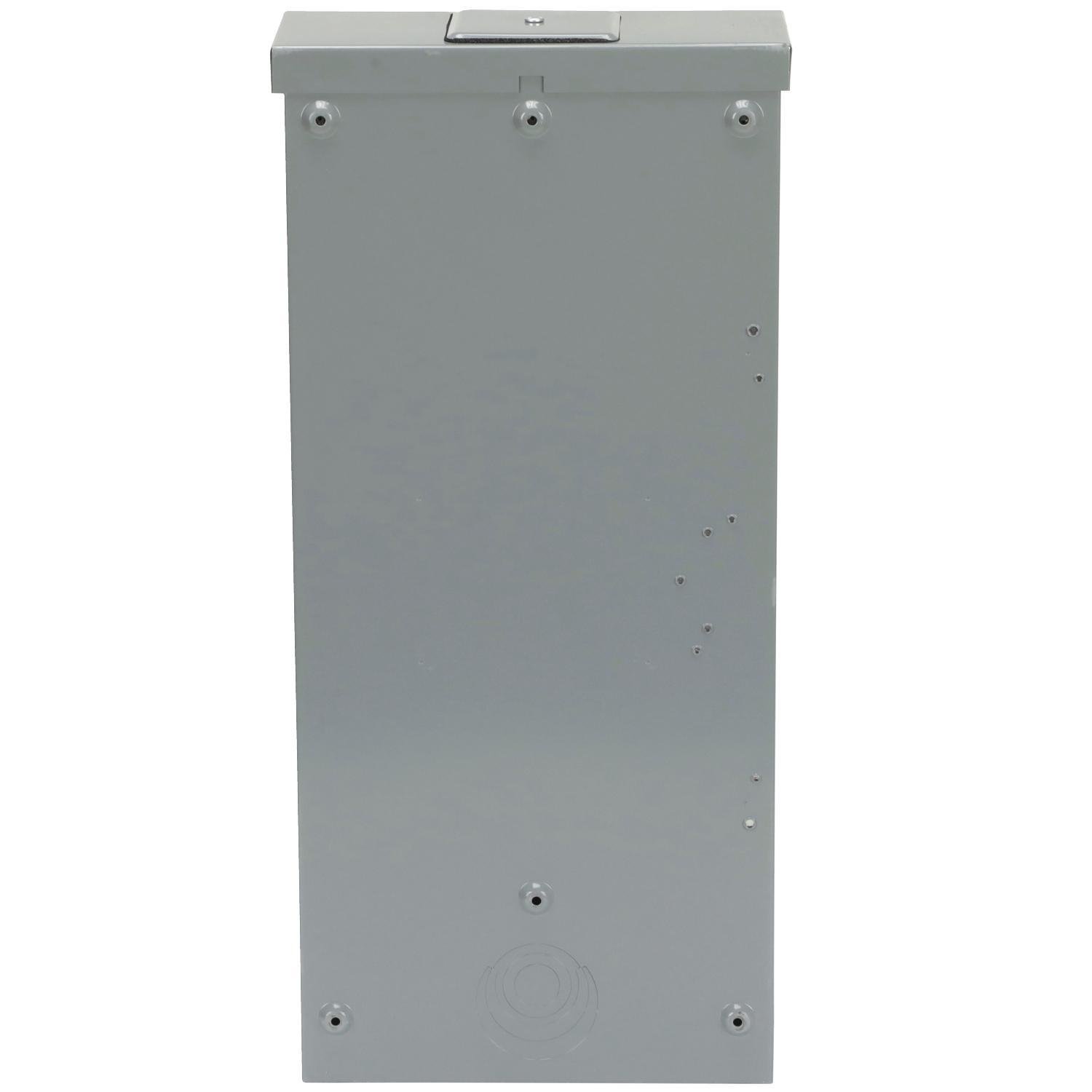

Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R
Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R
Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R
Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R
Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R Picture of H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R
Square D™

H150R - Enclosure, PowerPacT H, 2 pole, NEMA 3R

Item Code: 1078170
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H150R

Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT H-Frame enclosures' maximum short circuit ratings are 25 kAIR at 600 Vac, 65 kAIR at 480 Vac, 125 kAIR at 240 Vac and 20 kA at 250 Vdc unless otherwise noted. The enclosure accepts 80% or 100% rated circuit breakers. This enclosure is suitable only for 2 pole HD or HG breakers. It is suitable for use as service equipment when neutral assembly is installed. It is a NEMA 3R gray baked enamel over steel. This PowerPacT H, enclosure is for a 2-pole circuit breakers and has a NEMA 3R rating.

Specifications

Weight

34.73

Height

8.8

Width

14.86

Length

32.69

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H150R/H150R.spin

AD Alternative Part Number

13679858

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901992202

AD Gtin

00785901992202

AD IDEA Index ID

13679858

AD Invoice Description

ENCLOSURE NEMA 3R 2

AD Item Features 01

Flexible and simple offer, with proven performance

AD Item Features 02

Available with field-interchangeable trip units

AD Item Features 03

A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility

AD Item Features 04

Easy to install, extremely versatile, a wide variety of terminal options

AD Keywords

PowerPact H150R Enclosure, NEMA 3R NEMA Rating ; Schneider Electric ; Square D ; H150R ; H150R ; 785901992202 ; Circuit Breaker Enclosures

AD Manufacturer (Description)

Schneider Electric

AD Package Height

8.8000

AD Package Height UOM

IN

AD Package Length

32.6900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4356.0000

AD Package Volume UOM

cu-in

AD Package Weight

34.7300

AD Package Weight UOM

LB

AD Package Width

14.8600

AD Package Width UOM

IN

AD Part Number Keywords

H150R ; 13679858 ; 785901992202 ; 78590199220 ; 00785901992202 ; 0785901992202

Brand

Square D

Spec 1 Attribute

NEMA Rating

Spec 1 Attribute Value

NEMA 3R

Spec 2 Attribute

Number Of Poles

Spec 2 Attribute Value

2
