Square D

H225 - Safety switch, heavy duty, fusible, 400A, 2 wire, 2 pole, 50hp, 240VAC/250VDC, NEMA 1

Category Miscellaneous

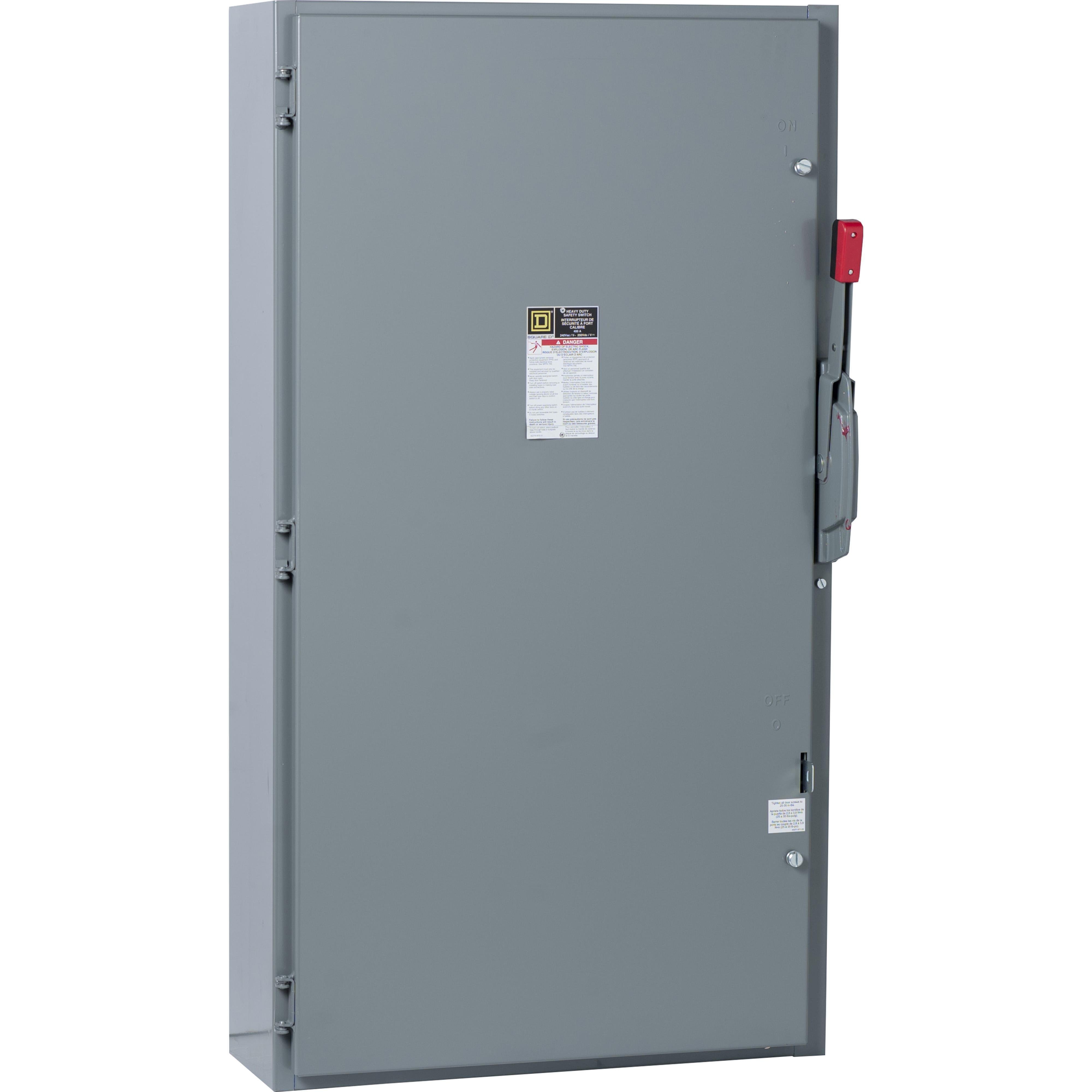

Picture of H225 - Safety switch, heavy duty, fusible, 400A, 2 wire, 2 pole, 50hp, 240VAC/250VDC, NEMA 1
Square D

H225 - Safety switch, heavy duty, fusible, 400A, 2 wire, 2 pole, 50hp, 240VAC/250VDC, NEMA 1

Item Code: 42566
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H225

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This is a Single Throw Safety Switch. This safety switch has a rated current of 400A and is 2 pole. This safety switch has a rated operational voltage of 240 VACat200 kA and 250 VDC at 10 kA. With a motor power of 50 hp. This heavy duty disconnect is surface mounted. This product complies with UL listed file E2875 standards. This product has a NEMA 1 degree of protection. and os made of steel. Dimensions for this disconnect are 50.25 in (H), 27.63 in (W), 10.13 in (D).

Specifications

Weight

164.66

Width

10.78

Length

3.95

AD Alternative Part Number

8051102

AD Application

Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901450443

AD Gtin

00785901450443

AD IDEA Index ID

8051102

AD Invoice Description

SWITCH SAF 240VAC 250VDC 400A 2NO

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Quick make, quick break operating mechanism

AD Item Features 03

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 04

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Keywords

H225 Heavy Duty Fusible General Purpose Safety Switch, 240 V AC/250 V DC, 400 A, 125 hp at 240 VAC, 50 hp at 250 VDC, 2NO 2 Form A Contact, 2 Poles ; Schneider Electric ; Square D ; H225 ; H225 ; 785901450443 ; Heavy Duty Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.9500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

164.6600

AD Package Weight UOM

LB

AD Package Width

10.7800

AD Package Width UOM

IN

AD Part Number Keywords

H225 ; 8051102 ; 785901450443 ; 78590145044 ; 00785901450443 ; 0785901450443

AD Video Links

https://www.youtube.com/embed/qZyLdmwykug

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle/Single Throw

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

2

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

2

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3

Spec 14 Attribute

Series

Spec 14 Attribute Value

E4

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

10 To 200

Spec 16 Attribute

Temperature Rating

Spec 16 Attribute UOM

deg F

Spec 16 Attribute Value

-22 to 104

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Heavy Duty Fusible General Purpose

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

2NO 2 Form A

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

50.25 in H x 27.63 in W x 10.13 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

125 hp at 240 Vac, 50 hp at 250 Vdc

Spec 9 Attribute

Material

Spec 9 Attribute Value

Cold Rolled Steel
