Square D

H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1

Category Miscellaneous

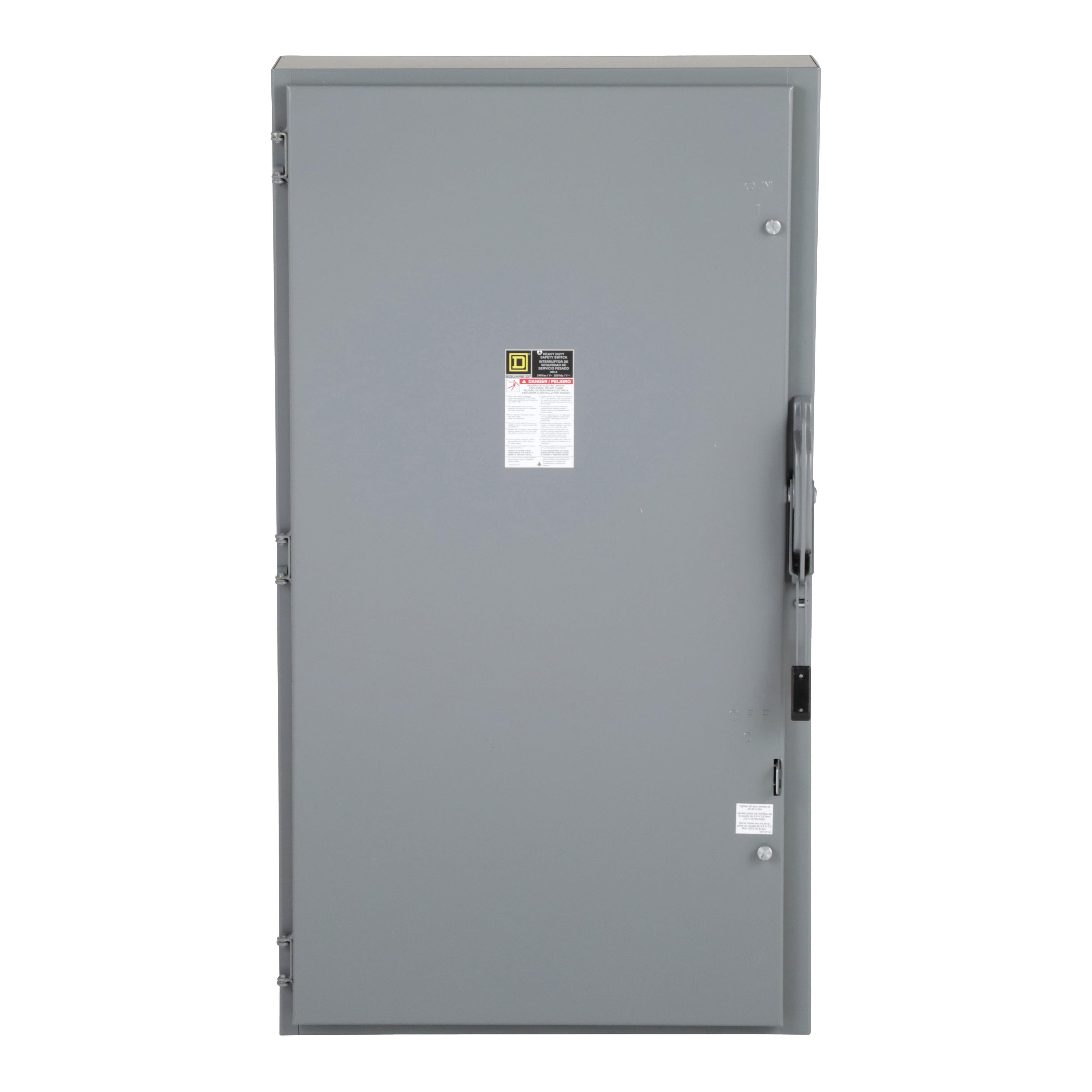

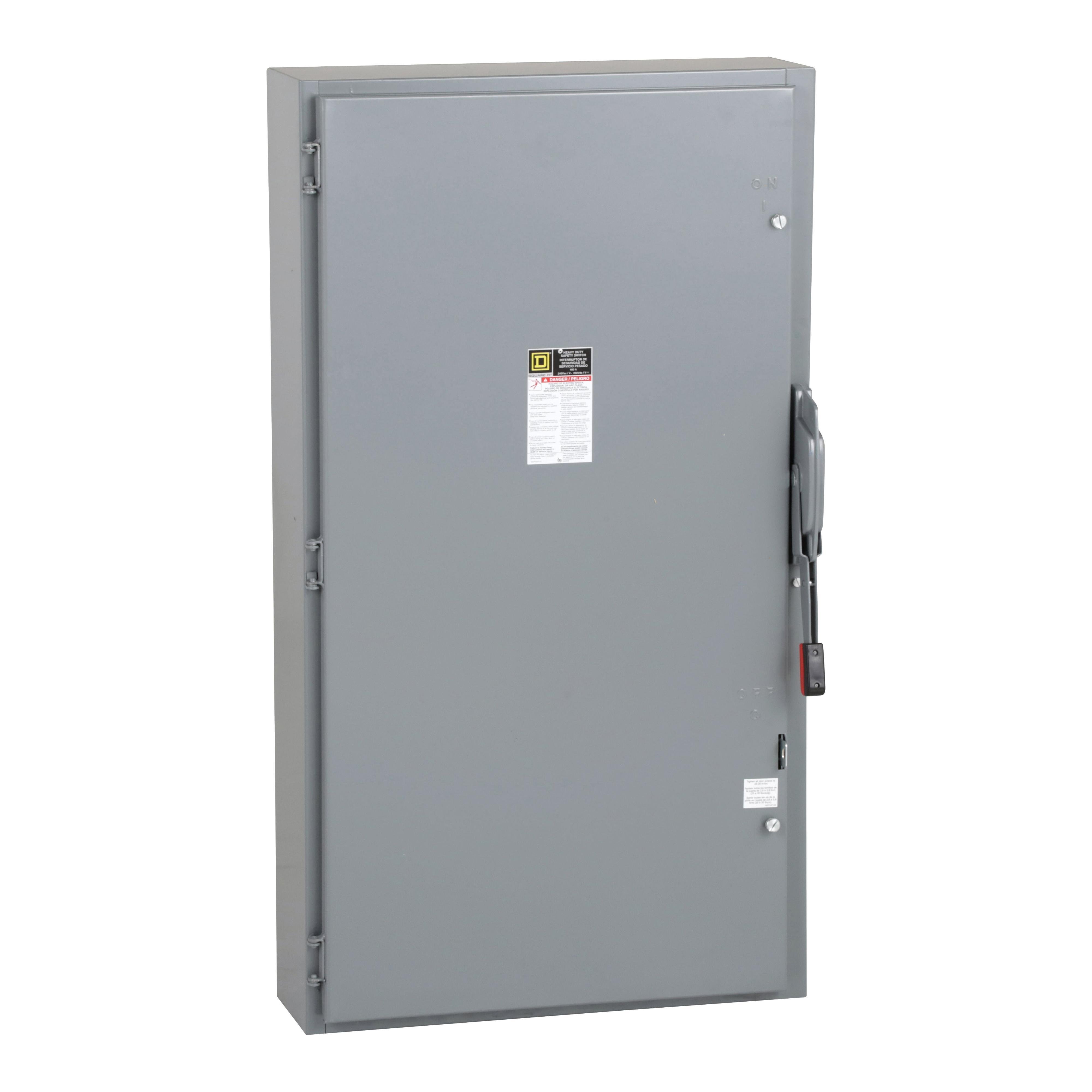

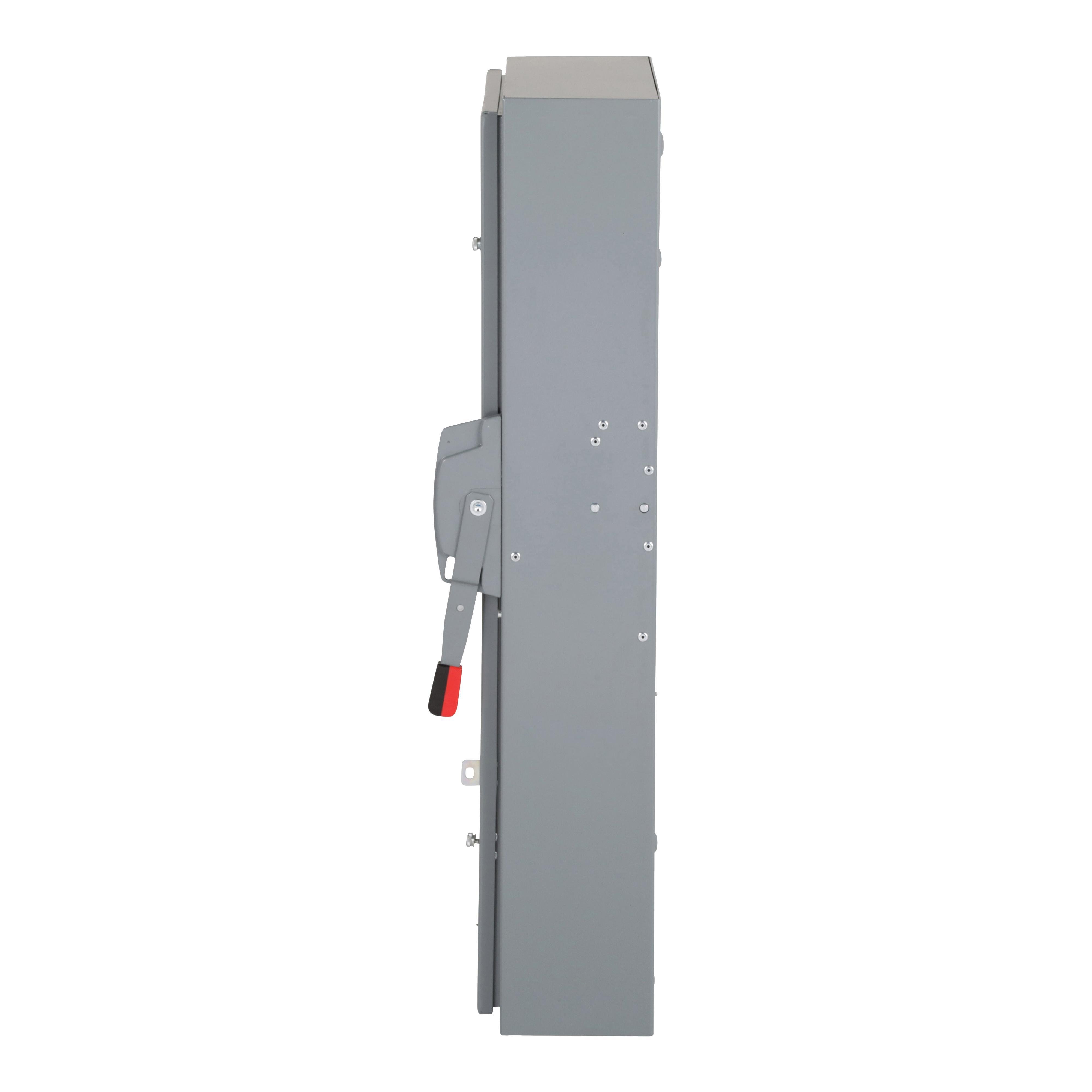

Picture of H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1 Picture of H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1
Picture of H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1 Picture of H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1
Picture of H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1 Picture of H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1
Square D

H225N - Safety switch, heavy duty, fusible, 400A, 2 pole, 125HP, 240VAC, 250VDC, neutral factory installed, NEMA1

Item Code: 42579
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H225N

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 400A and has a NEMA 1 degree of protection. This fusible disconnect has a short circuit rating of 200kA@240VAC and has a neutral (factory installed). This safety switch has a steel enclosure and is surface mounted. This product is compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 1/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 550-550 lbf in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 50.25 in (H), 27.63 in (W), 10.13 in (D).

Specifications

Weight

174.63

Width

27.73

Length

51.52

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H225N/H225N.spin

AD Alternative Part Number

8051092

AD Application

Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Waste Water Treatment Plants, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901450429

AD Gtin

00785901450429

AD IDEA Index ID

8051092

AD Invoice Description

SWITCH SAF DUTY HVY 240 VAC 250 VDC

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

All feature a quick-make, quick-break operating mechanism, a dual cover interlock

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Keywords

H225N E4 Fusible General Purpose Heavy Duty Safety Switch With Factory Installed Neutral, 240 V AC/250 V DC, 400 A, 50 hp, 125 hp, 2 Poles ; Schneider Electric ; Square D ; H225N ; H225N ; 785901450429 ; Heavy Duty Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

51.5200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

174.6300

AD Package Weight UOM

LB

AD Package Width

27.7300

AD Package Width UOM

IN

AD Part Number Keywords

H225N ; 8051092 ; 785901450429 ; 78590145042 ; 00785901450429 ; 0785901450429

AD Video Links

https://www.youtube.com/embed/s2yLxPcRTIY

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

SINGLE THROW

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

2

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Series

Spec 13 Attribute Value

E4

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

10/200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Fusible General Purpose

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

27.63 in W x 10.13 in D x 50.25 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Painted

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 125 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Cold Rolled Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
