Square D

H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R

Category Fusible Heavy Duty Safety Switches

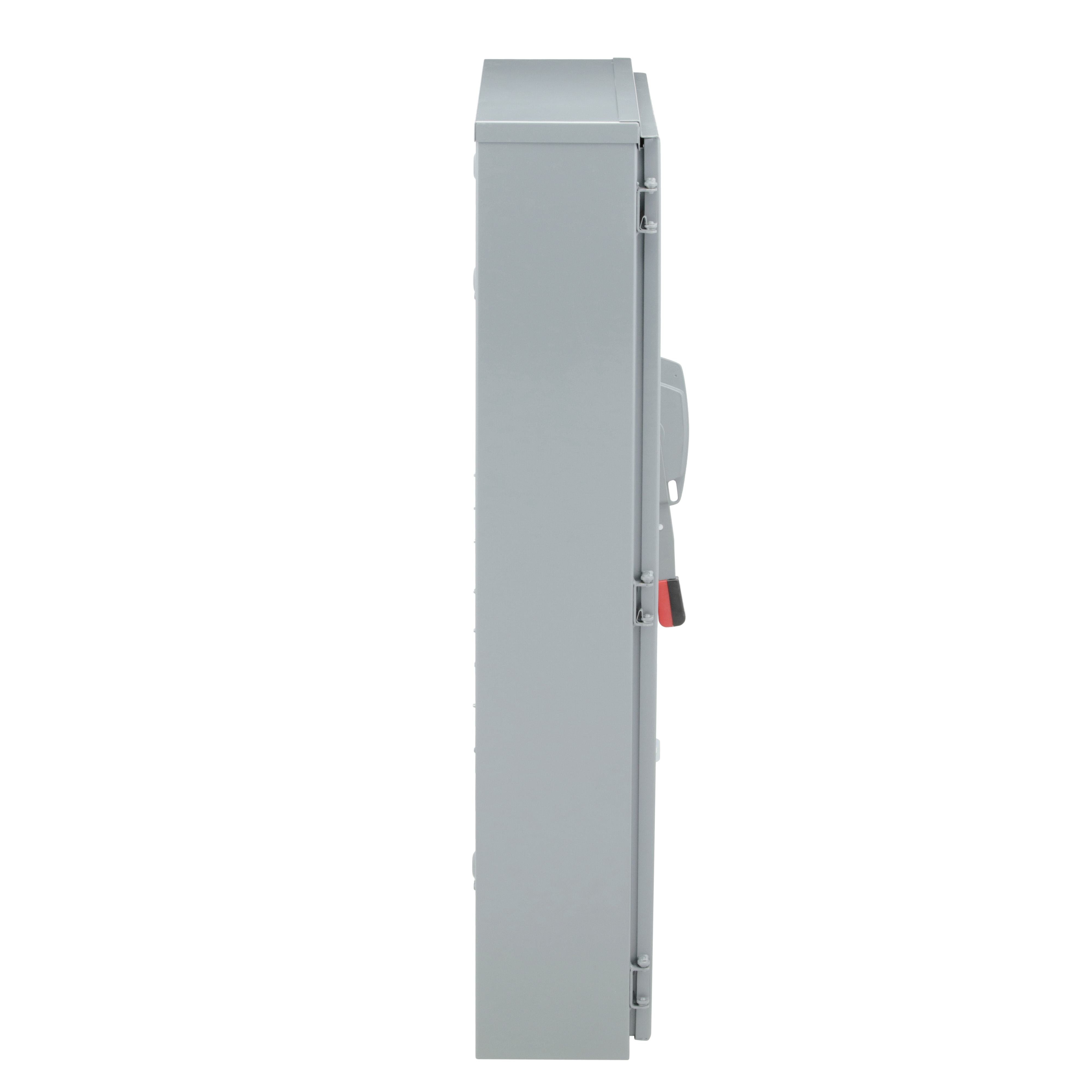

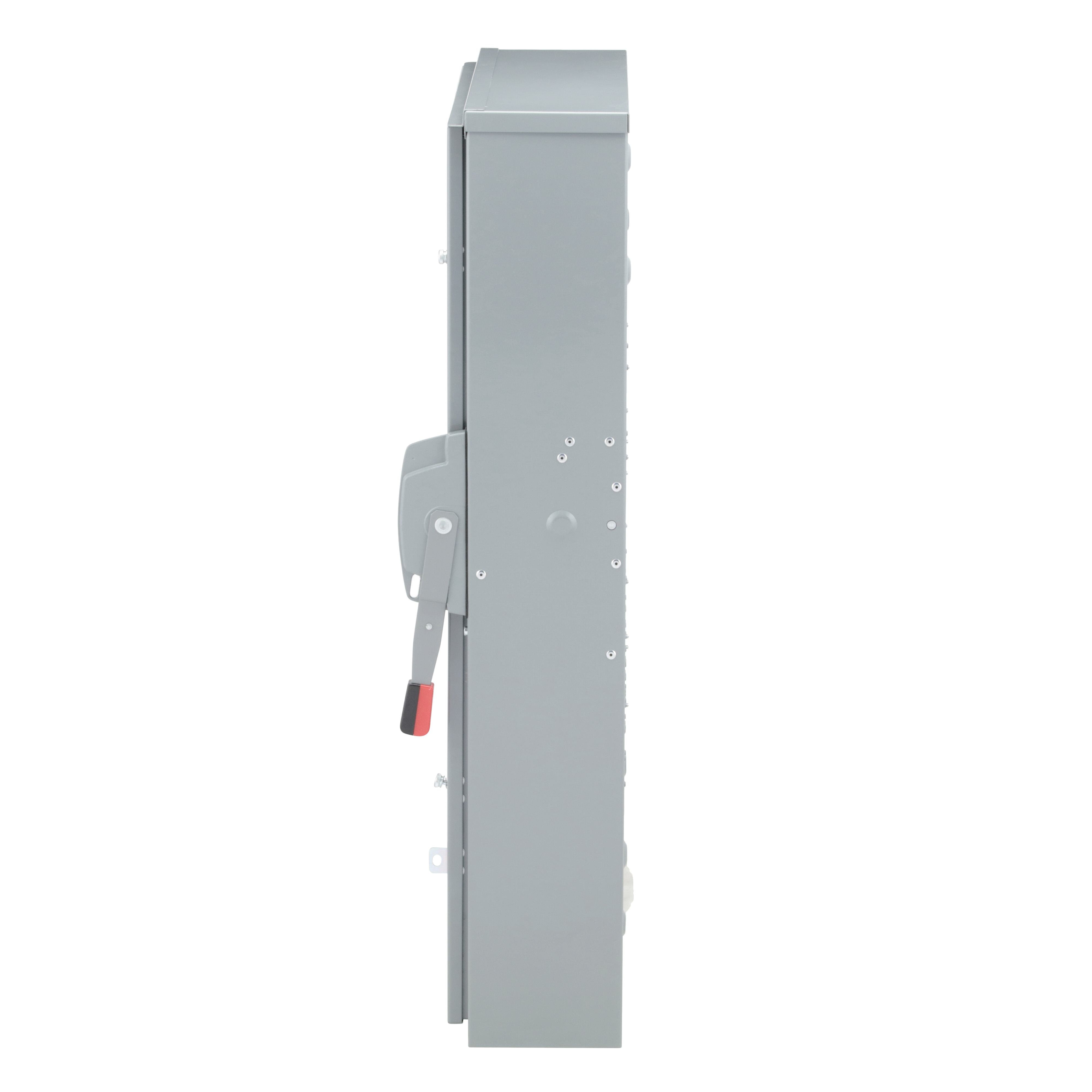

Picture of H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R Picture of H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R
Picture of H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R Picture of H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R
Picture of H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R Picture of H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R
Square D

H225NR - Safety switch, heavy duty, fusible, 400A, 3 wire, 2 pole, 1 neutral, 125hp, 240VAC/250VDC, NEMA 3R

Item Code: 635478
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H225NR

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a two pole fusible heavy duty safety switch that is rated at 400A with voltage of 240VAC and 250VDC. This switch is rated at 50hp for 3 phase with standard fuses. For time delay fuses, this switch is rated at 125hp at 3 phase. For 250VDC, it also is rated at 50hp This unit includes a factory installed neutral. It is UL listed with the file E2875.

Specifications

Weight

174.63

Height

14

Width

27.73

Length

51.01

AD All Features

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Application

Commercial, Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF 240/250VAC/VDC 400A DPST 2 3

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Factory installed neutral

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Manufacturer (Description)

Schneider Electric

AD Package Height

14.0000

AD Package Height UOM

IN

AD Package Length

51.0100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20188.0000

AD Package Volume UOM

cu-in

AD Package Weight

174.6300

AD Package Weight UOM

LB

AD Package Width

27.7300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/eDpOzHTM8qw

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

2

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

3

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

1/2/2003

Spec 14 Attribute

Series

Spec 14 Attribute Value

E5 Series

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

200

Spec 16 Attribute

Temperature Rating

Spec 16 Attribute UOM

deg F

Spec 16 Attribute Value

-22 to 104

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Heavy Duty Fusible Iceproof Rainproof Sleetproof

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

DPST

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

27.88 in W x 10.13 in D x 50.31 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Hot Dipped Galvanized/Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

50 hp, 125 hp

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
