Square D

H327N - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 1

Category Miscellaneous

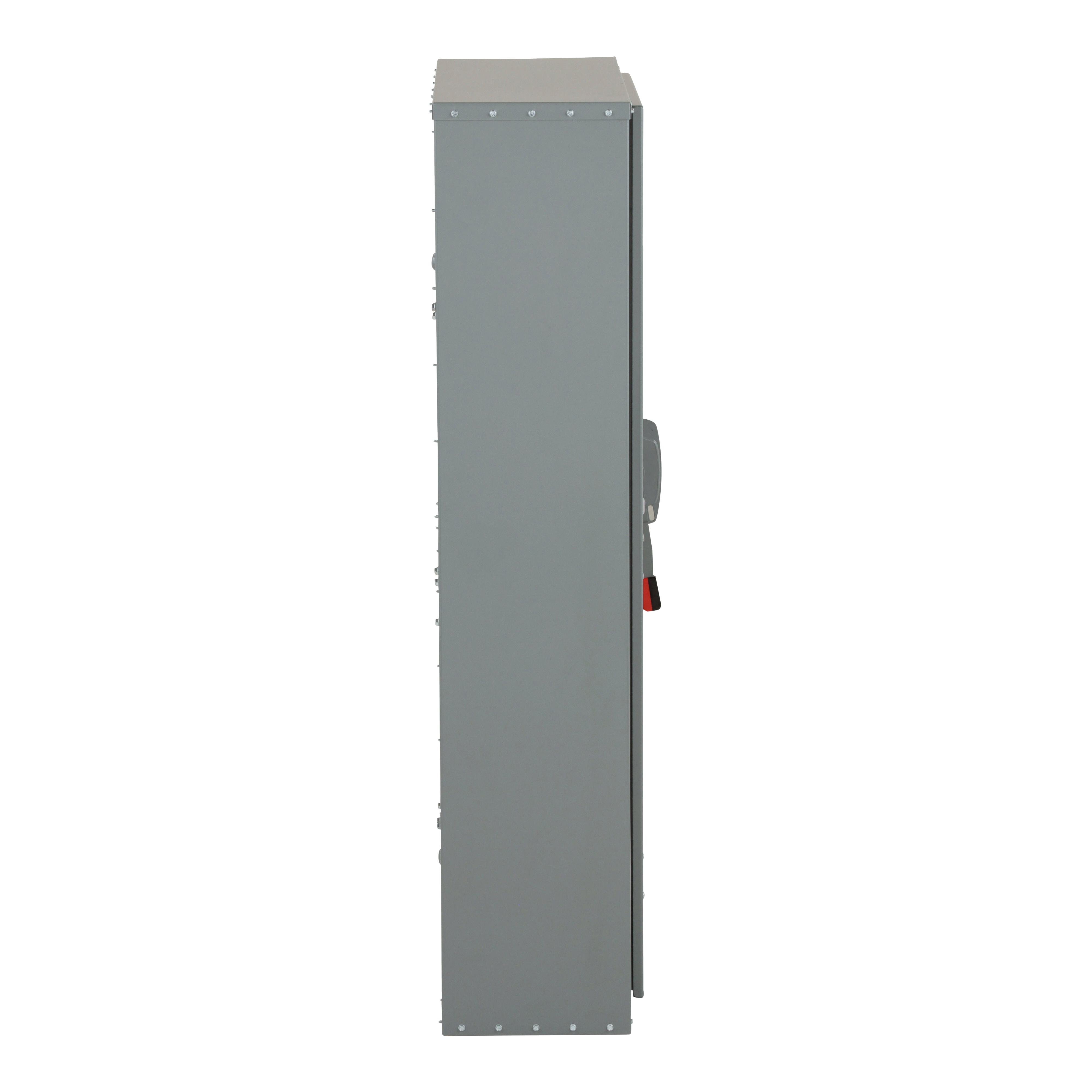

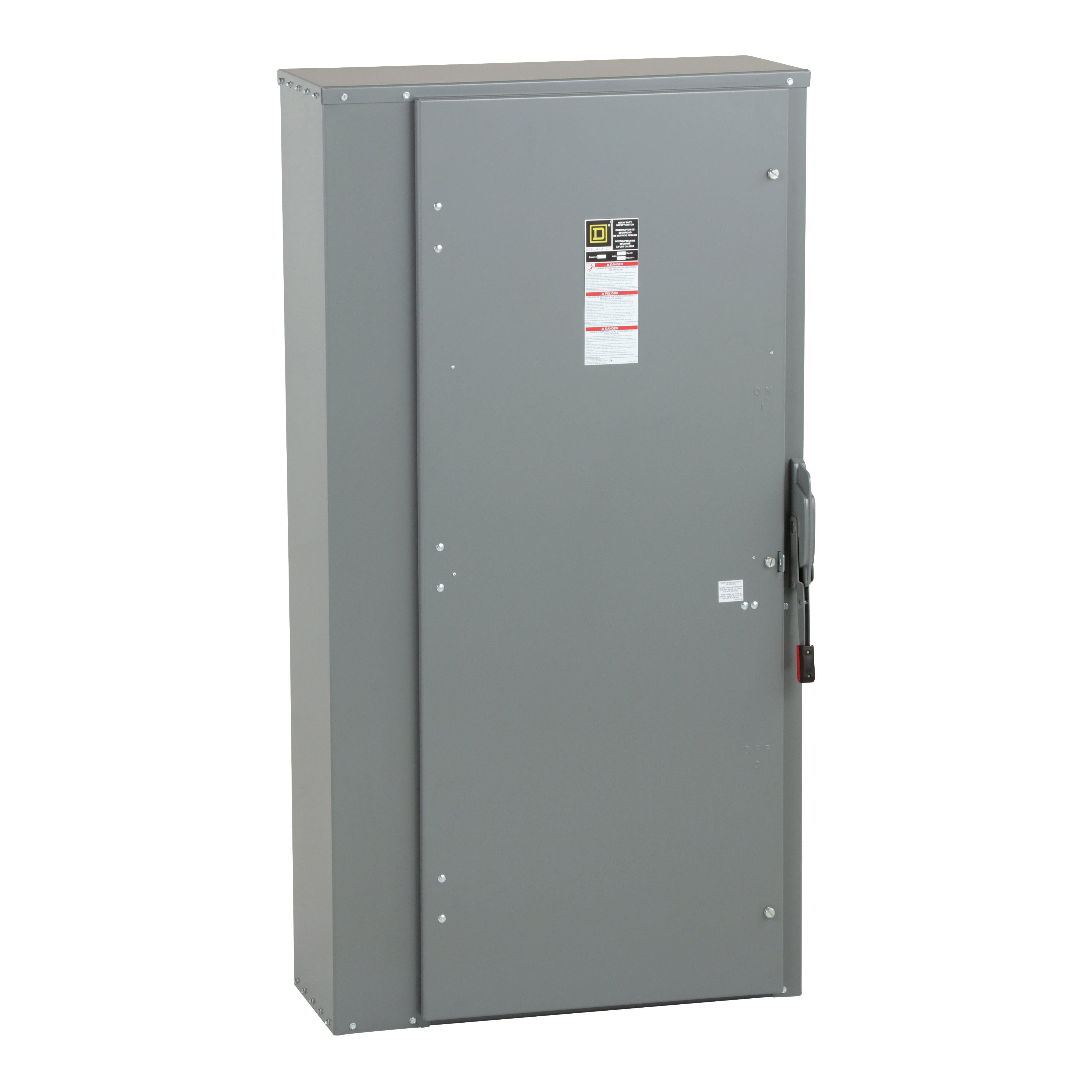

Picture of H327N - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 1 Picture of H327N - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 1
Picture of H327N - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 1 Picture of H327N - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 1
Square D

H327N - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 1

Item Code: 40766
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H327N

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 400A with voltage of 240 VAC and 250 VDC. It is rated when using time delay fuses of 125 HP at 240 VAC three phase and 50 HP at 250 VDC. This switch has a 3 wire configuration and is rated for AWG 6 to 250 kcmil with aluminum and copper wire. This device has enclosure rating of NEMA 3R and it is made of galvannealed steel. It has a height of 50.31 in, width of 27.88 in and has a depth of 10.13 in. It is UL listed with the file E2875.

Specifications

Weight

355.25

Width

29.72

Length

37.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H327N/H327N.spin

AD All Features

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Alternative Part Number

8075811

AD Application

Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901195375

AD Gtin

00785901195375

AD IDEA Index ID

8075811

AD Invoice Description

SWITCH SAF 240VAC 250VDC 800A 3NO

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Factory installed neutral

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Keywords

H327N Heavy Duty Fusible General Purpose Safety Switch, 240 V AC/250 V DC, 800 A, 250 hp at 240 VAC, 50 hp at 250 VDC, 3NO 3 Form A Contact, 3 Poles ; Schneider Electric ; Square D ; H327N ; H327N ; 785901195375 ; Heavy Duty Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

355.2500

AD Package Weight UOM

LB

AD Package Width

29.7200

AD Package Width UOM

IN

AD Part Number Keywords

H327N ; 8075811 ; 785901195375 ; 78590119537 ; 00785901195375 ; 0785901195375

AD Video Links

https://www.youtube.com/embed/mbIMCO9g7oI

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle/Single Throw

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Series

Spec 13 Attribute Value

E4

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Heavy Duty Fusible General Purpose

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

800

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3NO 3 Form A

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

69.13 in H x 36.62 in W x 17.75 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

250 hp at 240 VAC, 50 hp at 250 VDC

Spec 9 Attribute

Material

Spec 9 Attribute Value

Cold Rolled Steel
