Square D

H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R

Category Miscellaneous

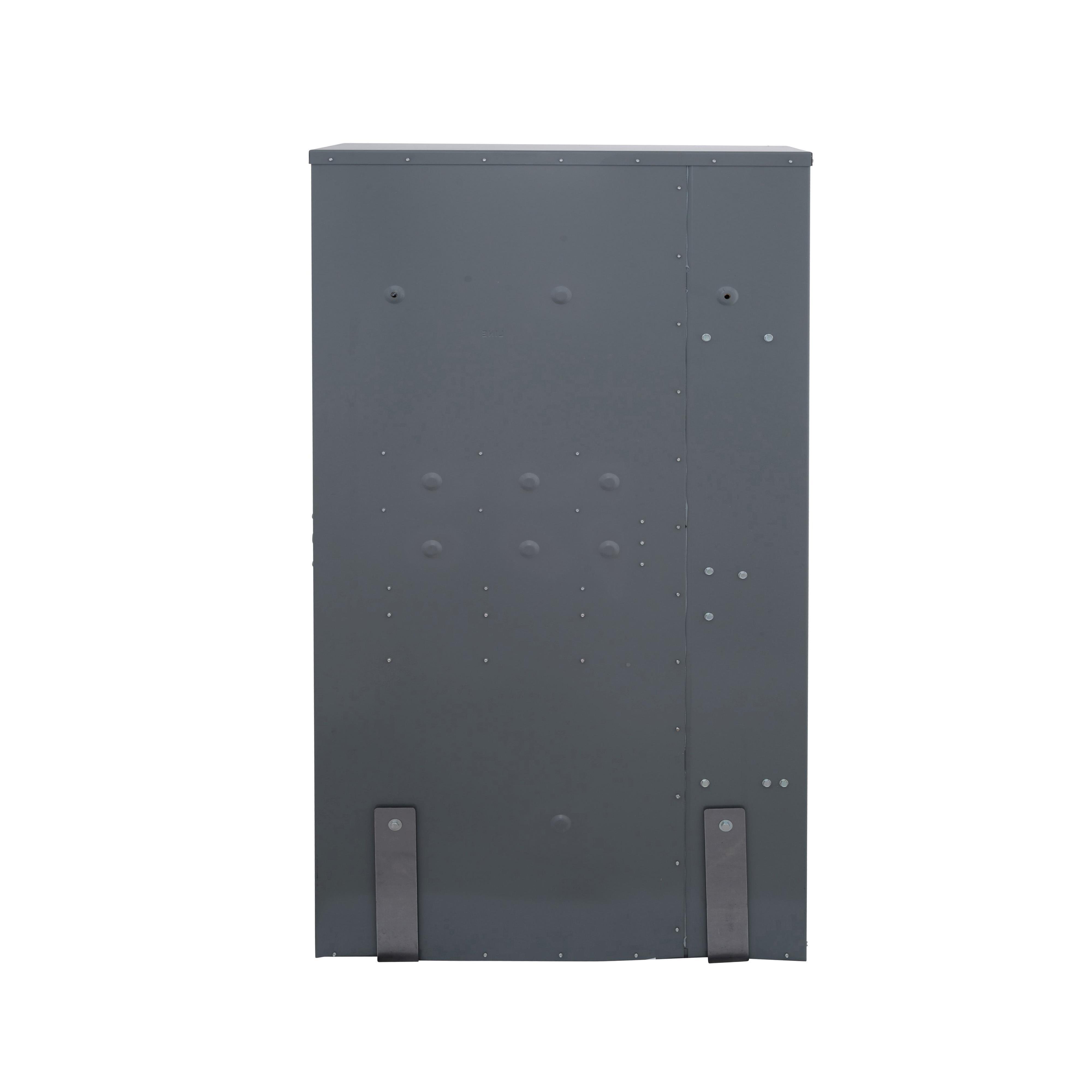

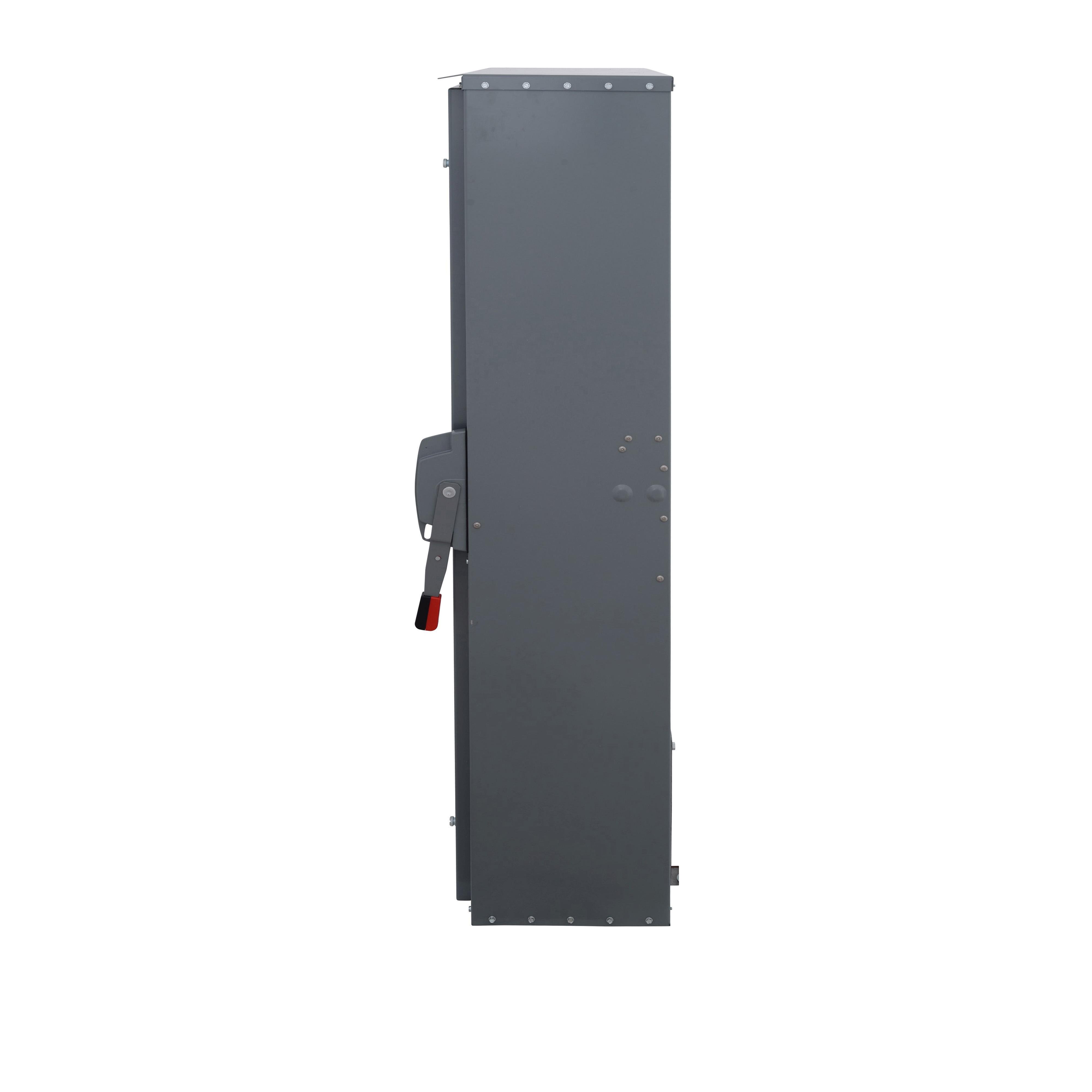

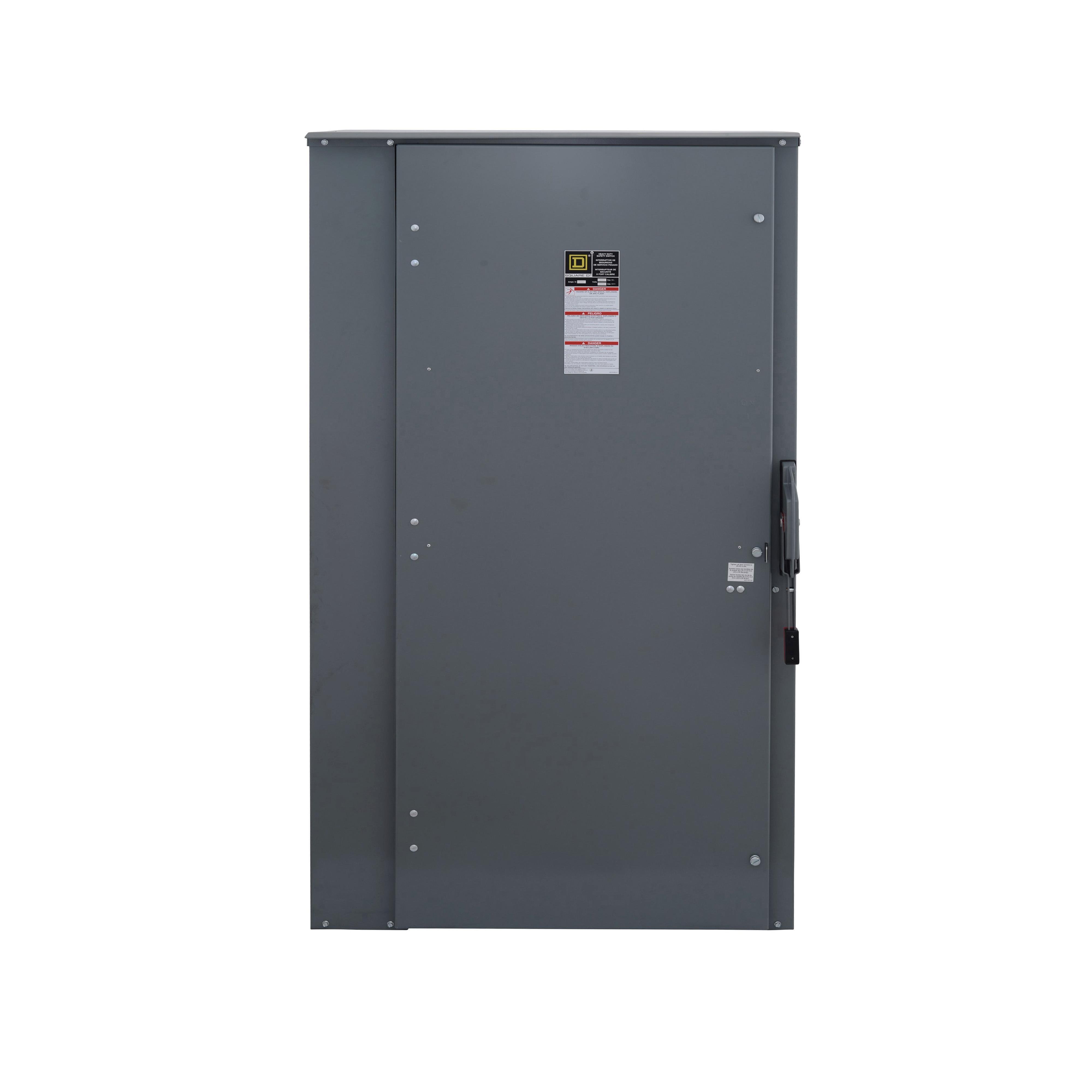

Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R
Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R
Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R
Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R Picture of H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R
Square D

H328NR - Safety switch, heavy duty, fusible, 1200A, 4 wire, 3 pole, 1 neutral, 250hp, 240VAC/250VDC, NEMA 3R

Item Code: 534717
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H328NR

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 1200A and has a NEMA 3R degree of protection. This fusible disconnect has a short circuit rating of 200kA@240VAC. This safety switch has a galvannealed steel enclosure and is surface mounted. This product is compatable with L, fuses. The acceptable AWG gauge for this product is AWG 3/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 69.13 in (H), 36.62 in (W), 17.75 in (D).

Specifications

Weight

369.22

Width

29.72

Length

37.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H328NR/H328NR.spin

AD All Features

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Alternative Part Number

8048777

AD Application

Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901442455

AD Gtin

00785901442455

AD IDEA Index ID

8048777

AD Invoice Description

SWITCH SAF DUTY HVY 240 VAC 250 VDC 3NO

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Factory installed neutral

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

369.2200

AD Package Weight UOM

LB

AD Package Width

29.7200

AD Package Width UOM

IN

AD Part Number Keywords

H328NR ; 8048777 ; 785901442455 ; 78590144245 ; 00785901442455 ; 0785901442455

AD Video Links

https://www.youtube.com/embed/s2yLxPcRTIY

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle/Single Throw

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

4

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3

Spec 14 Attribute

Series

Spec 14 Attribute Value

E4

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

200

Spec 16 Attribute

Temperature Rating

Spec 16 Attribute UOM

deg F

Spec 16 Attribute Value

-22 to 104

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Fusible Rainproof

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

1200

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3NO 3 Form A

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Galvannealed/Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

250 hp at 240 VAC, 50 hp at 250 VDC

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
