Square D

H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite

Category Miscellaneous

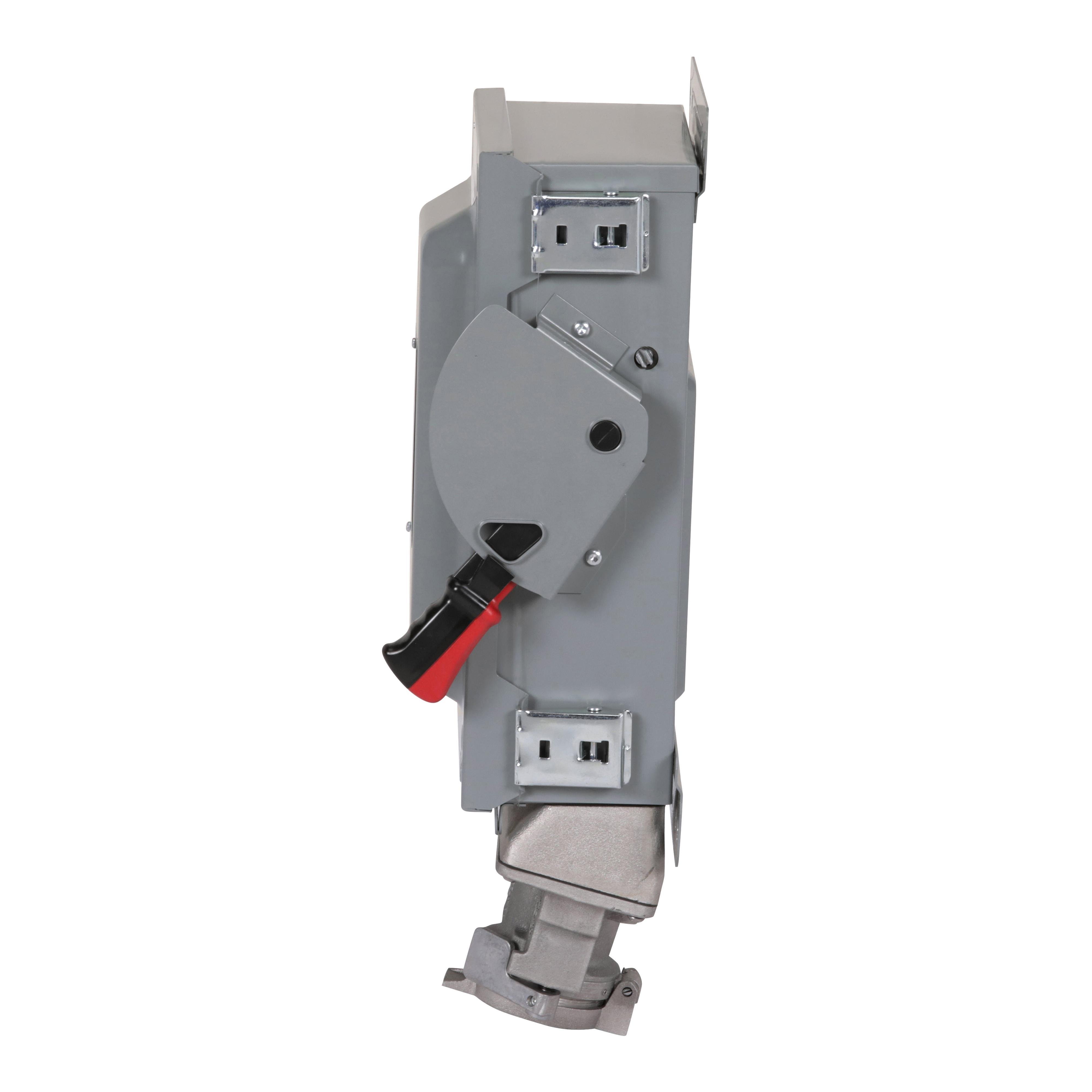

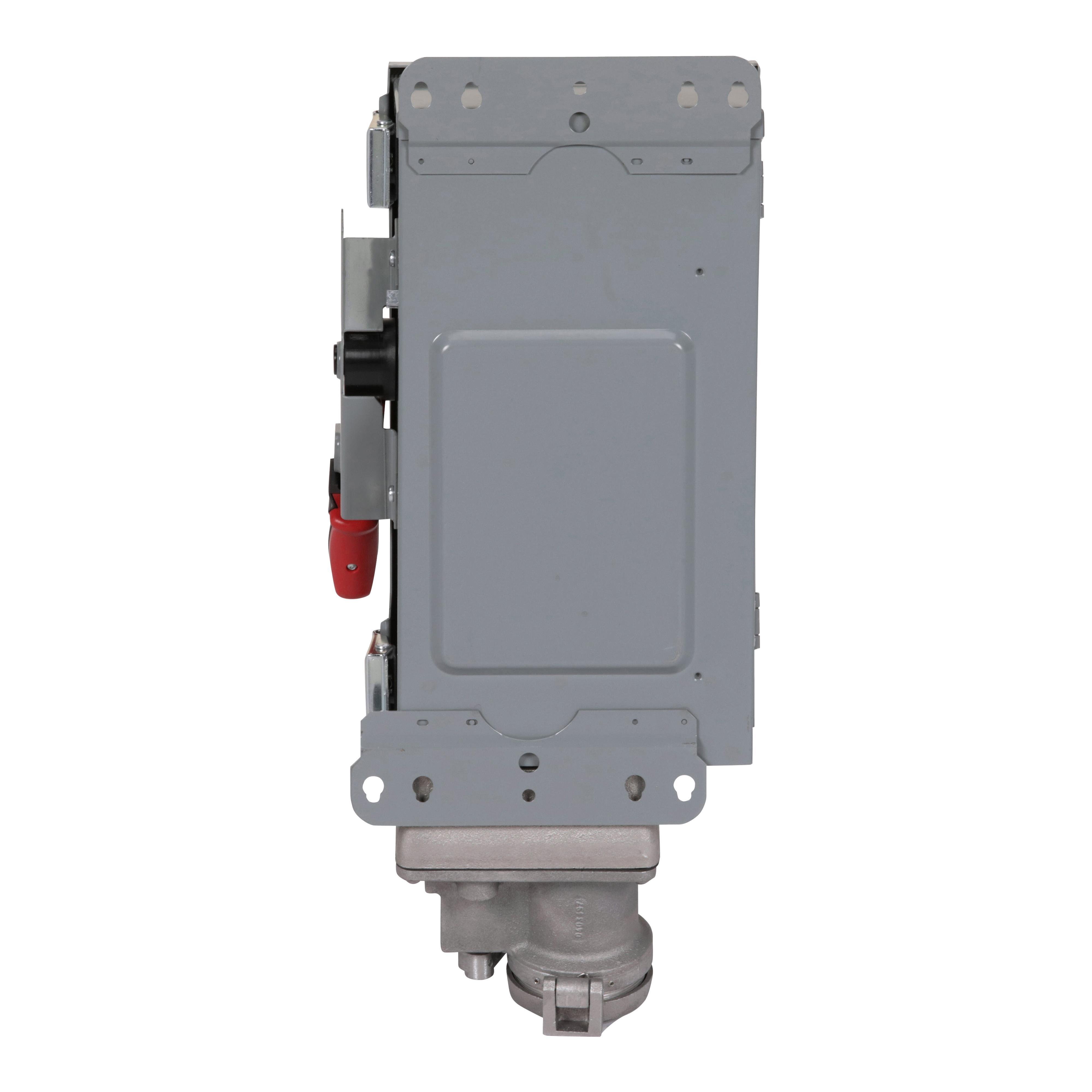

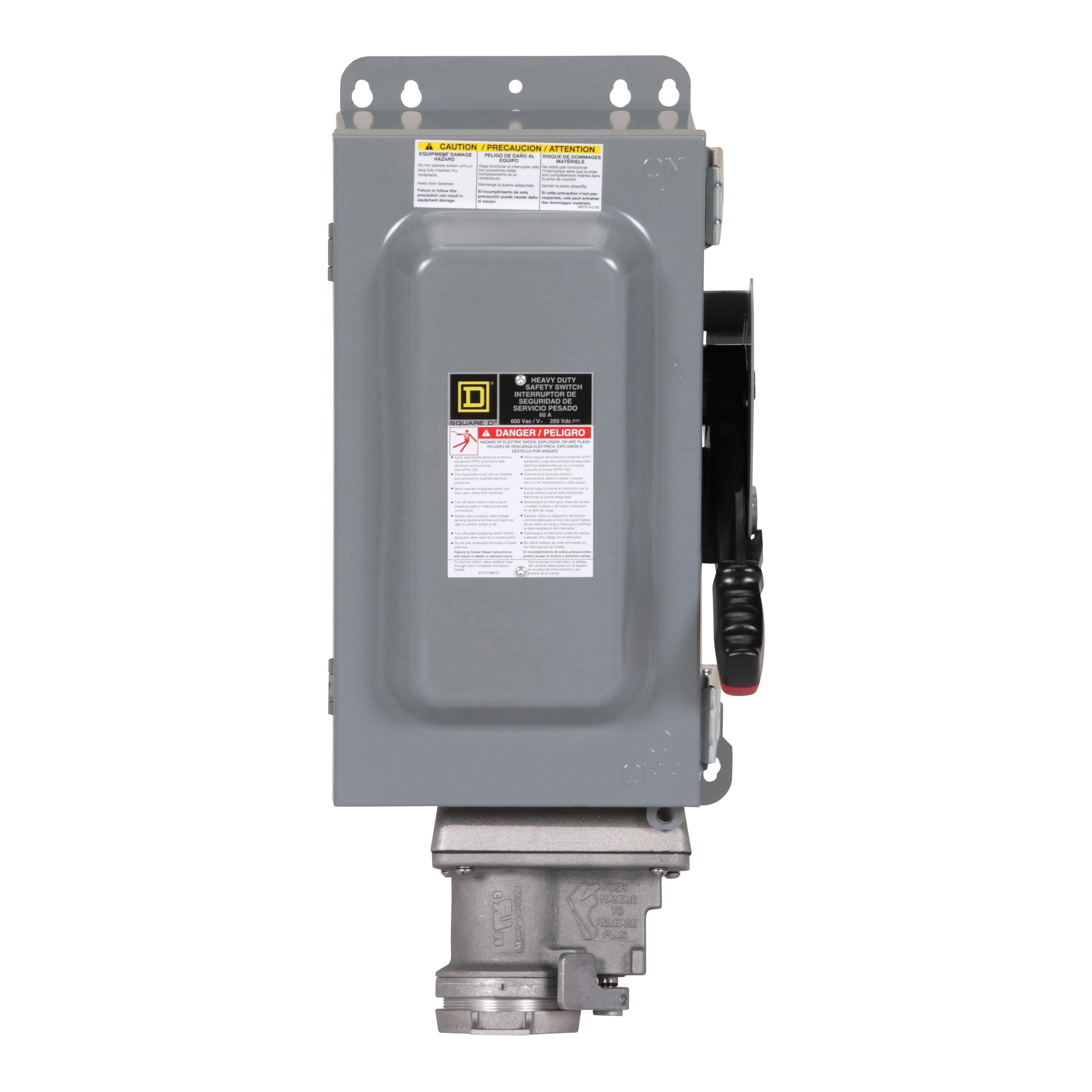

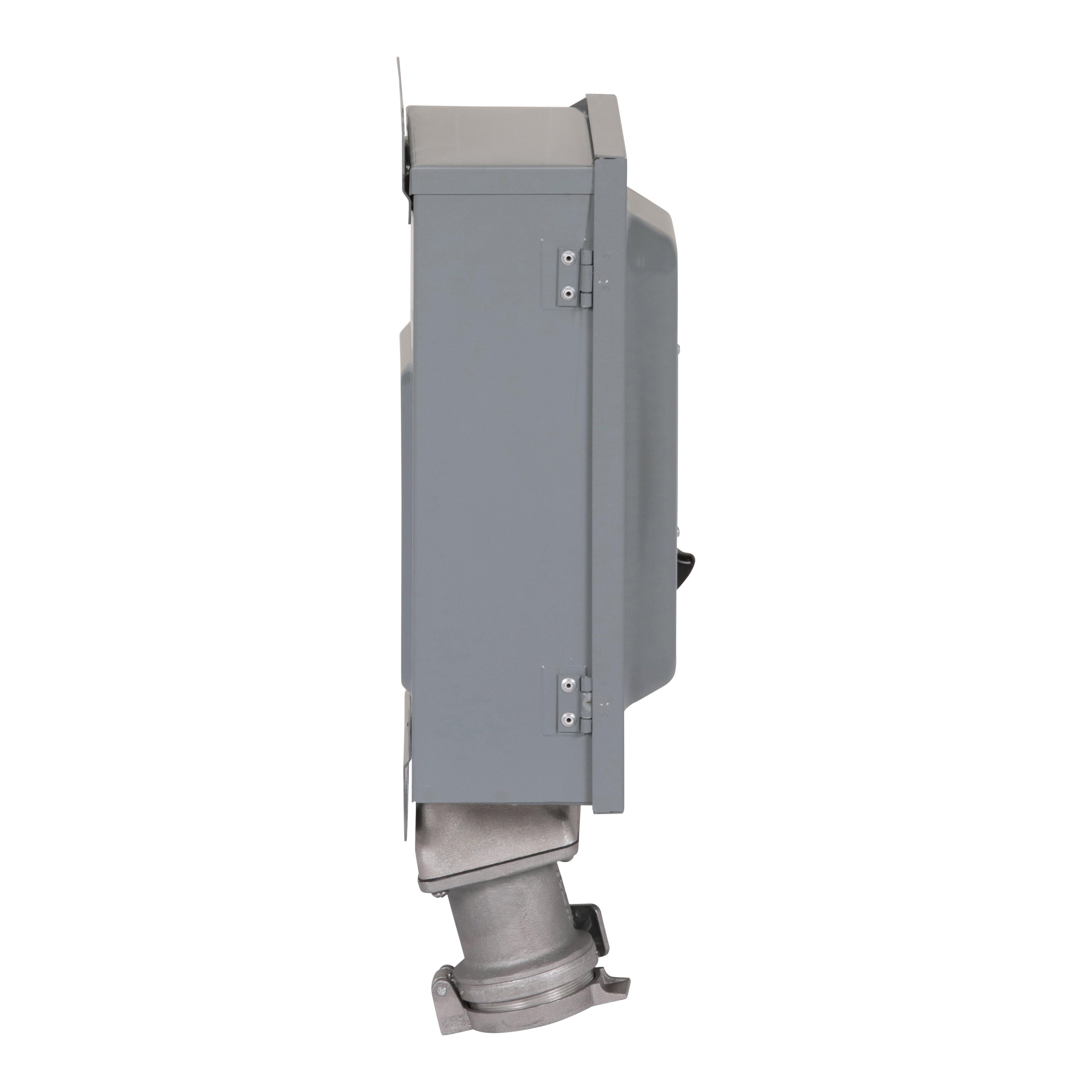

Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite
Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite
Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite
Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite Picture of H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite
Square D

H362AWC - Safety switch, heavy duty, fusible, 60A, 600VAC/DC, 3 poles, 50HP, NEMA 12K, Crouse-Hinds Arktite

Item Code: 32847
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H362AWC

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This Heavy Duty Receptacle Switch is a 60 A, Crouse-Hinds Arktite plug. This receptacle switch has a NEMA 3R/12 degree of protection and is made of galvannealed steel. This product is rated for 30hp & 50hp motors. This has a short circuit rating of 10kA@600VAC. This fusible disconnect switch is surface mounted and is 3 phases. This product complys to UL listed standards. Dimensions for this product are 10.5 in (H),16.5 in (W),7 in (D).

Specifications

Weight

27.22

Width

13.87

Length

32.89

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H362AWC/H362AWC.spin

AD Alternative Part Number

8075969

AD Application

Commercial, Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901195573

AD Gtin

00785901195573

AD IDEA Index ID

8075969

AD Invoice Description

SWITCH SAF DUTY HVY 600 VAC 250 VDC 60A

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

All feature a quick-make, quick-break operating mechanism, a dual cover interlock

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

32.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

27.2200

AD Package Weight UOM

LB

AD Package Width

13.8700

AD Package Width UOM

IN

AD Part Number Keywords

H362AWC ; 8075969 ; 785901195573 ; 78590119557 ; 00785901195573 ; 0785901195573

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

4

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3-Jan

Spec 13 Attribute

Series

Spec 13 Attribute Value

F7

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Dust/Driptight Fusible Iceproof Rainproof Single Throw Sleetproof

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute Value

600 V AC/250 V DC

Spec 2 Attribute

Color

Spec 2 Attribute Value

Gray

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

10-1/2 in W x 7 in D x 16-1/2 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R/12

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

30 hp, 50 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
