Square D

H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1

Category Fusible Heavy Duty Safety Switches

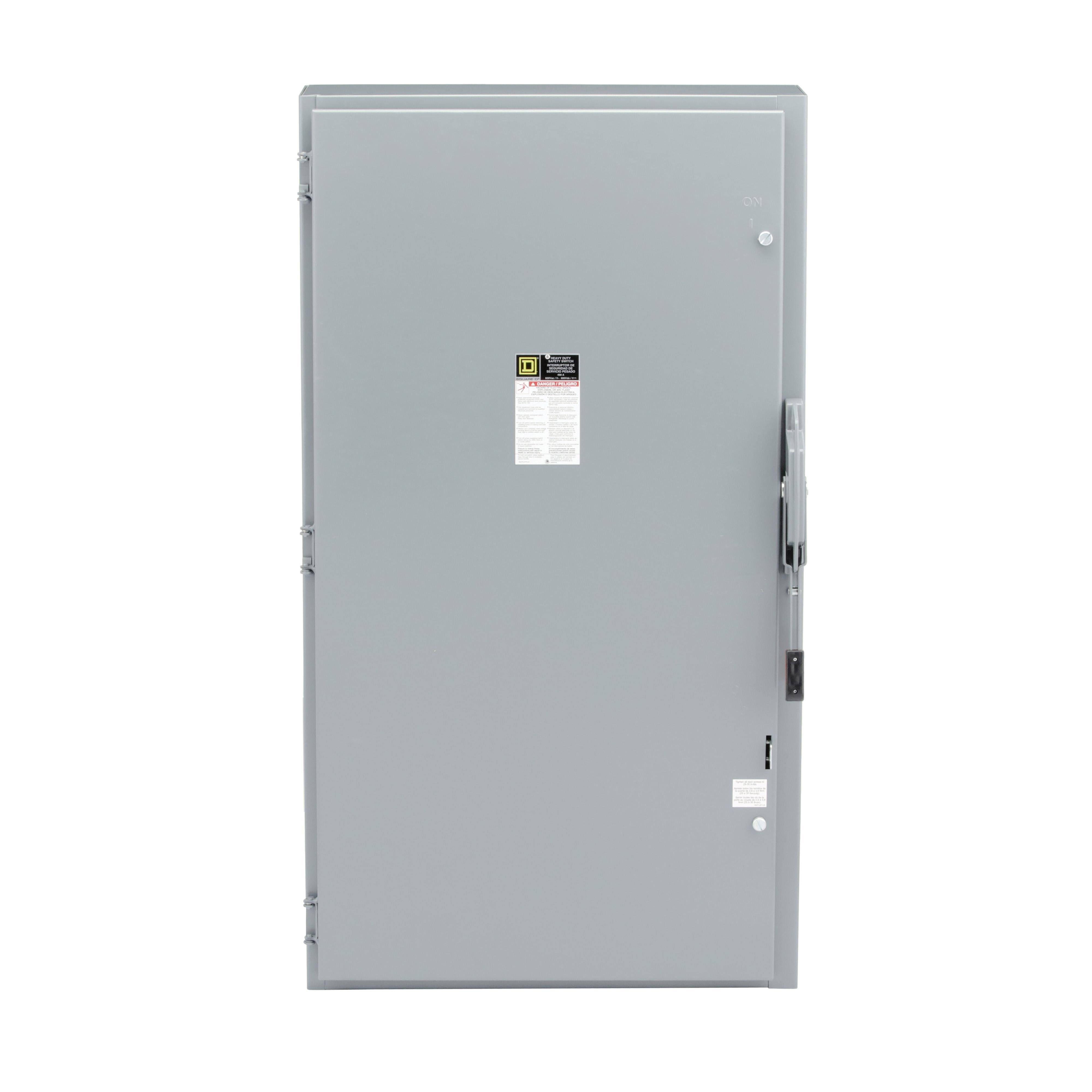

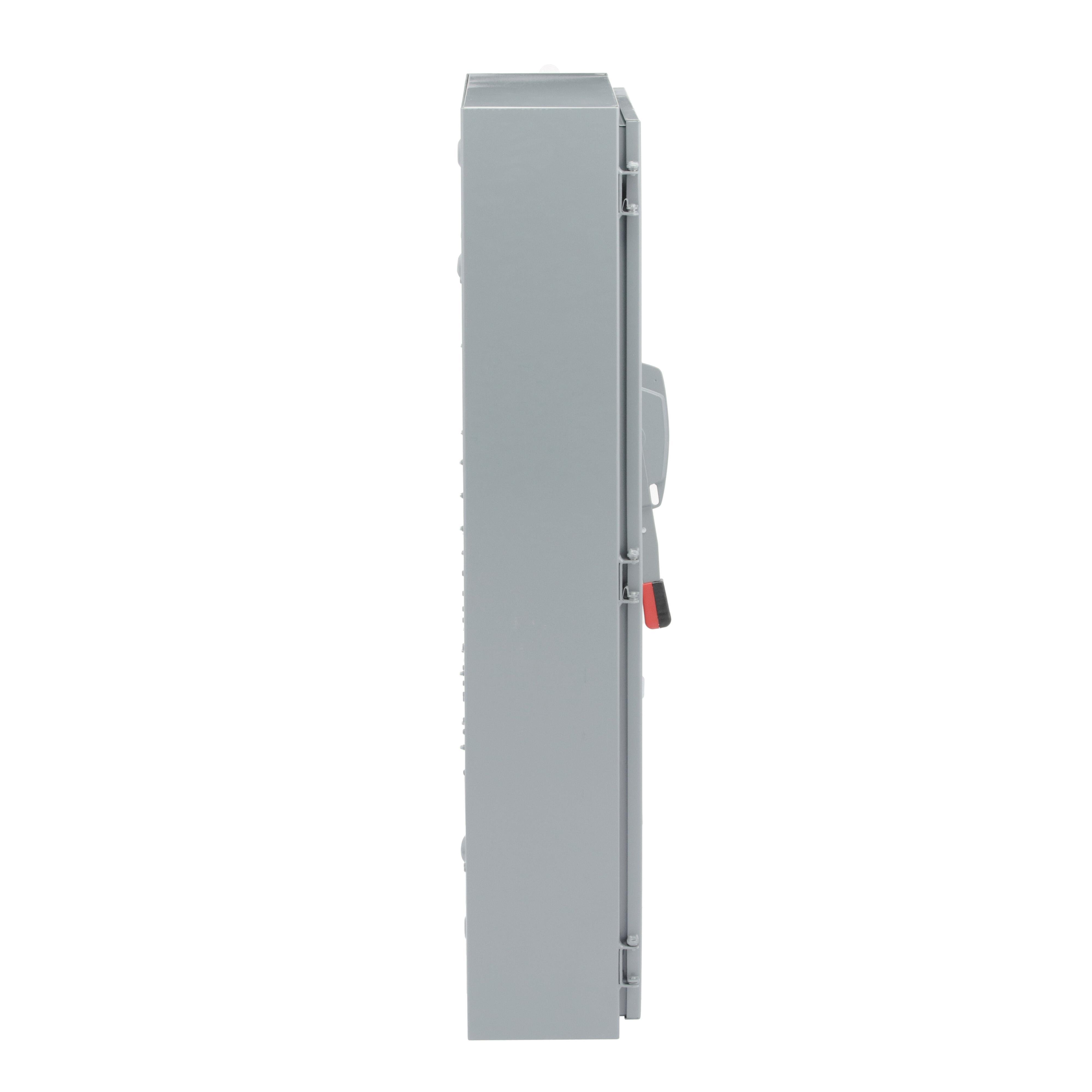

Picture of H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1 Picture of H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1
Picture of H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1 Picture of H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1
Picture of H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1 Picture of H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1
Square D

H365N - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 1

Item Code: 18103
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H365N

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Specifications

Weight

171.64lb

Height

14mm

Width

28.24mm

Length

51.01mm

Depth

10.13mm

AD All Features

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Application

Commercial, Industrial, Indoor and General Purpose Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF 600VAC/VDC 400A 50 HP 125 HP

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Factory installed neutral

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Manufacturer (Description)

Schneider Electric

AD Package Height

14.0000

AD Package Height UOM

IN

AD Package Length

51.0100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20548.5000

AD Package Volume UOM

cu-in

AD Package Weight

171.6400

AD Package Weight UOM

LB

AD Package Width

28.2400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/s2yLxPcRTIY

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Short Circuit Current Rating

Spec 13 Attribute UOM

KA

Spec 13 Attribute Value

10

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Lug

Spec 15 Attribute

Type

Spec 15 Attribute Value

Heavy Duty Fusible

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC/DC

Spec 16 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

27.63 in W x 10.13 in D x 50.25 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Hot dipped galvanized

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 125 hp

Spec 8 Attribute

Insulation Type

Spec 8 Attribute Value

Phenolic

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
