Square D

H365NAWK - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250HP, 600V AC/DC, NEMA 12

Category Miscellaneous

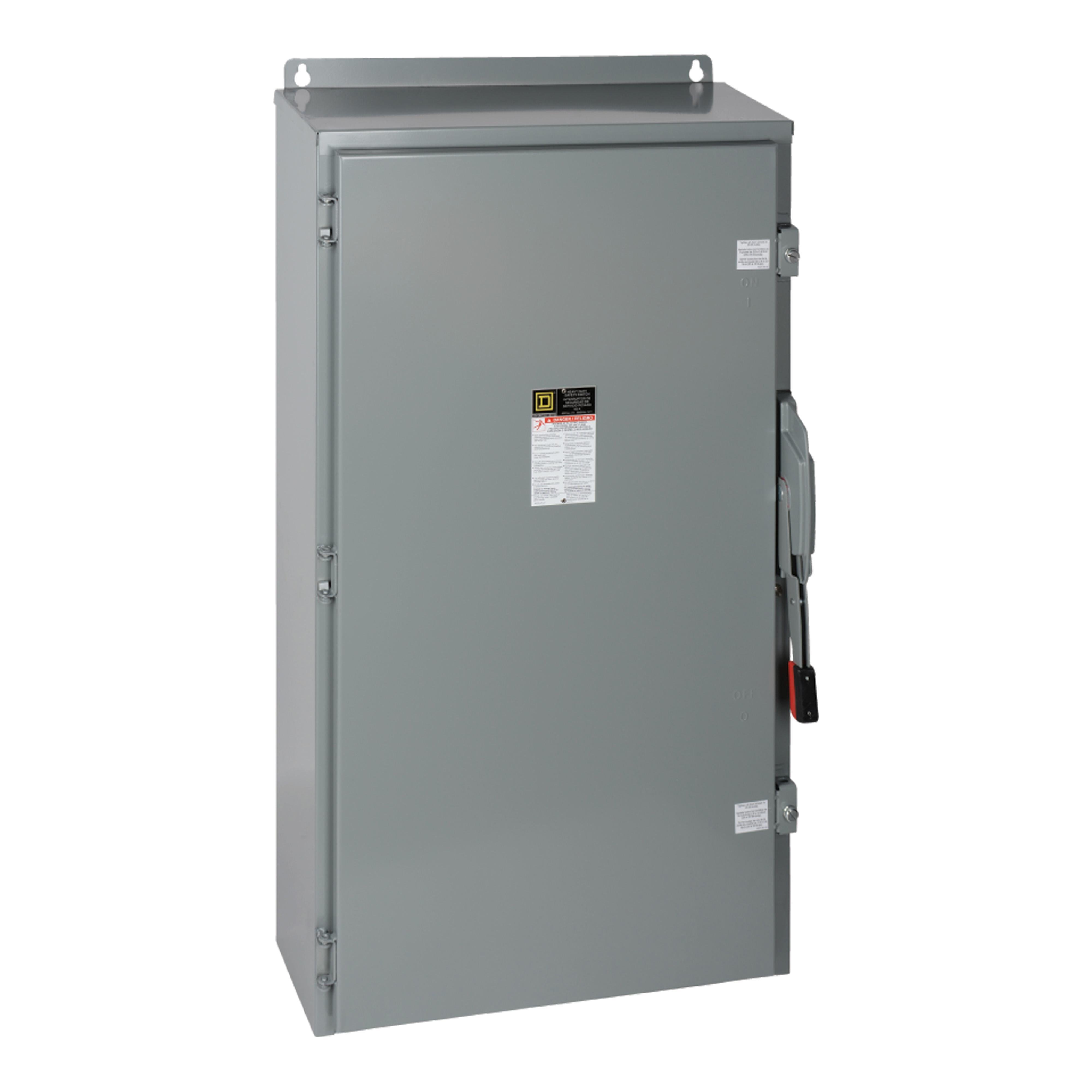

Picture of H365NAWK - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250HP, 600V AC/DC, NEMA 12
Square D

H365NAWK - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250HP, 600V AC/DC, NEMA 12

Item Code: 54938
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H365NAWK

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase, 50 HP at 600 VAC three phase and 30 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 12 to 3 AWG aluminum wire and 14 to 3 AWG copper wire. This device has enclosure rating of NEMA 4X and it is made of krydon which is a compression molded fiberglass reinforced polyester It has a height of 19.4 in, width of 11.4 in and has a depth of 8.6 in. It is UL listed with the file E2875.

Specifications

Weight

179.62

Width

3.95

Length

10.24

AD Alternative Part Number

8047858

AD Application

Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Waste Water Treatment Plants, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901829294

AD Gtin

00785901829294

AD IDEA Index ID

8047858

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 400A

AD Item Features 01

Type 12 without knockouts indoor dust and drip tight enclosure

AD Item Features 02

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 03

Factory installed neutral

AD Item Features 04

Quick make, quick break operating mechanism

AD Item Features 05

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

179.6200

AD Package Weight UOM

LB

AD Package Width

3.9500

AD Package Width UOM

IN

AD Part Number Keywords

H365NAWK ; 8047858 ; 785901829294 ; 78590182929 ; 00785901829294 ; 0785901829294

AD Video Links

https://www.youtube.com/embed/3j1msgeG034

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

SINGLE THROW

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

4

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Series

Spec 13 Attribute Value

E5

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

10/200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Dust/Driptight Fusible Iceproof Rainproof Sleetproof

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC/DC

Spec 18 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

400

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

26.25 in W x 10.13 in D x 46.25 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R/12

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed/Painted

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 350 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
