Square D

H365NR - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 3R

Category Fusible Heavy Duty Safety Switches

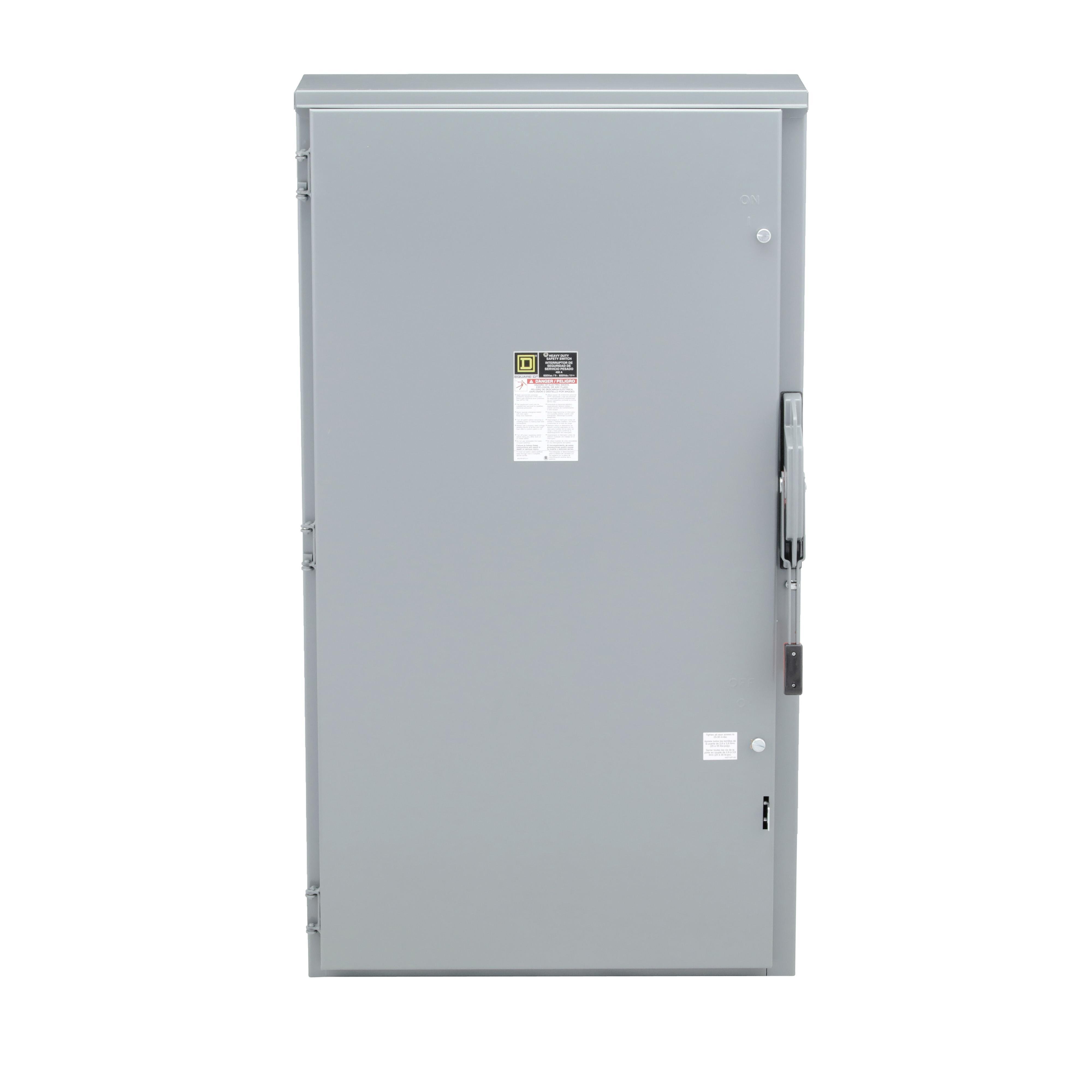

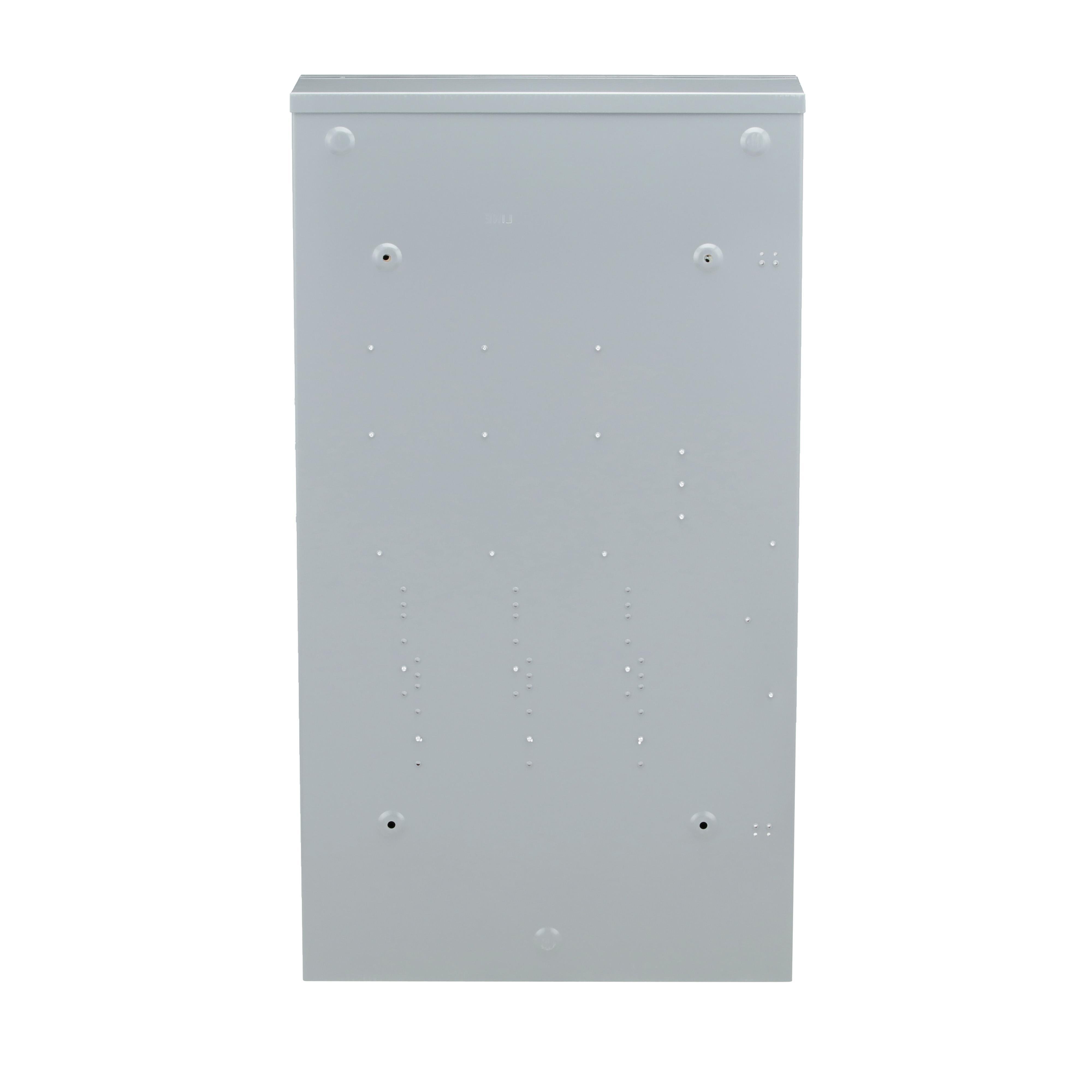

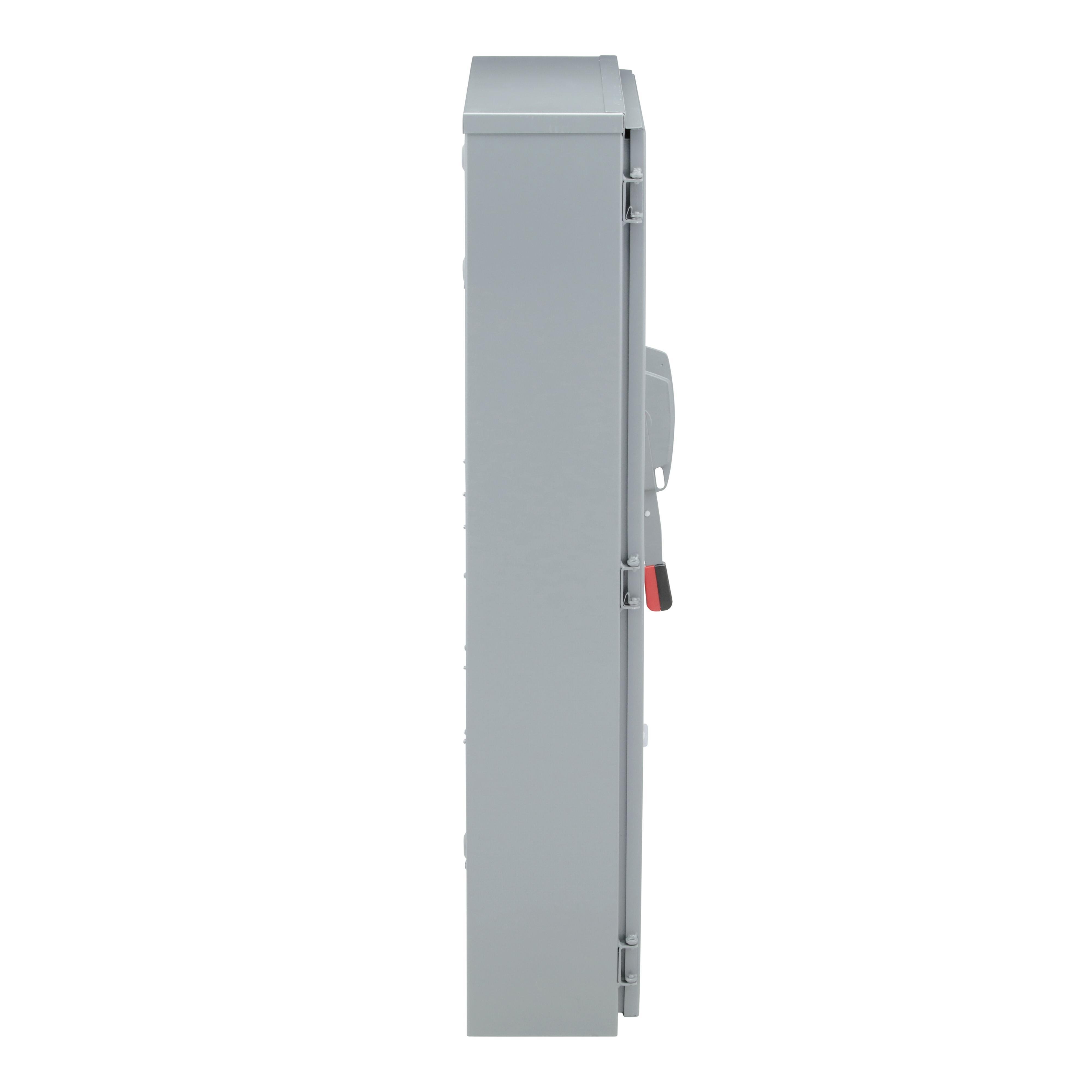

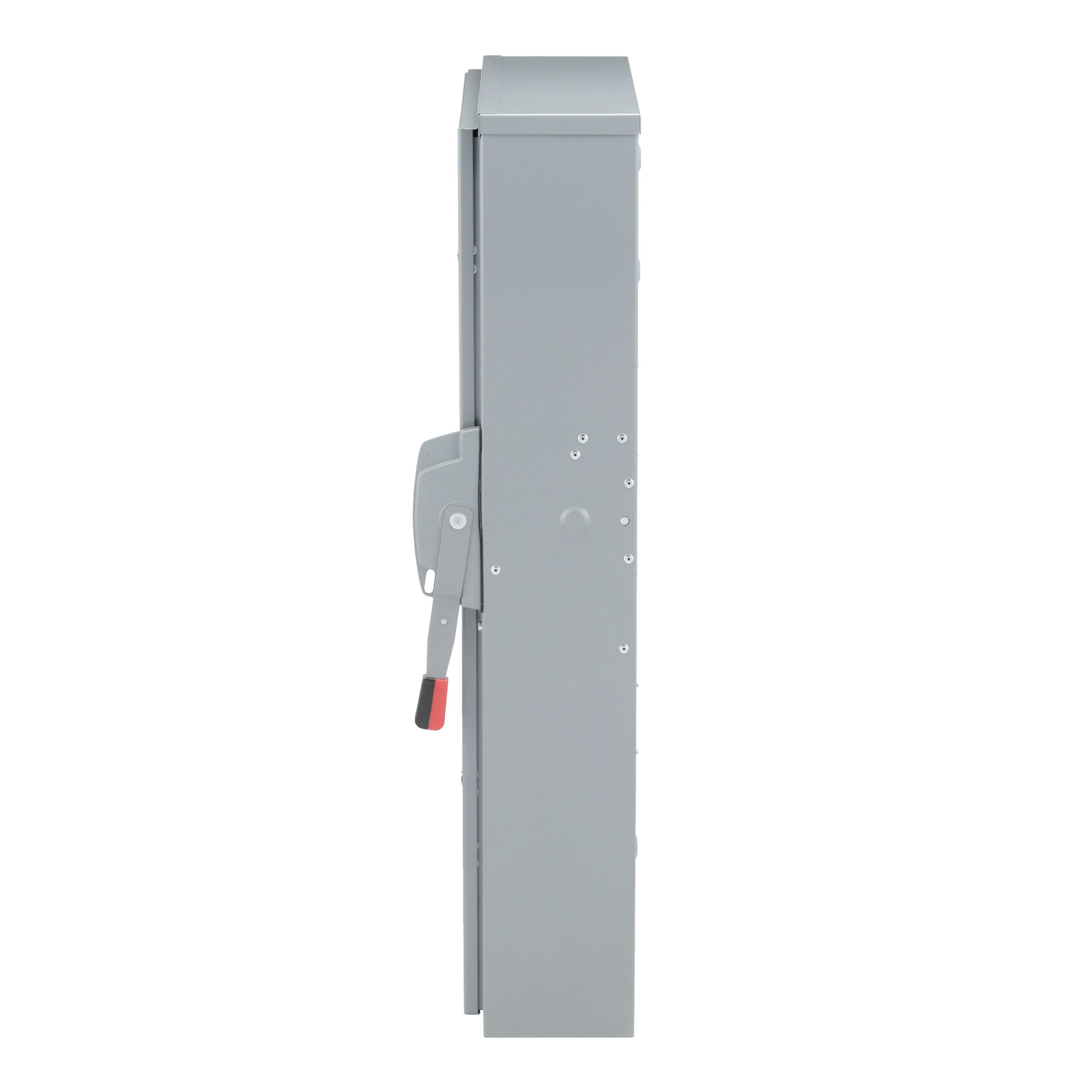

Picture of H365NR - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 3R
Square D

H365NR - Safety switch, heavy duty, fusible, 400A, 4 wire, 3 pole, 1 neutral, 250hp, 600VAC/DC, NEMA 3R

Item Code: 908956
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H365NR

Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Specifications

Weight

185.61lb

Height

14mm

Width

28.04mm

Length

51.01mm

Depth

10.13mm

Actuator Type

Handle

Amperage Rating

400 A

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Contact Form

3PST

Dimensions

27.76 in W x 9.53 in D x 50.31 in H

Enclosure Type

NEMA 3R

Finish

Hot dipped galvanized

Horsepower

50 hp, 125 hp

Insulation Type

Phenolic

Material

Steel

Mounting Type

Surface

Number Of Poles

3

Phase

3

Short Circuit Current Rating

10 kA

Terminal Type

Lug

Type

Heavy Duty Fusible Iceproof Rainproof Sleetproof

Voltage Rating

600 V AC/DC
