Square D

H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12

Category Fusible Heavy Duty Safety Switches

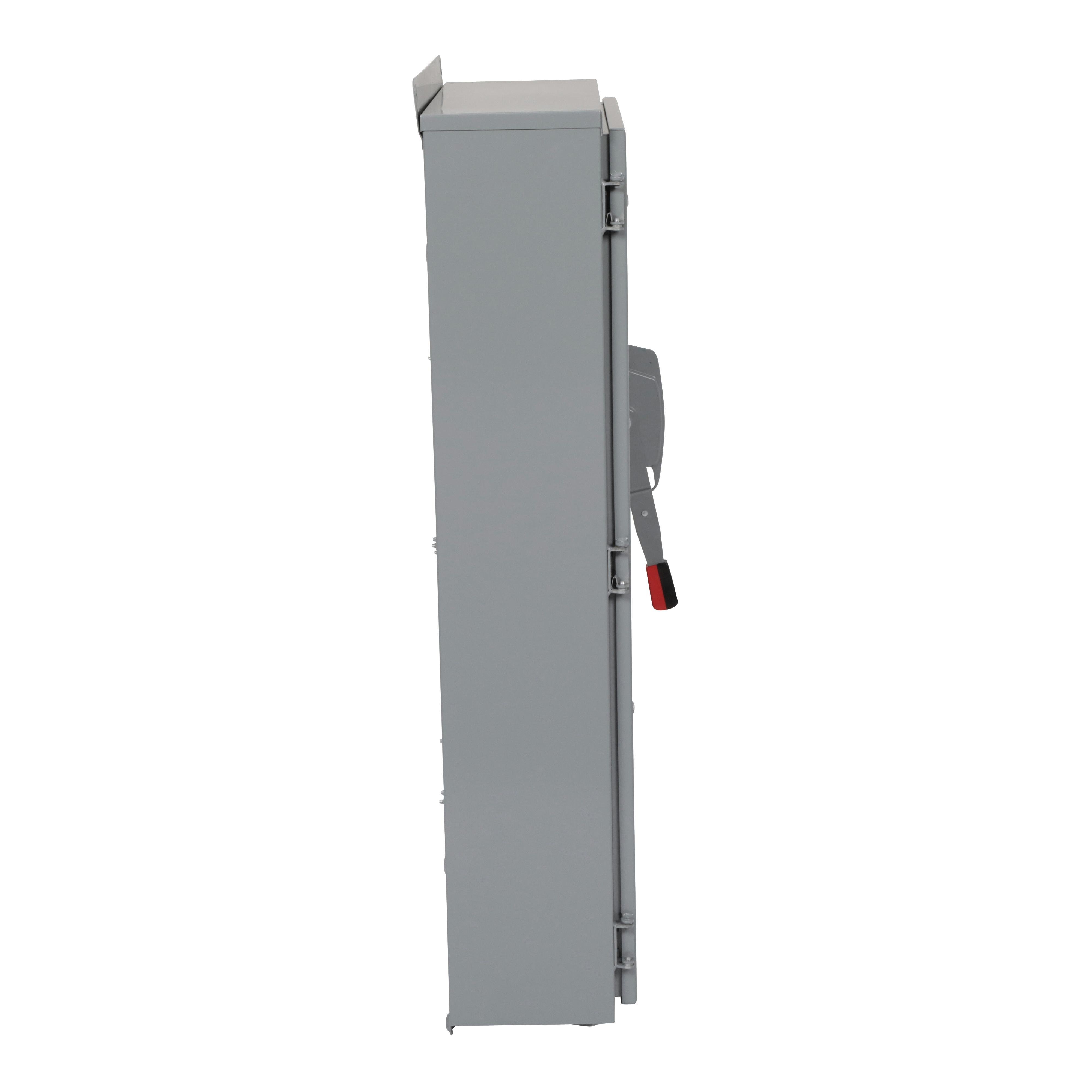

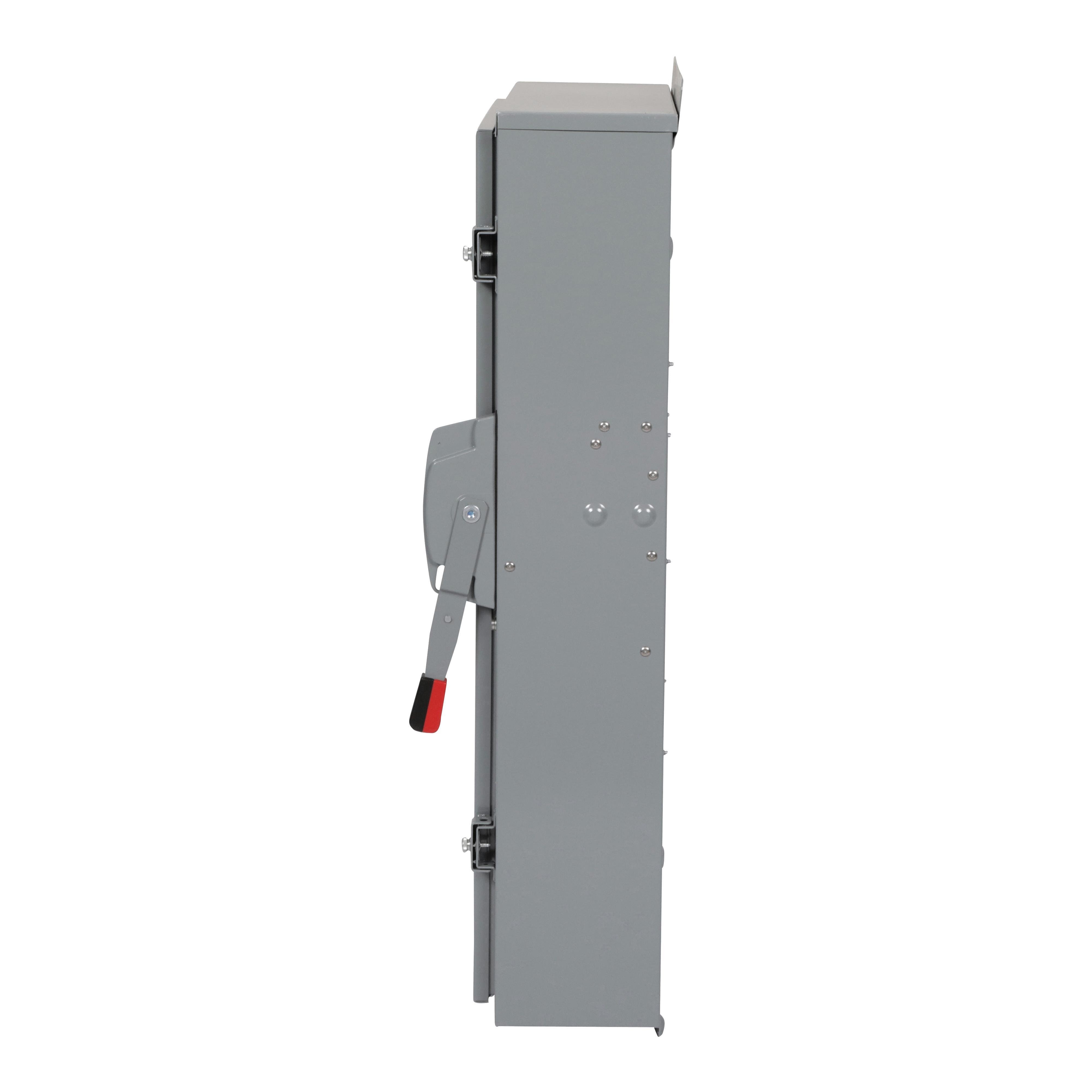

Picture of H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12 Picture of H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12
Picture of H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12 Picture of H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12
Picture of H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12 Picture of H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12
Square D

H366AWK - Safety switch, heavy duty, fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 12

Item Code: 625405
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H366AWK

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 600A and has a NEMA 3R/12 degree of protection. This fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a galvannealed steel enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 3/0 / 500 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 46.25 in (H), 26.25 in (W), 10.13 in (D).

Specifications

Weight

174.63

Height

51.5

Width

26.17

Length

12.87

AD Application

Commercial, Indoor/Outdoor and Industrial Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH DISC DUTY HVY 600VAC/VDC 600A

AD Item Features 01

Type 12 without knockouts indoor dust and drip tight enclosure

AD Item Features 02

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 05

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height

51.5000

AD Package Height UOM

IN

AD Package Length

12.8700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

17674.8000

AD Package Volume UOM

cu-in

AD Package Weight

174.6300

AD Package Weight UOM

LB

AD Package Width

26.1700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/s2yLxPcRTIY

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Short Circuit Current Rating

Spec 13 Attribute UOM

KA

Spec 13 Attribute Value

10/200

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Lug

Spec 15 Attribute

Type

Spec 15 Attribute Value

Fusible

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC/DC

Spec 16 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

600

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

27.88 in W x 10.13 in D x 50.25 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R/12

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 200 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
