Square D

H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1

Category Fusible Heavy Duty Safety Switches

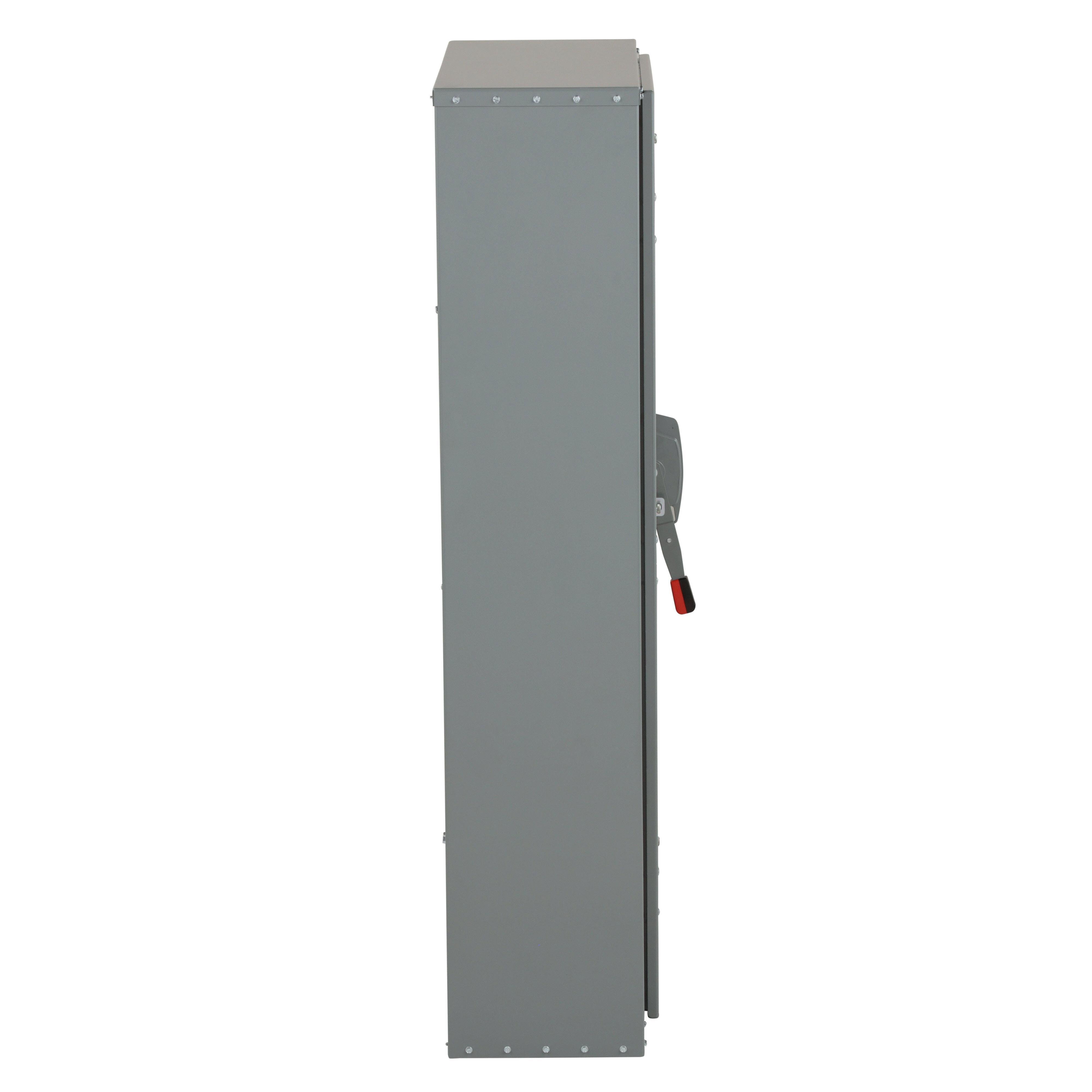

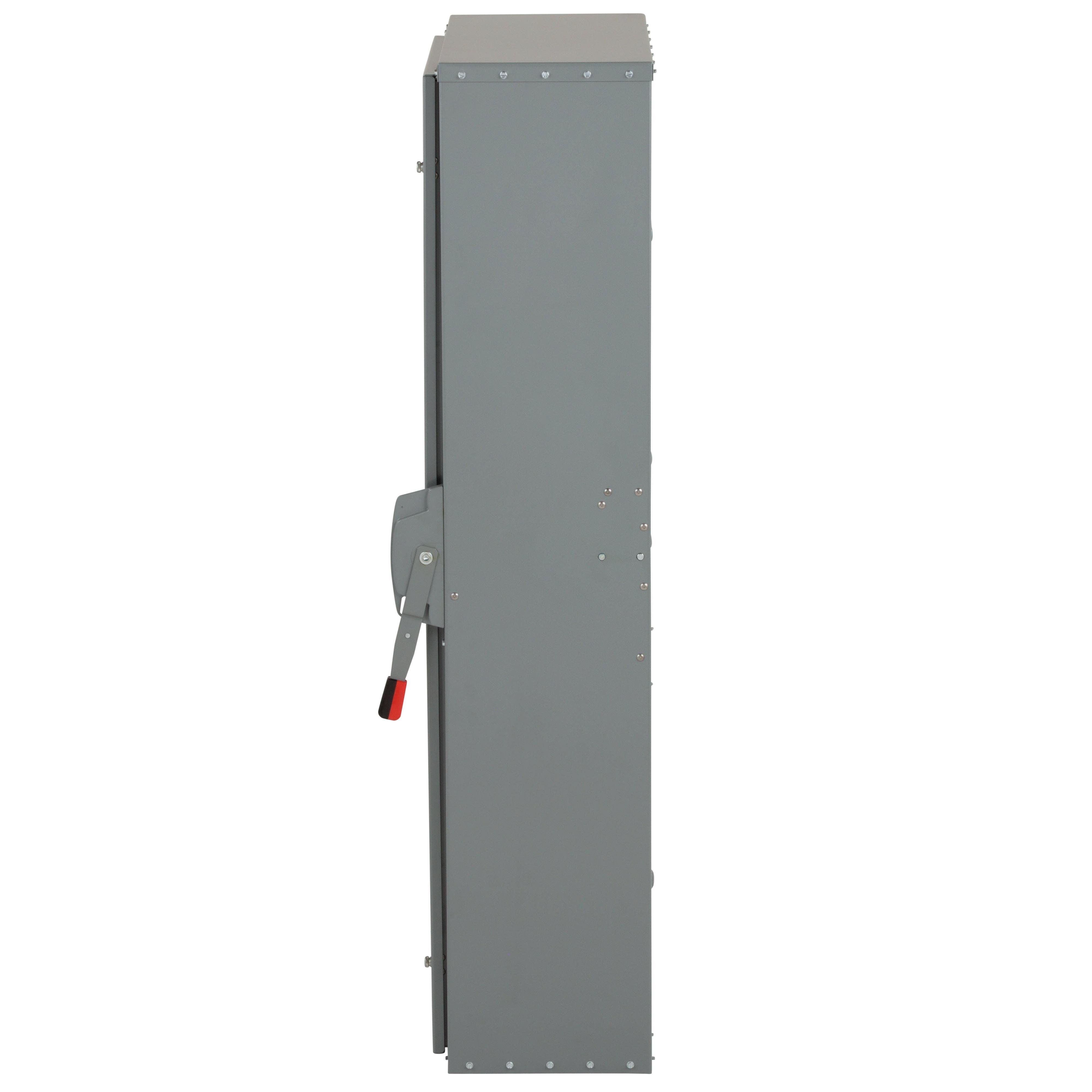

Picture of H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1 Picture of H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1
Picture of H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1 Picture of H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1
Picture of H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1 Picture of H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1
Square D

H367 - Safety switch, heavy duty, fusible, 800A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 1

Item Code: 626251
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H367

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase, 50 HP at 600 VAC three phase and 30 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 12 to 3 AWG aluminum wire and 14 to 3 AWG copper wire. This device has enclosure rating of NEMA 4/4X/5 and it is made of stainless steel. It has a height of 16.87 in, width of 10.81 in and has a depth of 6.97 in. It is UL listed with the file E2875.

Specifications

Weight

357.25

Height

73.8

Width

29.72

Length

37.63

AD Application

Mining, Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Waste Water Treatment Plants, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 800A

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Quick make, quick break operating mechanism

AD Item Features 03

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 04

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height

73.8000

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

84132.0000

AD Package Volume UOM

cu-in

AD Package Weight

357.2500

AD Package Weight UOM

LB

AD Package Width

29.7200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/oeILpNIxqR0

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

SINGLE THROW

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Series

Spec 13 Attribute Value

E4

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Fusible General Purpose

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC/DC

Spec 18 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

800

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Painted

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 500 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Cold Rolled Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
