Square D

H367NR - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 500hp, 600VAC/DC, NEMA 3R

Category Miscellaneous

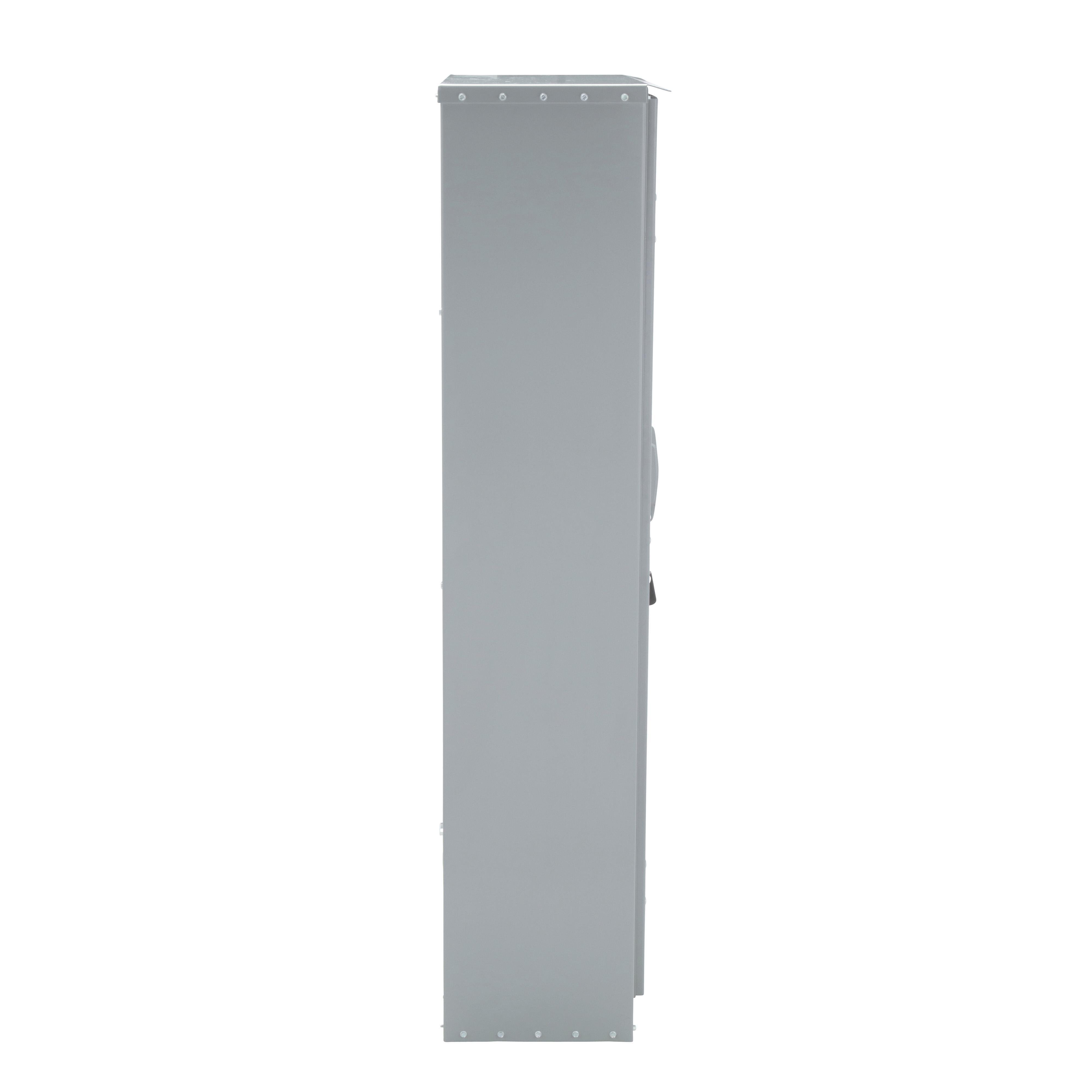

Picture of H367NR - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 500hp, 600VAC/DC, NEMA 3R Picture of H367NR - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 500hp, 600VAC/DC, NEMA 3R
Picture of H367NR - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 500hp, 600VAC/DC, NEMA 3R Picture of H367NR - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 500hp, 600VAC/DC, NEMA 3R
Square D

H367NR - Safety switch, heavy duty, fusible, 800A, 4 wire, 3 pole, 1 neutral, 500hp, 600VAC/DC, NEMA 3R

Item Code: 576424
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H367NR

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 800A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Specifications

Weight

364.23

Height

73.8

Width

29.72

Length

37.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H367NR/H367NR.spin

AD All Features

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Alternative Part Number

8048769

AD Application

Commercial, Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901442431

AD Gtin

00785901442431

AD IDEA Index ID

8048769

AD Invoice Description

SWITCH SAF 600VAC/VDC 800A TPST 3 1/2/3

AD Item Features 01

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 02

Factory installed neutral

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Manufacturer (Description)

Schneider Electric

AD Package Height

73.8000

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

84132.0000

AD Package Volume UOM

cu-in

AD Package Weight

364.2300

AD Package Weight UOM

LB

AD Package Width

29.7200

AD Package Width UOM

IN

AD Part Number Keywords

H367NR ; 8048769 ; 785901442431 ; 78590144243 ; 00785901442431 ; 0785901442431

AD Video Links

https://www.youtube.com/embed/eDpOzHTM8qw

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

4

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

1/2/2003

Spec 14 Attribute

Series

Spec 14 Attribute Value

E4 Series

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

200

Spec 16 Attribute

Temperature Rating

Spec 16 Attribute UOM

deg F

Spec 16 Attribute Value

-22 to 104

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Heavy Duty Fusible Iceproof Rainproof Sleetproof

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute UOM

V AC/DC

Spec 19 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

800

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3PST

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Hot Dipped Galvanized/Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

50 hp, 250 hp, 500 hp

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
