Square D

H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1

Category Miscellaneous

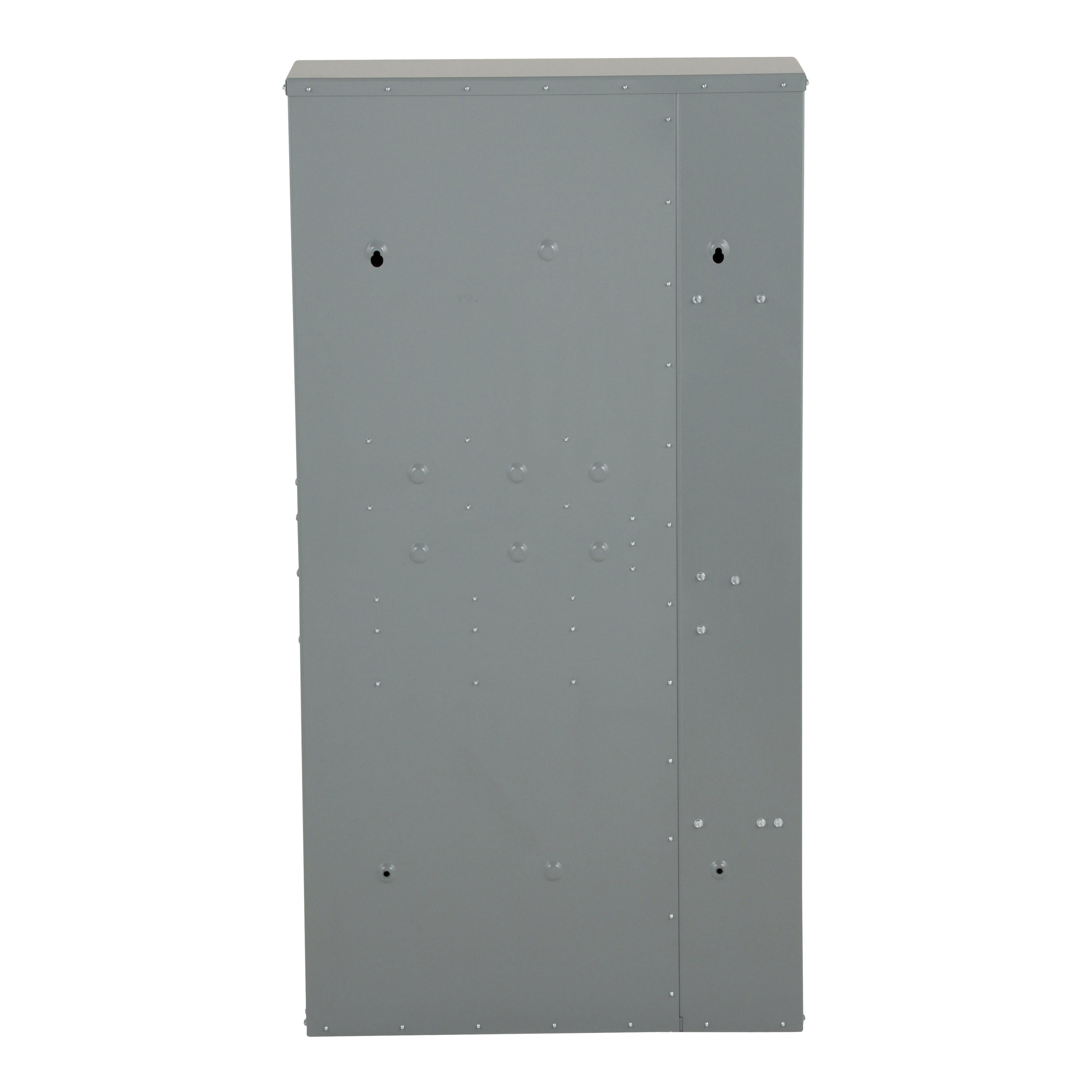

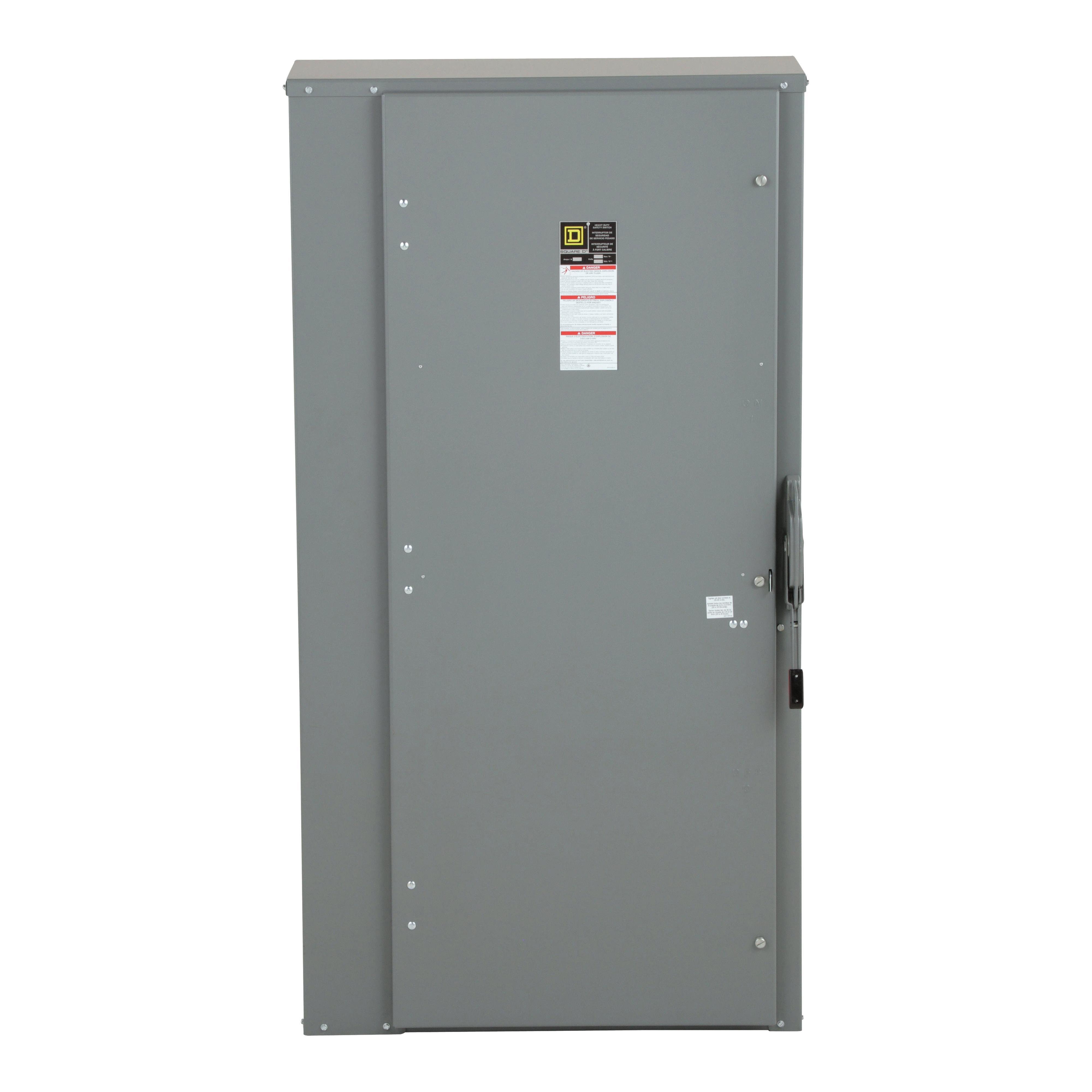

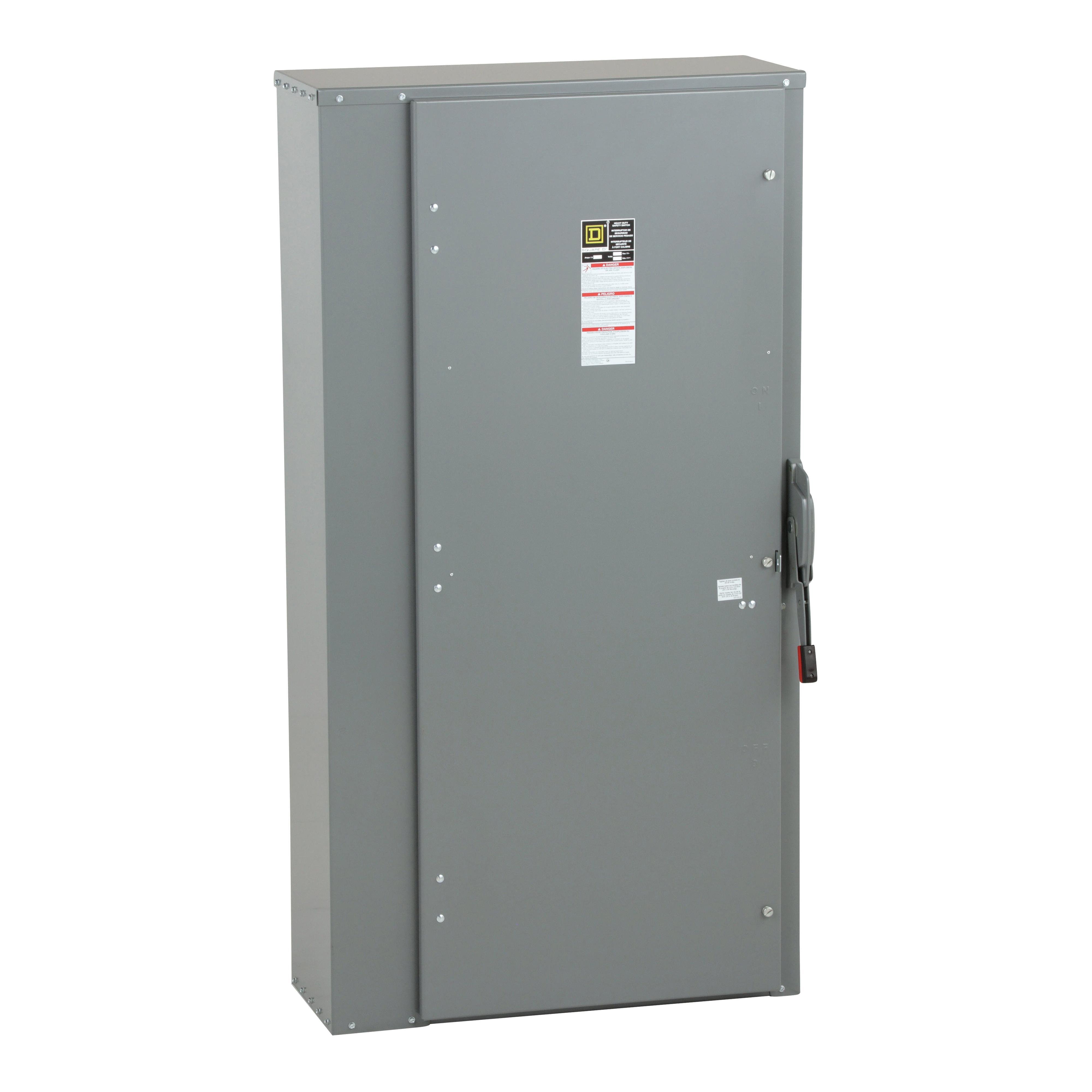

Picture of H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1 Picture of H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1
Picture of H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1 Picture of H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1
Picture of H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1 Picture of H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1
Square D

H368N - Safety switch, heavy duty, fusible, 1200A, 3 pole, 500hp, 600VAC/DC, neutral factory installed, NEMA1

Item Code: 548455
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H368N

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 1 enclosure includes a factory installed neutral. It is UL listed with the file E2875.

Specifications

Weight

361.24

Width

29.6

Length

37.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H368N/H368N.spin

AD Alternative Part Number

8048780

AD Application

Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Water Wastewater, Healthcare Facilities, Educational Campuses and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901442462

AD Gtin

00785901442462

AD IDEA Index ID

8048780

AD Invoice Description

SWITCH SAF 600VAC/VDC 1200A 3NO

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

All feature a quick-make, quick-break operating mechanism, a dual cover interlock

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

361.2400

AD Package Weight UOM

LB

AD Package Width

29.6000

AD Package Width UOM

IN

AD Part Number Keywords

H368N ; 8048780 ; 785901442462 ; 78590144246 ; 00785901442462 ; 0785901442462

AD Video Links

https://www.youtube.com/embed/qZyLdmwykug

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle/Single Throw

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

4

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3

Spec 14 Attribute

Series

Spec 14 Attribute Value

E4

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

200

Spec 16 Attribute

Temperature Rating

Spec 16 Attribute UOM

deg F

Spec 16 Attribute Value

-22 to 104

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Heavy Duty Fusible General Purpose

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute UOM

V AC/DC

Spec 19 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

1200

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3NO 3 Form A

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

69.13 in H x 36.62 in W x 17.75 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Painted

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

500 hp at 600 VAC, 50 hp at 600 VDC

Spec 9 Attribute

Material

Spec 9 Attribute Value

Cold Rolled Steel
