Square D

H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R

Category Miscellaneous

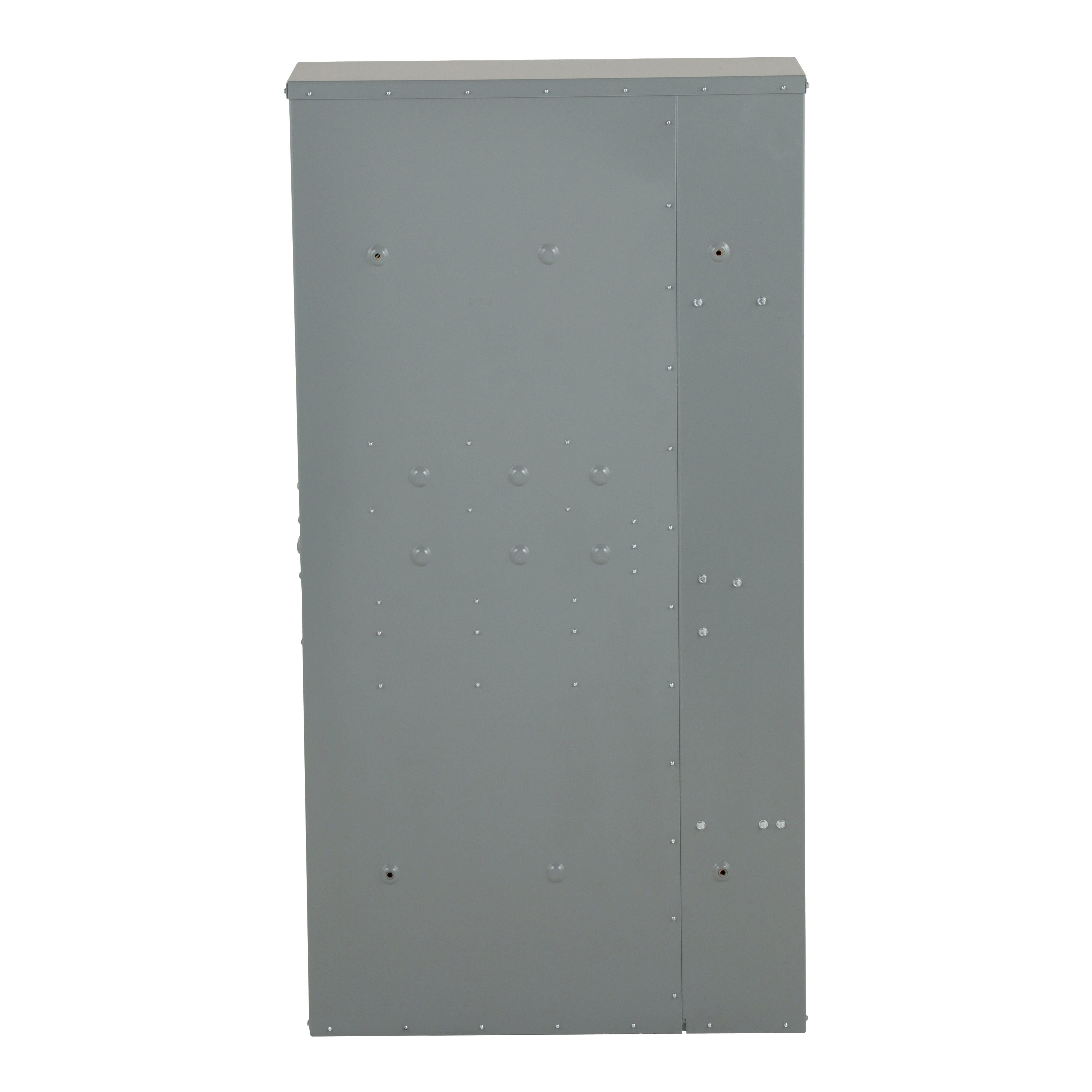

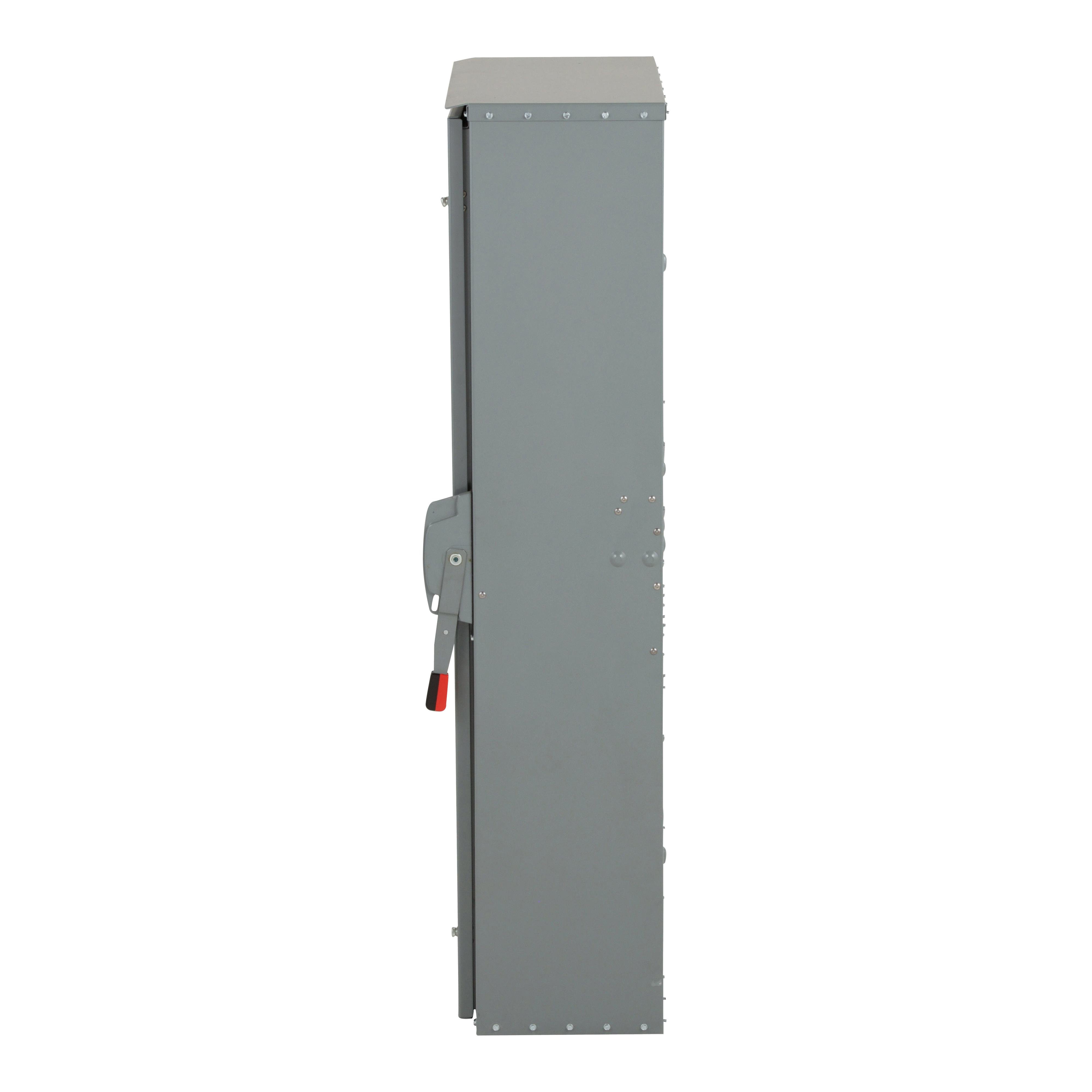

Picture of H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R Picture of H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R
Picture of H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R Picture of H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R
Picture of H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R Picture of H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R
Square D

H368R - Safety switch, heavy duty, fusible, 1200A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R

Item Code: 576122
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref H368R

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. Heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 1200A with voltage of 600VAC and 600VDC. This switch is rated at 200hp for 1 phase and 500hp for 3 phase with standard fuses. For time delay fuses, this switch is also rated at 250hp for 1 phase and 500hp for 3 phase. For 600VDC, it also is rated at 50hp. This unit is in a Type 3R enclosure. It is UL listed with the file E2875.

Specifications

Weight

372.22

Width

29.72

Length

37.63

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/H368R/H368R.spin

AD Alternative Part Number

8109153

AD Application

Mining and Mineral, Commercial Buildings, Manufacturing, Industrial Buildings, Waste Water Treatment Plants, Healthcare Facilities, Educational Campuses and Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901259329

AD Gtin

00785901259329

AD IDEA Index ID

8109153

AD Invoice Description

SWITCH SAF DUTY HVY 600VAC/VDC 1200A

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

All feature a quick-make, quick-break operating mechanism, a dual cover interlock

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Keywords

H368R E4 Fusible Iceproof Rainproof Sleetproof Heavy Duty Safety Switch, 600 V AC/DC, 1200 A, 50 hp, 500 hp, 3 Poles ; Schneider Electric ; Square D ; H368R ; H368R ; 785901259329 ; Heavy Duty Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

37.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

372.2200

AD Package Weight UOM

LB

AD Package Width

29.7200

AD Package Width UOM

IN

AD Part Number Keywords

H368R ; 8109153 ; 785901259329 ; 78590125932 ; 00785901259329 ; 0785901259329

AD Video Links

https://www.youtube.com/embed/mbIMCO9g7oI

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

SINGLE THROW

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

Number Of Wires

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Series

Spec 13 Attribute Value

E4

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

200

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute UOM

deg F

Spec 15 Attribute Value

-22 to 104

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Fusible Iceproof Rainproof Sleetproof

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC/DC

Spec 18 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

1200

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

36.62 in W x 17.75 in D x 69.13 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed/Painted

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

50 hp, 500 hp

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
