Square D™

HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus

Category Miscellaneous

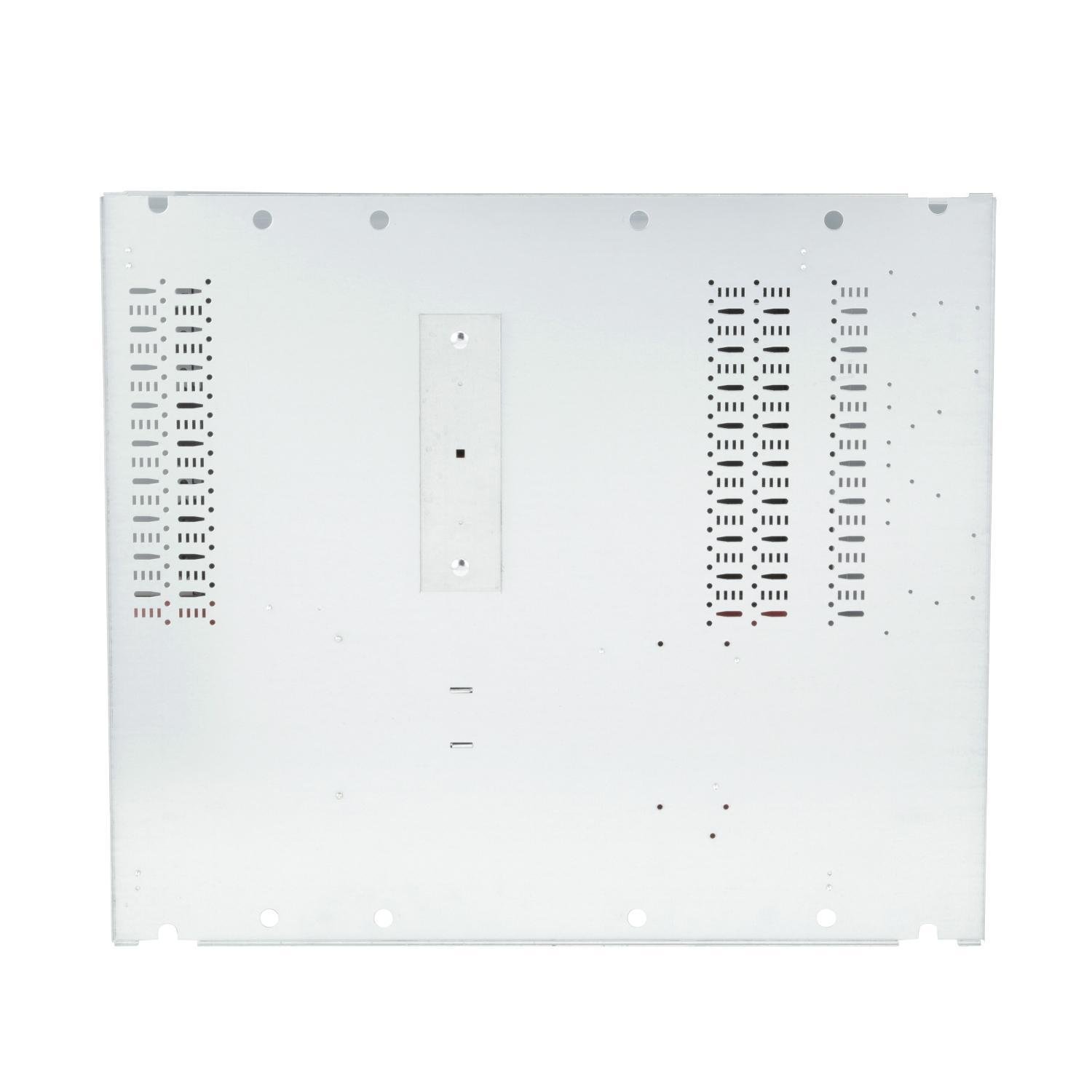

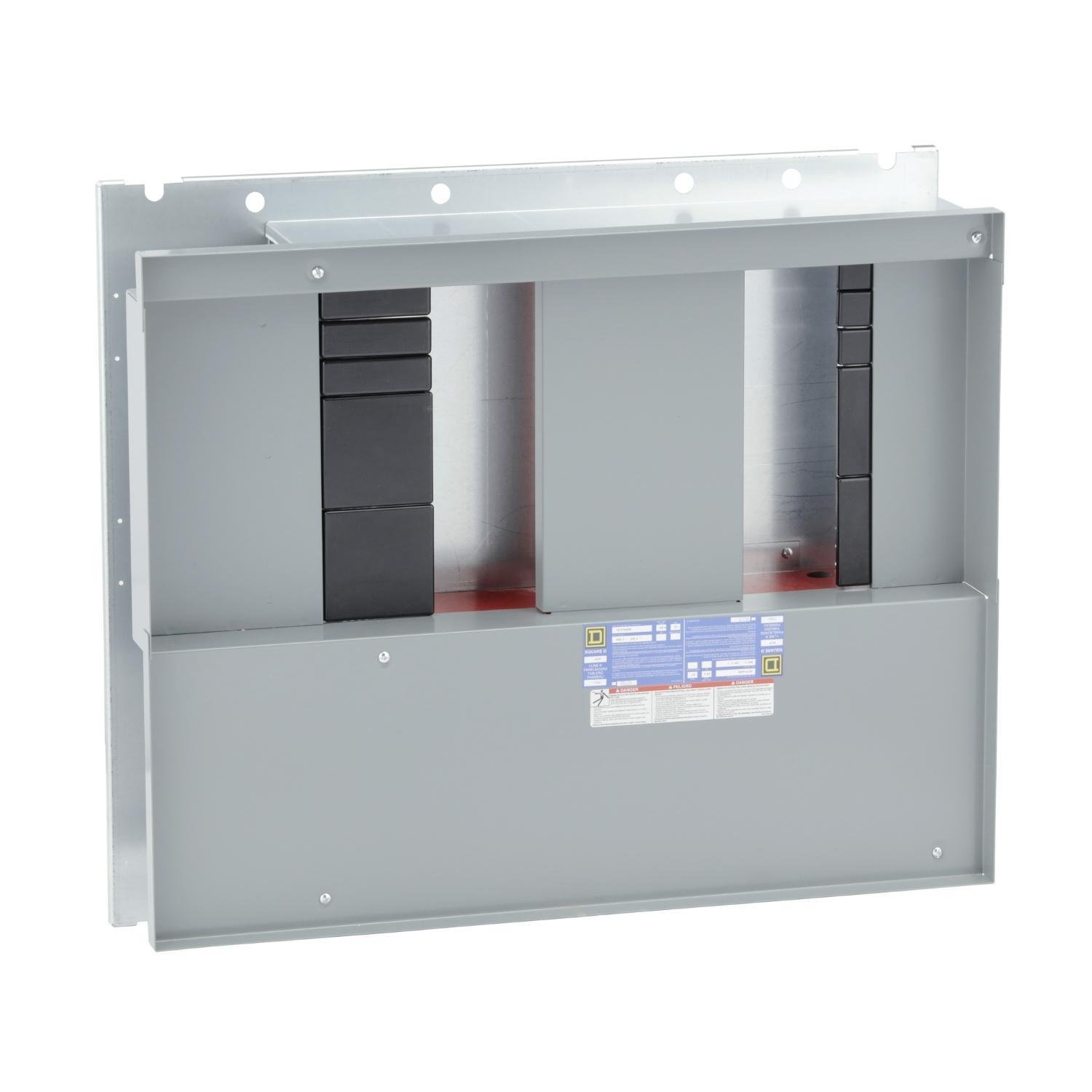

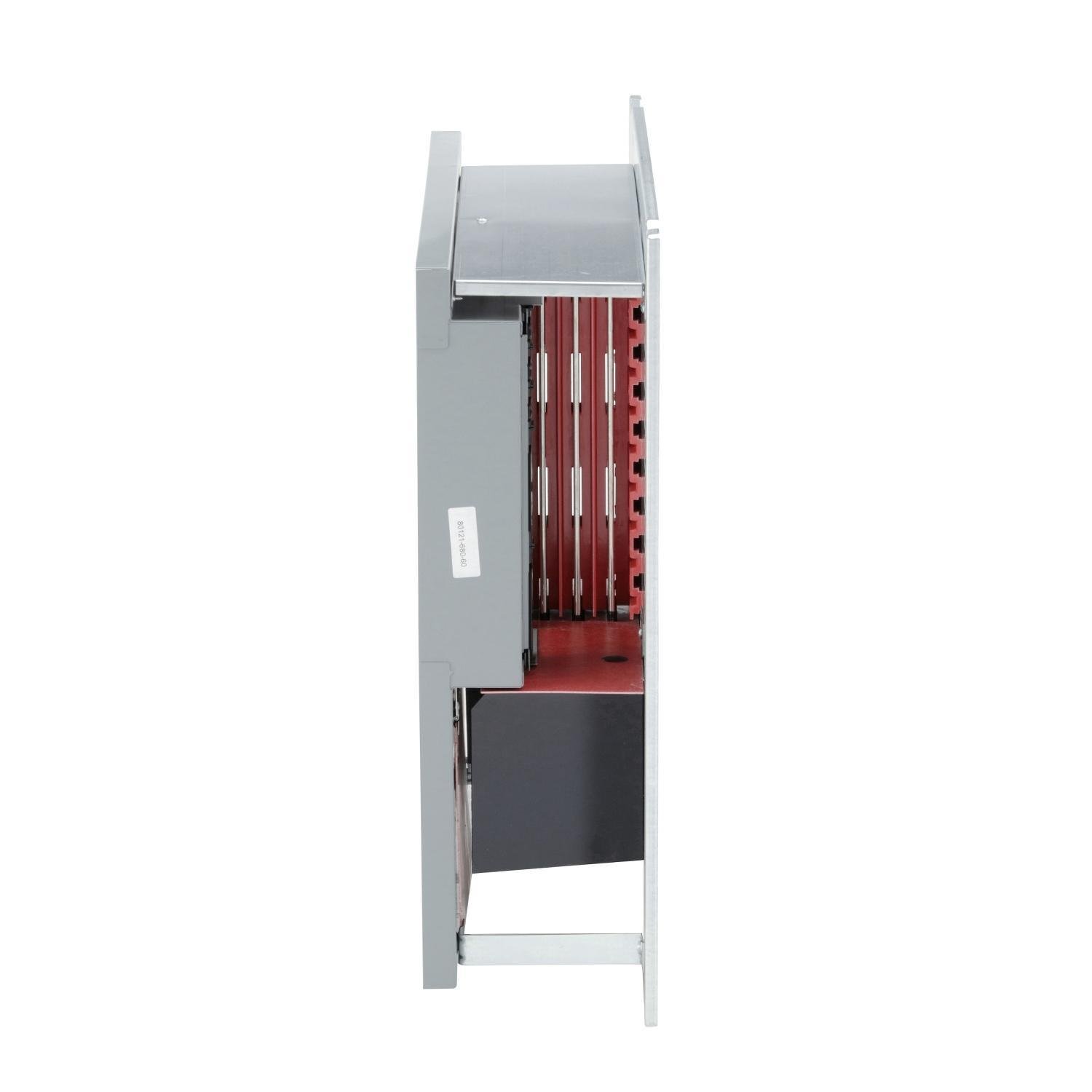

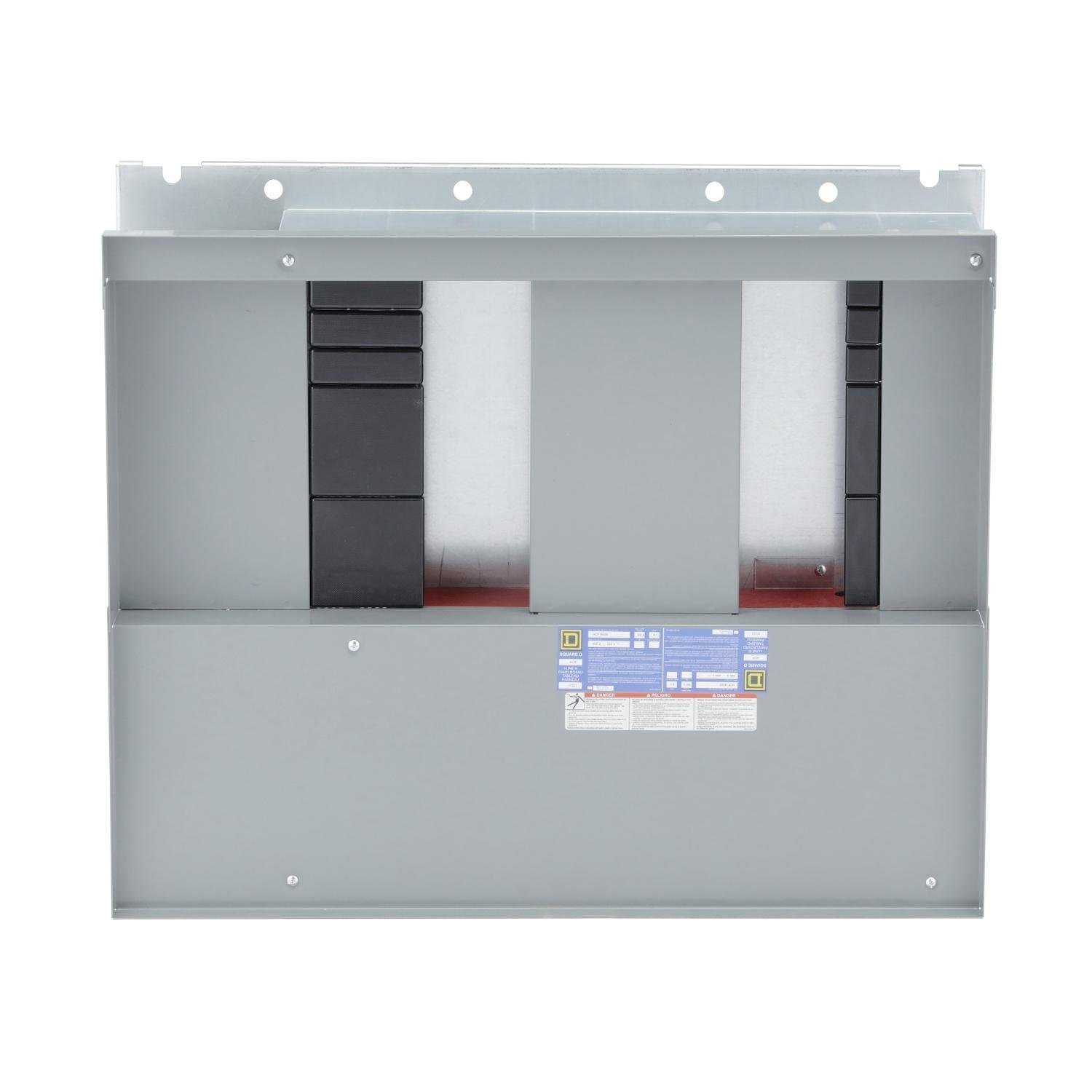

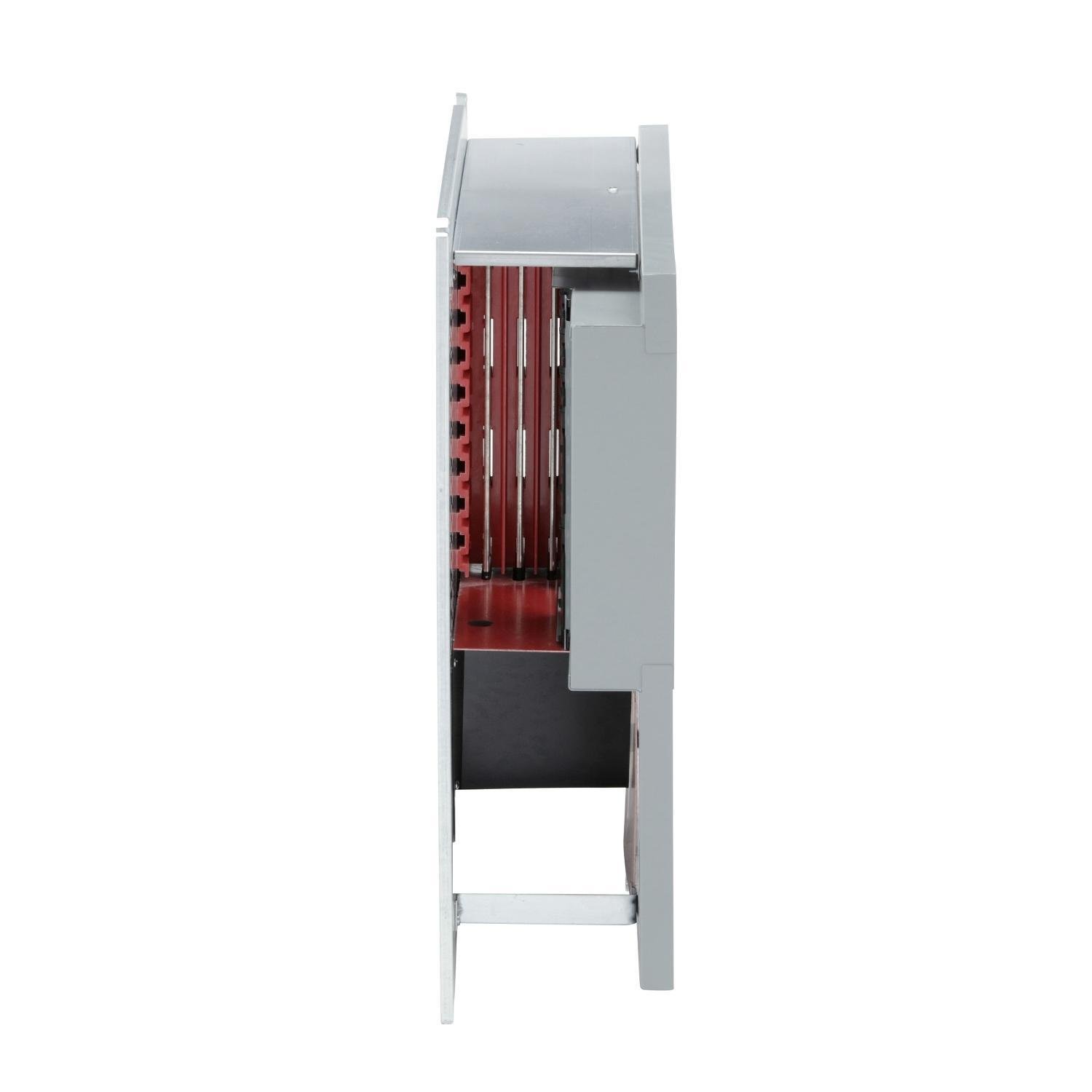

Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus
Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus
Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus
Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus
Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus Picture of HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus
Square D™

HCP14506 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Al bus

Item Code: 1790111
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCP14506

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. This HCP I-Line panelboard interior is a 600A and has main lugs. The dimesnions are 50 in (H),42 in (W). This product is certified to cULus & CE standards. This product comes with an 18 month warranty.

Specifications

Weight

84.82

Width

32.39

Length

38.14

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HCP14506/HCP14506.spin

AD All Features

600VAC, 250VDC maximum

AD Alternative Part Number

8045846

AD Application

For main lug load center

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901425366

AD Gtin

00785901425366

AD IDEA Index ID

8045846

AD Invoice Description

INTERIOR PANELBOARD 600 VAC/250 VDC 600A

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Keywords

I-Line HCP14506 3-Phase Bottom Type HCP Panelboard Interior, 600 V AC/250 V DC, 600 A, 27 Spaces, 200 kA SCCR ; Schneider Electric ; Square D ; HCP14506 ; HCP14506 ; 785901425366 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

38.1400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

84.8200

AD Package Weight UOM

LB

AD Package Width

32.3900

AD Package Width UOM

IN

AD Part Number Keywords

HCP14506 ; 8045846 ; 785901425366 ; 78590142536 ; 00785901425366 ; 0785901425366

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

600

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute Value

600 V AC/250 V DC

Spec 11 Attribute

Wiring Configuration

Spec 11 Attribute Value

3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

FA/FI/HD/JD

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

ALUMINUM/COPPER

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

42 in W x 9-1/2 in D x 50 in H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

60

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number of Spaces

Spec 7 Attribute Value

27

Spec 8 Attribute

Short Circuit Current Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

200

Spec 9 Attribute

Type

Spec 9 Attribute Value

3-Phase Bottom Type HCP
