Square D

HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus

Category Miscellaneous

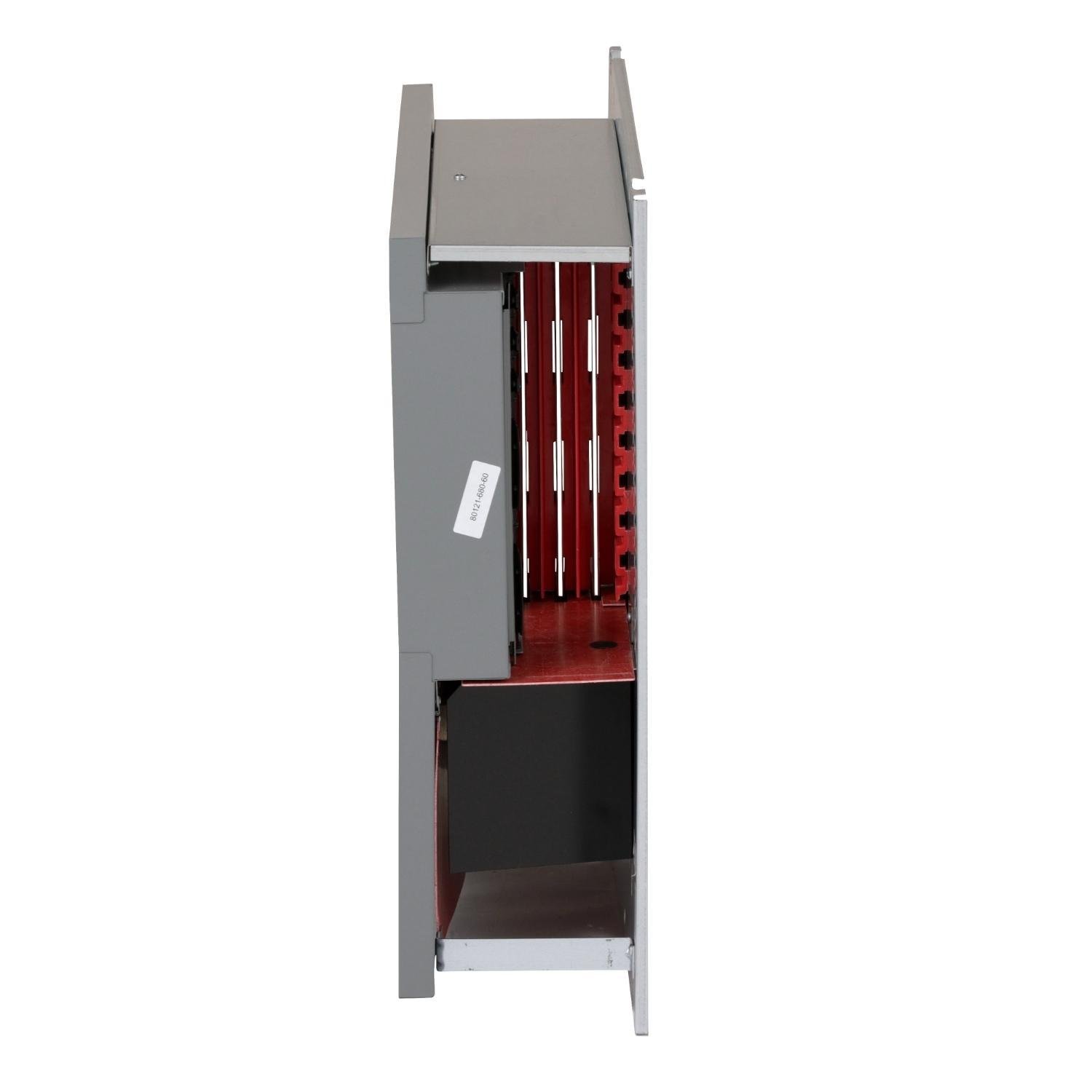

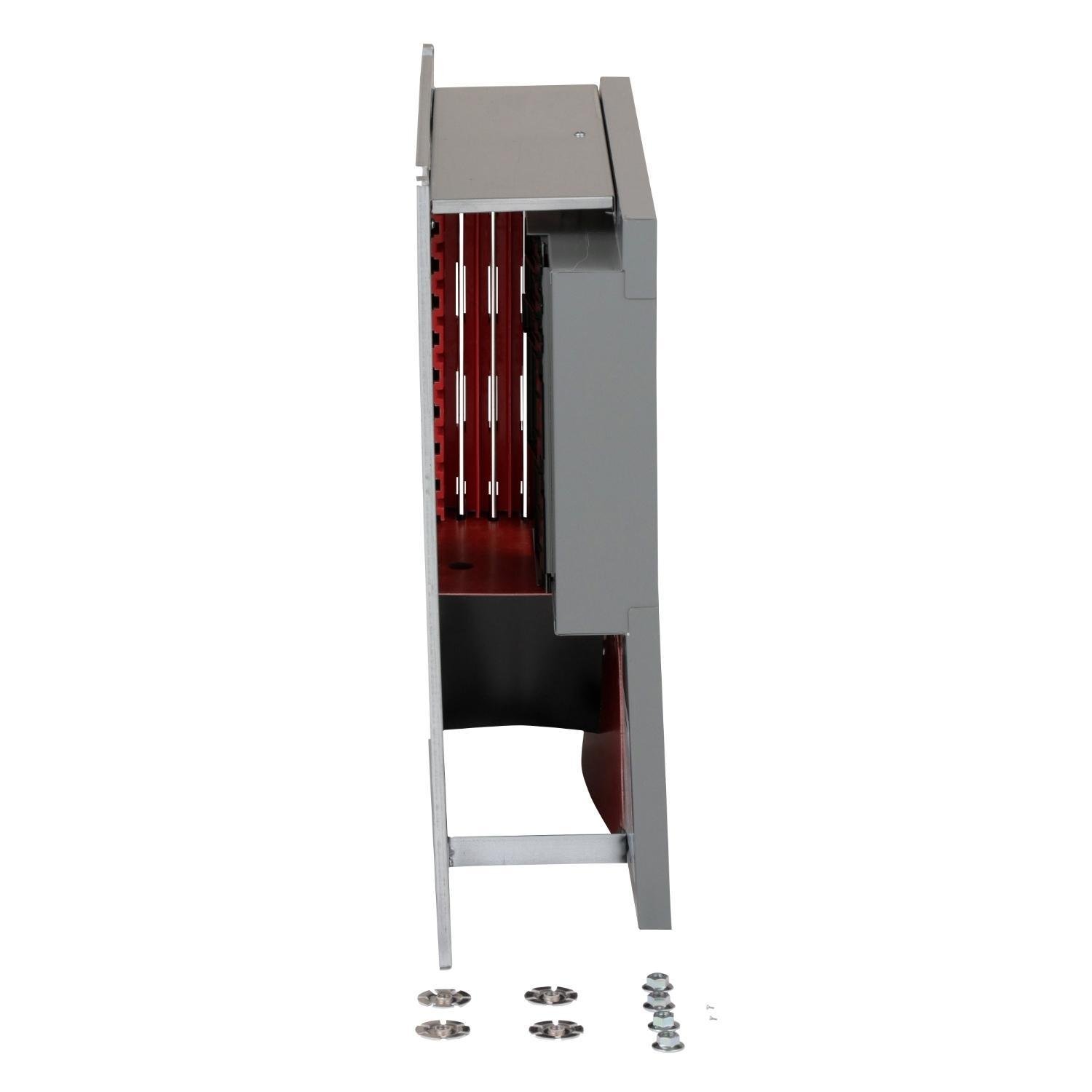

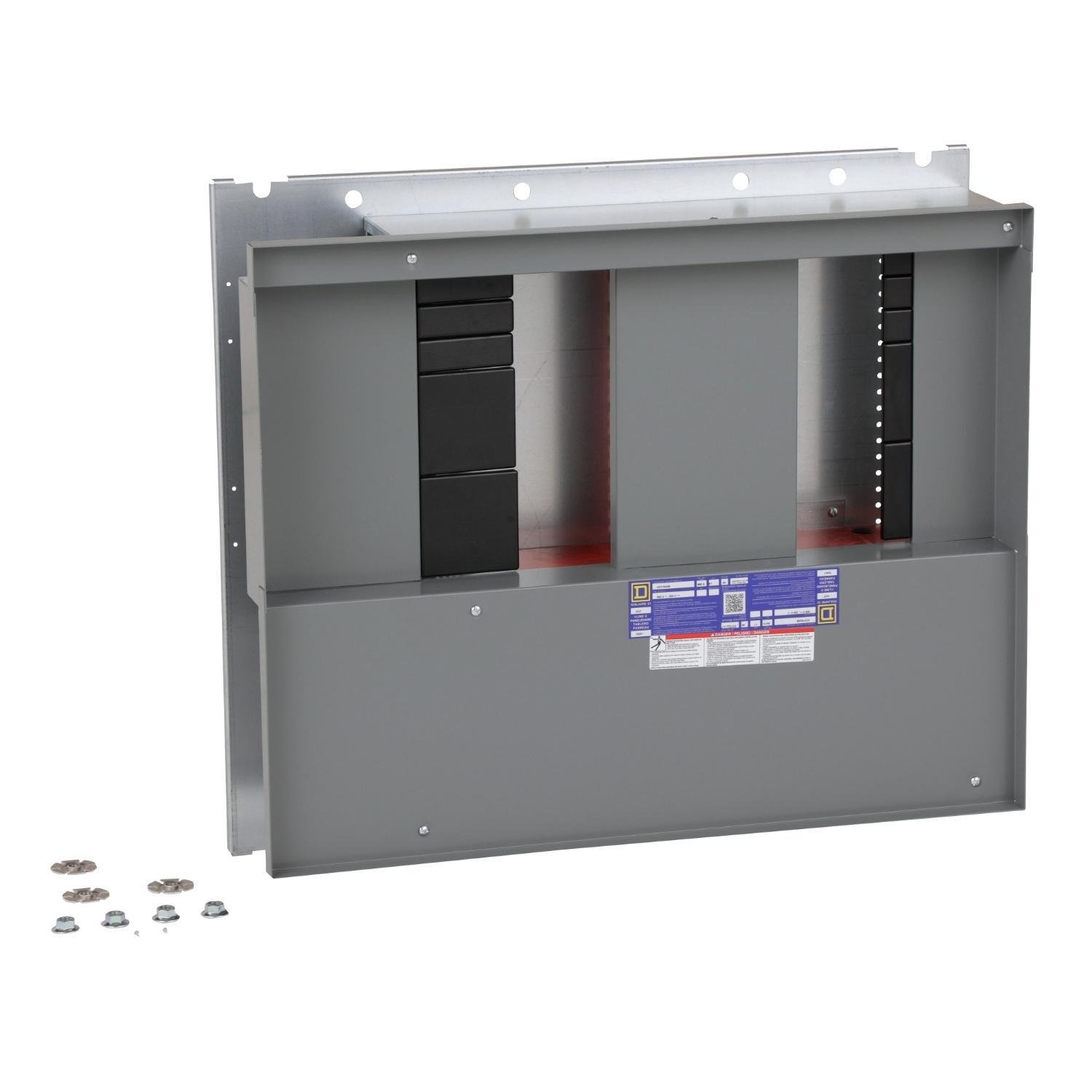

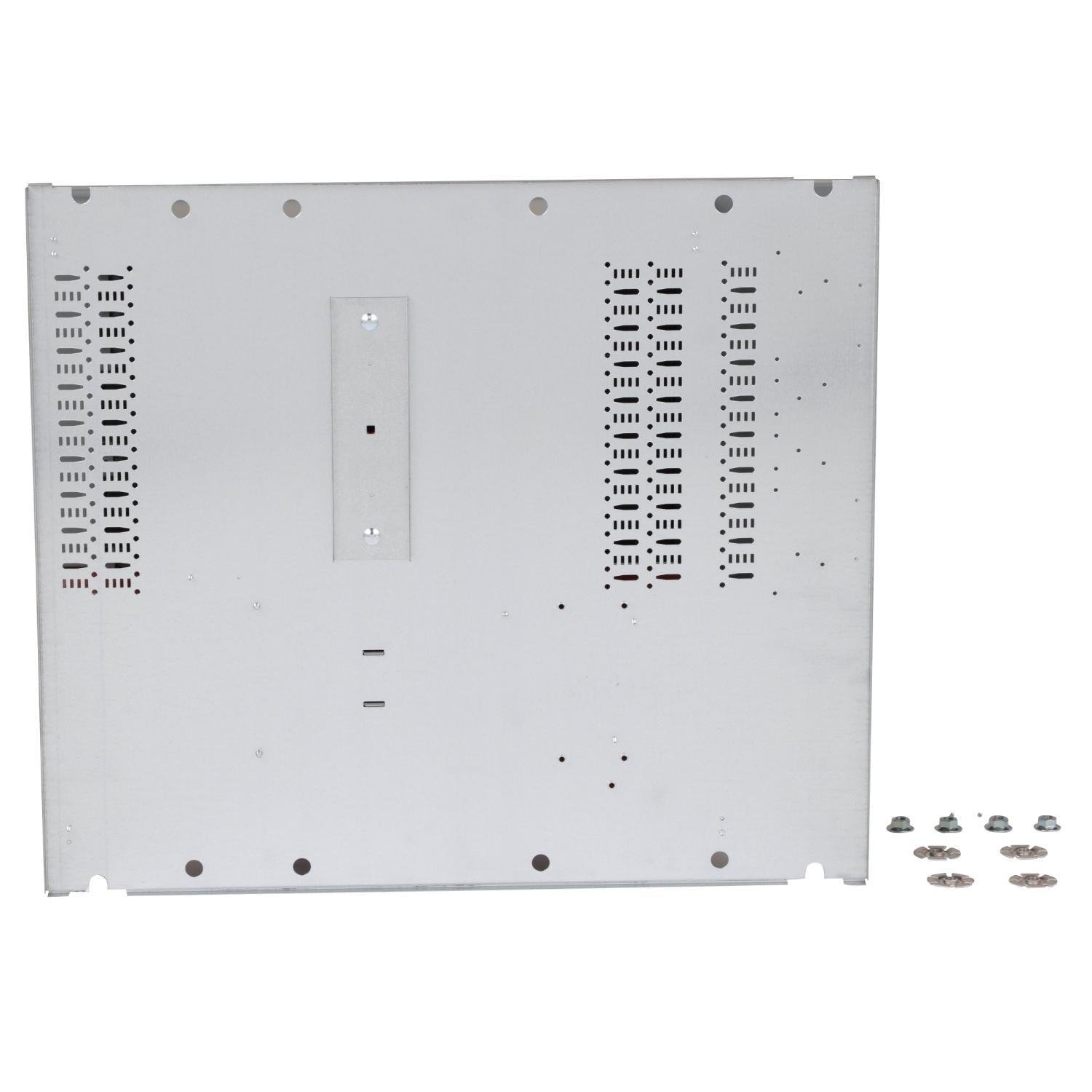

Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus
Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus
Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus
Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus
Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus Picture of HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus
Square D

HCP14508 - Interior, I-Line Panelboard, HCP, 800A, main lugs, 27in CB space, for 42in W x 50in H x 9.5in D box, Cu bus

Item Code: 552882
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCP14508

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ I-Line Power Distribution Panelboards is ideal for service entrance equipment or downstream distribution panels in the electrical system and is used to feed NQ and NF lighting and appliance panelboards. The I-Line power distribution panelboard is the most versatile on the market and feature Schneider Electric's unique breaker engagement system which allows 15 A branch circuit breaker next to or across from a 1200 A circuit breaker. I-Line panelboards are capable of feeding large motor loads and are UL Listed for use on systems with up to 200K max. These panelboards can come with a main breaker or main lug configuration and 400–1200A main lugs only and 100–1200A main circuit breakers. This is the interior for the HCP I-line main lugs panelboard that is rated for 800A and has 27 inches in circuit breaker space. This interior has a height of 30 in, width of 34.38 in and depth of 8.7 in. This product is certified to cULus & CE standards.

Specifications

Weight

109.77

Width

32.39

Length

38.14

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/HCP14508/HCP14508.spin

AD All Features

600VAC, 250VDC maximum

AD Alternative Part Number

8089682

AD Application

For main lug load center applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD EAN

0785901923251

AD Gtin

00785901923251

AD IDEA Index ID

8089682

AD Invoice Description

INTERIOR PANELBOARD 600 VAC 250 VDC 27

AD Item Features 01

600VAC, 250VDC maximum

AD Item Features 02

Fully rated and series rated system available

AD Item Features 03

Dead front trim is easily installed

AD Item Features 04

Factory assembled or ready to install

AD Keywords

I-Line HCP14508 Bottom Panelboard Interior, 600 V AC/250 V DC, 800 A, 27 Spaces, 200 kA SCCR ; Schneider Electric ; Square D ; HCP14508 ; HCP14508 ; 785901923251 ; Panelboard Interiors

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

38.1400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

109.7700

AD Package Weight UOM

LB

AD Package Width

32.3900

AD Package Width UOM

IN

AD Part Number Keywords

HCP14508 ; 8089682 ; 785901923251 ; 78590192325 ; 00785901923251 ; 0785901923251

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

800

Spec 10 Attribute

Short Circuit Current Rating

Spec 10 Attribute UOM

KA

Spec 10 Attribute Value

200

Spec 11 Attribute

Type

Spec 11 Attribute Value

Bottom

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute Value

600 V AC/250 V DC

Spec 13 Attribute

Wiring Configuration

Spec 13 Attribute Value

3-Phase, 3-Wire

Spec 2 Attribute

Breaker Type

Spec 2 Attribute Value

FA/FI/HD/JD

Spec 3 Attribute

Bus Material

Spec 3 Attribute Value

ALUMINUM/COPPER

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

42 in W x 9-1/2 in D x 50 in H

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

60

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

ALUMINUM/COPPER

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

Number of Spaces

Spec 8 Attribute Value

27

Spec 9 Attribute

Series

Spec 9 Attribute Value

HCP
