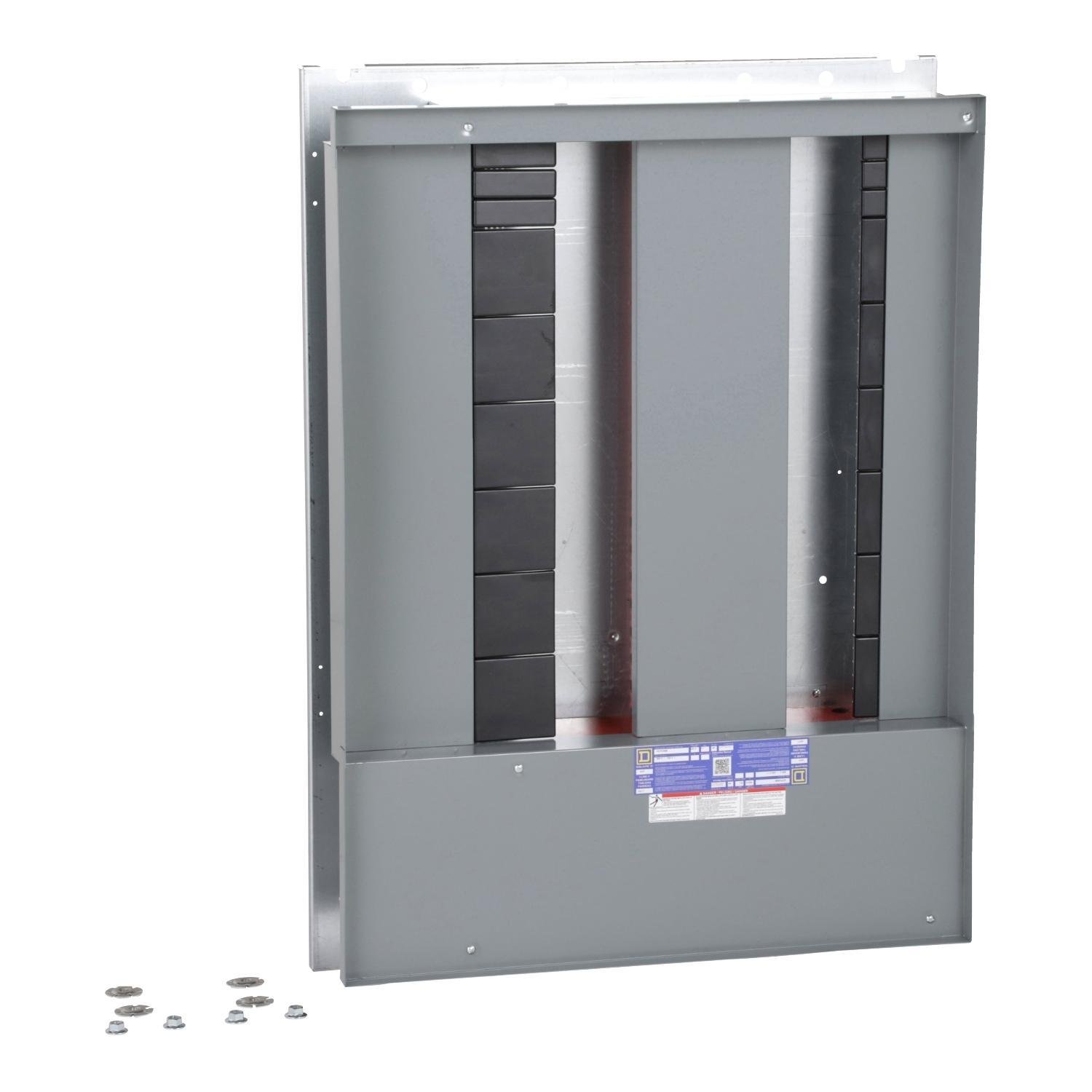

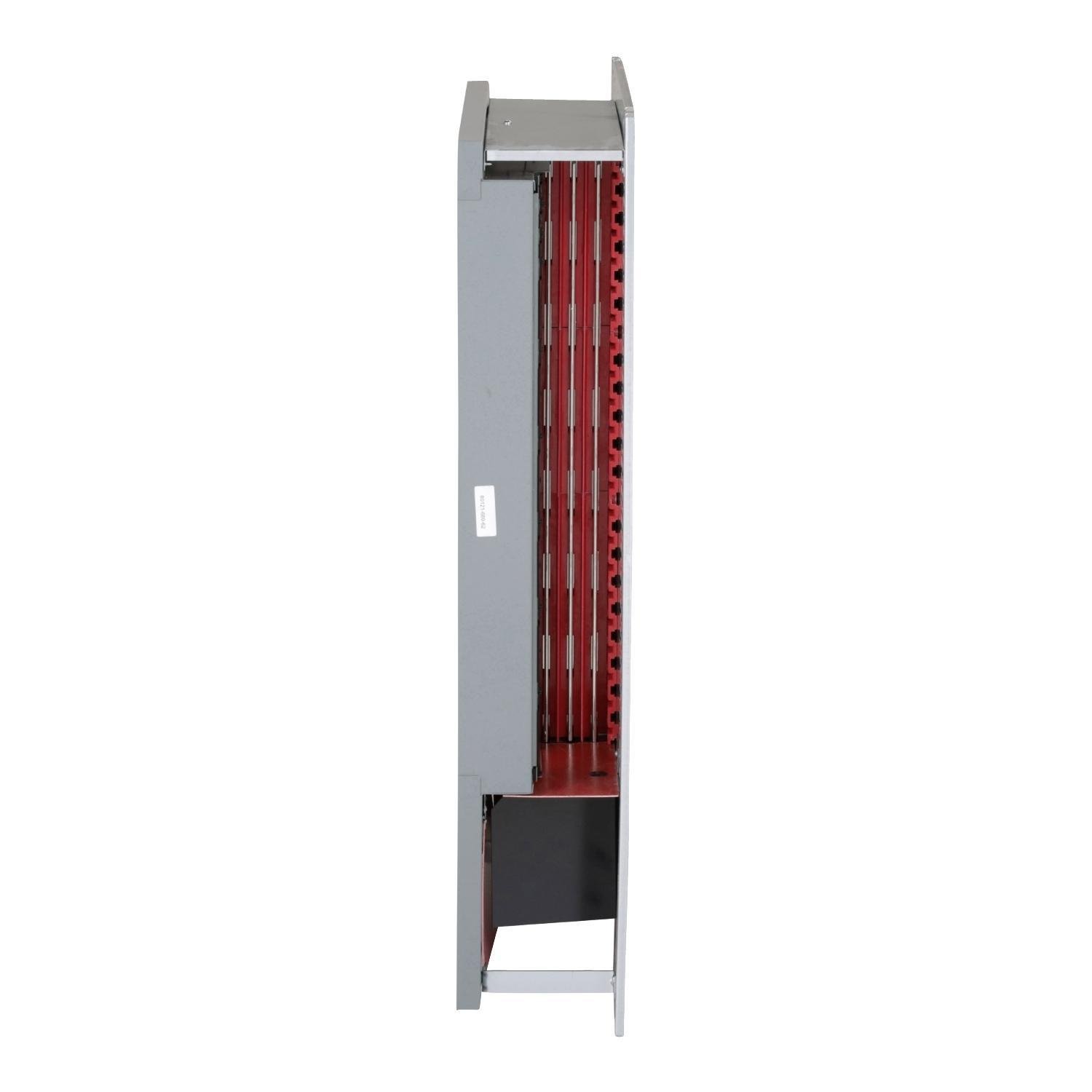

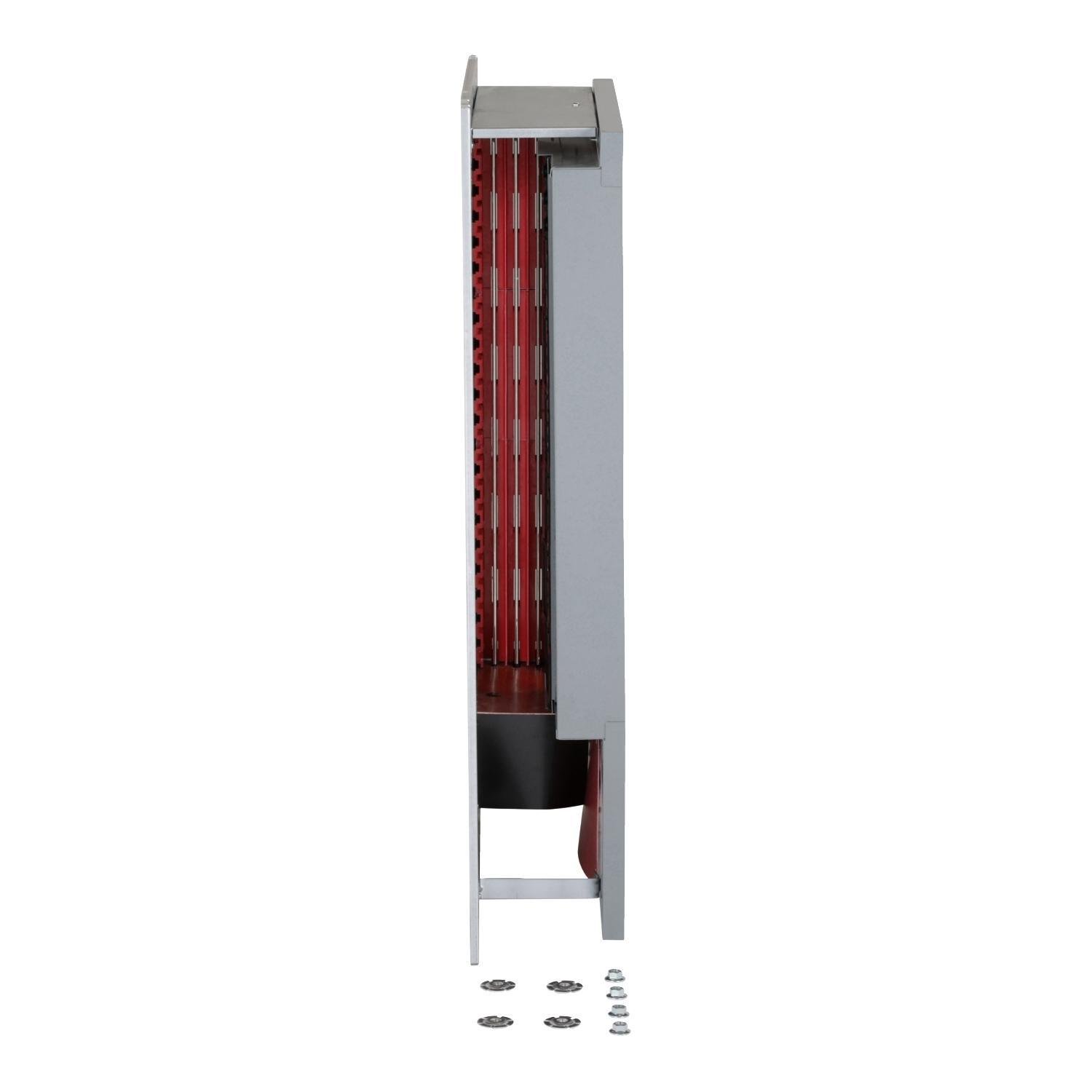

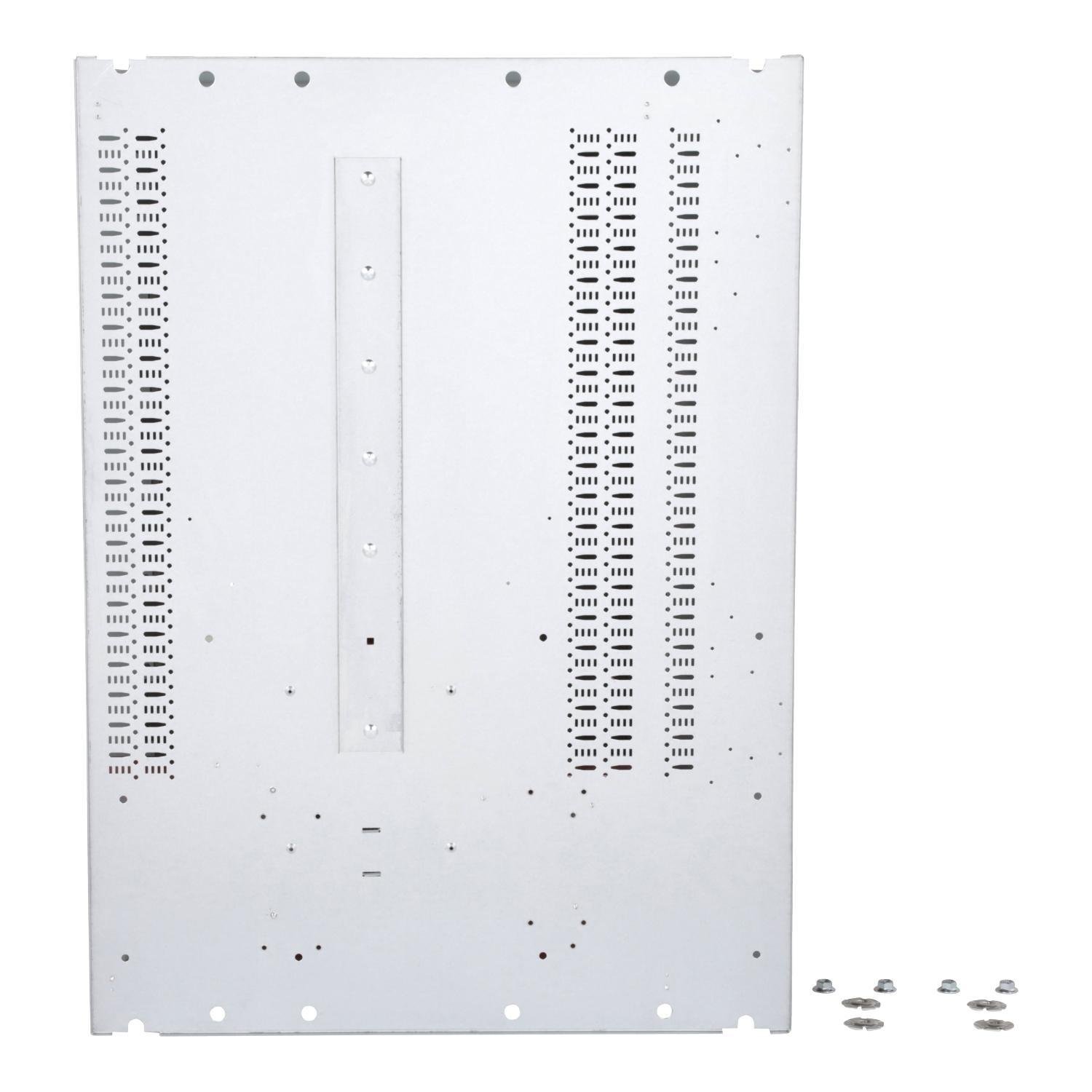

HCP32686 - Interior, I-Line Panelboard, HCP, 600A, main lugs, 63in CB space, for 42in W x 68in H x 9.5in D box, Al bus
Item Code: 1737035
Category
Square D I-Line
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HCP32686
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
159.66lb
Height
48mm
Width
37.63mm
Length
50.51mm
AD All Features
600VAC, 250VDC maximum
AD Application
For main lug load center applications
AD Brand (Description)
Square D
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
INTERIOR PANELBOARD 600 VAC 250 VDC 63
AD Item Features 01
600VAC, 250VDC maximum
AD Item Features 02
Fully rated and series rated system available
AD Item Features 03
Dead front trim is easily installed
AD Item Features 04
Factory assembled or ready to install
AD Item Features 05
Circuit breaker plug-on jaws have no fasteners - less installation time
AD Manufacturer (Description)
Schneider Electric
AD Package Height UOM
IN
AD Package Length
50.5100
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
159.6600
AD Package Weight UOM
LB
AD Package Width
37.6300
AD Package Width UOM
IN
Brand
Square D
Category
Square D I-Line
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
600
Spec 10 Attribute
Short Circuit Current Rating
Spec 10 Attribute UOM
KA
Spec 10 Attribute Value
200
Spec 11 Attribute
Type
Spec 11 Attribute Value
Bottom
Spec 12 Attribute
Voltage Rating
Spec 12 Attribute Value
600 V AC/250 V DC
Spec 13 Attribute
Wiring Configuration
Spec 13 Attribute Value
3-Phase, 3-Wire
Spec 2 Attribute
Breaker Type
Spec 2 Attribute Value
FA/FI/HD/JD
Spec 3 Attribute
Bus Material
Spec 3 Attribute Value
ALUMINUM/COPPER
Spec 4 Attribute
Dimensions
Spec 4 Attribute Value
42 in W x 9-1/2 in D x 68 in H
Spec 5 Attribute
Frequency Rating
Spec 5 Attribute UOM
HZ
Spec 5 Attribute Value
60
Spec 6 Attribute
Housing Material
Spec 6 Attribute Value
ALUMINUM/COPPER
Spec 7 Attribute
Mounting Type
Spec 7 Attribute Value
Panel
Spec 8 Attribute
Number of Spaces
Spec 8 Attribute Value
63
Spec 9 Attribute
Series
Spec 9 Attribute Value
HCP
